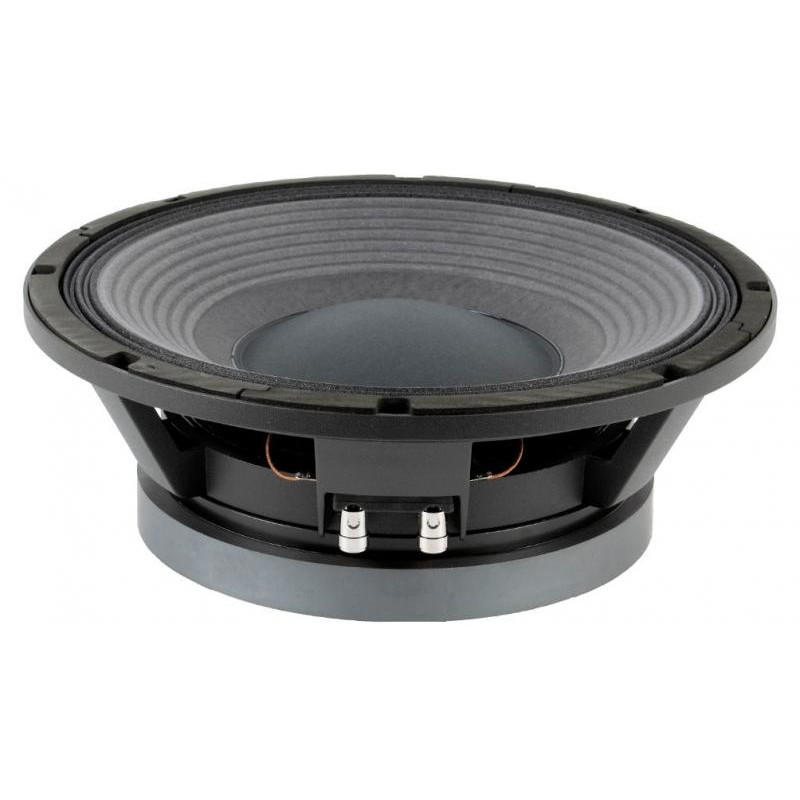

Beyma - 5M12LX60V28
Replacement diaphragm for SPEAKER 12...
View larger
More info
Technical specifications
Nominal impedance
8 Ohm
Allowable power
700 W AES
Nominal diameter
300 mm 12 in
Sensitivity
96 dB 1 W @ 1 m @ 2π
Minimum impedance
7.1 ohm
Frequency range
35-2000 Hz
Program power
1400 W
Recommended box volume
12/60 l 0.7 / 2.24 ft³
Coil Diameter
100 mm 4 in
BL factor
20 N / A
Moving mass
0.102 kg
Winding height
20 mm
Air gap height
10 mm
Maximum displacement pp
58 mm
Thiele & Small parameters
Fs
49 Hz
Re
5.1 ohm
Qms
15.3
What is it
0.4
Qts
0.38
You go
43 l
Cms
99 µm / N
Rms
2.1 kg / s
Efficiency %
1.21
Sd
0.055 m²
Xmax
9 mm
you
500 cm³
Le @ 1 kHz
2.1 mH
Construction details
Net weight
9.7kg 21.39 lb
Total weight
10.4 kg 22.92 lb
Magnet
Ferrite
