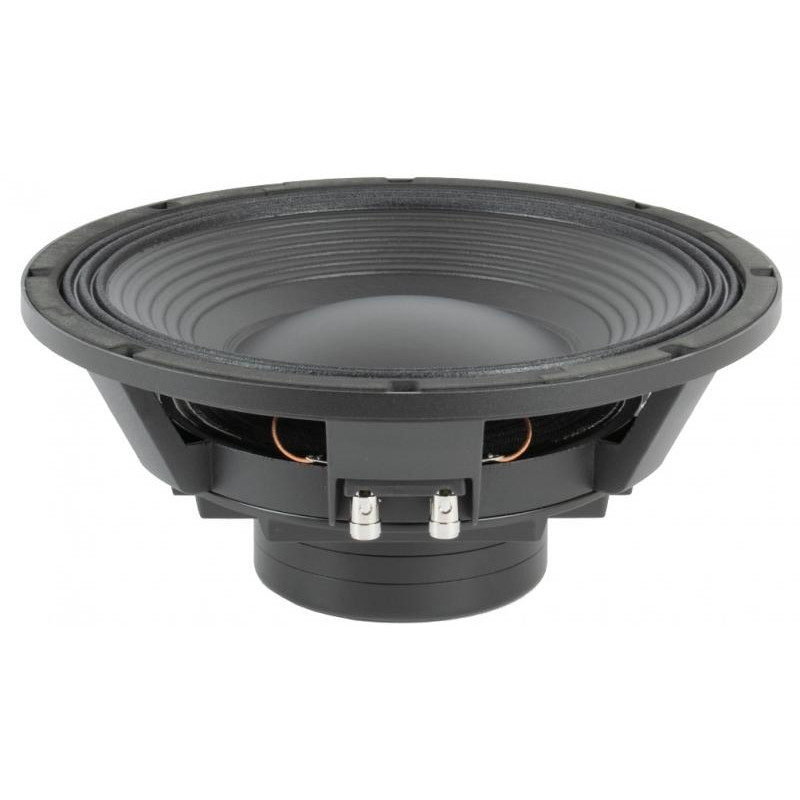

Beyma - 5M12P10ND8
Replacement diaphragm for 12 "P1000 /...
View larger
More info
Technical specifications
Nominal impedance
8 Ohm
Admissible power
900 W AES
Nominal diameter
300 mm 12 in
Sensitivity
96 dB 1 W / 1 m @ ZN
Minimum impedance
6.5 ohm
Frequency range
50-2000 Hz
Program power
1800 W
Recommended box volume
20/60 l 0.7 / 2.24 ft³
Coil Diameter
101.6 mm 4 in
BL factor
23.5 N / A
Moving mass
0.100 kg
Winding height
21 mm
Air gap height
12 mm
Maximum displacement pp
52 mm
Thiele & Small parameters
Fs
47 Hz
Re
5.1 ohm
Qms
7.9
What is it
0.27
Qts
0.26
You go
49 l
Cms
115 µm / N
Rms
3.7 kg / s
Efficiency %
1.8
Sd
0.055 m²
Xmax
8 mm
you
440 cm³
Le @ 1 kHz
2 mH
Construction details
Depth
132 mm 5.20 in
Net weight
5.4 kg 11.88 lb
Total weight
6.1 kg 13.42 lb
Magnet
Neodymium
