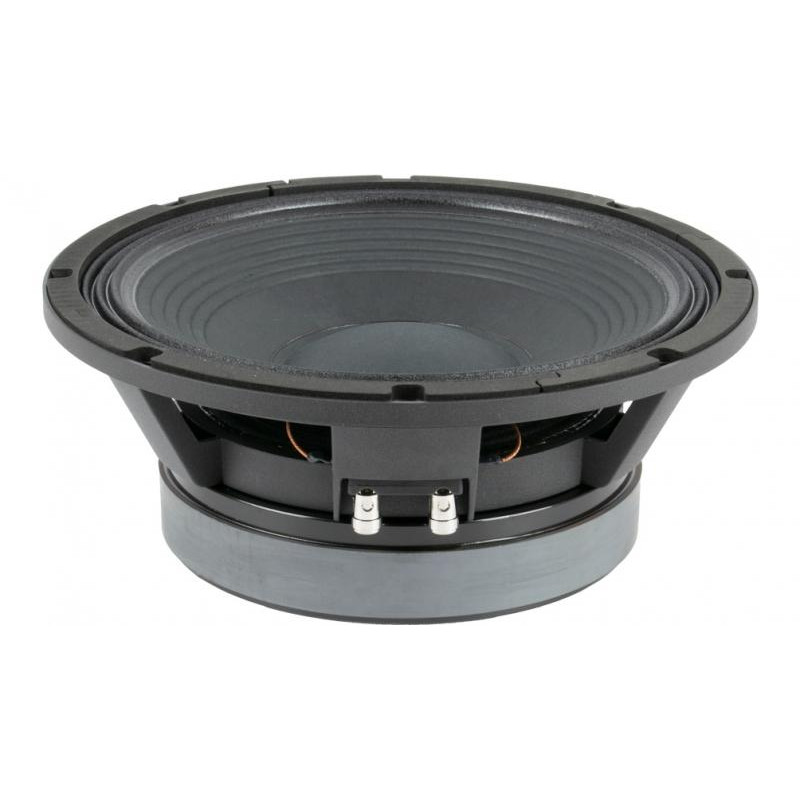

Beyma - 5M12P80FEV28
Replacement diaphragm for 12 "P80Fe /...
View larger
More info
Technical specifications
Nominal impedance
8 Ohm
Allowable power
700 W AES
Nominal diameter
300 mm 12 in
Sensitivity
99 dB 1 W / 1 m @ ZN
Minimum impedance
7 ohm
Frequency range
50-4000 Hz
Program power
1400 W
Recommended box volume
40 l
Coil Diameter
101.6 mm 4 in
BL factor
23 N / A
Moving mass
0.068 kg
Winding height
20 mm
Air gap height
12 mm
Maximum displacement pp
52 mm
Thiele & Small parameters
Fs
48 Hz
Re
5 ohm
Qms
6.5
What is it
0.22
Qts
0.21
You go
61 l
Cms
143 µm / N
Rms
3.5 kg / s
Efficiency %
3
Sd
0.055 m²
Xmax
7.5 mm
you
412 cm³
Le @ 1 kHz
1.1 mH
Construction details
Depth
135 mm 5.3 in
Net weight
11.5 kg 25.3 lb
Total weight
12.2 kg 26.9 lb
Magnet
Ferrite
