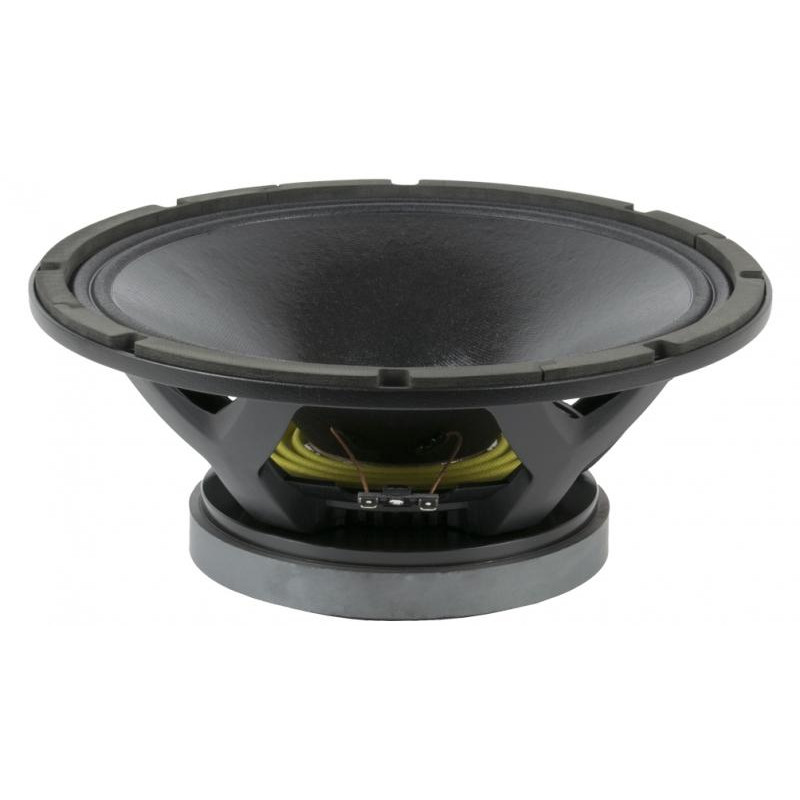

Beyma - 5M12WR408
Replacement diaphragm for SPEAKER...
View larger
More info
Technical specifications
Nominal impedance
8 Ohm
Allowable power
400 W AES
Nominal diameter
300 mm 12 in
Sensitivity
97 dB 1 W @ 1 m @ ZN
Minimum impedance
6.5 ohm
Frequency range
45-5000 Hz
Program power
800 W
Recommended box volume
30/100 l 1.06 / 3.53 ft.³
Coil Diameter
76.2 mm 3 in
BL factor
18 N / A
Moving mass
0.063 kg
Winding height
16 mm
Air gap height
8 mm
Maximum displacement pp
30 mm
Thiele & Small parameters
Fs
42 Hz
Re
5.6 ohm
Qms
5.6
What is it
0.28
Qts
0.27
You go
91 l
Cms
228 µm / N
Rms
3 kg / s
Efficiency %
2.2
Sd
0.053 m²
Xmax
6.3 mm
you
334 cm³
Le @ 1 kHz
1 mH
Construction details
Depth
131 mm 5.2 in
Net weight
5.5 kg 12.12 lb
Total weight
6 kg 13.2 lb
Magnet
Ferrite
