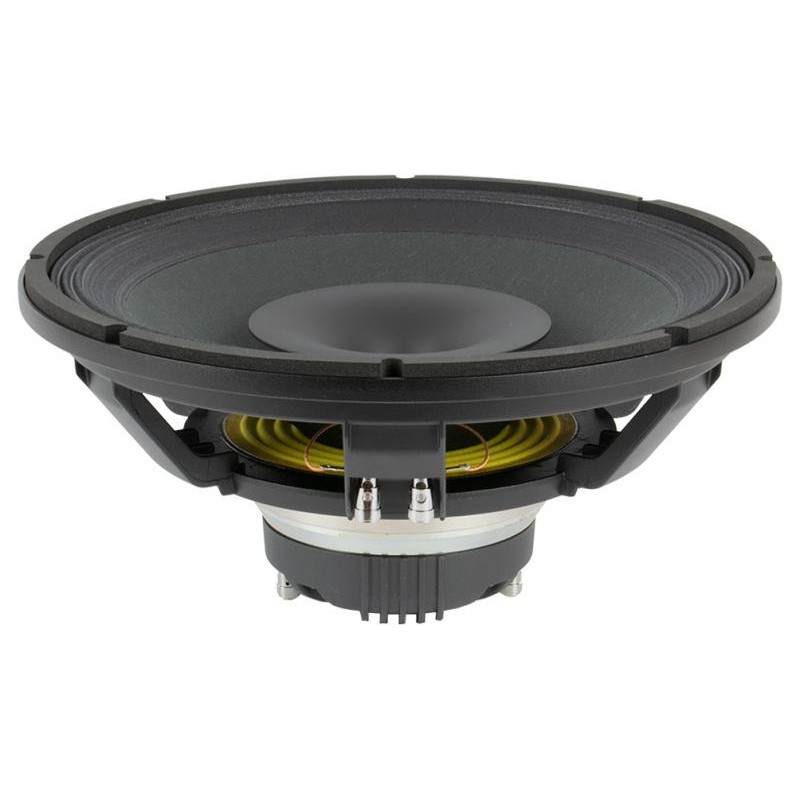

Cone / Speaker 15"
- Sound Equipments
- DJ WORLD
- Lighting
- LED Bar / Wall Washer
- Mirror Balls and Motors
- Movingheads and Scanners
- Blinders
- Follow Spots
- DMX Controller
- LED Curtains
- Dimmers & Chasers
- LED Effects
- Flash / Strobe
- Spotlights PAR / Blinding
- Spotlights TV, Theatre and Film
- LED Lighting
- Lamps
- Architecture Lights
- Luminous
- Lasers
- UV Light
- SMOKE machines / BUBBLES / SNOW
- Electrical Material
- LED Strips
- Image
- CABLES / CONNECTORS
- Image and Stage
- RACKS / STANDS
- FLIGHTCASE
- Instruments
- OUTLET
Viewed products
-
Beyma - 5M15CXA4ND8
Replacement membrane for SPEAKER 15...
View larger
More info
Technical specifications
Nominal impedance LF / HF
8/16 ohm
Ref. Treble replacement
5MCP756
Bass spare ref.
5M15CXA4ND8
Nominal diameter
380 mm 15 in
Minimum LF / HF impedance
6.6 / 10.9 ohm
Frequency range
40-20000 Hz
Allowable power LF / HF
400/90 W AES
LF / HF program power
800/180 W
LF / HF sensitivity
98/105 2.83 @ 1 m @ 2π
Crossover frequency recom.
1.5 kHz or higher (12dB / oct pend. Min.)
Coil Diameter LF / HF
101.6 / 72.4 mm - 4 / 2.85 in
Dispersion (conical)
60º
BL factor
19 N / A
Moving mass
0.084 kg
Winding height
16 mm
Maximum displacement pp
28 mm
Thiele & Small parameters
Fs
40 Hz
Re
6.6 ohm
Qms
4.4
What is it
0.39
Qts
0.36
You go
196 l
Cms
181 µm / N
Rms
4.9 kg / s
Efficiency %
3.3
Sd
0.088 m²
Xmax
6 mm
you
350 cm³
Le @ 1 kHz
1 mH
Construction details
Net weight
7.2 kg 15.9 lb
Total weight
8.10 kg - 17.86 lb
Magnet
Neodymium
