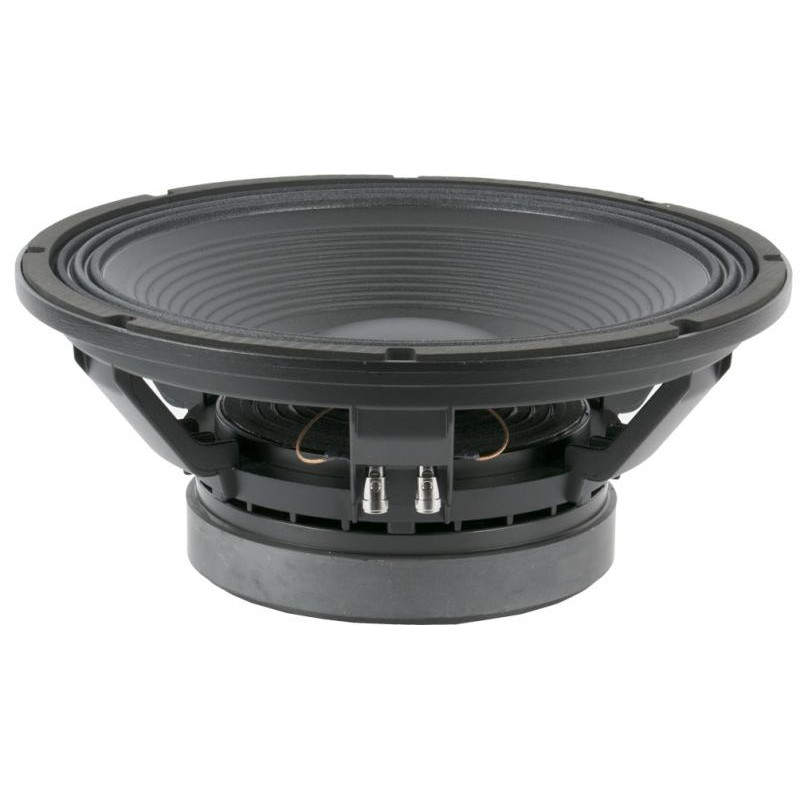

Beyma - 5M15P10FEV28
Replacement diaphragm for SPEAKER 15...
-
Sound Sation - PF200-5
Audio signal and electric power...
View larger
More info
Technical specifications
Nominal impedance
8 Ohm
Allowable power
1000 W AES
Nominal diameter
380 mm 15 in
Sensitivity
98 dB 1 W @ 1 m @ ZN
Minimum impedance
6.8 ohm
Frequency range
45-2000 Hz
Program power
2000 W
Recommended box volume
30/120 l 1.06 / 4.24 ft.³
Coil Diameter
101.6 mm 4 in
BL factor
27.4 N / A
Moving mass
0.157 kg
Winding height
20 mm
Air gap height
12 mm
Maximum displacement pp
52 mm
Thiele & Small parameters
Fs
45 Hz
Re
5.2 ohm
Qms
5.86
What is it
0.31
Qts
0.3
You go
80.7 l
Cms
78 µm / N
Rms
7.6 kg / s
Efficiency %
2.4
Sd
0.0855 m²
Xmax
8 mm
you
684 cm³
Le @ 1 kHz
1.5 mH
Construction details
Depth
170 mm 6.70 in
Net weight
13.1 kg 28.9 lb
Total weight
14.1 kg 15.6 lb
Magnet
Ferrite
