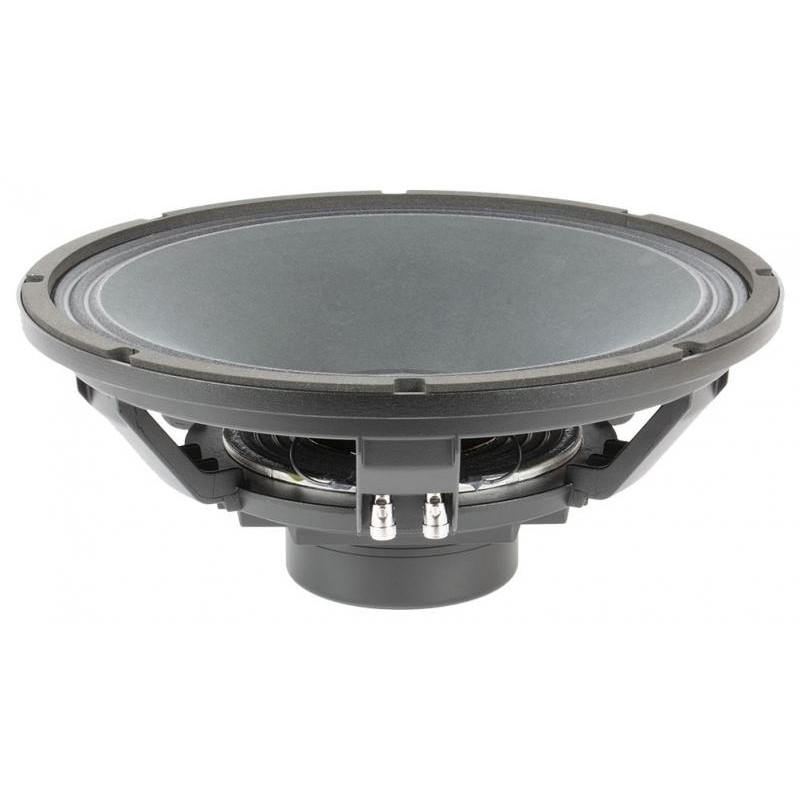

Beyma - 5M15P80ND8
Replacement membrane for SPEAKER 15...
View larger
More info
Technical specifications
Nominal impedance
8 Ohm
Allowable power
800 W AES
Nominal diameter
380 mm 15 in
Sensitivity
101 dB 1 W @ 1 m @ 2π
Minimum impedance
7 ohm
Frequency range
40-4000 Hz
Program power
1600 W
Recommended box volume
75 l
Coil Diameter
101.6 mm 4 in
BL factor
23.8 N / A
Moving mass
0.098 kg
Winding height
20 mm
Air gap height
12 mm
Maximum displacement pp
52 mm
Thiele & Small parameters
Fs
39 Hz
Re
5.1 ohm
Qms
5.1
What is it
0.22
Qts
0.21
You go
184 l
Cms
168 µm / N
Rms
4.7 kg / s
Efficiency %
4.9
Sd
0.088 m²
Xmax
7.5 mm
you
660 cm³
Le @ 1 kHz
0.8 mH
Construction details
Depth
160 mm 6.30 in
Net weight
6 kg 13.3 lb
Total weight
7 kg 15.4 lb
Magnet
Neodymium
