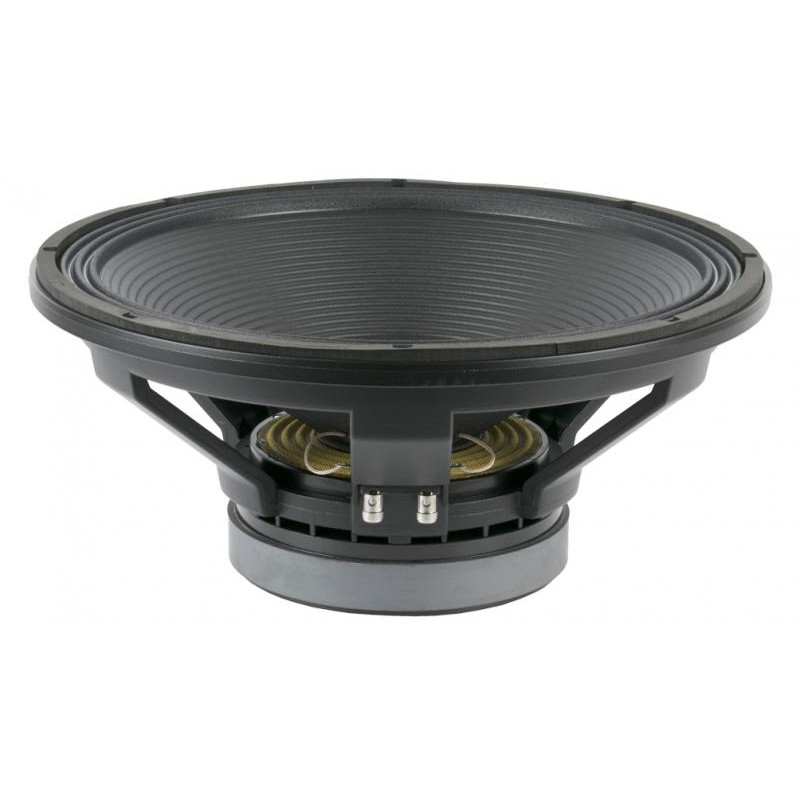

Beyma - 5M18PWB10FE8
Replacement membrane for SPEAKER 18...
-
Gewa - 736.941
Ligature Bb-Clarinet
View larger
More info
Technical specifications
Nominal impedance
8 Ohm
Allowable power
1000 W AES
Nominal diameter
460 mm 18 in
Sensitivity
96 dB @ 1 W @ ZN
Minimum impedance
6.8 ohm
Frequency range
30-2000 Hz
Program power
2000 W
Recommended box volume
180/250 l 6.5 / 9 ft.³
Coil Diameter
101.6 mm 4 in
BL factor
25 N / A
Moving mass
0.245 kg
Winding height
30 mm
Air gap height
12 mm
Maximum displacement pp
55 mm
Thiele & Small parameters
Fs
27 Hz
Re
6 ohm
Qms
8.2
What is it
0.4
Qts
0.38
You go
317 l
Cms
142 µm / N
Rms
5.1 kg / s
Efficiency %
1.5
Sd
0.1255 m²
Xmax
12.5 mm
you
1560 cm³
Le @ 1 kHz
2 mH
Construction details
Depth
215 mm 8.4 in
Net weight
13.6 kg 30 lb
Total weight
15.1 kg 33.9 lb
Magnet
Ferrite
