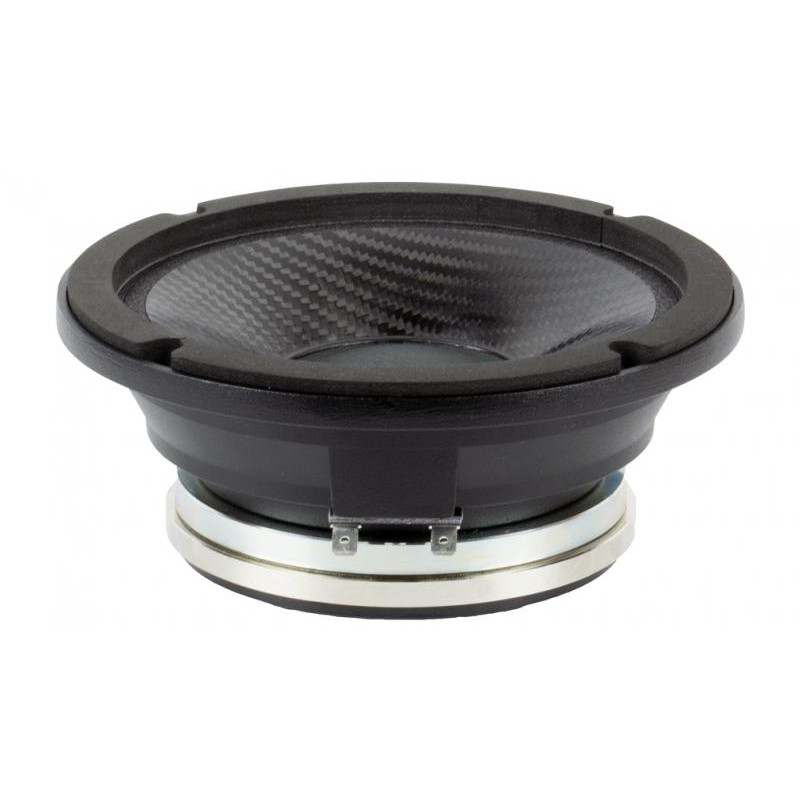

Beyma - 5M6MCF20ND8
Replacement membrane for SPEAKER 6...
-
Gewa - 415.440
Double bass fingerboard Ebony Quality...
View larger
More info
Technical specifications
Nominal impedance
8 Ohm
Admissible power
200 W AES
Nominal diameter
165 mm 6.5 in
Sensitivity
97 dB 1 W @ 1 m @ ZN
Minimum impedance
7 ohm
Frequency range
400-12000 Hz
Program power
400 W
Coil Diameter
50.8 mm 2 in
BL factor
18.1 N / A
Moving mass
0.015 kg
Winding height
9.2 mm
Air gap height
9 mm
Maximum displacement pp
-
Thiele & Small parameters
Fs
406 Hz
Re
6.2 ohm
Qms
10.3
What is it
0.77
Qts
0.72
You go
0.27 l
Cms
10 µm / N
Rms
3.9 kg / s
Efficiency %
2.3
Sd
0.014 m²
Xmax
2.5 mm
you
35 cm³
Le @ 1 kHz
0.1 mH
Construction details
Depth
75 mm 2.95 in
Net weight
2.3 kg 5.07 lb
Total weight
2.7 kg 5.94 lb
Magnet
Neodymium
