Reduced price! Beyma - 5MCD1S8 View larger

Beyma - 5MCD1S8

5MCD1S8

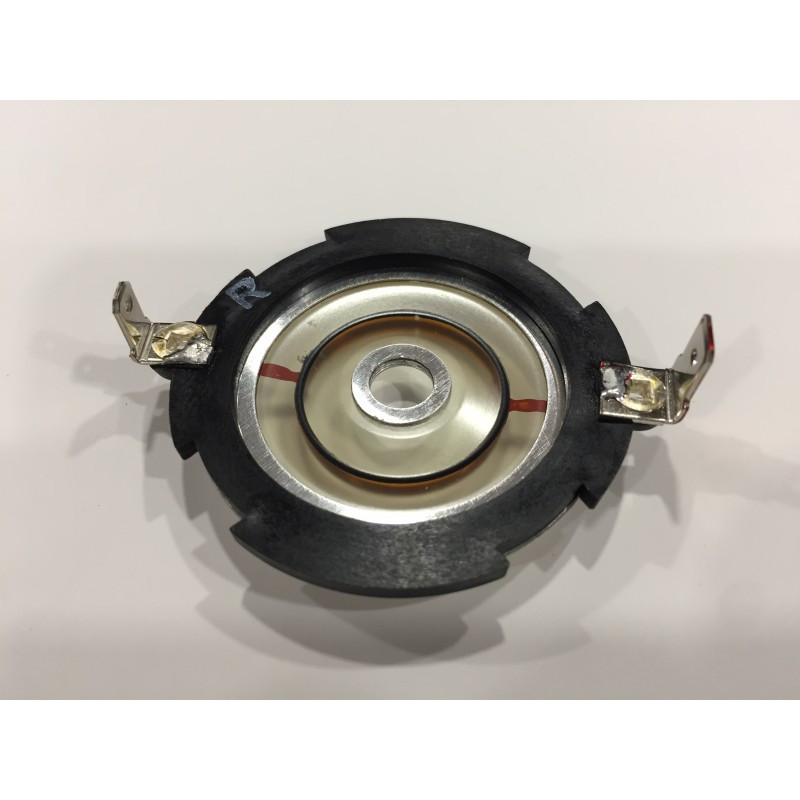

Replacement membrane for CD1S 8 OH ENGINE

In Stock

More info

Technologies

PM4

This speaker contains PM4 technology:

The new PM4 diaphragm incorporates a new high-tech polymer never used in the audio field before.

It offers a stronger bond between the dome and the coil support, and therefore a better behavior in the handling of high power and long periods of work.

On the subjective level, which is also a relevant part of the development process at Beyma, in our opinion it offers a more natural sound when compared to other polyesters.

Technical specifications

Throat diameter
25.4 mm 1 in
Nominal impedance
8 Ohm
Minimum impedance
6.7 ohm @ 6.7 kHz
Re
5.4 ohm
Allowable power
30 W AES above 2.5 kHz
Program power
60 W above 2.5 kHz
Sensitivity
106 dB 1W / 1m @ ZN coupled to TD-2012 / N horn
Frequency range
2000-20000 Hz
Crossover frequency recom.
2.5 kHz or higher (12dB / oct pend. Min.)
Coil Diameter
25.4 mm 1 in
flux density
1.5 T
BL factor
4.6 N / A
Membrane material
PM4

Construction details

External diameter
73 mm 2.87 in
Depth
65 mm 2.56 in
Mounting
1 "3/8 threaded
Net weight
0.6 kg 1.32 lb
Total weight
0.7 kg 1.54 lb
Magnet
Ferrite
