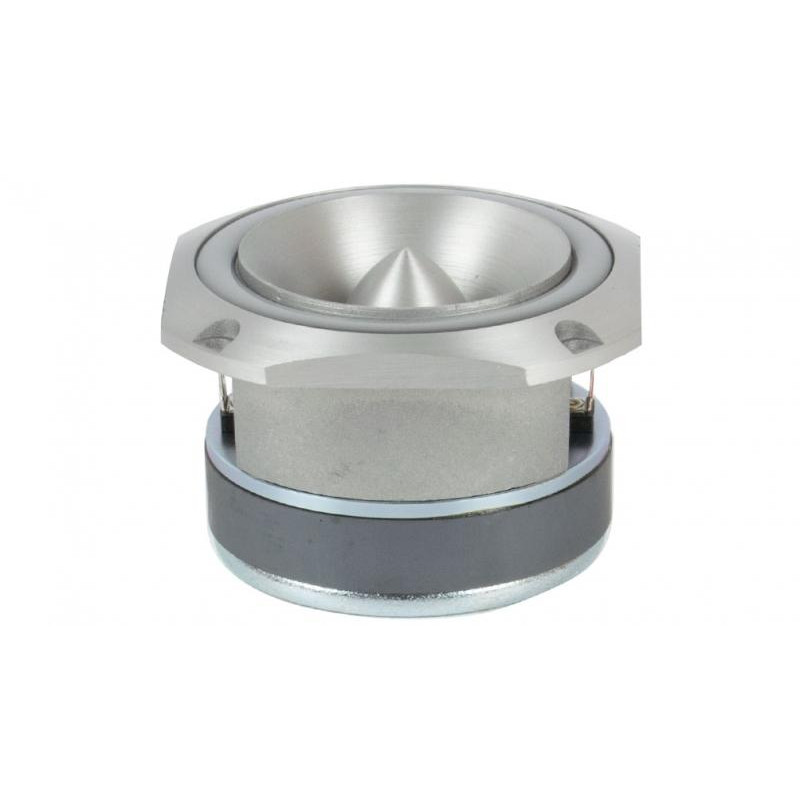

Beyma - 5MCP228
Replacement membrane for TWT CP-22 8 OH
-
Rosco - 77400
Standard steel gobo Sun
View larger
More info
Technical specifications
Nominal impedance
8 Ohm
Minimum impedance
7.9 ohm
Sensitivity
107 dB 1 W @ 1 m
Re
6.3 ohm
Frequency range
5000-20000 Hz
Allowable power
25 W AES
Program power
50 W
Crossover frequency recom.
5 kHz or higher (12dB / oct pend. Min.)
HxV dispersion
40º conical
Coil Diameter
38.1 mm 1.5 in
flux density
1.55 T
BL factor
5.2 N / A
Membrane material
Aluminum
Construction details
External diameter
102x102 mm 4x4 in
Depth
71 mm 2.79 in
Stall diameter
ø 92 mm 3.62 in
Diameter between fastening holes
107 mm 4.21 in
Net weight
1.6 kg 3.5 lb
Total weight
1.7 kg 3.74 lb
Magnet
Ferrite
