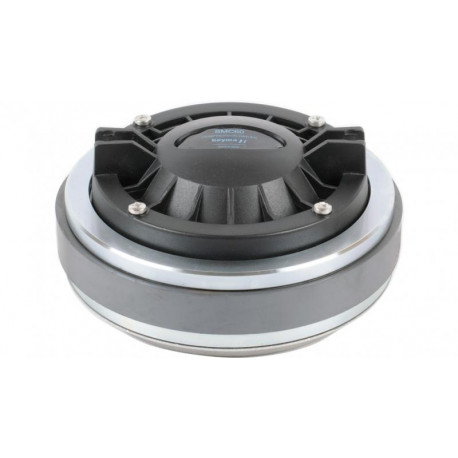

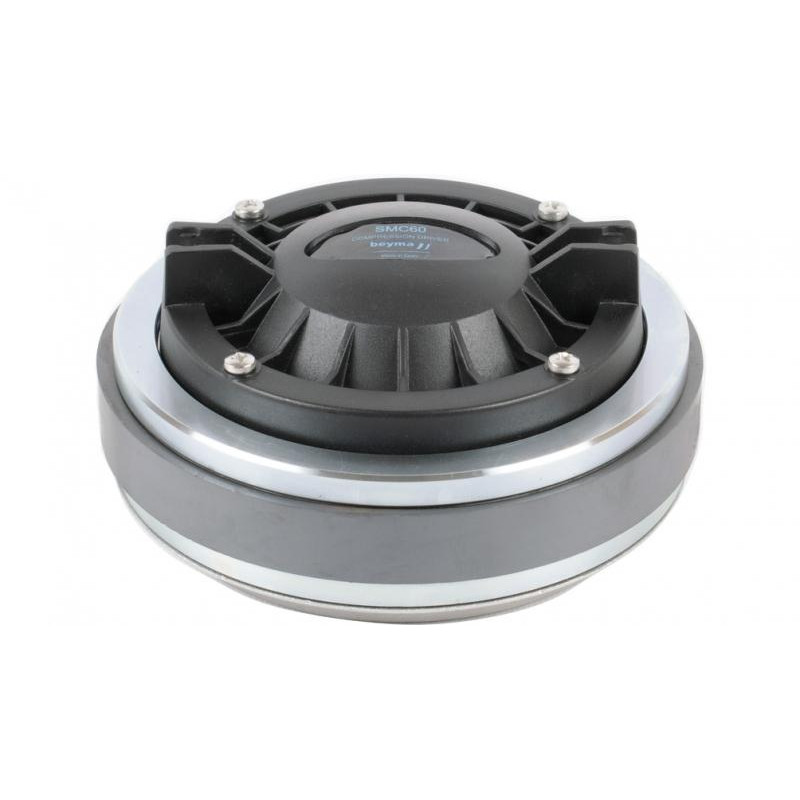

Beyma - 5MSMC608R
SMC-60 8 OH MOTOR
-
PerriS - LPCP-1645
BELT GUI.PERRI'S 2 "POLY 1645 LEOPARD
Reduced price!
View larger
View larger
More info
Technical specifications
Throat diameter
50.8 mm 2 in
Nominal impedance
8 Ohm
Minimum impedance
7.2 ohm
Re
5.5 ohm
Allowable power
80 W AES above 1 kHz
Program power
160 W above 1 kHz
Sensitivity
109 dB 1 W @ 1 m horn coupled
Frequency range
500-18000 Hz
Crossover Frequency Recom.
800 Hz or higher (12dB / oct min. Slope)
Coil Diameter
72.2 mm 2.8 in
flux density
1.55 T
BL factor
8.8 N / A
Membrane material
Titanium dome with polyester suspension
Construction details
External diameter
156 mm 6.14 in
Depth
75 mm 2.95 in
Mounting
4 threaded holes from M6 to 90º
with a 101.6 mm (4 in) diameter.
with a 101.6 mm (4 in) diameter.
Net weight
4.5 kg 9.9 lb
Total weight
5 kg 11 lb
Magnet
Ferrite
