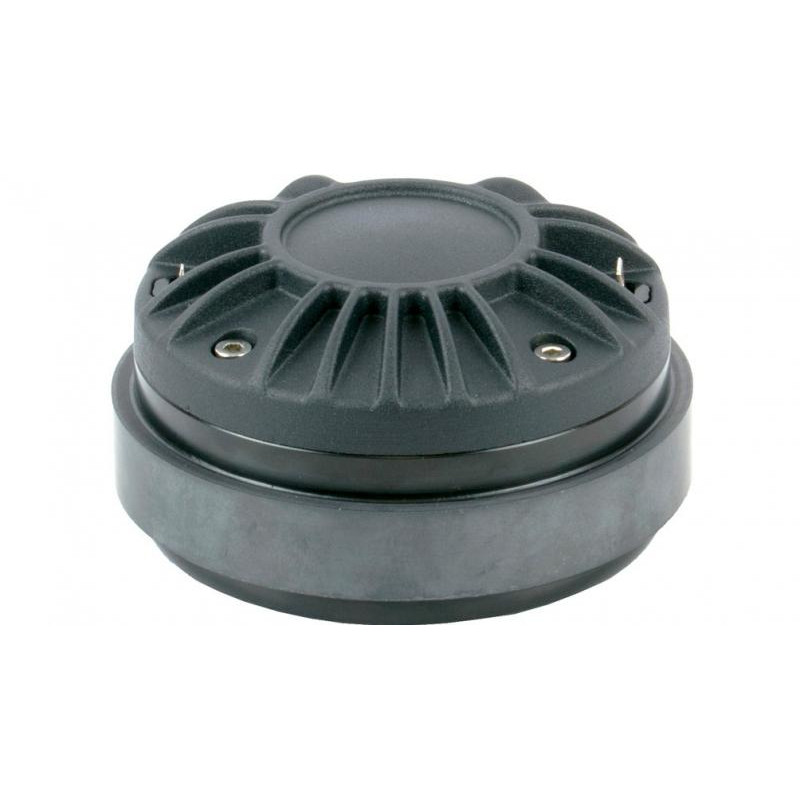

Beyma - CD-11Fe

CD-11Fe

CD-11Fe 8 OH MOTOR

In Stock

More info

Technologies

Technical specifications

Throat diameter
25.4 mm 1 in
Nominal impedance
8 Ohm
Minimum impedance
5.6 ohm
Re
4.3 ohm
Allowable power
70 W AES above 1.5 kHz
Program power
140 W above 1.5 kHz
Sensitivity
109 dB 1W / 1m @ ZN coupled to TD-164 speaker
Frequency range
700-19000 Hz
Crossover Frequency Recom.
1.5 kHz or higher (12dB / oct pend. Min.)
Coil Diameter
44.4 mm 1.75 in
flux density
1.5T
BL factor
6.6 N / A
Membrane material
PM4

Construction details

External diameter
110 mm 4.3 in
Depth
59 mm 2.3 in
Mounting
3 threaded holes from M5 to 120º
with a 57 mm (2.24 in) wheelbase
2 threaded holes from M5 to 180º with a
76.2 mm (3 in) wheelbase
Net weight
1.8 kg 4 lb
Total weight
1.9 kg 4.2 lb
Magnet
Ferrite
