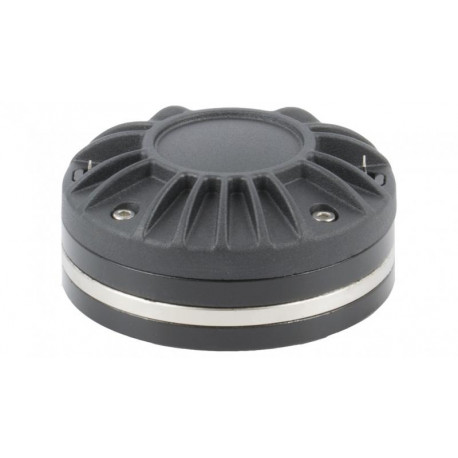

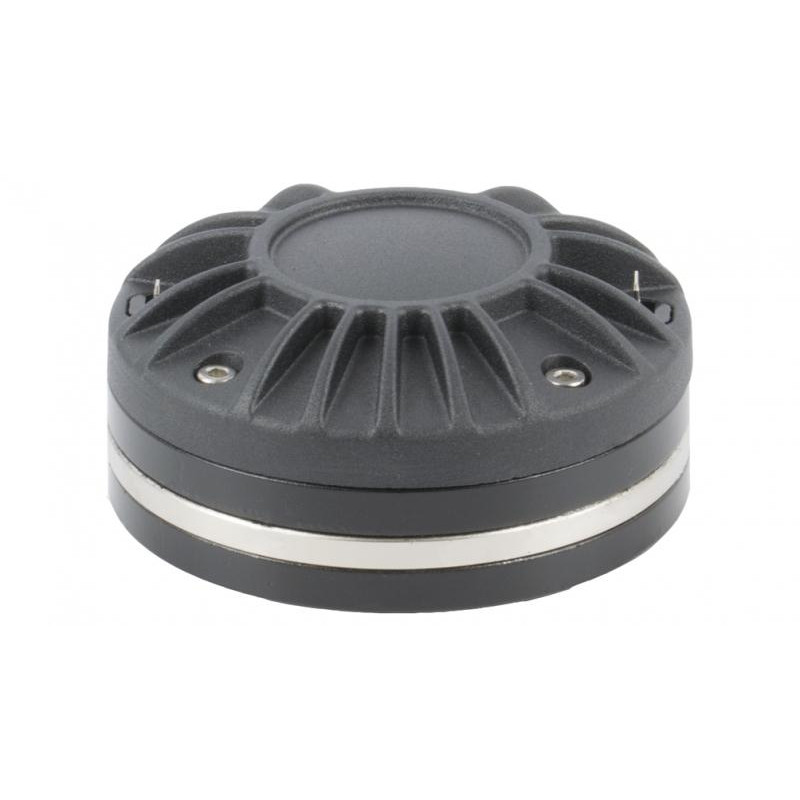

Beyma - CD-11Nd

CD-11Nd

CD-11Nd 8 OH MOTOR

In Stock

More info

Technologies

Technical specifications

Throat diameter
25.4 mm 1 in
Nominal impedance
8 Ohm
Minimum impedance
5.5 ohm
Re
4.3 ohm
Allowable power
70 W AES above 1.5 kHz
Program power
140 W above 1.5 kHz
Sensitivity
111 dB 1 W @ 1 m coupled to TD-164 speaker
Frequency range
700-19000 Hz
Crossover Frequency Recom.
1.5 kHz or higher (12dB / oct pend. Min.)
Coil Diameter
44.4 mm 1.75 in
flux density
2T
Membrane material
PM4

Construction details

External diameter
100 mm 3.9 in
Depth
47 mm 1.9 in
Mounting
3 threaded holes from M5 to 120º
with a 57 mm (2.24 in) wheelbase
2 threaded holes from M5 to 180º with a
76.2 mm (3 in) wheelbase
Net weight
1.3 kg 2.93 lb
Total weight
1.4 kg 3.1 lb
Magnet
Neodymium
