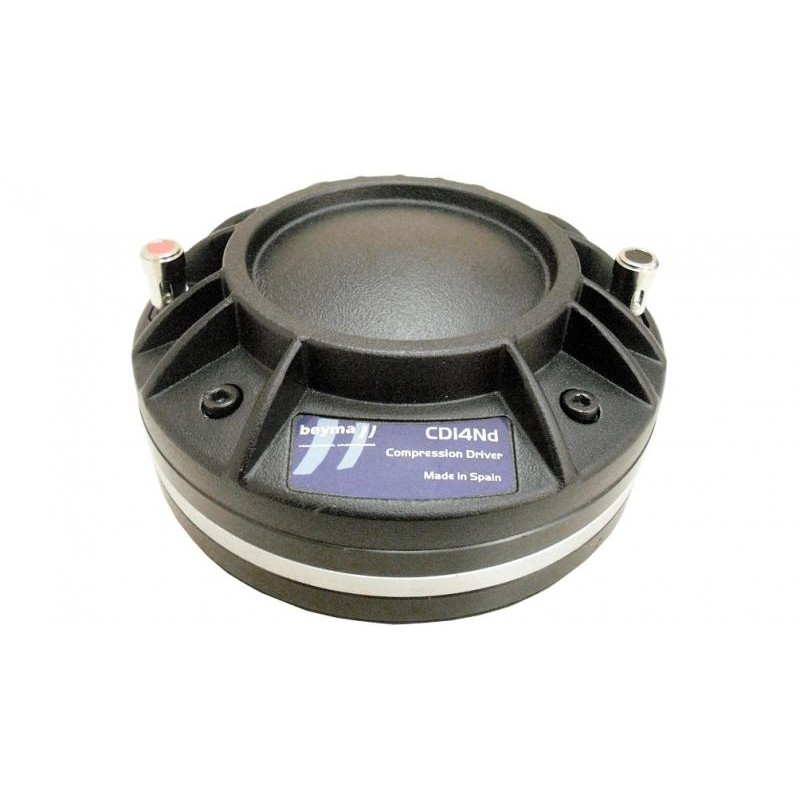

Beyma - CD-14Nd

CD-14Nd

CD-14Nd 8 OH MOTOR

In Stock

More info

Technologies

Technical specifications

Throat diameter
36 mm 1.4 in
Nominal impedance
8 Ohm
Minimum impedance
7.6 ohm @ 3.5 kHz
Re
5.3 ohm
Allowable power
60 W AES above 800 Hz
Program power
120 W above 800 Hz
Sensitivity
108 dB 1W / 1m @ ZN coupled to TD-385 speaker

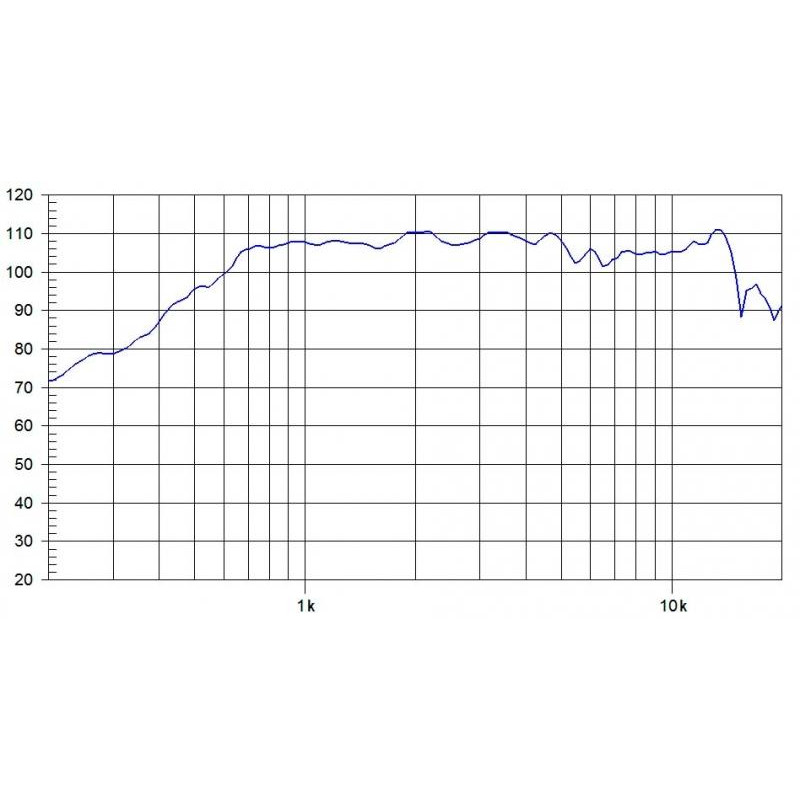

Frequency range
600-17000 Hz
Crossover Frequency Recom.
800 Hz or higher (12dB / oct min. Slope)
Coil Diameter
63.5 mm 2.5 in
flux density
1.7 T
BL factor
10 N / A
Membrane material
PM4

Construction details

External diameter
120 mm 4.72 in
Depth
49 mm 1.93 in
Mounting
4 threaded holes from M6 to 90º
with a 101.6 mm (4 in) diameter.
Net weight
1.9 kg 4.18 lb
Total weight
2.1 kg 4.63 lb
Magnet
Neodymium
