Beyma - RECAMBIO 5MCP758
SPARE PART 5MCP758, FOR CP750,...
View larger

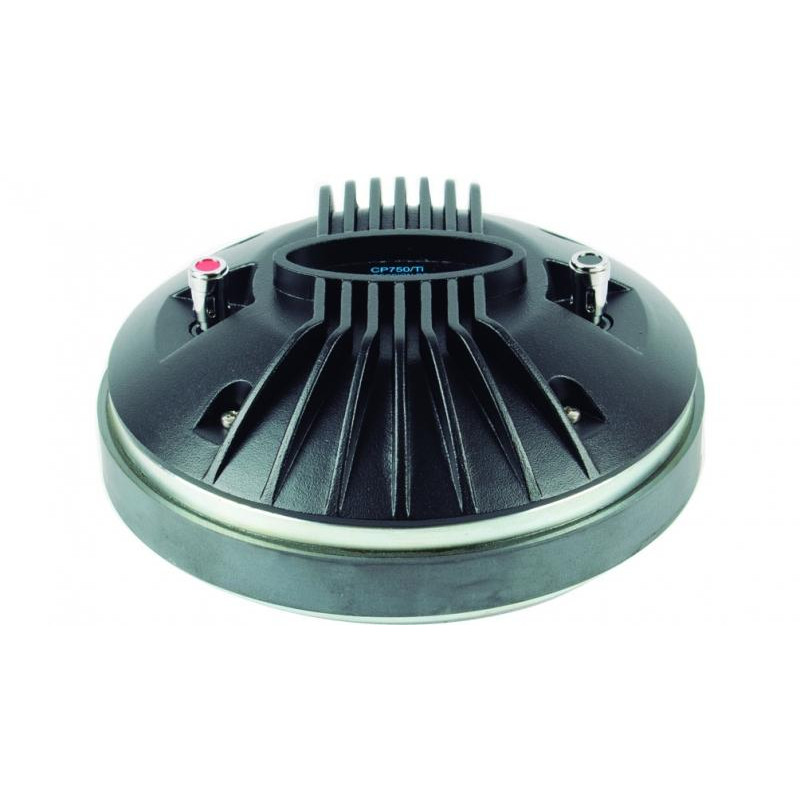

Beyma - RECAMBIO 5MCP758
RECAMBIO 5MCP758
SPARE PART 5MCP758, FOR CP750, CP755/TI AND CP755/ND
More info
Technical specifications
SPARE PART 5MCP758, FOR CP750, CP755/TI AND CP755/ND
throat diameter
50.8mm 2in
rated impedance
8 ohms
minimum impedance
7.7ohm
Re
5.5ohm
admissible power
70 W AES above 800 Hz
Program power
140 W above 800 Hz
Sensitivity
110 dB 1 W @ 1 m coupled to speaker
frequency range
600-20000Hz
crossover frequency recom.
800 Hz or higher (12dB/oct slope min.)
Coil Diameter
72.4mm 2.85in
flux density
1.9T
BL factor
10 N/A
membrane material
Titanium dome with polyester suspension
construction details
External diameter
192mm 7.6in
Depth
88mm 3.46in
Mounting
4 threaded holes of M6 at 90º
with a diameter between axes of 101.6 mm (4 in).
with a diameter between axes of 101.6 mm (4 in).
Net weight
7.05kg 15.51lbs
total weight
7.3kg 16.06lbs
Magnet
ferrite
