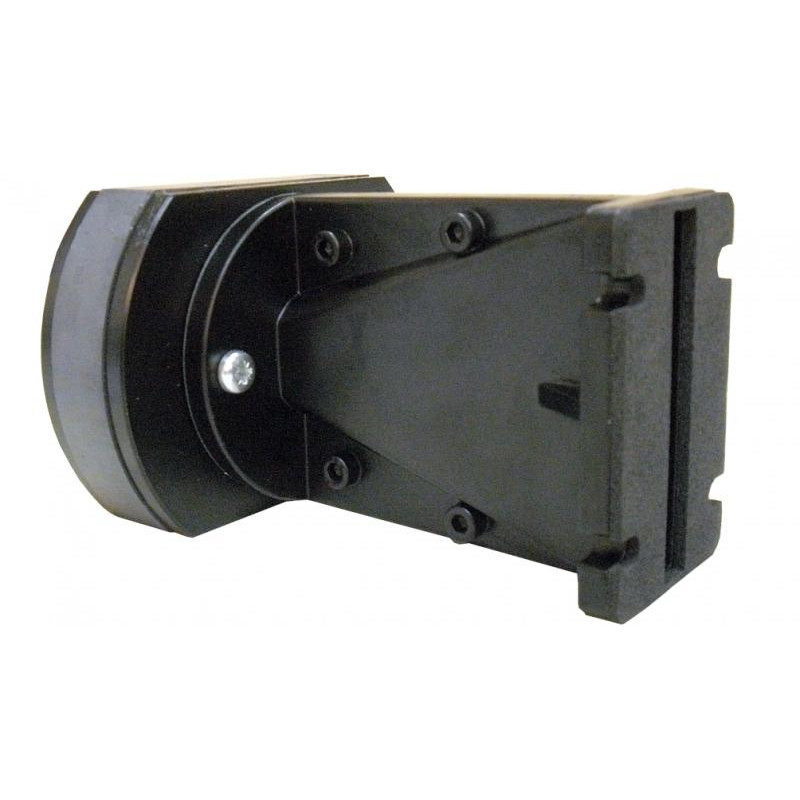

Beyma - WL3/Fe

WL3/Fe

WAVE GUIDE WL-3 / Fe 8 OH

In Stock

More info

Technologies

Technical specifications

Throat diameter
20.5 mm 0.8 in
Mouth height
76.2 mm 3 in
Nominal impedance
8 Ohm
Minimum impedance
5.1 ohm @ 3.5 kHz
Re
4.3 ohm
Allowable power
70 W AES above 1.8 kHz
Program power
140 W above 1.8 kHz
Sensitivity
102 dB 1W / 1m @ ZN coupled to speaker 90º x 5º
Frequency range
1000-18000 Hz
Crossover Frequency Recom.
1.8 kHz or higher (12dB / oct pend. Min.)
Coil Diameter
44.3 mm 1.75 in
flux density
1.6 T
BL factor
4.8 N / A
Membrane material
PM4

Construction details

Total weight
1.8 kg 3.96 lb
External diameter
115 mm 4.5 in
Depth
150 mm 5.91 in
Mounting
4 holes of 6 mm diameter
Net weight
1.7 kg 3.75 lb
Total weight (2 units)
3.6 kg 7.94 lb.
Magnet
Ferrite
