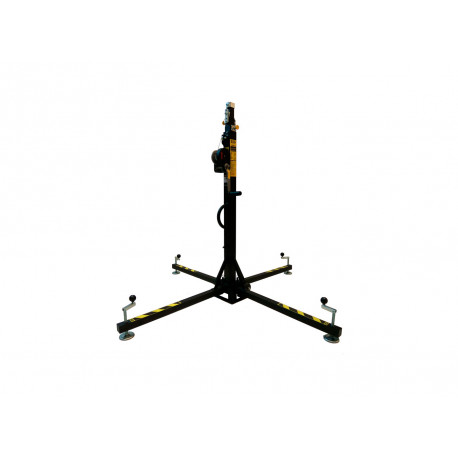

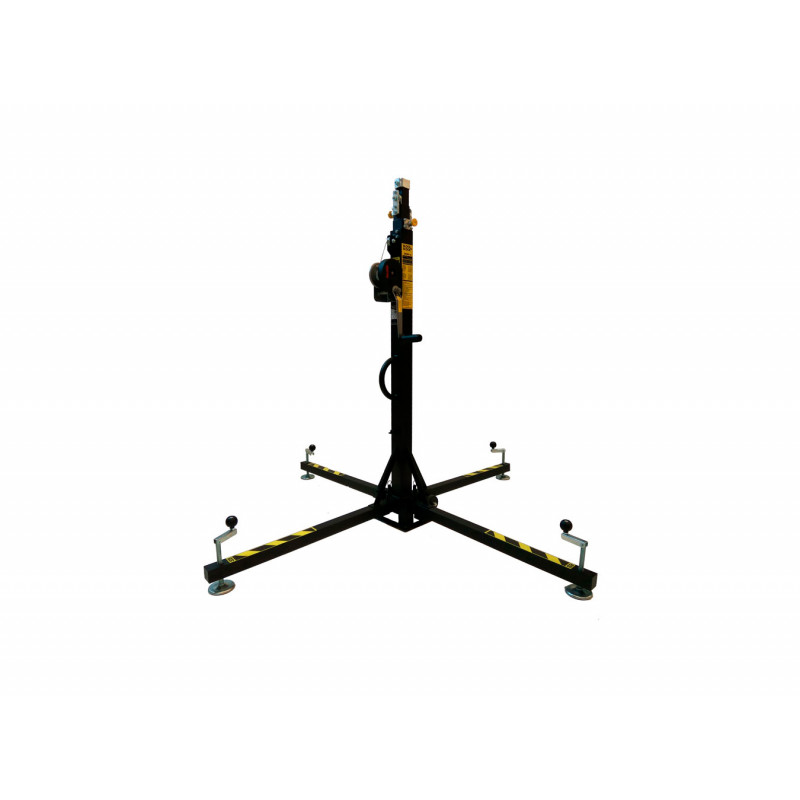

High-quality aluminum frame lift for loads up to 150 kg, made in the EU
- Four-piece telescopic bracket
- Safety bolts to lock the different sections at different heights
- Locking pins in the base area to lock the booms
- Booms with adjustable spindle and steel plate with non-slip rubber base
- Corrosion protection by epoxy coating
- Water level to ensure a vertical position
- Ground connection
- Transport rollers to move the lift when it is stowed

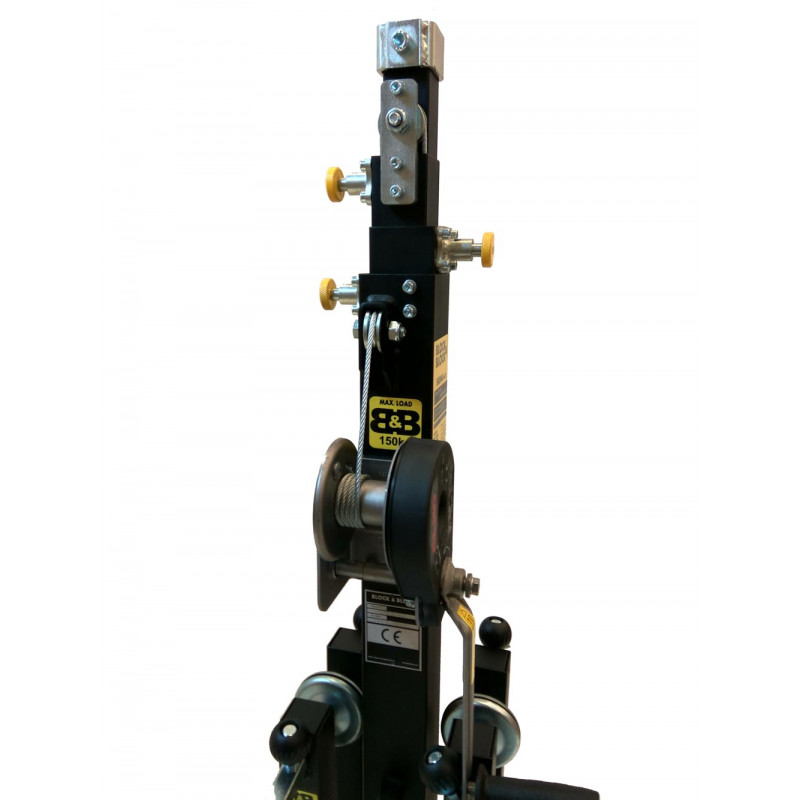

- AL-KO 351 PLUS winch: Maximum load 350 kg with automatic holding brake. CE declaration of conformity with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/EC.
- Galvanized steel cables 6x19+1, manufactured in accordance with standard 13414-1:2004, tensile strength 1770N/mm2
- Material: Carbon steel S-275-J0H, manufactured in accordance with EN10219 and EN10305.5 standards
- Adjustable height
- Made in Europe
- With BGV-C1 test certificate
Maximum load capacity: | 150kg |
Minimum load: | 25kg |
Nominal tensile strength of rope: | 1770 N/mm² |
Height: | Maximum: 470cm Minimum: 149 cm |
Fixation System: | Ø 35mm |
Steel rope: | Ø 4mm |
Type (general stands): | Aluminum structures elevator |
Material: | Steel (powder coated) |
Base area: | Ø 1.77 m |
Weight: | 35.25kg |
