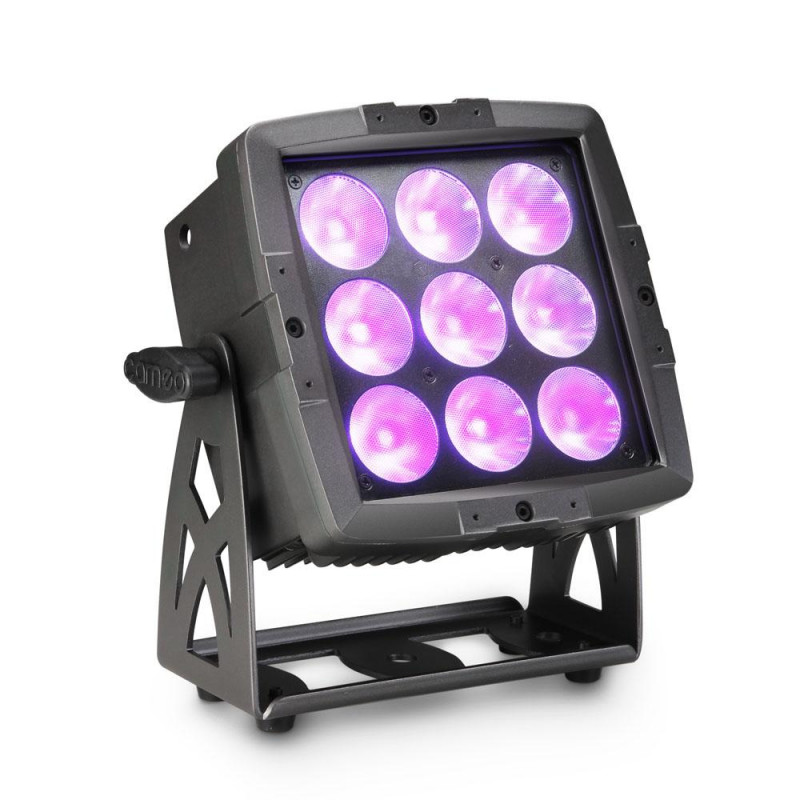

The Cameo FLAT PRO series FLOOD 600 IP65 is a compact RDM enabled outdoor flood light equipped with nine 12 watt 6-in-1 LEDs generating rich RGBWA colours, soft pastel hues and intense UV effects. The IP65 rated fixture sports convection cooling, a 40° beam angle and 3,000 Hz refresh rate for flicker free performance.

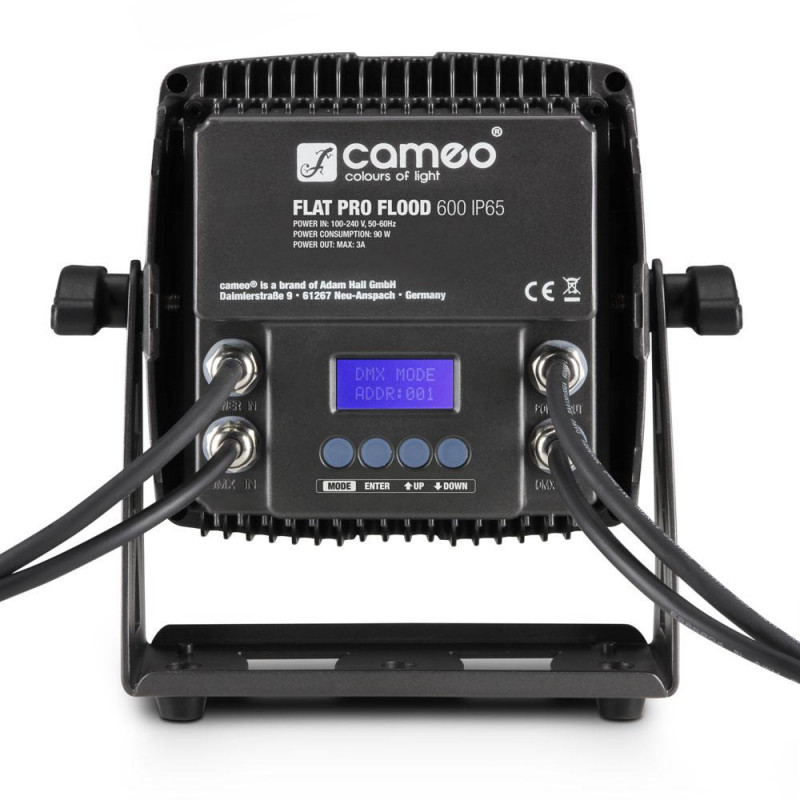

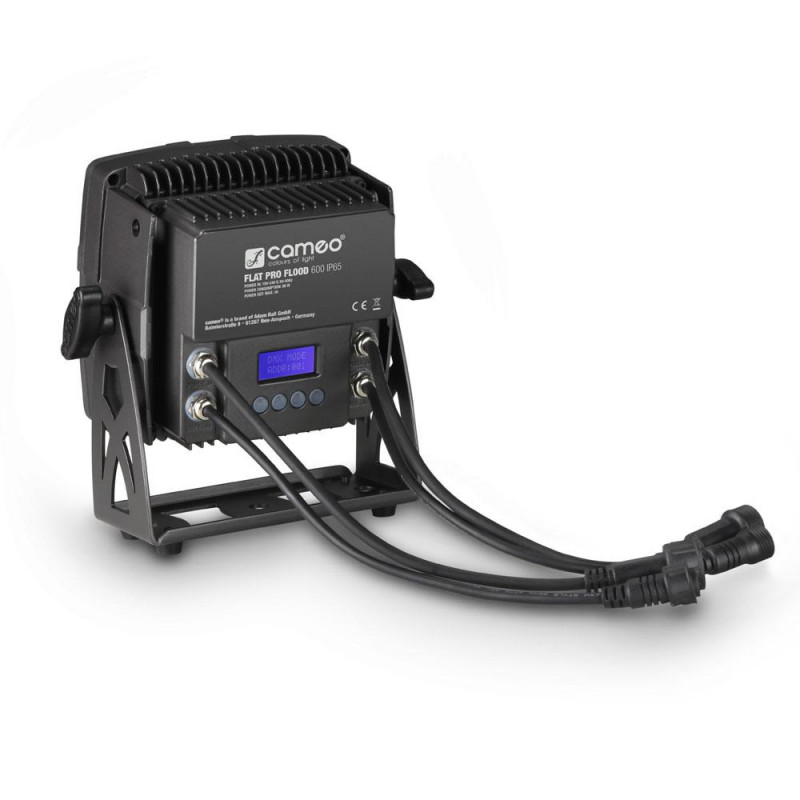

The hardwearing metal enclosure features 3-pin screw connectors for DMX and mains input and output plus a backlit 4-button display for easy, intuitive operation while a security lock prevents unauthorized menu access. The Cameo FLOOD 600 IP65 provides 6 modes of DMX control with dimmer and strobe functions, colour temperature correction and master, slave and standalone applications.

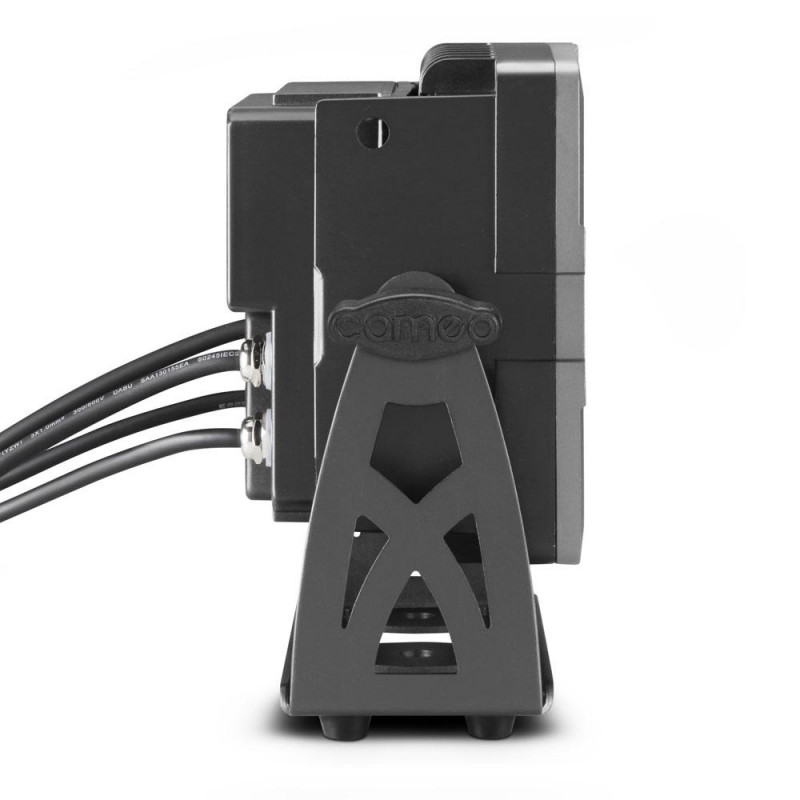

The multi-voltage fixture operates on 100 – 240 V AC and comes with an adjustable universal bracket for floor placement and multiple mounting options. Barn doors are available as accessory.

• Product number: CLFLOOD600IP65
• Product type: LED Flood Light
• Type: FLAT PRO
• Colour spectrum: RGBWA+UV
• Number of LEDs: 9 x 6
• LED type: 12 W (approx. 50000 operating hours)
• Refresh rate:  3000Hz
• Dispersion:  40°
• DMX input:  3-pin special connector, screwable
• DMX output: 3-pin special connector, screwable
• DMX mode:  2-channel, 3-channel 1, 3-channel 2, 6-channel, 9-channel, 11-channel
• DMX Functions: colour macro, colour jump, colour fade, RGB, strobe, master dimmer, RGBWA+UV
• Standalone modes: static, Auto run, fade, jump, macro, master / slave mode
• Controls: Value Up, Enter, mode, Value Down
• Indicators: backlit LCD
• Operating voltage: 110 V AC - 240 V AC / 50 – 60 Hz
• Power consumption: 90W
• Power connector: 3-pin special connector, screwable
• Housing material: metal
• Cabinet colour: black
• Protection class IP: 65
• Cooling: Convection
• Illuminance: 7500lx 1m
• Dimensions without mounting bracket
• Width: 180mm
• Height: 180mm
• Length: 120mm
• Weight: 4kg
