Cameo - MOVO BEAM Z100

MOVO BEAM Z100

Unlimited Rotation Beam Moving Head with LED Ring and Zoom

900.24€%23.69 You save 213.24€
687,00 €

Add to wishlist

In Stock

Europe Warehouse: 230

More info

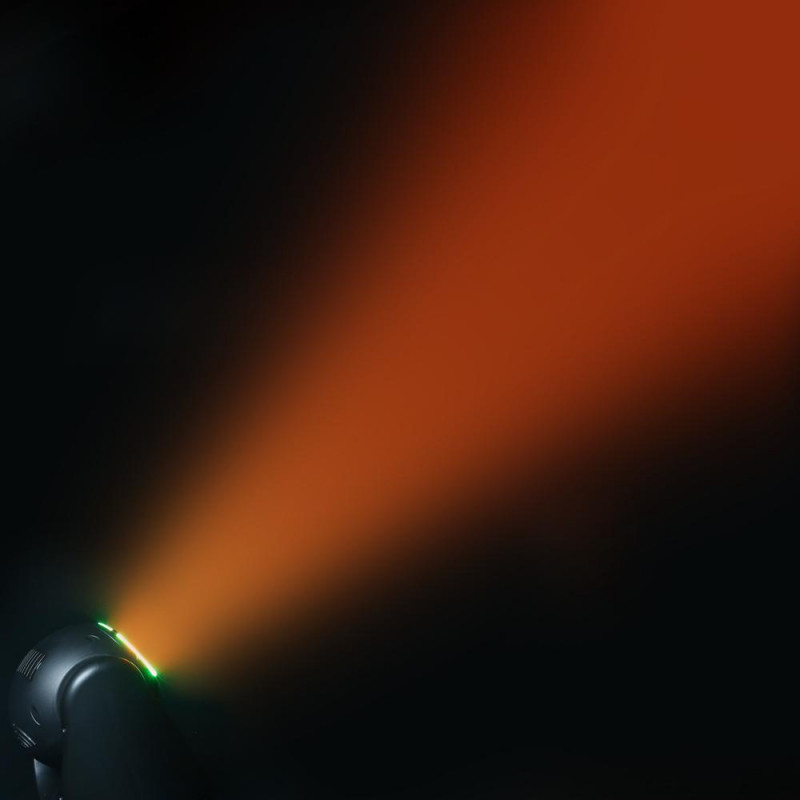

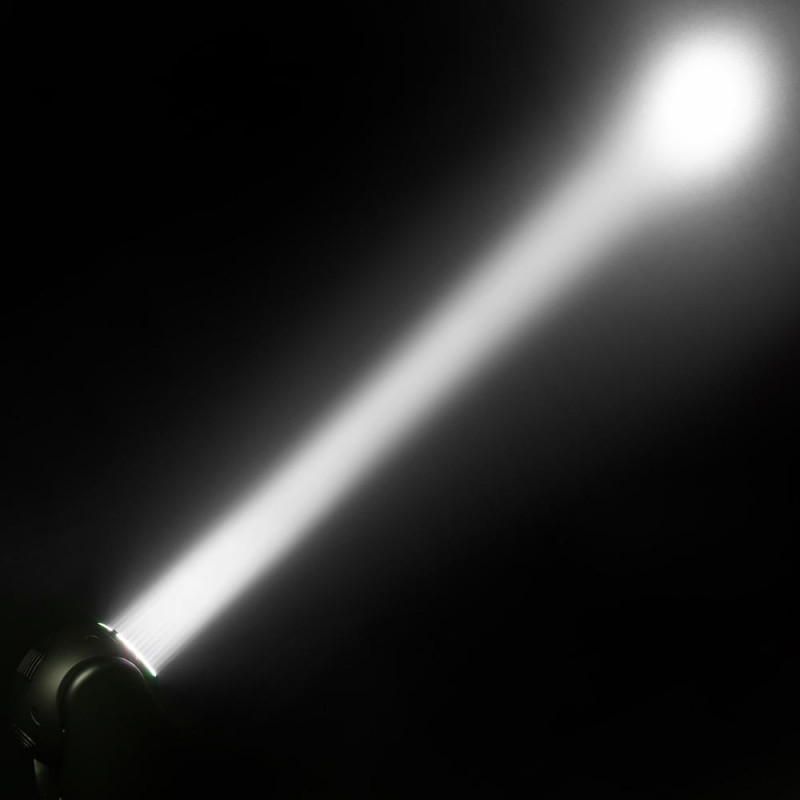

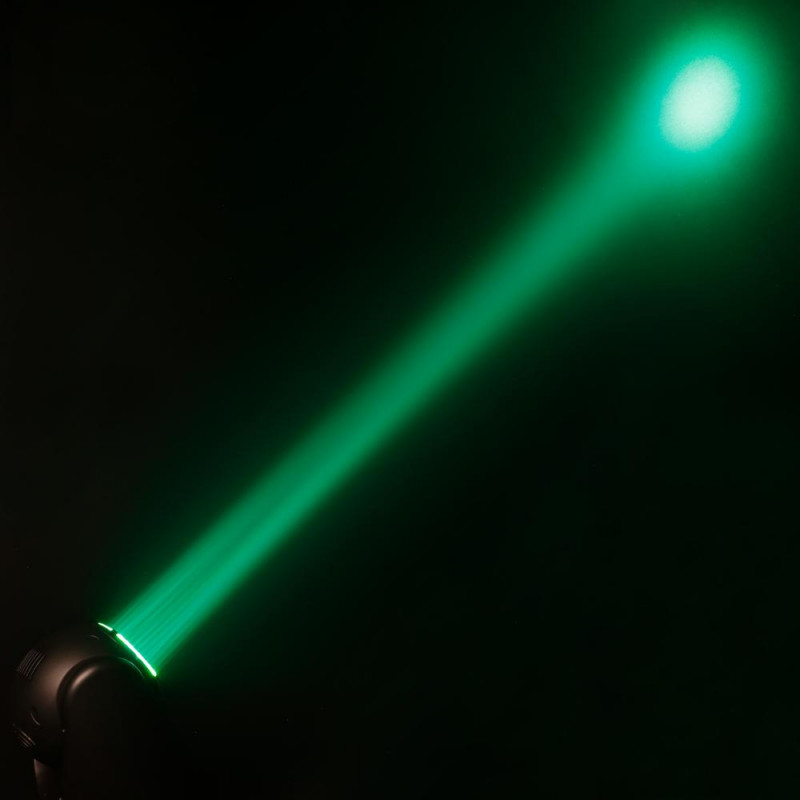

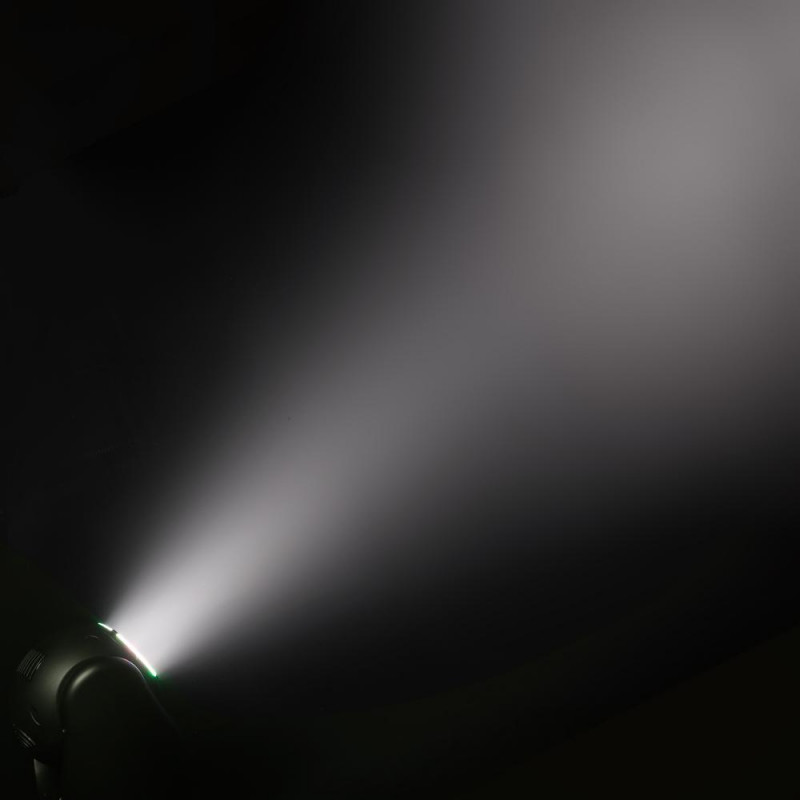

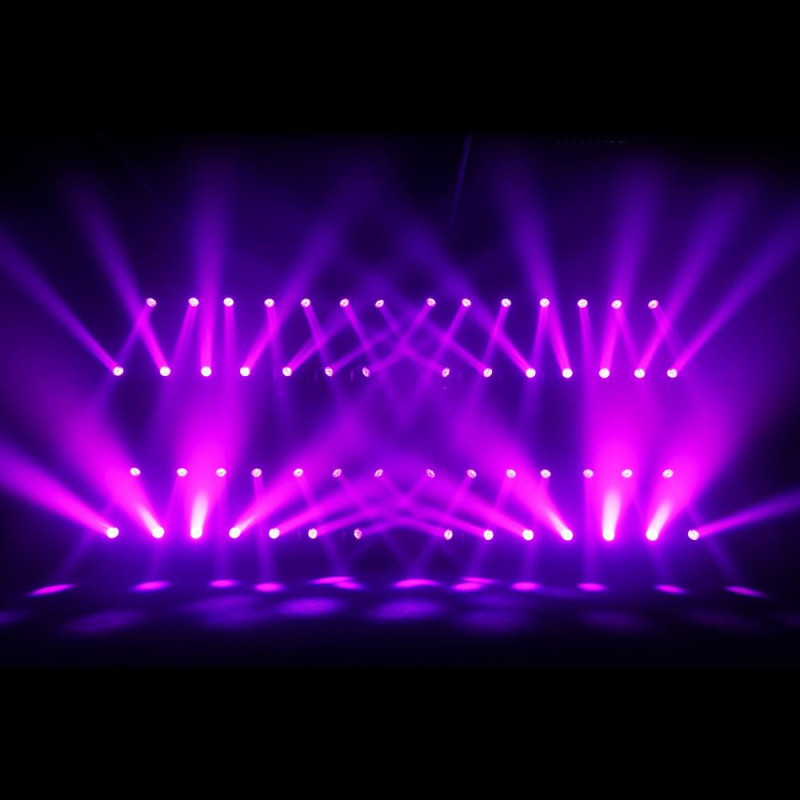

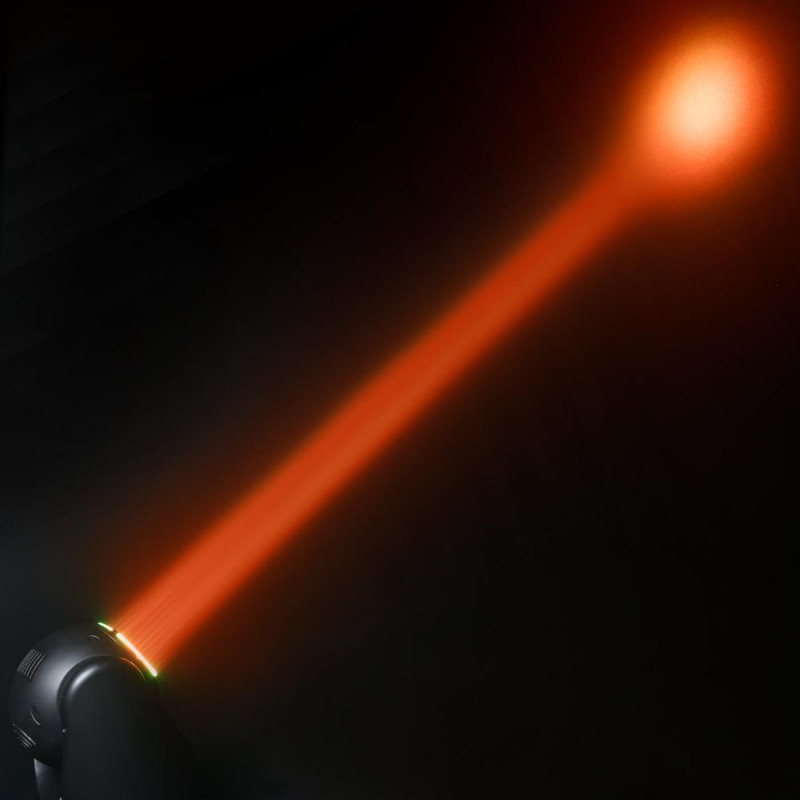

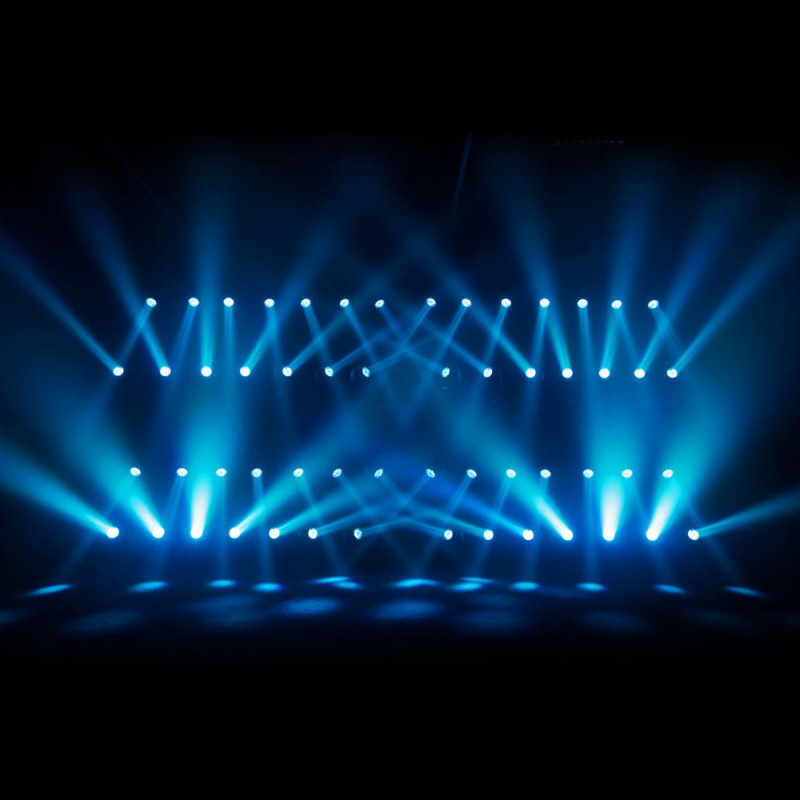

Taking the success of the MOVO®Beam 100 one step further, the Movo® Beam Z 100 is an ultra-fast moving head featuring a powerful motor zoom. With a zoom range of 4 to 30 degrees, it delivers tightly focussed beams, beatiful wash and amazing zoom effects. A central high-performance 60 watt OSRAM LED with a 50,000 hour lifespan produces rich RGBW mixes with saturated primary colours, subtle pastel hues and natural shades of white. It is surrounded by an RGB LED ring with 4 individually controllable segments that enable a spectacular lighting performance.

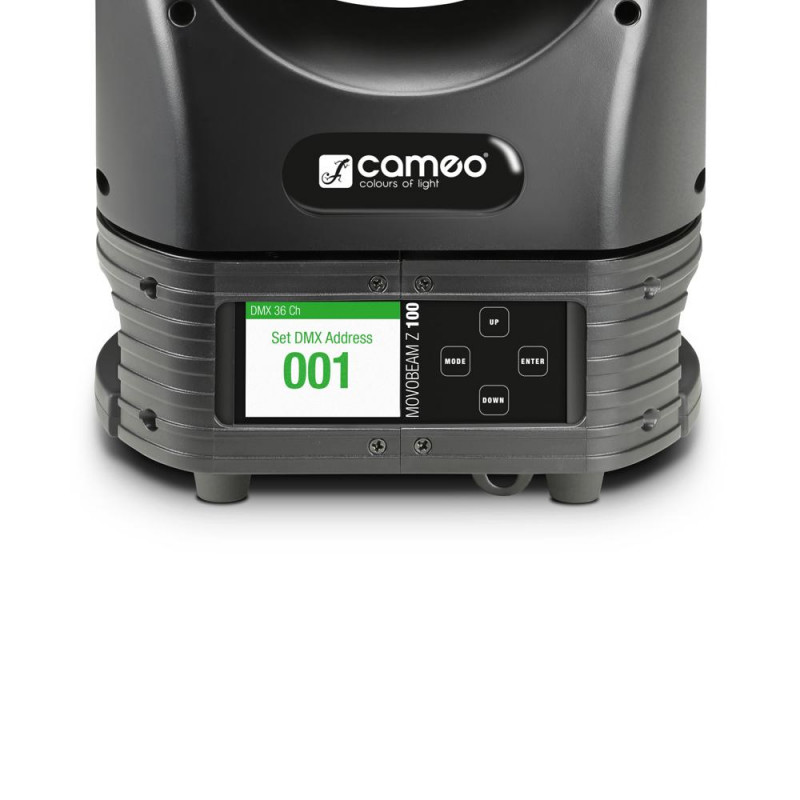

Driven by two high-speed, high-torque motors the MOVO® BEAM Z 100 provides endless pan and tilt rotation with smooth precision. It sports a bright 2.5" TFT display with touch sensitive buttons for convenient configuration, 3 modes of DMX control and spectacular automated modes. Seamless dimming with 4 selectable curves and a rapid strobe add to a brilliant and exciting performance.

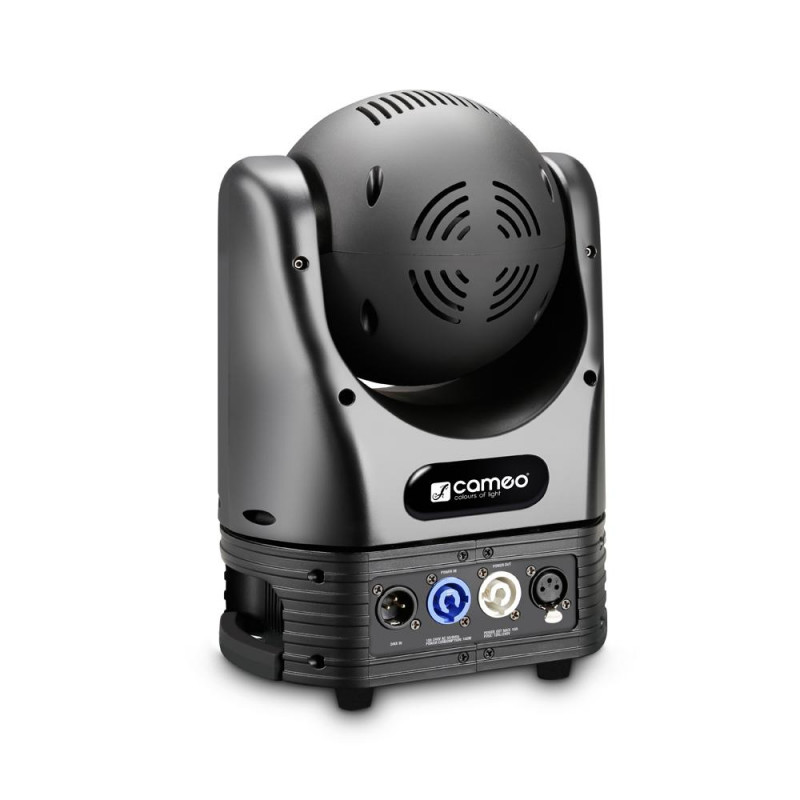

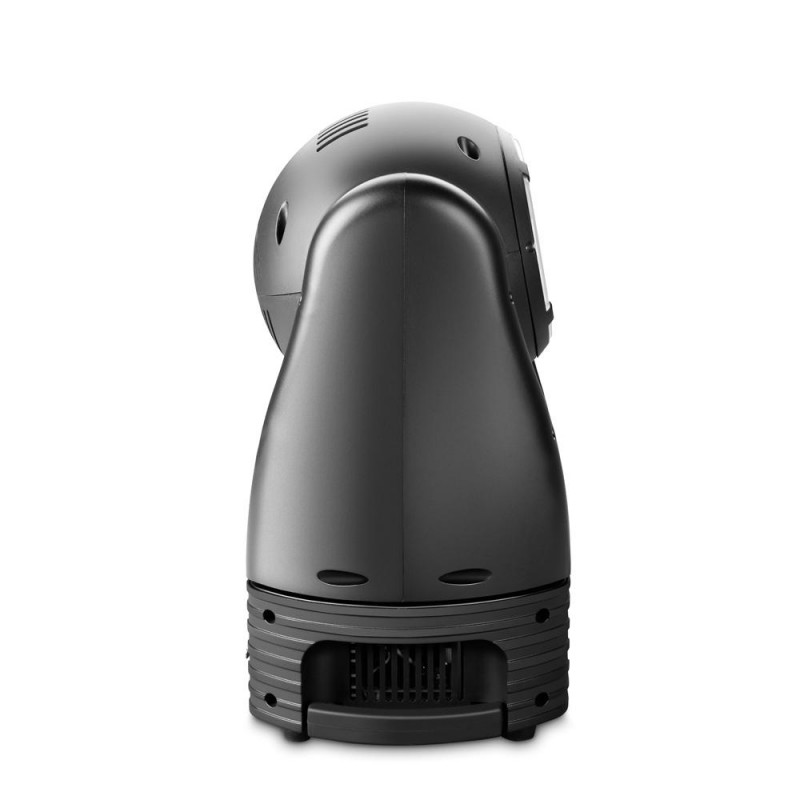

The MOVO® BEAM Z 100's compact ABS and metal housing features temperature controlled fan cooling to ensure reliable operation and extended LED life. It comes with an omega bracket for a variety of mounting options.

  • Ultra-bright 60 W OSRAM RGBW LED for saturated primary colours, subtle pastel hues and natural shades of white

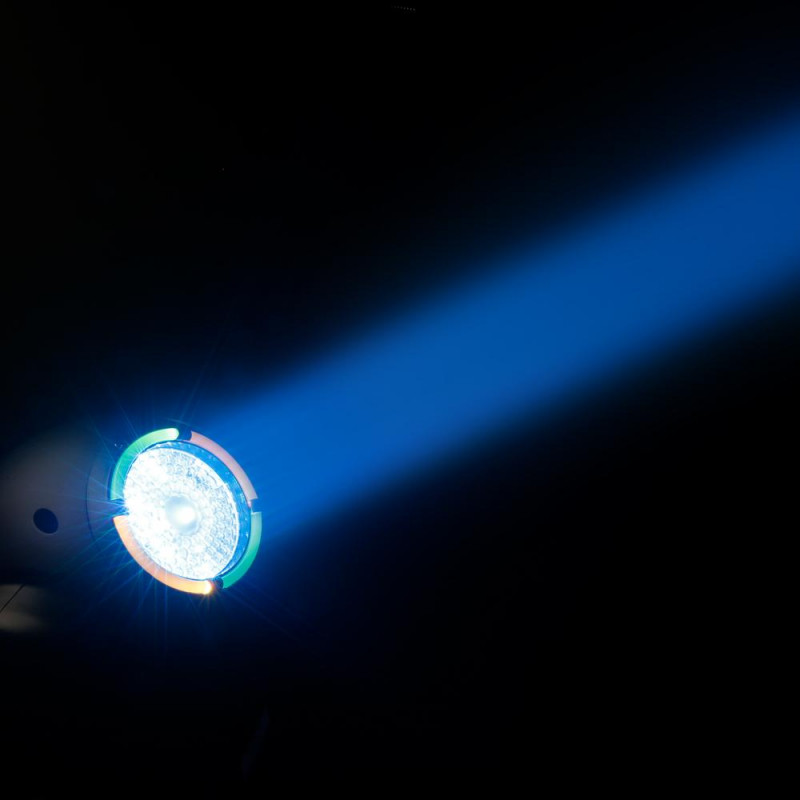

  • Individually controllable 4-segment RGB LED ring with single pixel control

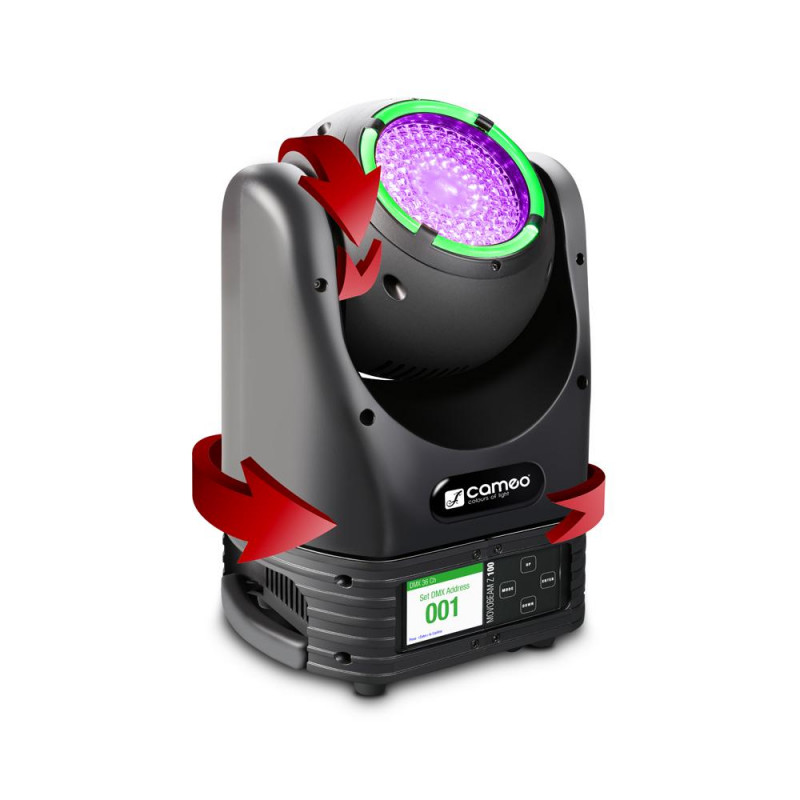

  • 2 high-speed, high torque motors for ultra-fast unlimited pan and tilt
  • Motor zoom with 4° to 30° range
  • Spectacular automated modes
  • 4 selectable dimming curves
  • 4 DMX modes, standalone or master/slave operation

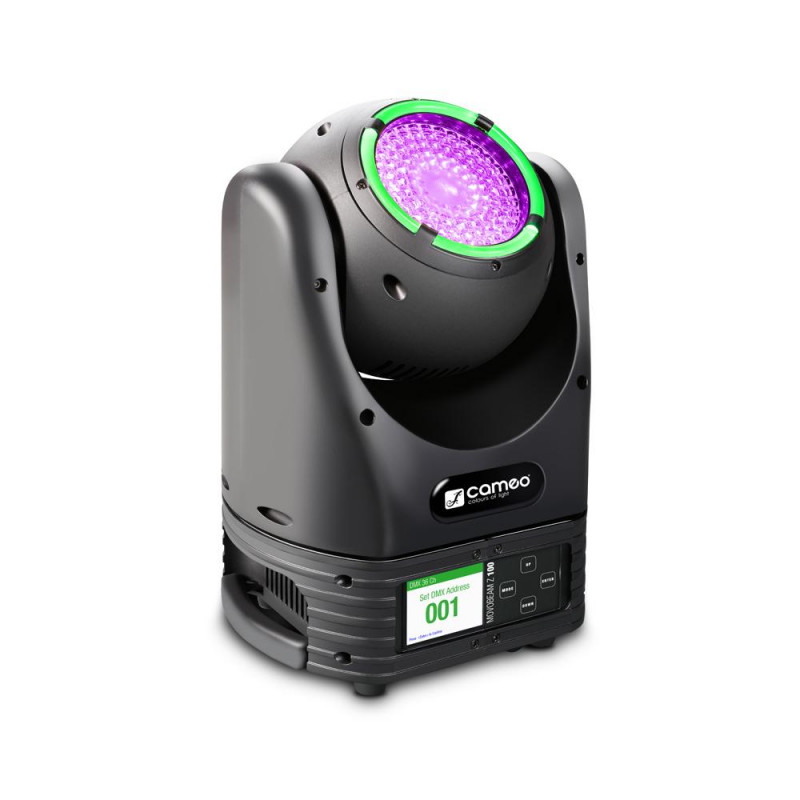

  • 2.5" TFT display and touch panel for intuitive configuration

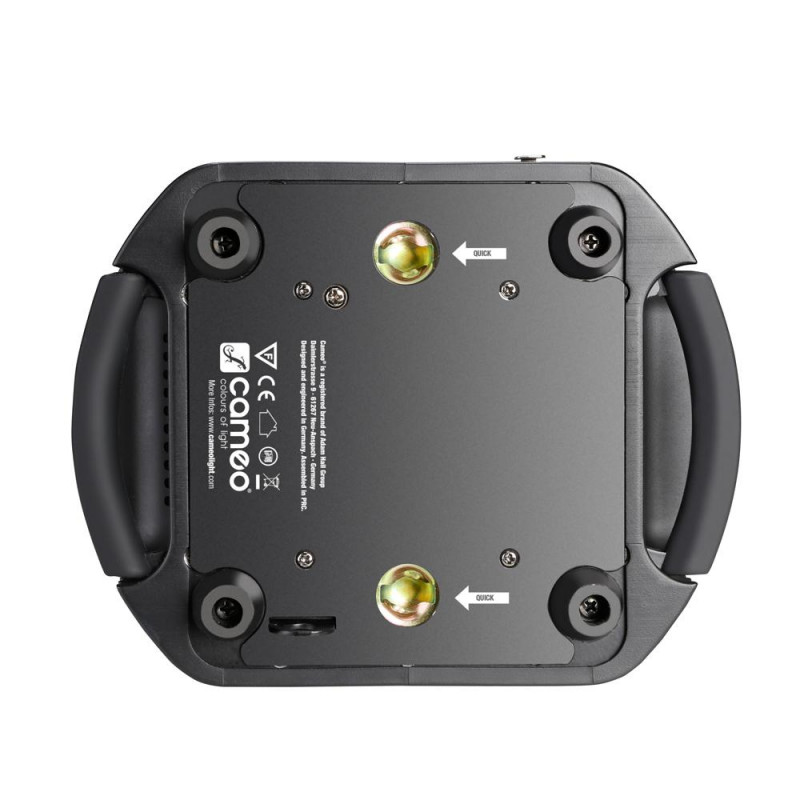

  • Omega mounting bracket included

Product typeLED Moving Lights
TypeLED Moving Effects
Colour spectrumRGBW
Number of LEDs1
LED type60W OSRAM (approx. 50.000 operating hours)
Refresh rate1000 Hz
Dispersion4 - 30 °

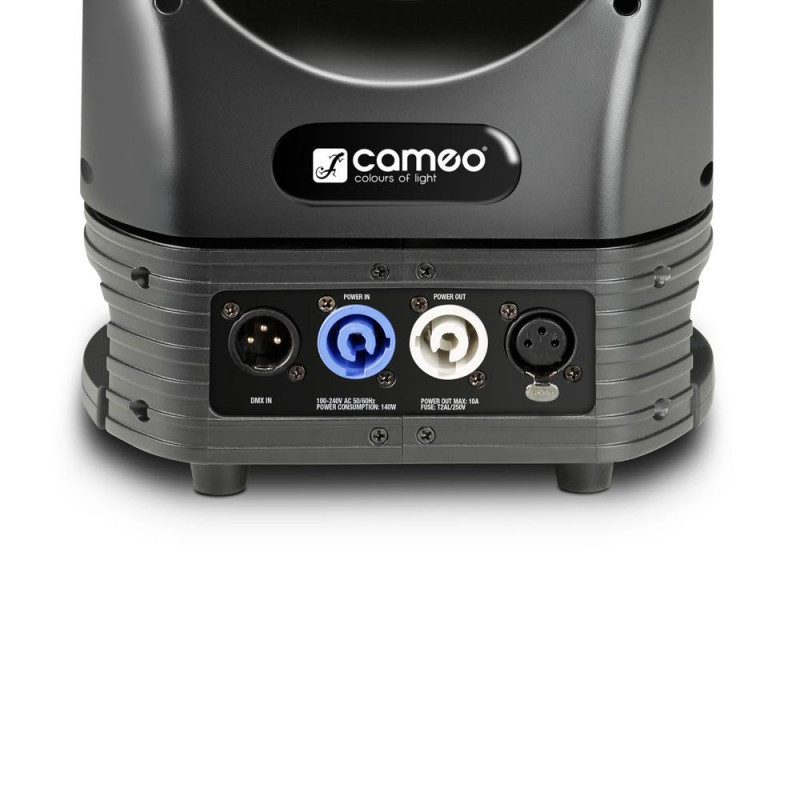

DMX inputXLR 3-pin male
DMX outputXLR 3-pin female
DMX mode16-channel, 36-channel, 5-channel
DMX FunctionsAuto programs, colour fade, colour jump, colour macro, Colour Ring Macro, Colour Ring Macro Speed, Dimmer Colour Ring, Dimmer Curve, Dimmer Fine, PAN, PAN UNLIMITED ROTATION, Pan/Tilt fine, Pan/Tilt Macros, Pan/Tilt Speed, RGB Ring 1-4, RGBW, Strobe Colour Ring, Stroboscope, TILT, TILT UNLIMITED ROTATION, Zoom
PAN movementunlimited
TILT movementunlimited
Standalone modesAuto programs, Static Mode
ControlsEnter, Mode, Value Down, Value Up
Indicators2,5” TFT Display
Operating voltage100 V AC - 240 V AC, 50 - 60 Hz
Power consumption140 W
Power connectorBlue and white power I/O
Housing materialABS plastic, metal
Cabinet colourBlack
Coolingfan
Illuminance8500lx @ 3m
Luminous flux1220 lm
Width210 mm
Height299 mm
Depth210 mm
Weight6,5 kg

CLMBZ100_CAMEO_Fixture_Library_Daslight.zipCLMBZ100_CAMEO_Fixture_Library_grandMA.zipCLMBZ100_CAMEO_Technische_Zeichnung.DWGCLMBZ100_CAMEO_Technische_Zeichnung.PDFCLMBZ100_Cameo_Bedienungsanleitung_EN_DE_FR_ES_PL_IT.pdfCLMBZ100_Cameo_DMX_Control_Table.pdfCLMBZ100_Cameo_Ecolabel_EN_DE_FR_ES_PL_IT.pdf
