Cameo - CLMP3WW

CLMP3WW

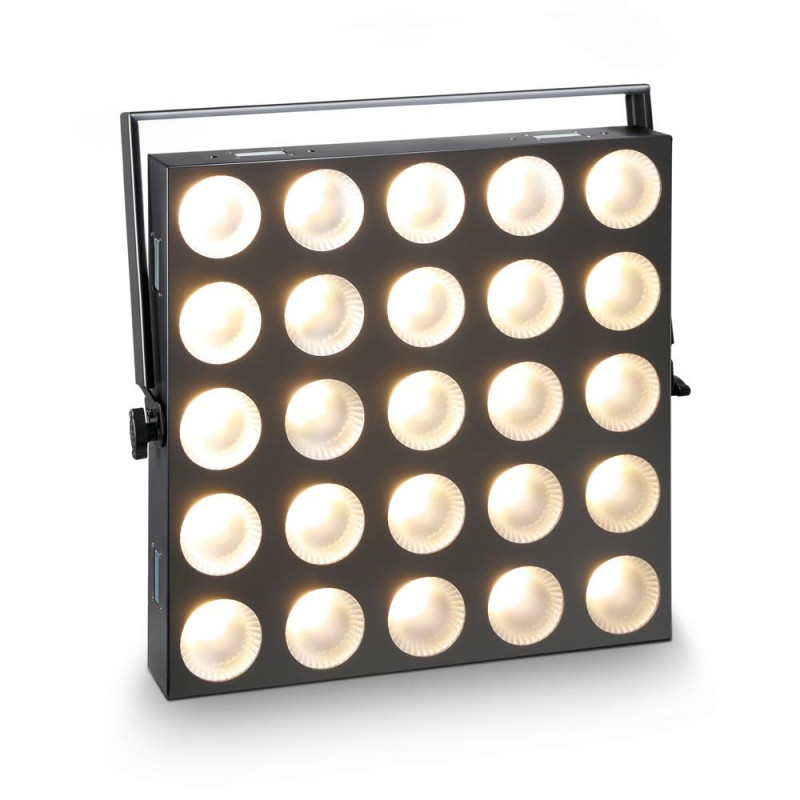

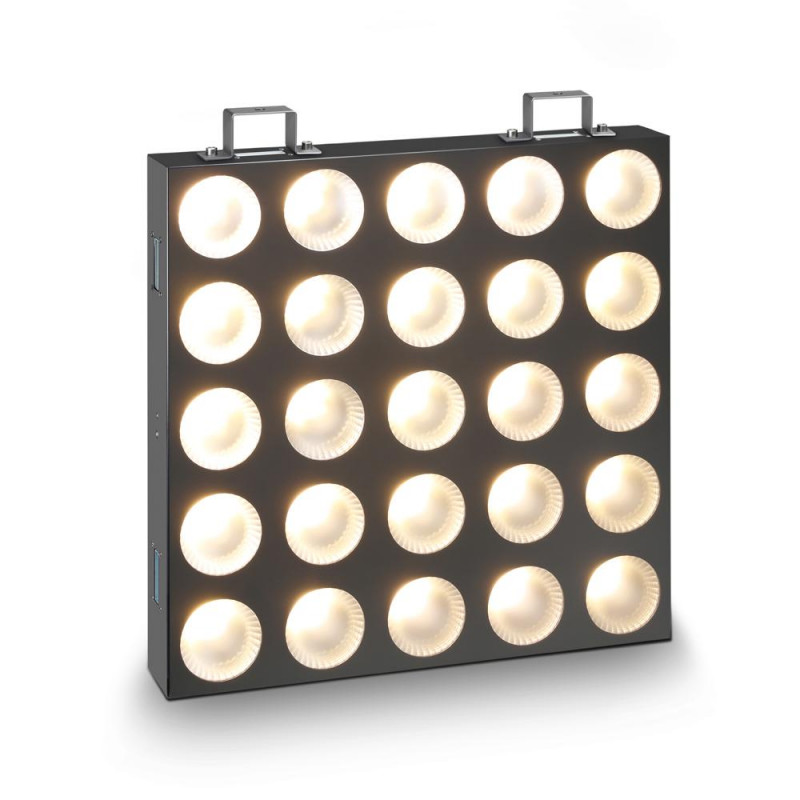

Cameo MATRIX PANEL 3 WW 5 x 5 LED Matrix Panel with single pixel control. Price per piece.

In Stock

Europe Warehouse: 230

More info

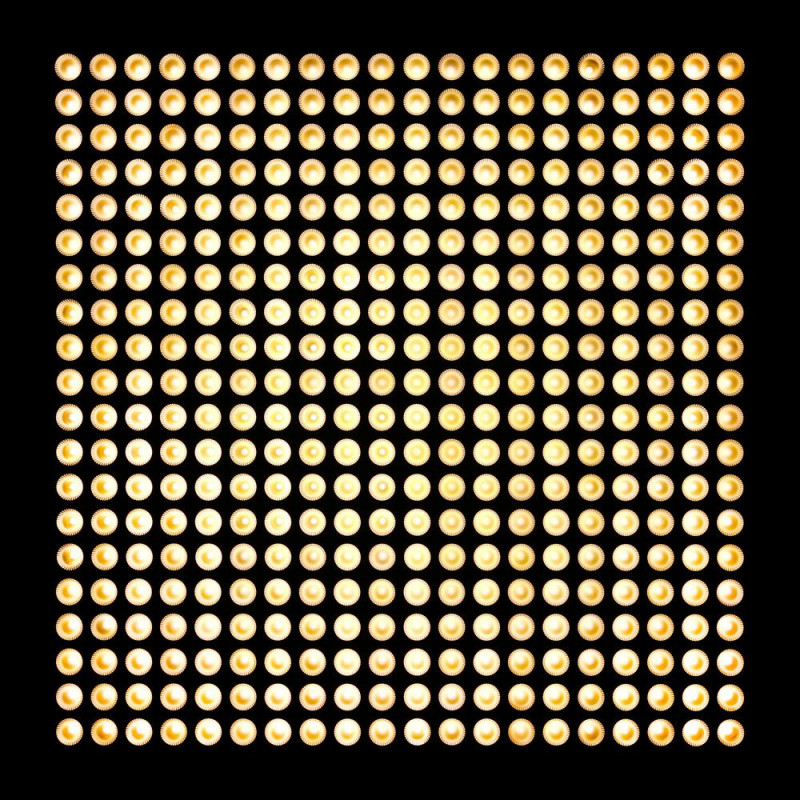

  • 5 x 5 LED Matrix Panel with single pixel control
  • 25 x 3 W warm white LEDs
  • 4 DMX modes, sound activation
  • Master, slave and standalone capability

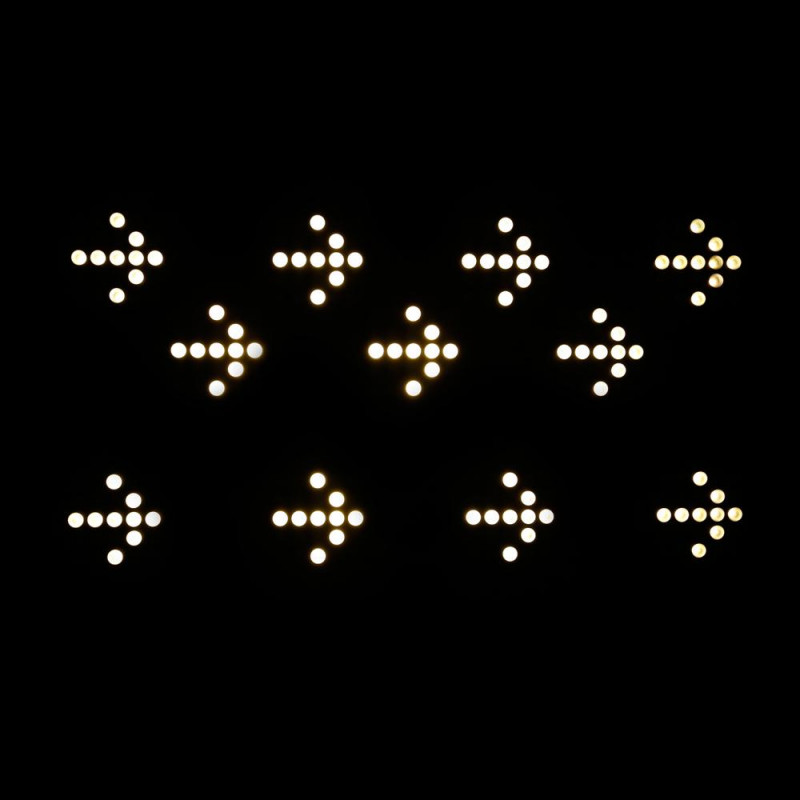

  • Blinder, chase and strobe effects

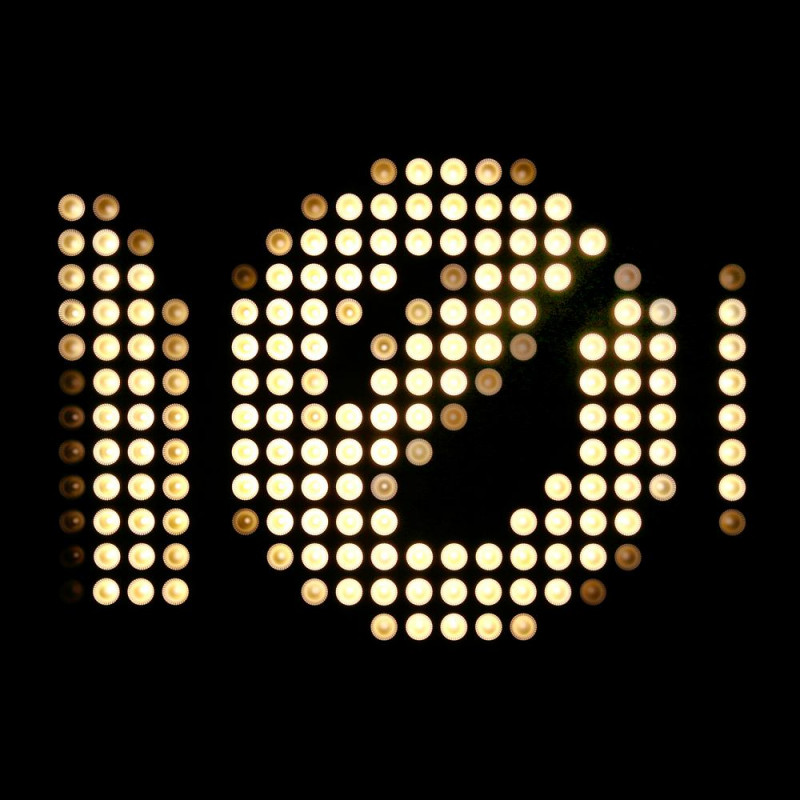

  • Alphabetic character and numeral mapping
  • 4 selectable dimming curves
  • Noiseless and flicker-free operation
  • Ultra flat enclosure

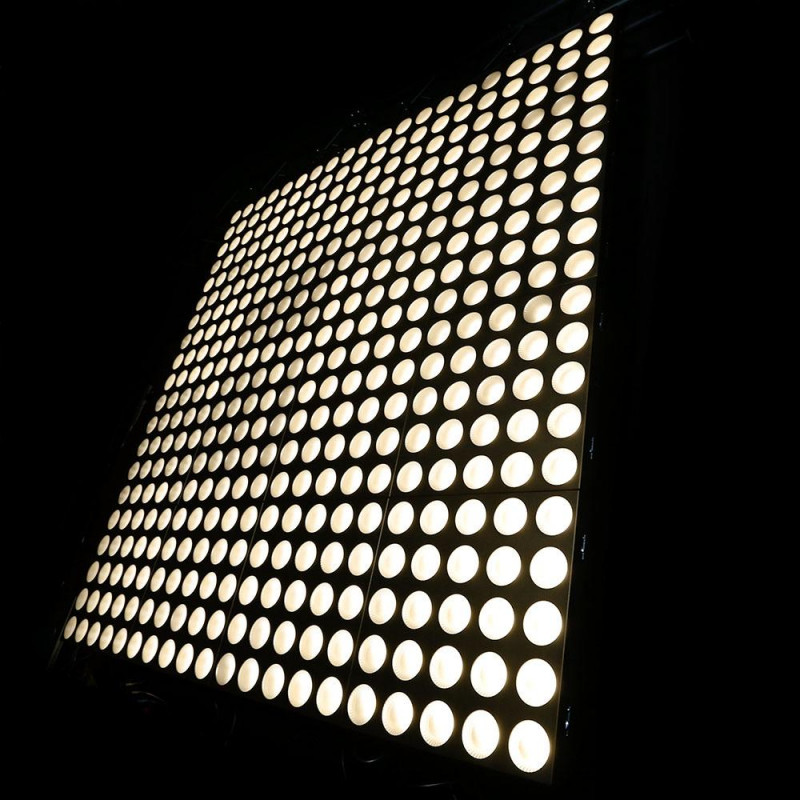

  • Even more impressive in multiples
Product type
LED Lighting Effects

Type
LED Effect Lights

Colour spectrum
warm white

Colour temperature
3300 K

Number of LEDs
25

LED type
3 W Single LED

Dispersion
40 °

Refresh rate
3400 Hz

DMX input
XLR 3-pin male

DMX output
XLR 3-pin female

DMX mode
10-channel , 2-channel , 28-channel , 5-channel

DMX Functions
auto programs , Dimmer Fine , master dimmer , sound programs , Stroboscope

Standalone modes
master / slave mode , Music control

Controls
down , Enter , mode , up

Indicators
4-digit LED display

Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz

Power consumption
100 W

Fuse
F5A / 250V

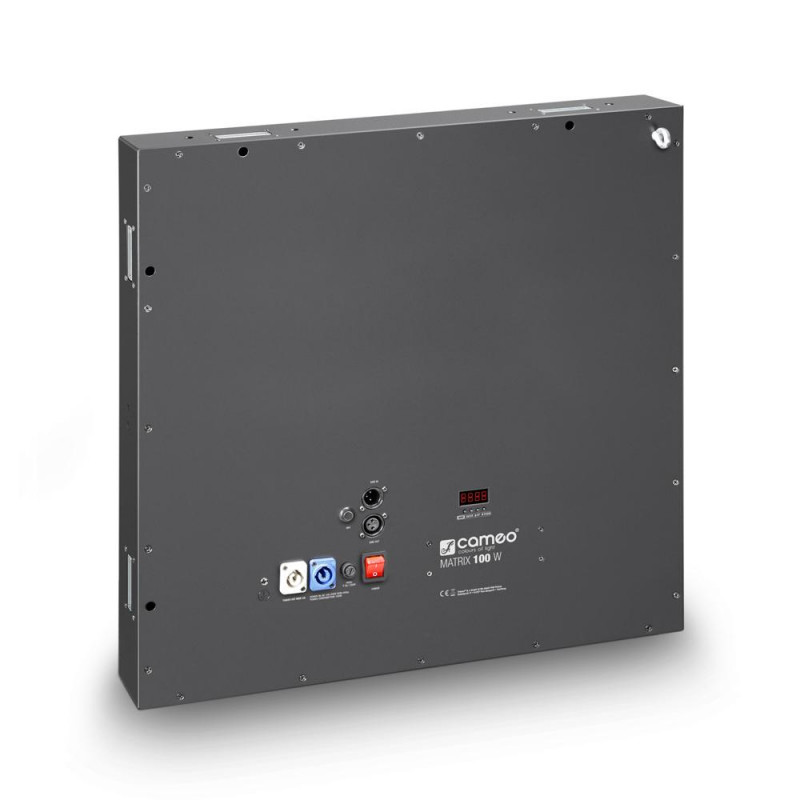

Power connector
Blue and white power I/O

Housing material
metal

Cabinet colour
black

Cooling
Convection

Operating Temperature
10 - 40 °C

Illuminance
6100lx @ 1m

Width
580 mm

Height
580 mm

Depth
67 mm

Weight
8 kg

Features

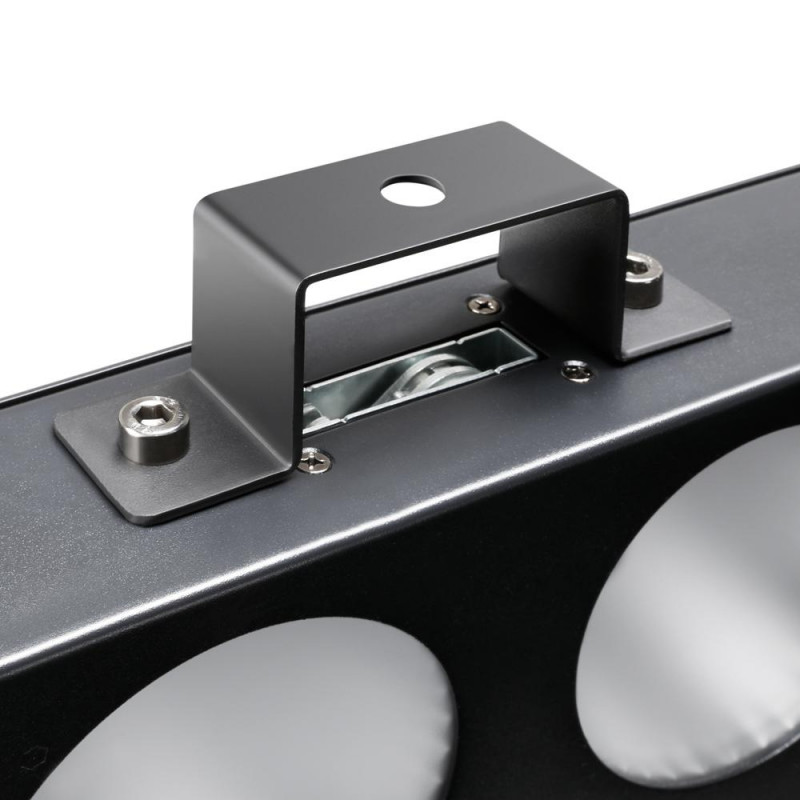

swivel bracket , 2 x omega mounting , LED MATRIX PANEL , security lock slot
