Cameo - CLSB83

CLSB83

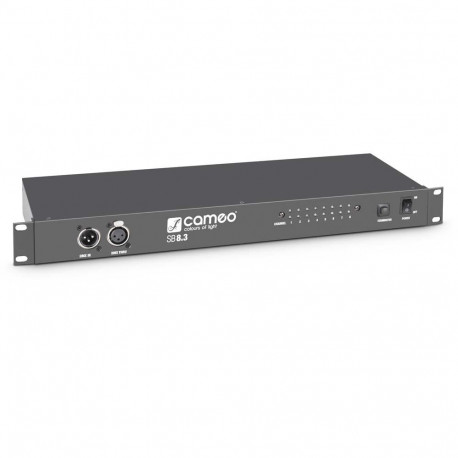

Cameo SB8.3 8-channel DMX splitter / booster (3-pin). Price per piece.

In Stock

Europe Warehouse: 230

More info

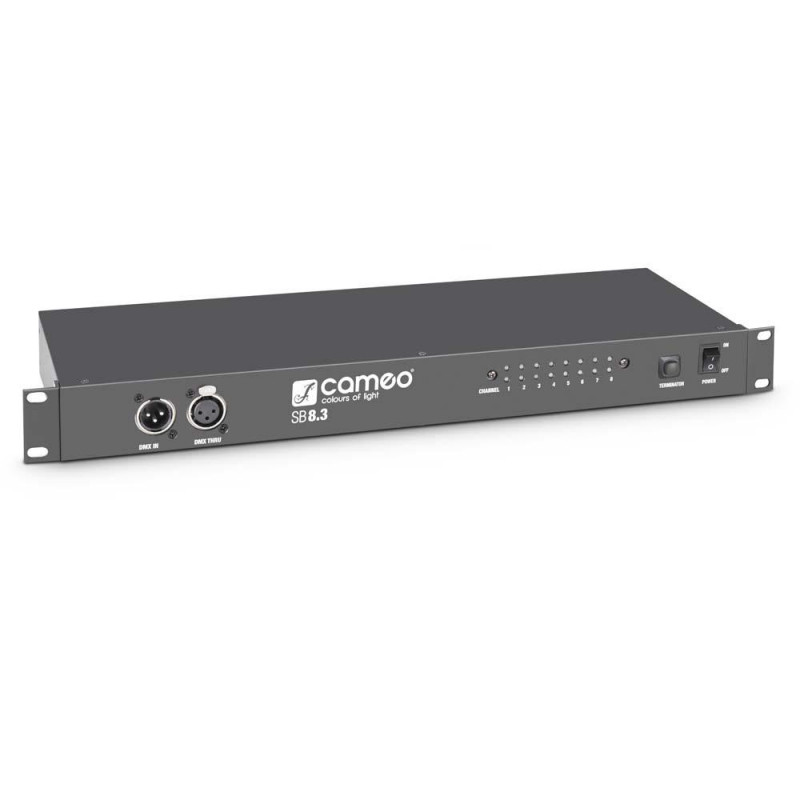

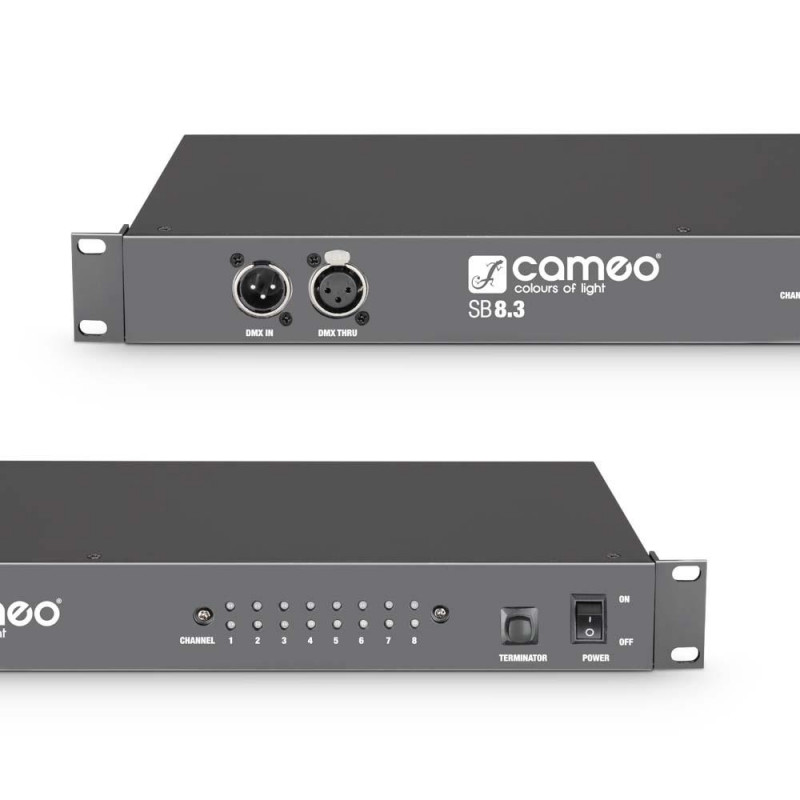

  • Professional 8-way DMX splitter / booster
  • Chassis 1U 19" rack-mount enclosure
  • DMX INPUT: 1 x XLR (3-pin) front panel, 1 x XLR (3-pin) back panel
  • DMX THRU: 1 x XLR (3-pin) front panel, 1 x XLR (3-pin) back panel

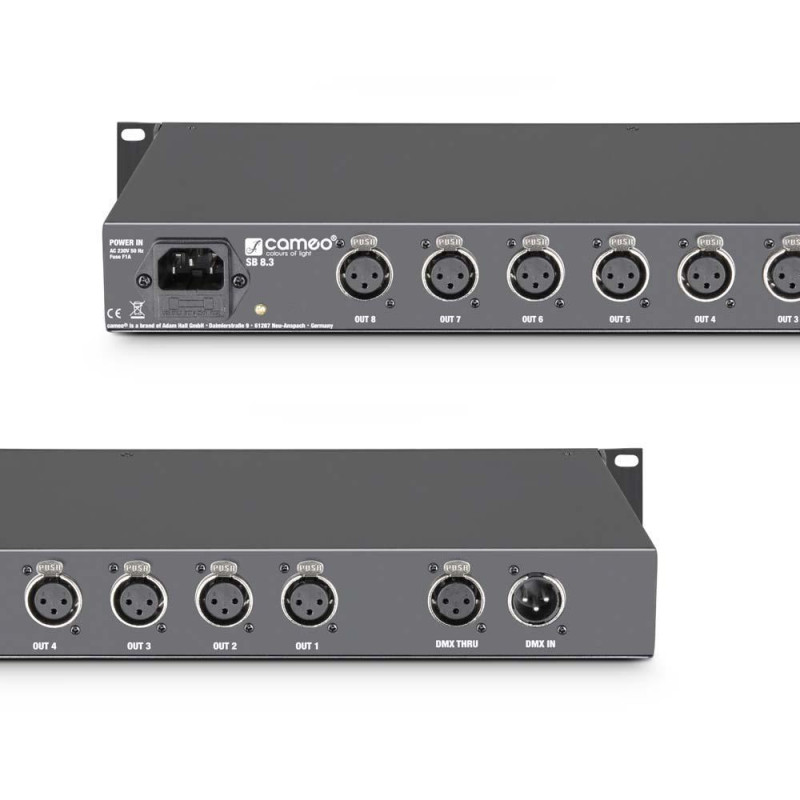

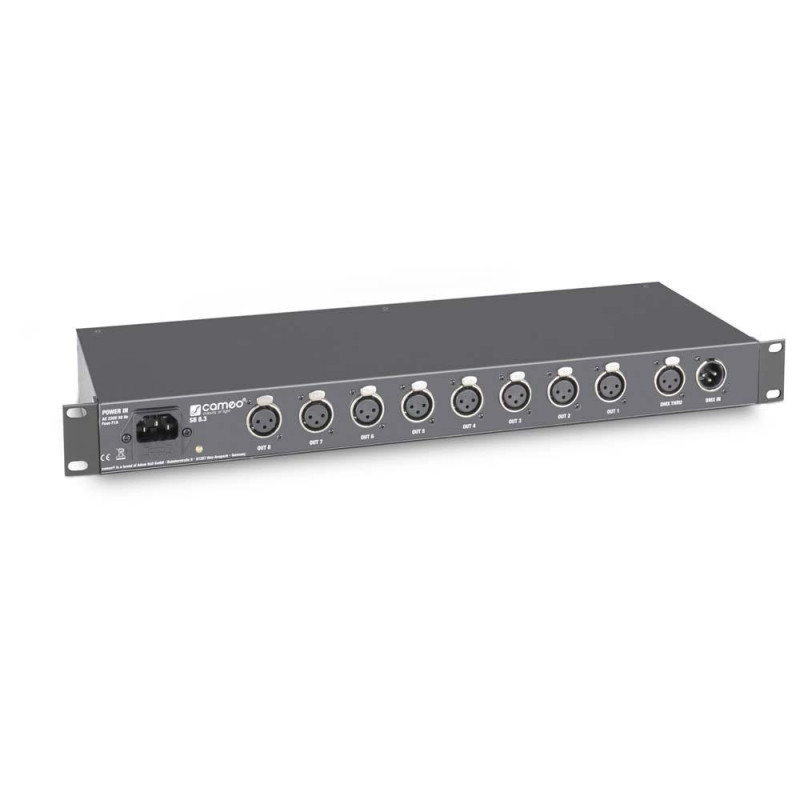

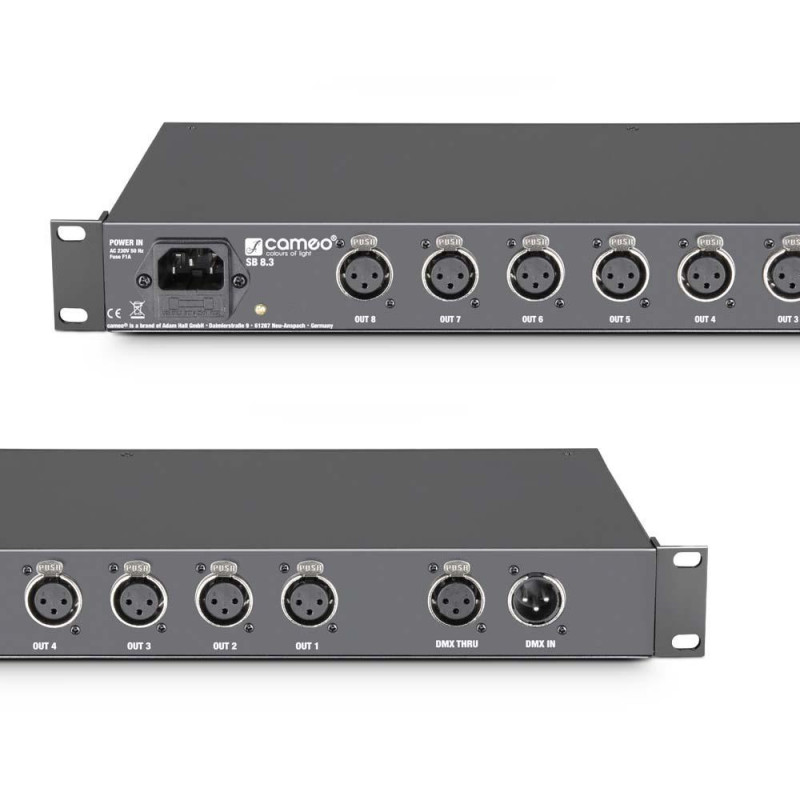

  • 8 electrically isolated XLR (3-pin) outputs on the back
  • DMX status indicator per channel
  • Power status indicator
  • Switchable 120 Ohm terminating resistor for the DMX THRU output jack
  • Front and rear rack-mount angle attachment options
Product type
Other Lighting Accessories

Type
DMX splitter / booster

DMX inputs
2 (parallel)

DMX input connectors
XLR 3-pin male

DMX Thru Outputs
2 (parallel)

DMX Thru Output Connectors
XLR 3-pin female

DMX outputs
8 (electrically isolated)

DMX output connectors
XLR 3-pin male

Controls
DMX Thru Terminator , Power On/Off

Indicators
8 x Power LED , 8 x Signal LED

Mains connector
IEC socket

Operating voltage
transformer

Operating voltage
230 V AC, 50 Hz

Power consumption
15 W

Width
483 mm

Height
44 mm

Depth
160 mm

Weight
3 kg

Accessories (included)
Power cord
