Cameo - HYDRABEAM 4000 RGBW

HYDRABEAM 4000 RGBW

Lighting System with 4 Ultra-fast 32 W RGBW Quad LED Moving Heads

967.40€%27.85 You save 269.40€
698,00 €

Add to wishlist

In Stock

Europe Warehouse: 230

More info

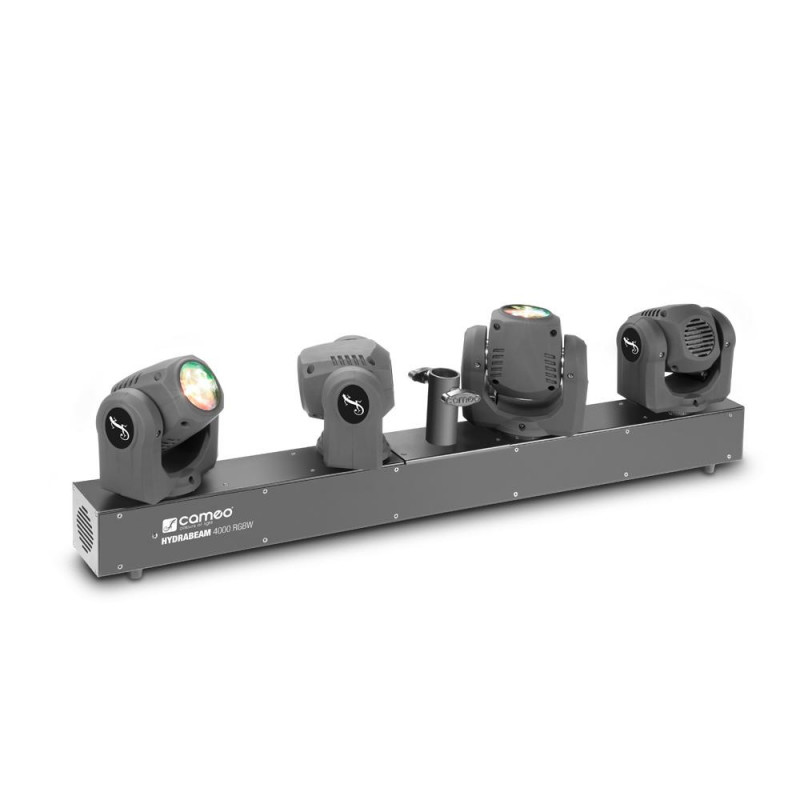

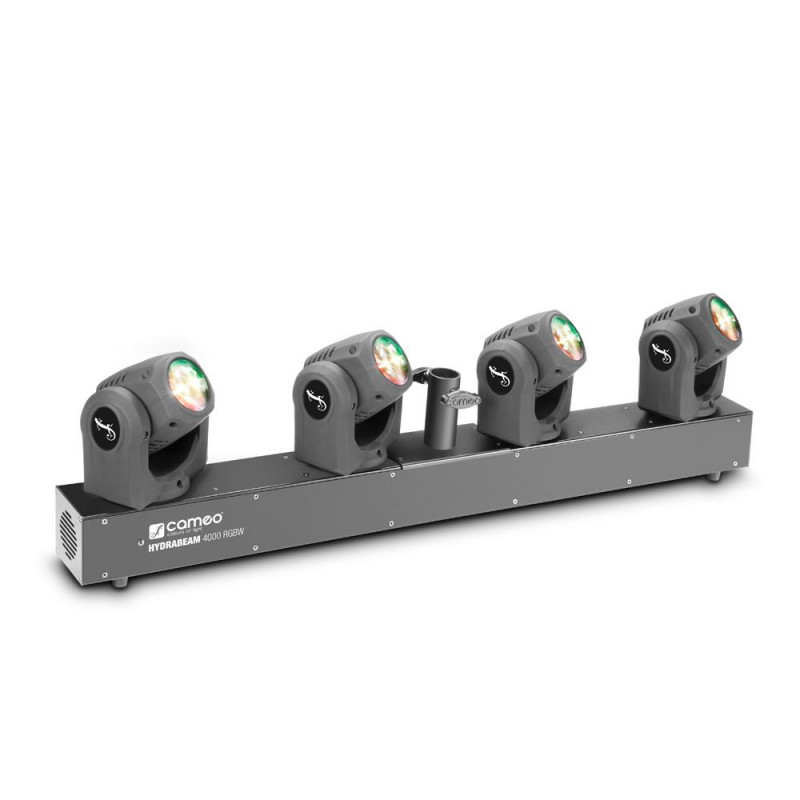

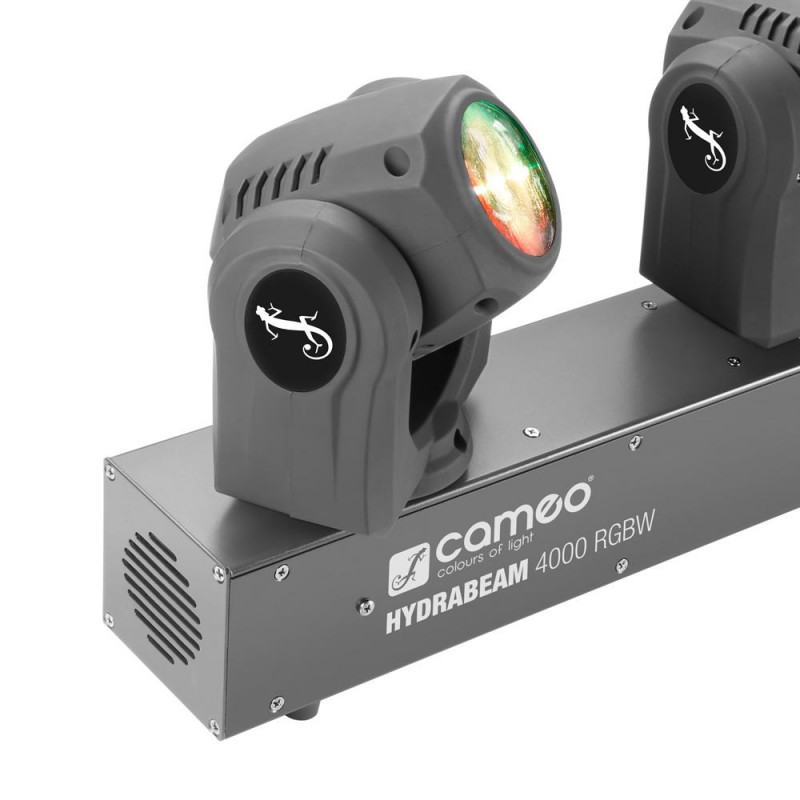

The Cameo Hydrabeam 4000 features four individually controllable moving heads on a 100 cm (3.28 ft.) bar with ultra fast 540° pan and 270° tilt. They are equipped with powerful 32 W quad LEDs for brilliant, uniform colour mixes and project razor sharp beams with an extremely focused 2.5° spread.

The Hydrabeam 4000 provides 5 modes of DMX control, sound activation and automatic operation with 16 exciting built-in programs. In addition, the fixture permits smooth dimming and includes a high-speed strobe function firing a maximum of 20 intense flashes per second.

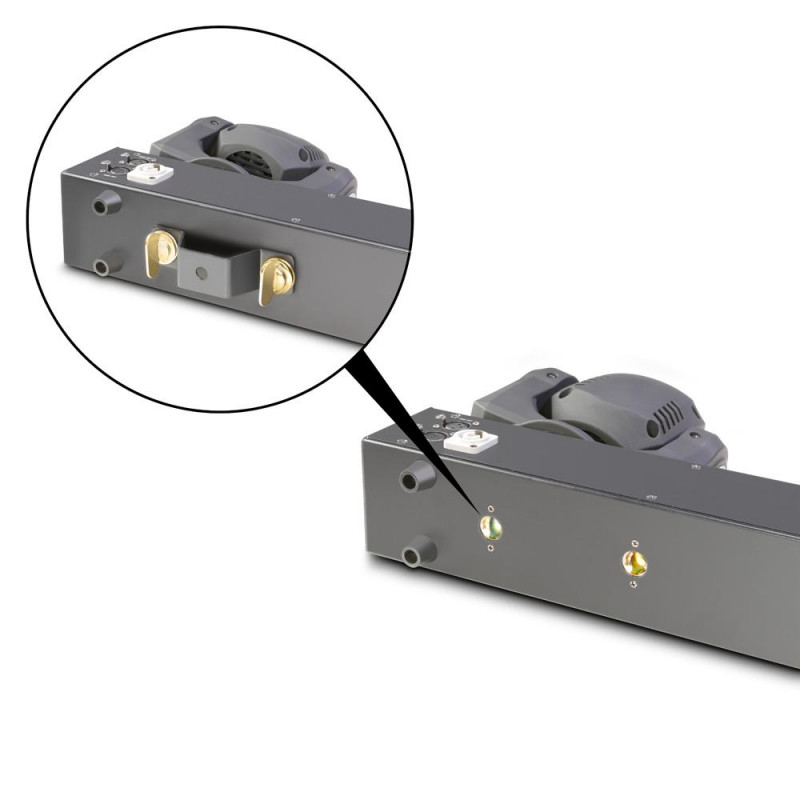

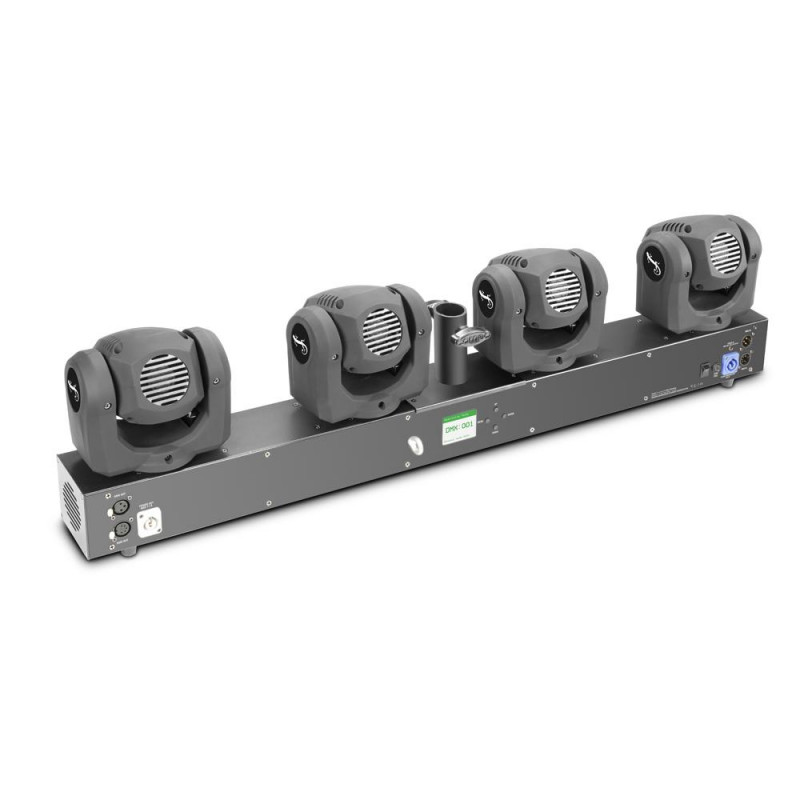

The compound ABS and metal construction integrates a low-noise fan and a 4-button colour display that permits easy, intuitive configuration and manual operation. 3 and 5-pin DMX inputs and outputs plus the blue and grey Power Twist connectors enable convenient and versatile daisy-chaining. The Hydrabeam 4000 comes with dual Omega brackets and a pole adapter virtually covering all mounting options.

  • Lighting system with 4 individually controllable moving heads
  • Ultra fast 540° pan and 270° tilt
  • Powerful 32 W RGBW Quad LEDs
  • Universal mounting options

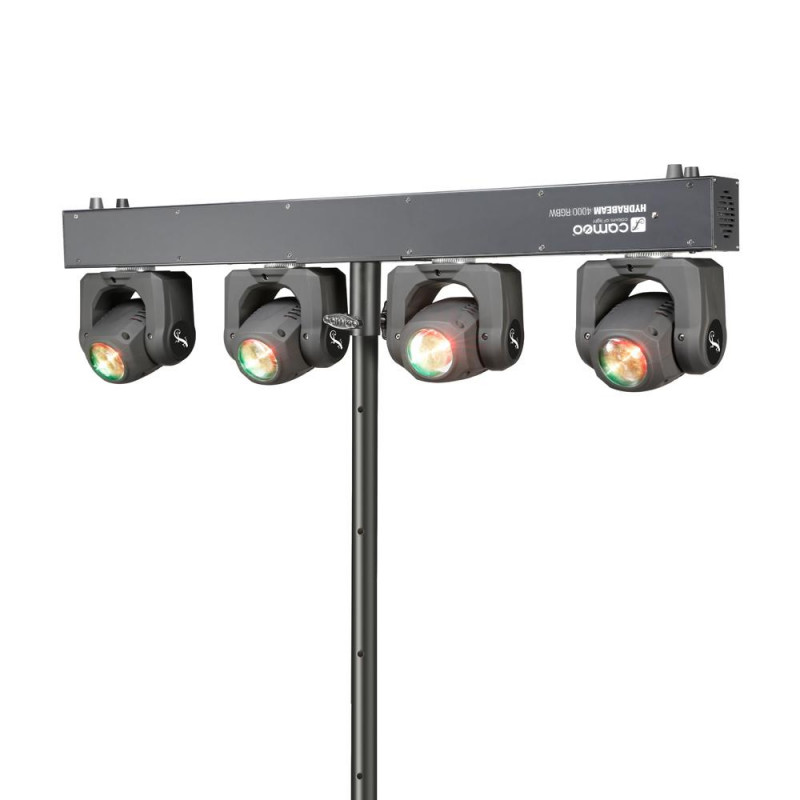

  • 2 Omega brackets and pole mount adapter included

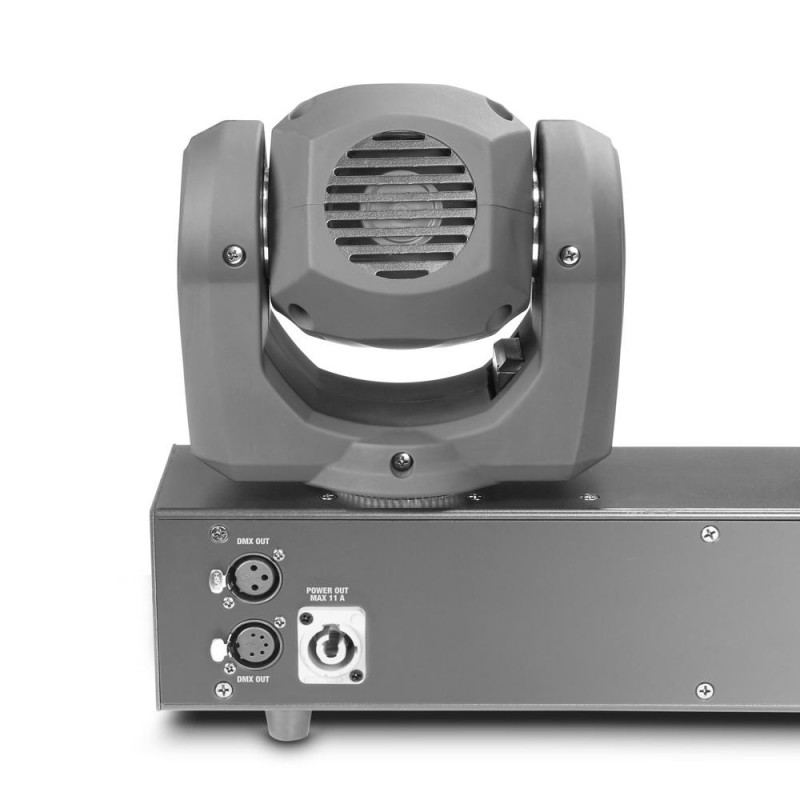

  • Blue and grey Power Twist plus 3 and 5-Pin DMX connectors
  • Easy daisy chaining and power linking
  • 5 DMX modes, sound activation and automatic operation
  • 16 exciting auto-run programs
  • 4-button LC colour display for intuitive configuration

Product typeLED Moving Lights
TypeLED Moving Lights
Colour spectrumRGBW
Number of LEDs4
Average LED lifetime50000 hrs.
LED type32 W
Refresh rate6000 Hz
Dispersion2.5 °
DMX inputXLR 3-pin male, XLR 5-pin male
DMX outputXLR 3-pin female, XLR 5-pin female
RDMno
ProtocolsUSITT DMX-512
DMX mode10-channel, 19-channel, 32-channel, 56-channel, 6-channel
DMX FunctionsAuto programs, colour change, Dimmer, PAN, strobe, TILT
Wireless DMXno
PAN movement540
TILT movement270
High Speed Strobe1 - 20 Hz
Standalone modesAuto run, sound control
ControlsEnter, LCD display, Mode, Value Down, Value Up
Indicatorscolour LC display
Operating voltage100 V AC - 240 V AC, 50 - 60 Hz
Power consumption220 W
How many devices can be connected (110 V)3
How many devices can be connected (240 V)5
FuseF3AL / 250 V
Power connectorBlue Power Twist, male
Power supply connectionGrey Power Twist, female
Max. output current11 A
Housing materialABS plastic, metal
Cabinet colourBlack
Protection class IPIP20
Coolinglow-noise fan
Illuminanceblue 9600lx @ 1m, green 42400lx @ 1m, red 17900lx @ 1m, white 67200lx @ 1m
Maximum Ambient Temperature0 - 40° C °C
Width90 mm
Height270 mm
Depth1000 mm
Weight11,6 kg

CLHB4000RGBW_Cameo_Bedienungsanleitung_EN_DE_FR_ES_PL_IT.pdfCLHB4000RGBW_Cameo_DMX_Control_Table.pdfCLHB4000RGBW_Cameo_Ecolabel_EN_DE_FR_ES_PL_IT.pdfCLHB4000RGBW_Cameo_Fixture_Library_DaslightV3.zipCLHB4000RGBW_Cameo_Technische_Zeichnung_EN.dwgCLHB4000RGBW_Cameo_Technische_Zeichnung_EN.pdf
