Cameo - INSTANT FOG 1700 T PRO

INSTANT FOG 1700 T PRO

High Output 1,700 W Touring Fog Machine

In Stock

Europe Warehouse: 230

More info

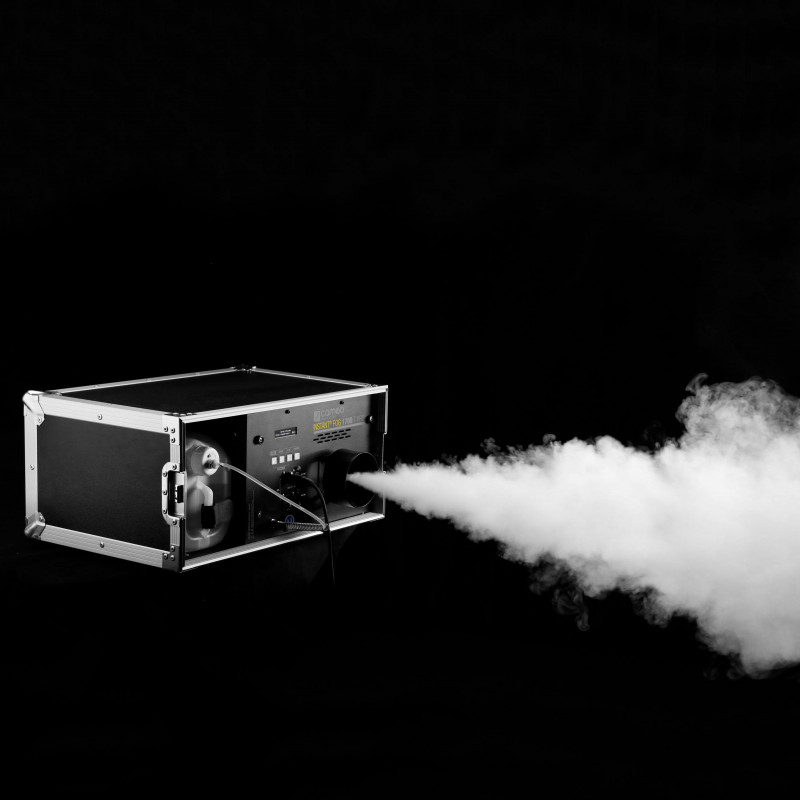

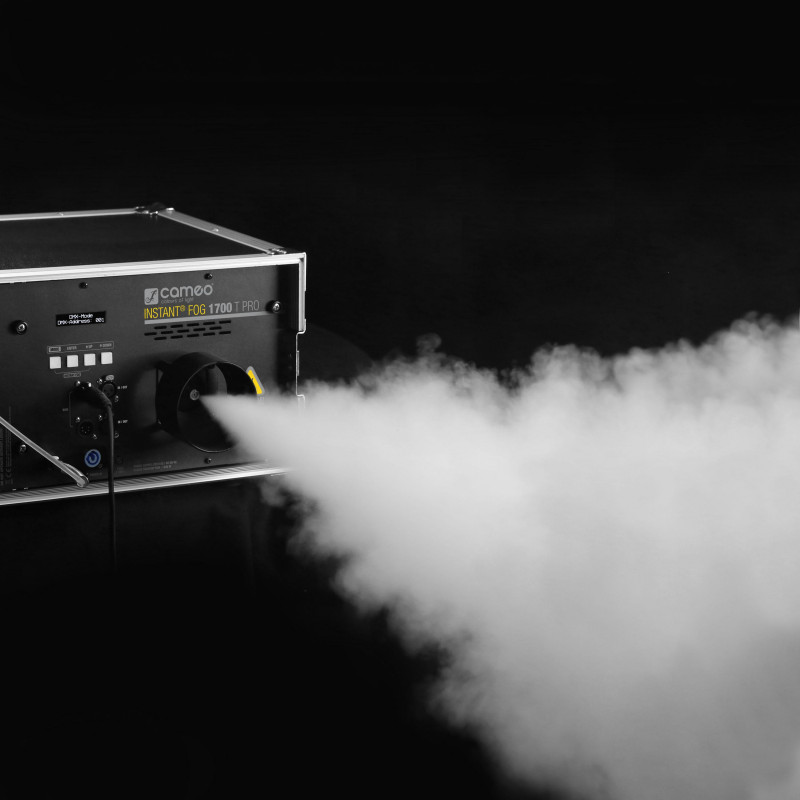

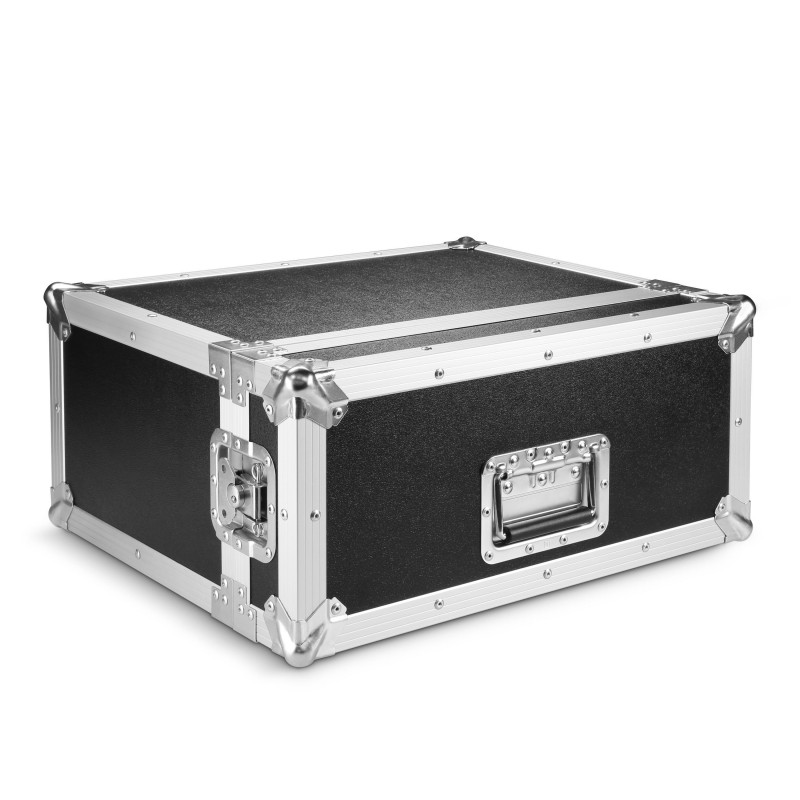

Generating spectacular atmospheres and enhancing every light show, the Cameo INSTANT FOG 1700 T PRO is a high output touring fogger built into a rugged road case to meet the rigorous demands of professional applications. It is the perfect choice for live events, discotheques, theatres and on-camera use.

Sporting a powerful 1,700 watt heating element and a massive output of 700 cubic meters per minute, it fills large stages and venues with dense, consistent fog after an initial warm-up time of 7 minutes only. Fluid consumption is a very low 150 ml/min at 100% output, and the integrated fluid canister drawer takes containers up to 5 liter capacity for extended operation between refills.

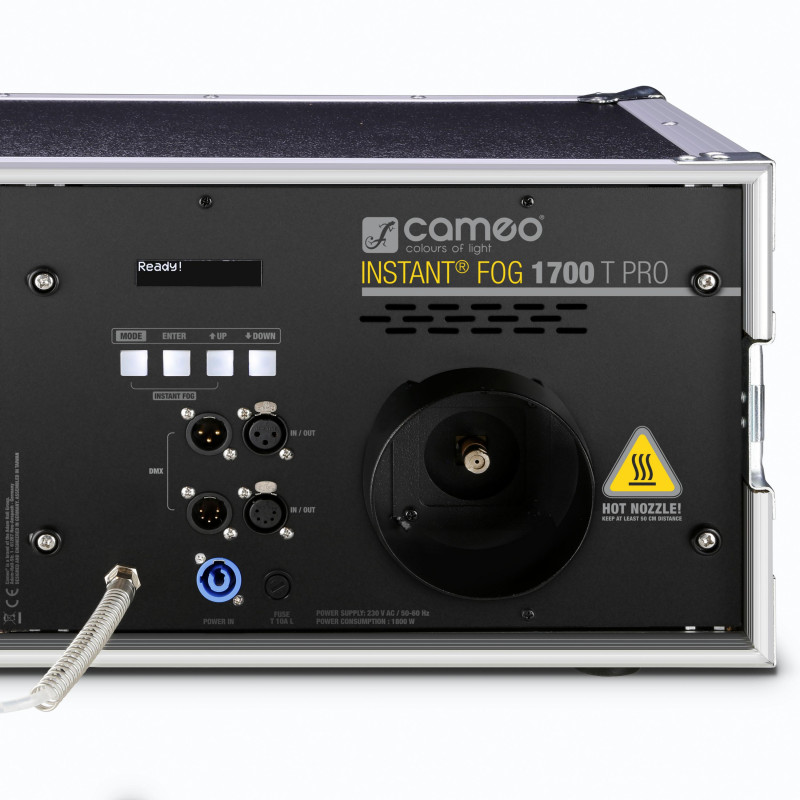

The INSTANT FOG 1700 T PRO is controlled via DMX in 3-channel mode or the easy-to-read high-contrast LCD display and four buttons. It provides both 3-pin and 5-pin DMX inputs and outputs and integrates a 100 mm hose adapter if you want to duct the fog from the machine to another location. A convenient automatic shutdown feature prevents damage to the pump when the fluid tank runs empty. Generating spectacular atmospheres and enhancing every light show, the INSTANT FOG 1700 T PRO is the perfect choice for live events, discotheques and theatres as well as TV and motion picture applications.

  • 1700 watt high output touring fogger

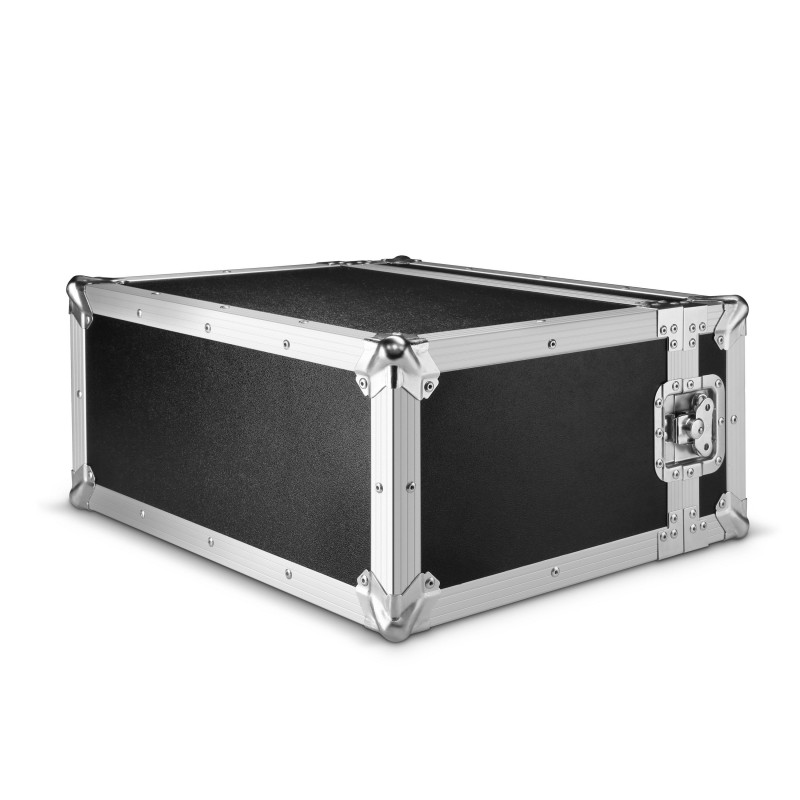

  • Built into a rugged road case
  • DMX control plus standalone operation
  • High-contrast LC display
  • Master/Slave Mode

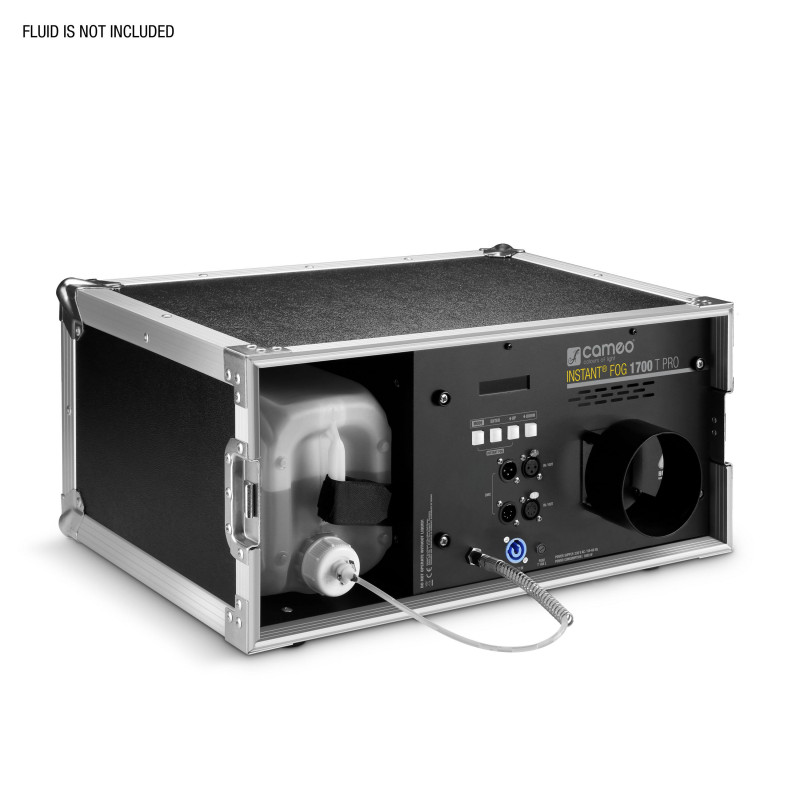

  • Integrated fluid canister drawer
  • Integrated 100 mm hose adapter
  • Automatic shutdown prevents pump damage when fluid tank is empty
  • Ideal for live events, discotheques, theatres, TV and film productions

Product typeFog and Wind Machines
TypeFog Machine
Power1700 W
Warm-up timeca. 7 minutes
Fog durationca. 40 seconds @ 100% Output / Non-Stop @ 50% Output
Reheating time60 seconds
Fluid tank capacity5 l
Fluid Consumption150 ml/min
DMX inputXLR 3-pin male, XLR 5-pin male
DMX outputXLR 3-pin female, XLR 5-pin female
DMX mode3-channel
DMX FunctionsFog Quantity, Interval
Standalone FunctionsFog Quantity, Instant Fog, Interval
ControlsEnter, Mode, Value Down, Value Up
IndicatorsCanister lighting, Key illumination, LC display
Operating voltage230 V AC / 50-60 Hz, 230 - 240 V AC / 50 - 60 Hz, Neutrik PowerCON TRUE1
Power consumption1800 W
Overheating Protectionheating element with thermostat
Power connectorPower cord with safety plug (Type E / CEE 7/7), Power Twist Connector
FuseT10AL (5 x 20 mm)
Ambient temperature (operating)5 - 40 °C
Relative Humidity< 85 %, not condensing
Housing materialmetal, plywood
Cabinet colourBlack
Dimensions with cover (W x H x D)550 x 265 x 465 mm
Width465 mm
Height255 mm
Length550 mm

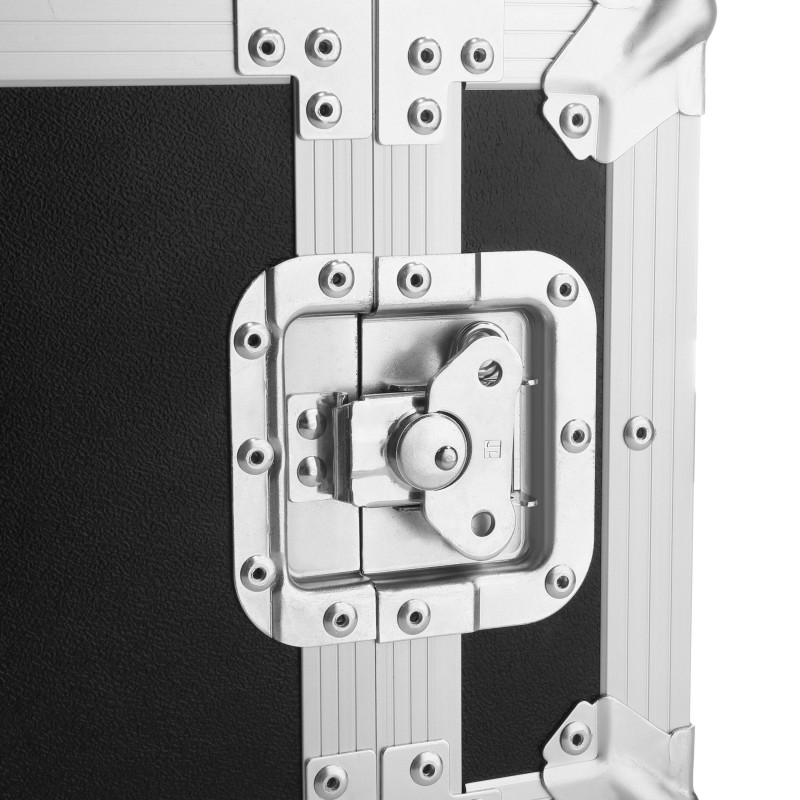

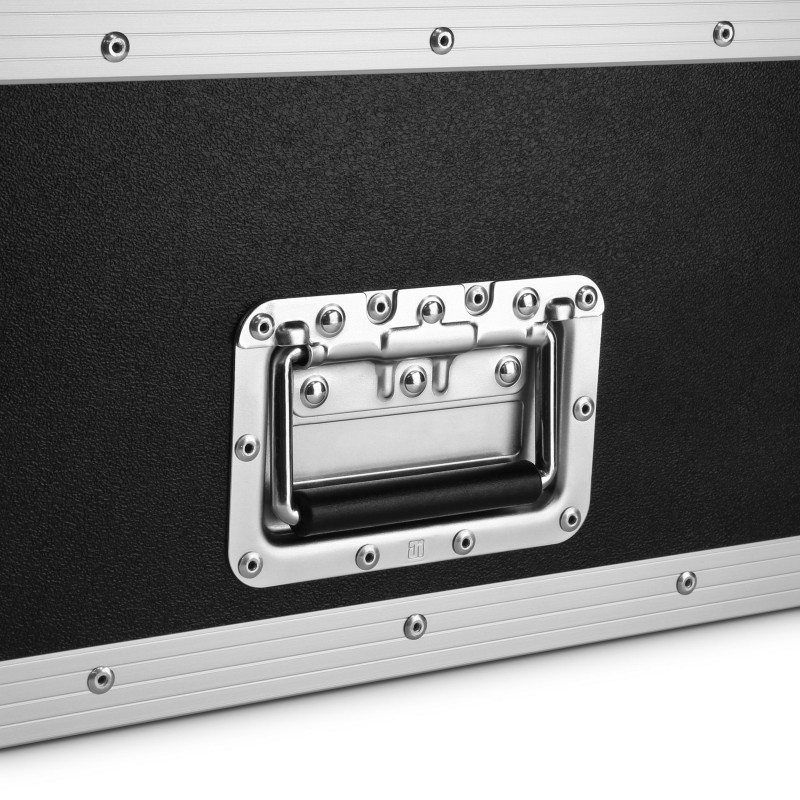

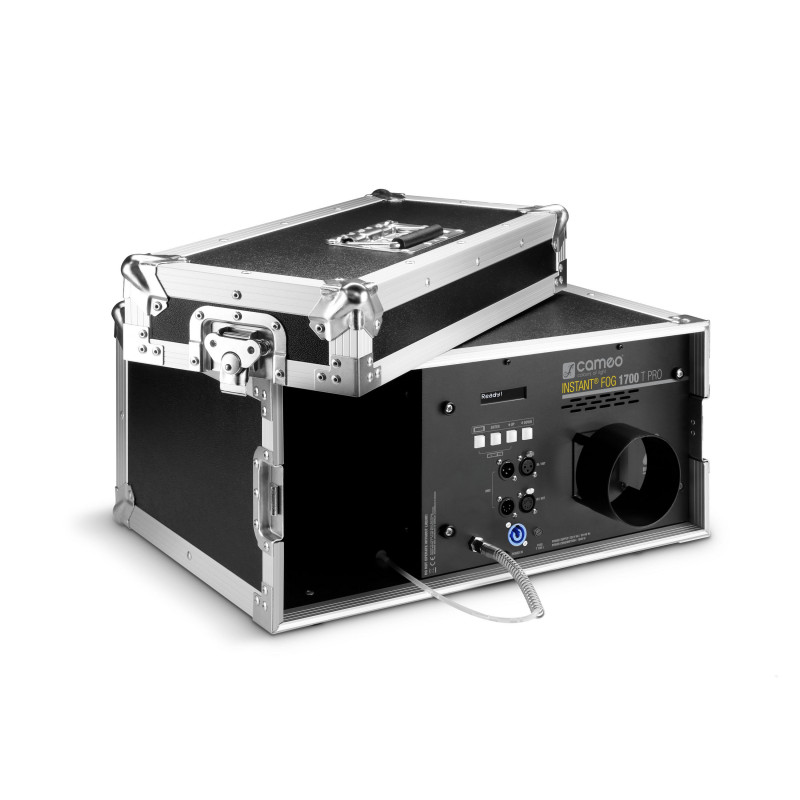

Other features4 x rubber feet, Flightcase with cover, butterfly locks and carrying handle., Power cord, Special canister cap with ventilation valve and suction pipe
Weight21,763 kg

CLIF1700TPRO_Cameo_Bedienungsanleitung_EN_DE_FR_ES_PL_IT.pdfCLIF1700TPRO_Cameo_Technical_Data_Sheet.pdfCLIF1700TPRO_Cameo_Technical_Drawing.dwgCLIF1700TPRO_Cameo_Technical_Drawing.pdf
