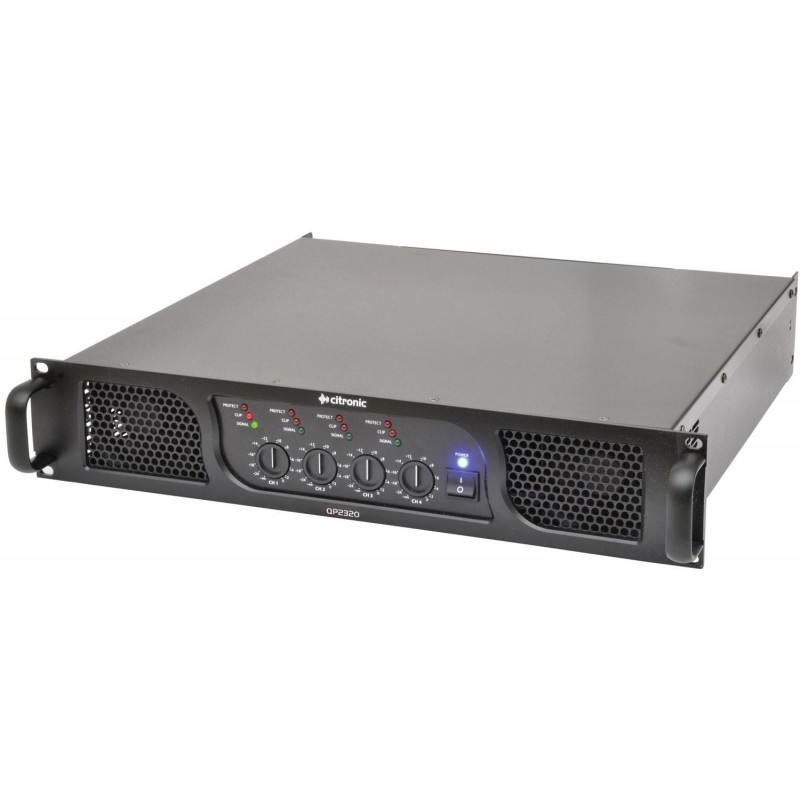

4 x 580W @ 2Ω multichannel power stages
- Quadruple power amplifiers with 4 fully independent channels and individual volume controls
- Fully balanced line inputs and parallel outputs allow the signal to be daisy-chained to other amplifiers
- Designed as a cost-effective and efficient solution for multi-speaker installations where sound quality is paramount
- Fully balanced signal path
- Stable up to 2 ohms
- 2U rack mount
CODE | MODEL | POWER | DIMENSIONS | WEIGHT |
| 172.241UK | QP1600 | 4x400W RMS @ 2Ω | 483x439x88mm (2U) | 22.00Kg |
| 172.243UK | QP2320 | 4x580W RMS @ 2Ω | 483x439x88mm (2U) | 23.50Kg |
Code | 172.243UK |
Model | QP2320 |
RMS Power @ 2Ω | 4 x 580Wrms |
RMS Power @ 4Ω | 4 x 450Wrms |
RMS Power @ 8Ω | 4 x 300Wrms |

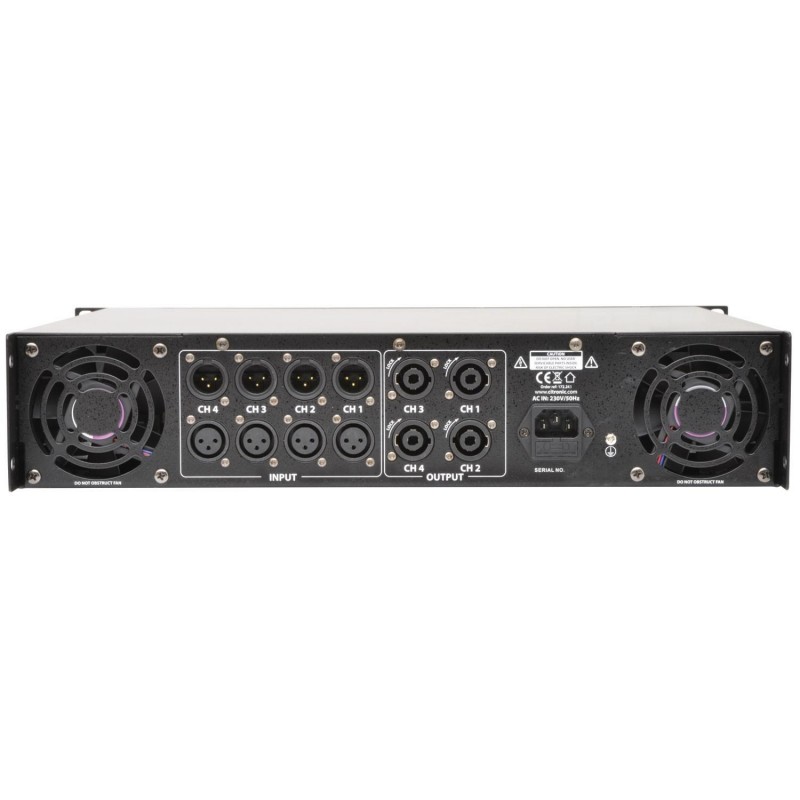

Power supply | 4 x XLRF balanced |
Input: line | 4 x XLRF balanced |
Output: line | 4 x XLRM (parallel from inputs) |
Input impedance | 20k ohms |
Frequency response | 5Hz - 50kHz |
Harmonic distortion | 0.05% |
Upload speed | 40V / us |
S / N ratio | 103dB |
Controls | 4 x channel gain |
Speaker outputs | 4 x SPK connectors |
Circuit protection | Short-circuit, DC, overload, soft-start |
Dimensions | 483 x 439 x 88mm |
Weight | 23.5Kg |
