Citronic - 173.650UK 1 View larger

Citronic - 173.650UK

173.650UK

USB2+1 USB Audio Interface - 2 Microphones + 1 Instrument

In Stock

Europe Warehouse: 3

More info

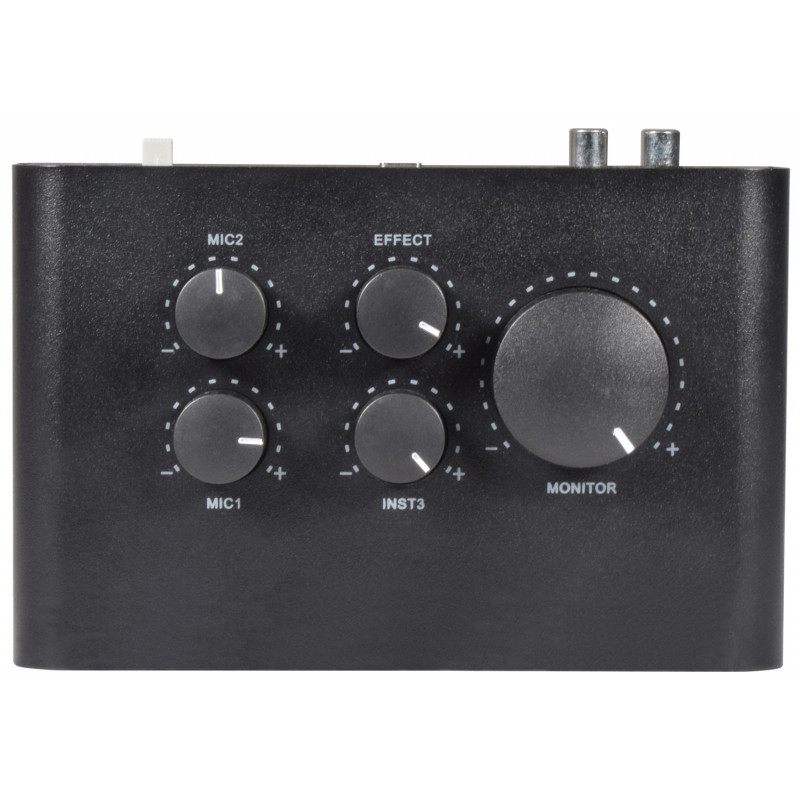

USB sound card for computer recording studio. It features 2 independent microphone inputs on XLR/Jack sockets and a separate 6.3mm instrument input. Each input has a gain control and there is an optional echo effect with separate control. Monitoring is via a 6.3mm stereo headphone jack or an RCA L+R line output on the back of the unit for connecting monitor speakers. Power to the interface and two-way digital audio is connected via a USB Type-C socket on the rear. Simple yet versatile operation for project studios and DAW recording setups.

  • 2 XLR/Jack microphone inputs with gain and mute control
  • 6.3 mm jack input for independent instrument
  • 48 kHz sampling rate
  • Built-in echo effect
  • 1.5m USB Type C to A cable supplied

Code

173.650UK

Model

USB2+1

Power supply

5 VDC (from USB)

Connection

USB type C

Controls

Mic1, Mic2, Inst3, Effect, Monitor

Input connections

2 x mic XLR/Jack, 1 x 6.3mm instrument Jack

Phantom Power

+48V switchable to XLR inputs

Response frequency

10Hz - 30kHz (-0.5dB)

Instrument input impedance

1M Ohm

Microphone input impedance

3k Ohm

Max. input sound level

Mic or Instrument +2dBu, Line +22dBu

Dynamic range

100 dB (A-weighted)

Sampling format

48kHz, 16-bit

Monitor outputs

Headphones (6.3mm stereo jack), Line out (L+R RCA)

Dimensions

160 x 110 x 57mm

Weight

529g
