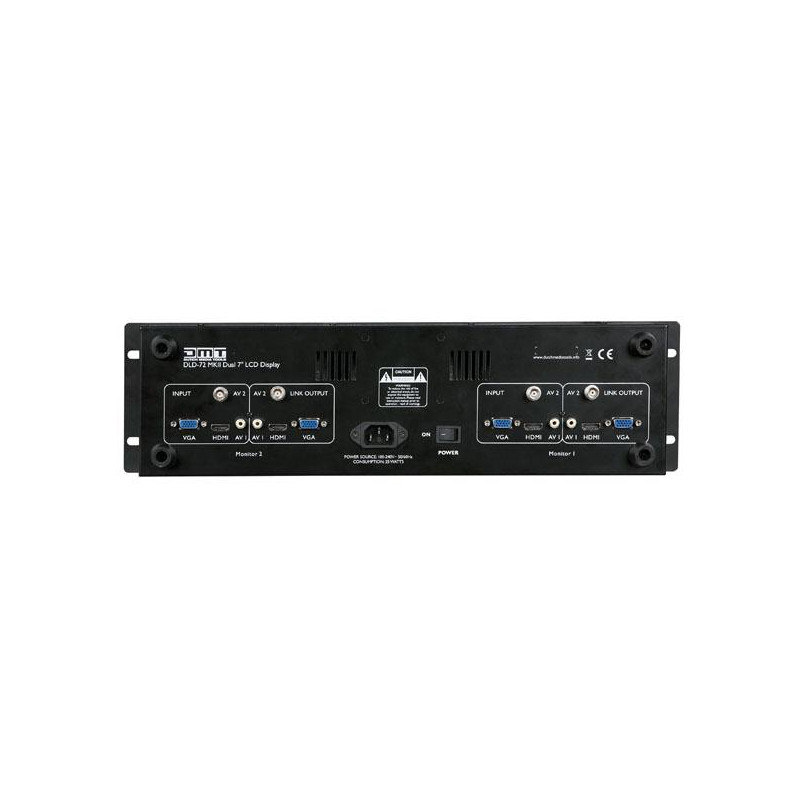

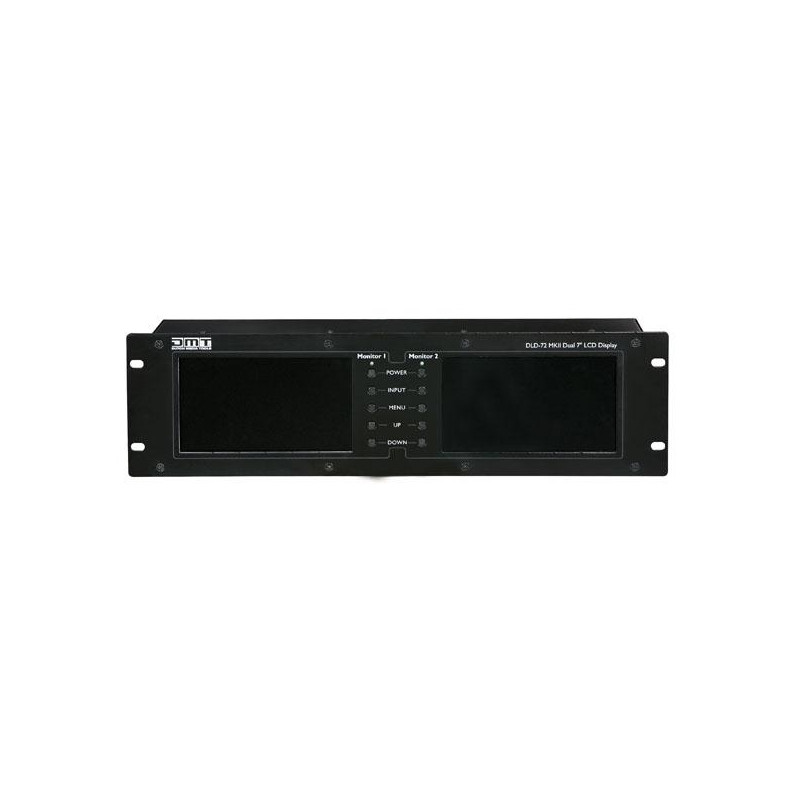

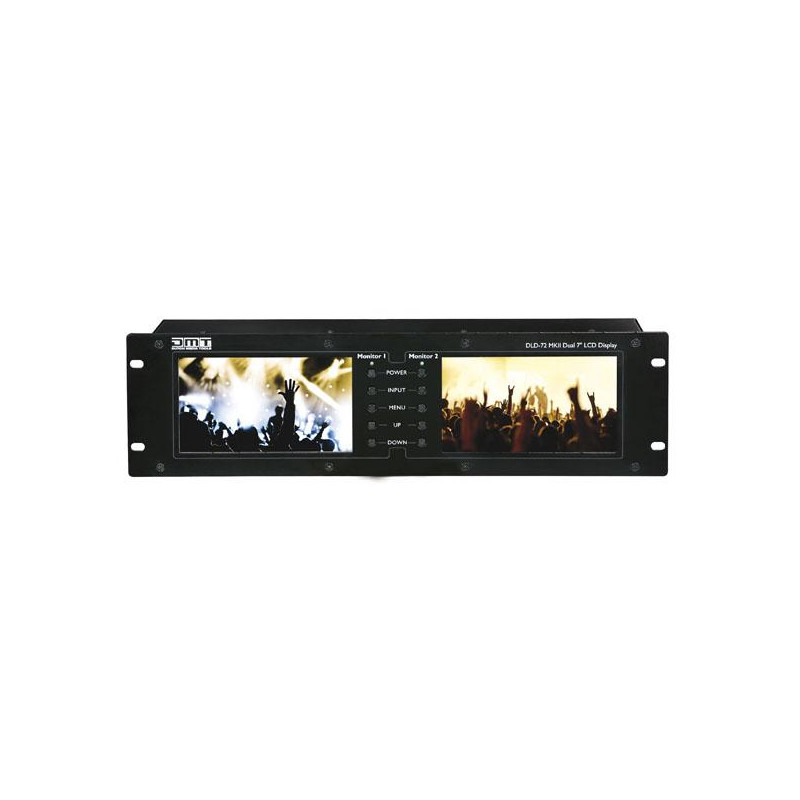

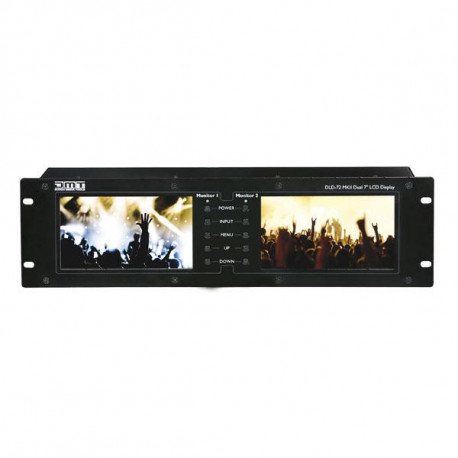

The DMT DLD-72 MKII is a professional rack mount double monitor system. It can be used for VJ monitoring, surveillance systems and any other multimedia setup where monitoring is necessary. It can be used for VGA, CVBS and HDMI sources. Because of the link outputs it is possible to make a daisy chain setup with the DLD-72 MKII. The built-in distributor guarantees a HDMI signal without signal loss. Both screens are individual with separate menus to set your desired settings for each screen.
• BNC, VGA, RCA & HDMI Inputs
• Link outputs
• 7” TFT
• Individual screen settings
Display Type: 7” TFT
Resolution (H x V): 800 x 600 Pixels
Input Connectors: BNC, RCA, VGA, HDMI
Output Connectors: BNC, RCA, VGA, HDMI
CVBS input impedance: 75Ohm
CVBS output impedance: 75Ohm
Power Connector: IEC
Power Input: 100-230V 50/60 Hz
Power Consumption: 25W
Dimensions: 482 x 98 x 133mm
Weight: 2,4Kg
