Dap Audio - AV-150...
DMT AV-150 Double shielded videocable...
View larger

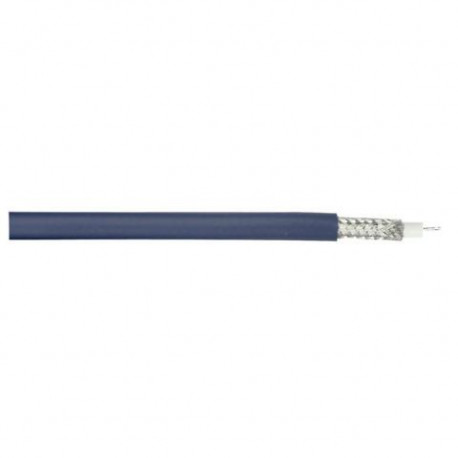

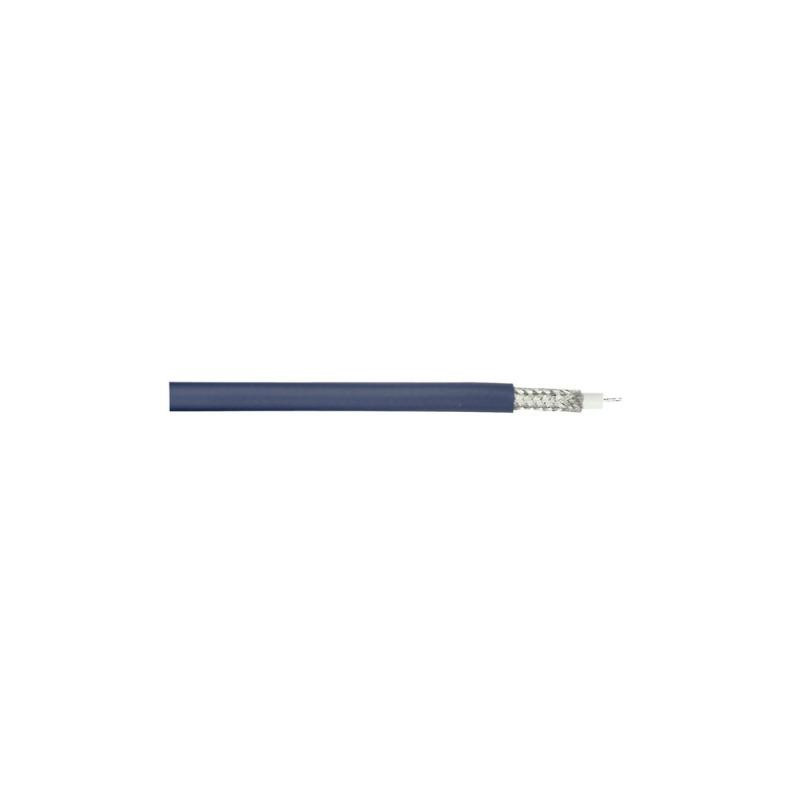

Dap Audio - AV-150 Braided HD-Video 100m
AV-150 Braided HD-Video 100m
DMT AV-150 Double shielded videocable HD-ready high flexibility (RG-59) 100 m on spool
More info
Specifications
Conductor drains: Ø 7 x 0.3 mm Oxygen Free CopperConductor insulation: Ø 3,7 mm Foam Polyethylene
Conductor resistance: 34,85 Ohm
Shield-1: 16 x 7 x 0,12 braided silver plated copper
Shield-2: 16 x 8 x 0,12 braided Oxygen Free Copper
Outer Jacket: Ø 6 mm matte blue PVC
Nominal Capacitance: 56 pF/m
Nominal impedance: 75 Ohm
Weight/100m: 7.0 kg
Nominal Attenuation / 100m:
71,5 MHz: 10.0 dB / 135 MHz: 12.5 dB / 270 MHz: 17.7 dB / 360 MHz: 20.3 dB / 540 MHz: 25.3 dB / 750 MHz: 31.5 dB / 1500 MHz: 42.6 dB / 3000 MHz: 60.7 dB
Reviews
No customer comments for the moment.
