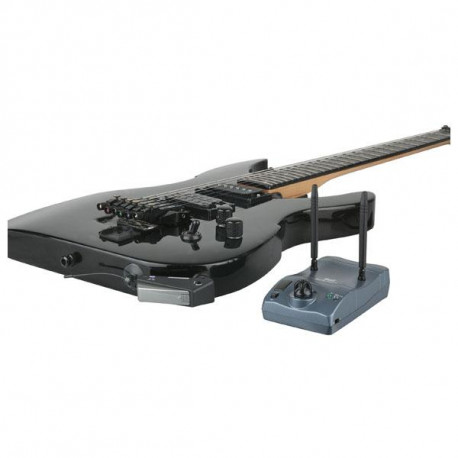

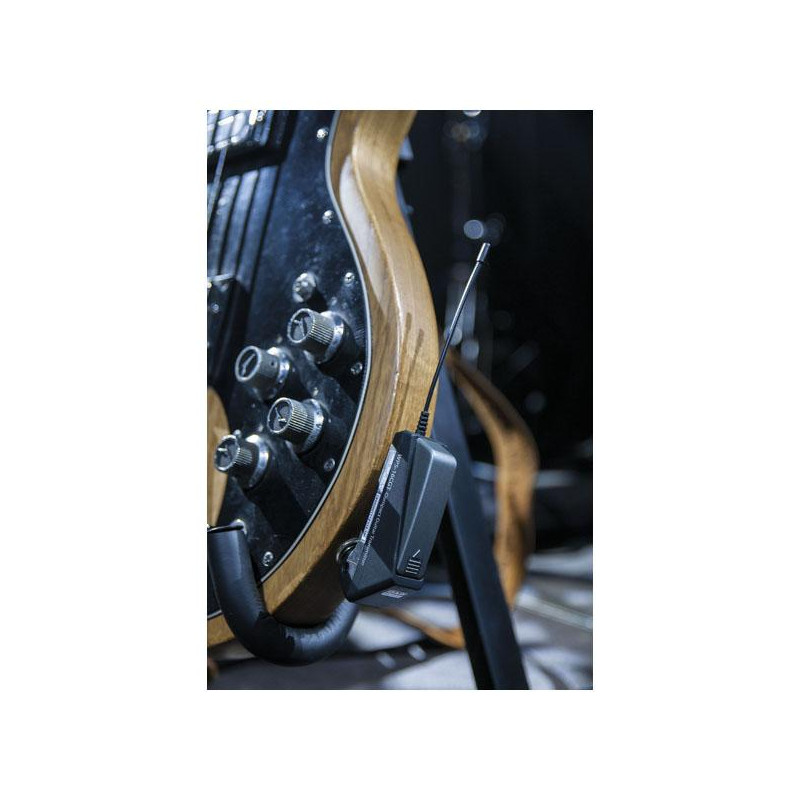

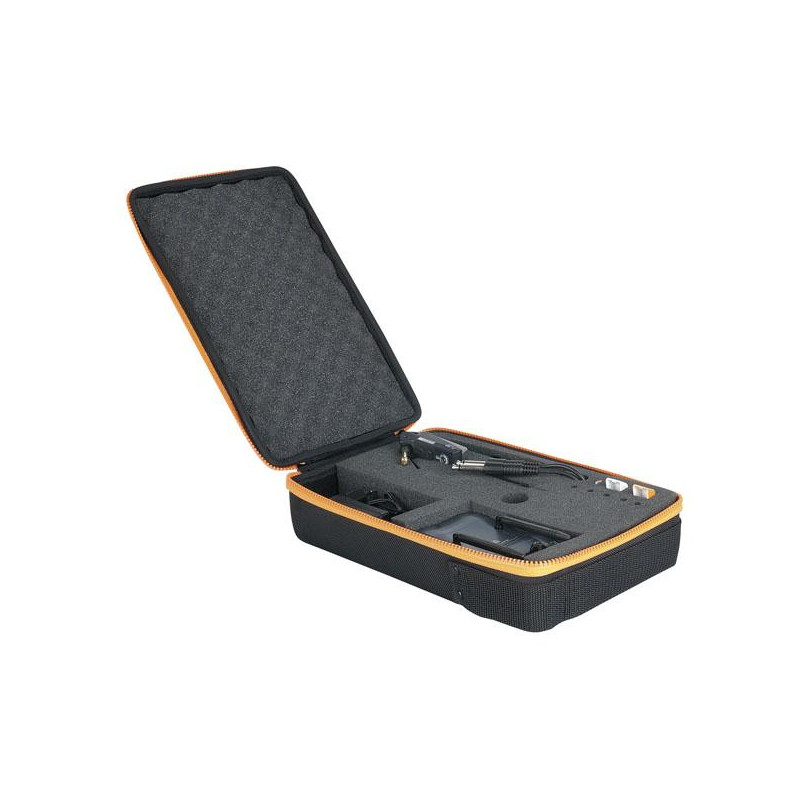

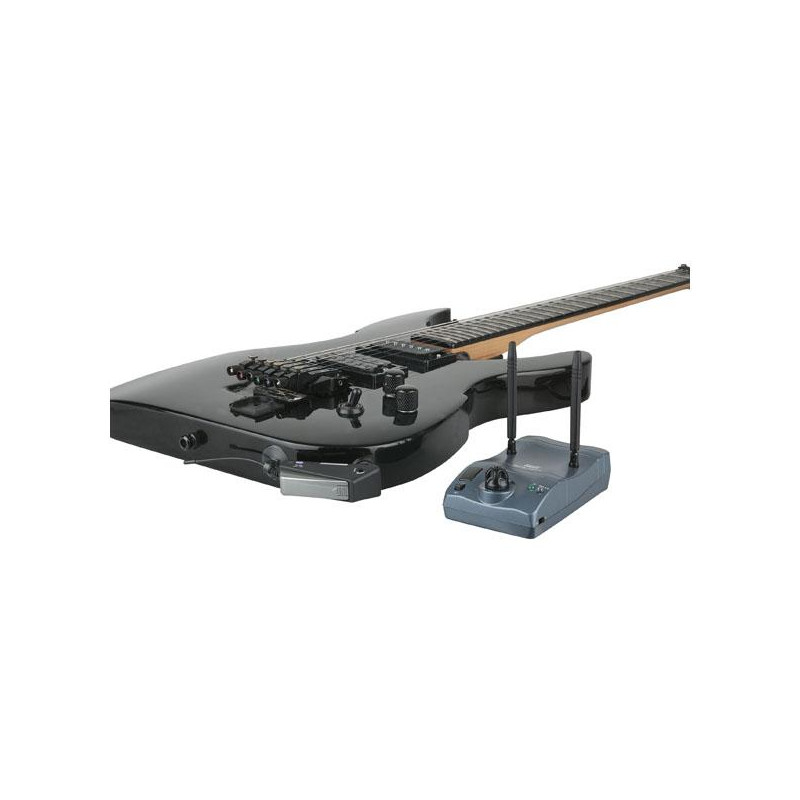

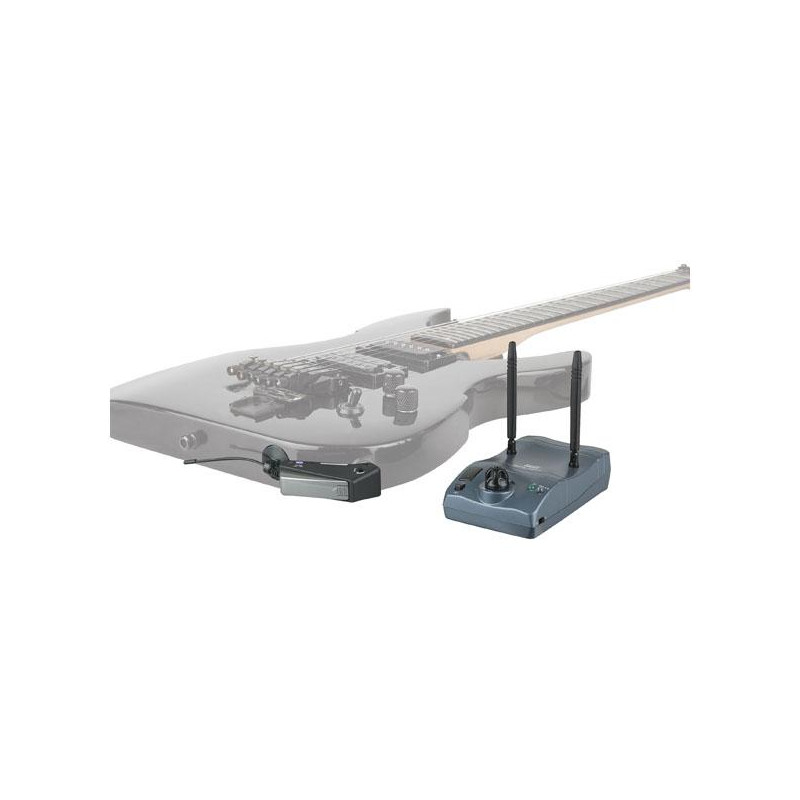

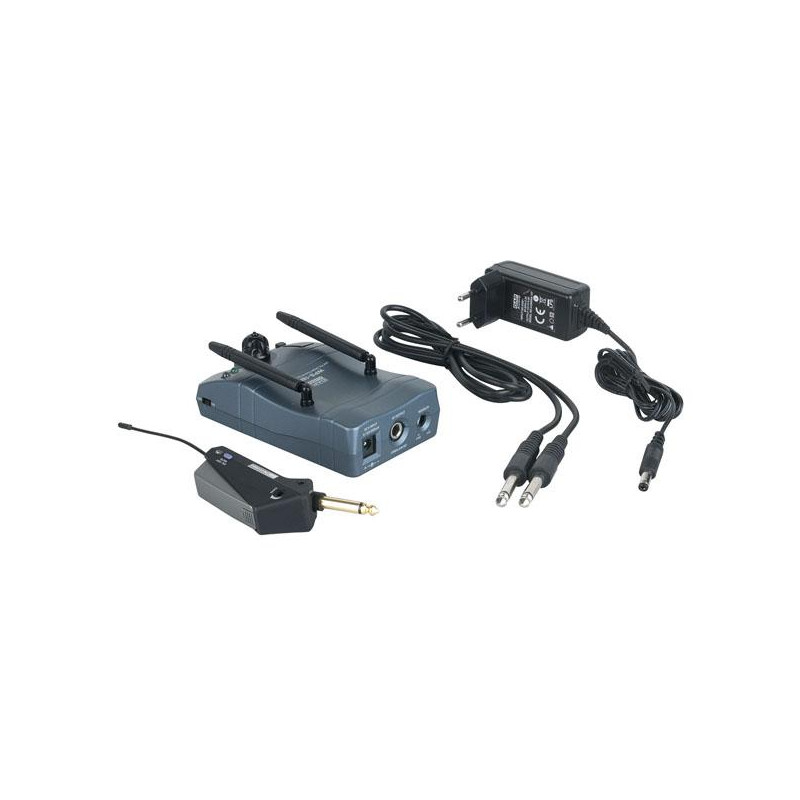

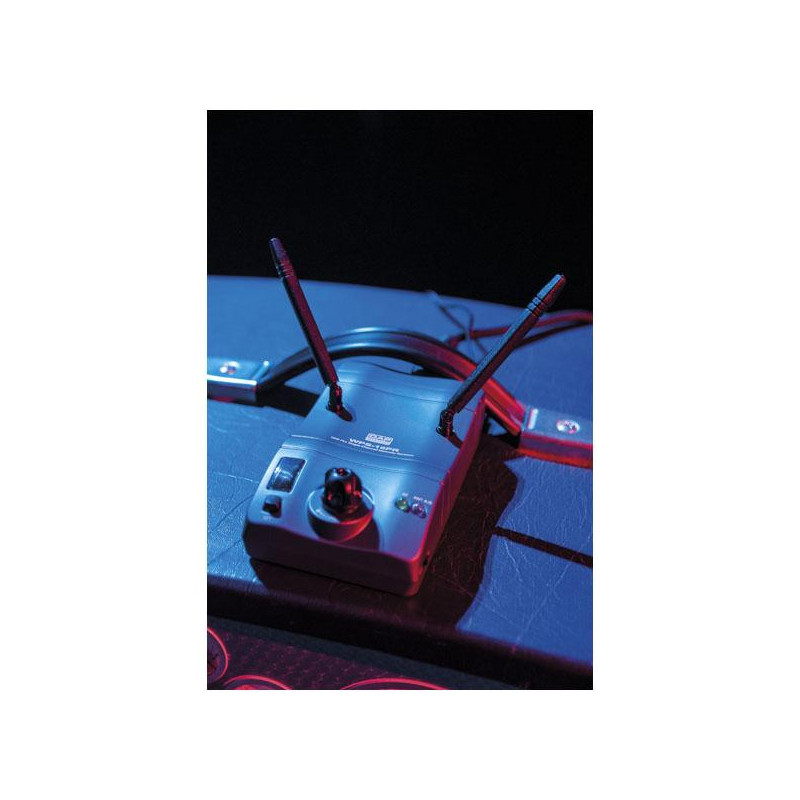

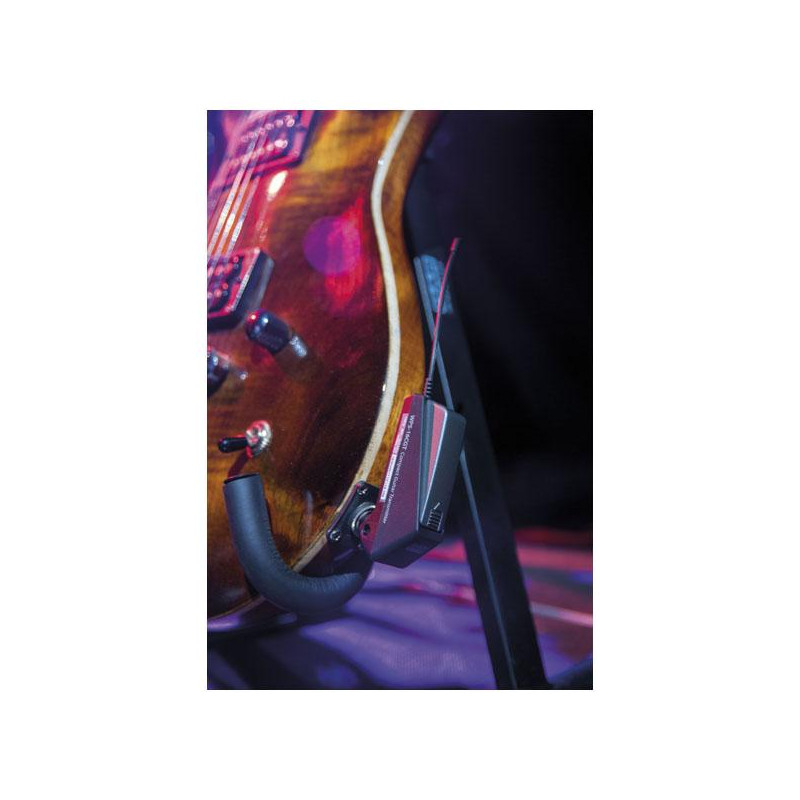

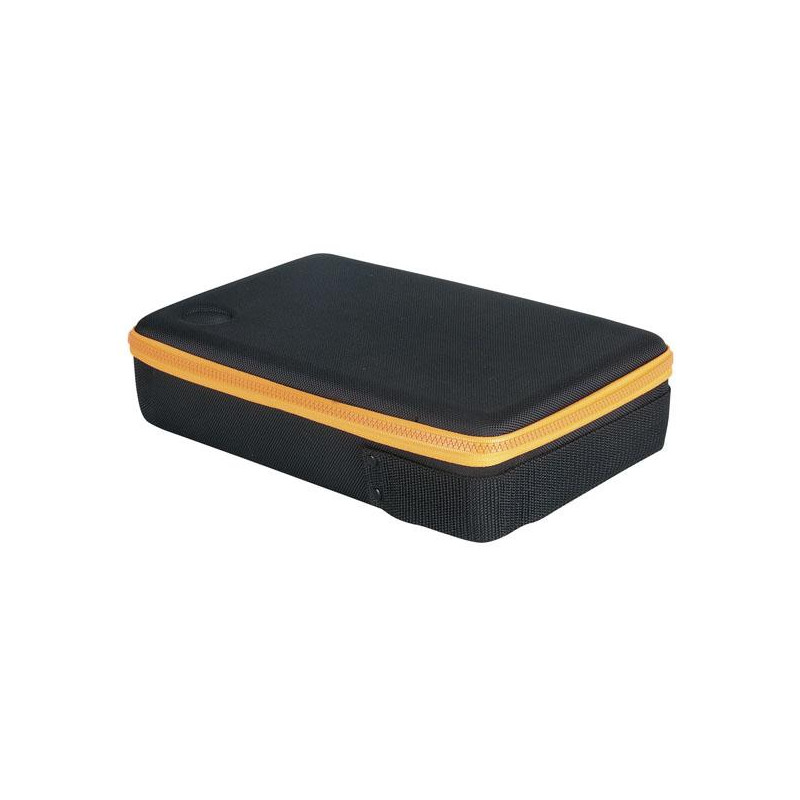

The DAP WPS Guitar is a wireless guitar set with 16 switchable frequencies in a bandwidth of 863 – 865 MHz. This means that it can be used in many different countries. It has a very compact “jack style” transmitter. The jack plug on the transmitter can be set into a desired angle to fit many kinds of guitar outputs, so no need to wear a belt-pack anymore. It only needs one AAA battery to work for 8 hours and can be used within a distance of 30 meters. It’s easy to use and has a 16-step switch to select your desired frequency, a switch to turn on/off or mute and a gain setting. The diversity receiver is also very compact and designed to fit in a pedal board between your pedal effects. The set is complete with 3 different colored end-caps, a power adapter, jack cable and a transport case.

Note: This set has 16 switchable frequencies, it is possible to use a maximum of 4 sets together on one stage because the bandwidth of one channel. The sets should be minimal 4 channels separated of each other.
• No belt-pack needed
• 16 switchable frequencies
• 8 Hours with one AAA battery
• 863-865Mhz can be used in many countries
Frequency preparation: PLL Synthesized Control
Frequency range: 863-865 MHz

Transmitter
RF Output: Maximum 10mW
LED indication: Power On/Off, mute, Low Battery
Controls: Power On/Off, mute, AF Level, Channel select
Frequency response: 40-18.000 Hz
Battery: AAA 1.5V (not included)
Dimensions: 74 x 34 x 23mm (DxHxW)
Weight: 0.04 Kg

Receiver
S/N ratio: >105dB
T.H.D.: <0.6%@1Khz
Display: Channel
LED indication: Antenna A/B, RF/AF status
Controls: Power On/Off, channel select, audio level, squelch
AF Output level: -12dB
AF Output impedance: 600 Ohm
Operation voltage: 9-12VDC, 200mA
Output connector: Unbalanced Jack 6.3mm
Dimensions: 124 x 33 x 73mm (DxHxW)
Weight: 0.14Kg
