The Xi MKII series, a loudspeaker range for fixed audio installations, redesigned from the Xi- installation speakers with significant changes. Major change is the use of a Celestion HF Driver which enhances the sound performance of the unit extensively. The cabinet and grill have been redesigned as well to have a contemporary and elegant look.
Besides the looks and sound quality it also excels in installer-solutions with versatile installation possibilities: optional U-shape brackets, screw threads for use of flying eyes and to fit most common wall mount brackets.
No inner adapter applied and a recessed speakon chassis completes the perfect design for an install cabinet. Finished with a scratch resistant paint and a MagTag metal grill, which can be detached without tools, fast and easy.
The Xi-5MKII and Xi-6MKII are 16 Ohm to accommodate installations with larger quantities. Xi-8MKII and XI-10MKII have rotatable horns which makes the use in both horizontal and vertical position possible. The high powered subwoofer has a ultra-compact design so it will fit in every location and with the optional slim line wall bracket it is possible to mount the subwoofer tight to a wall.

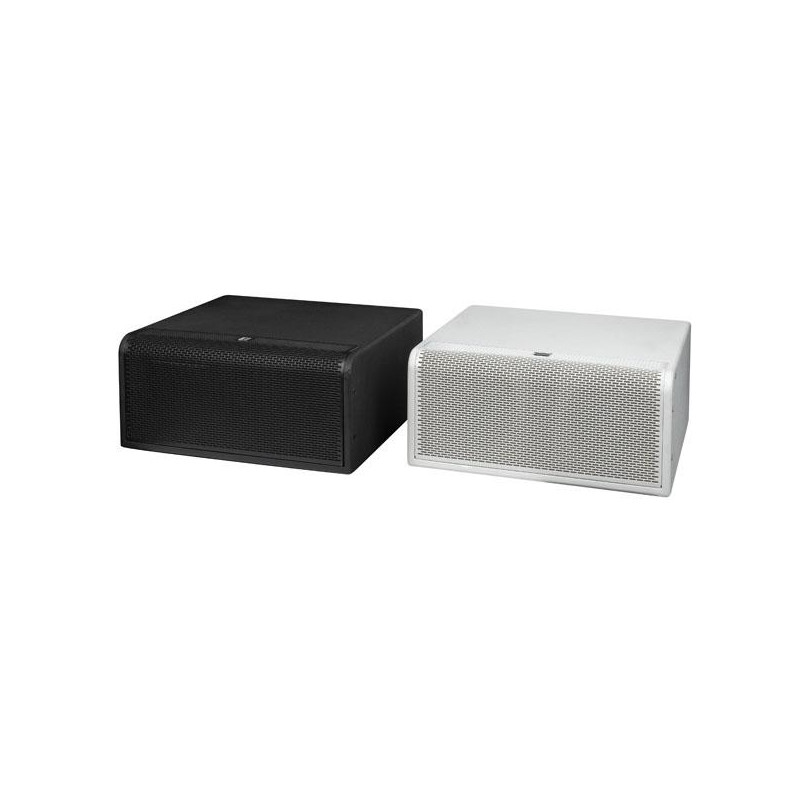

The Xi-MKII series meets today’s standards and is applicable for a wide variety of indoor applications such as restaurants, cafes, clubs, health centers, theme parks, hospitality areas and anywhere where an outstanding sound quality and a compact high pressure level speaker are required. Xi MKII series cabinets are available in black and white.

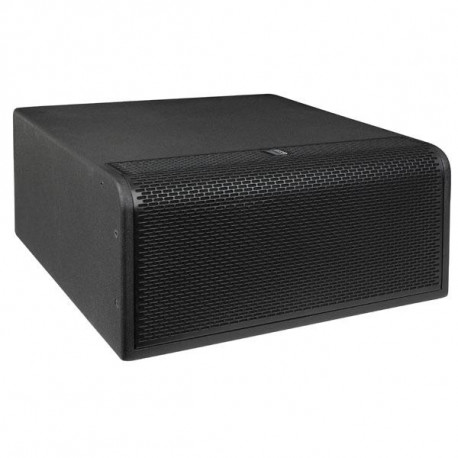

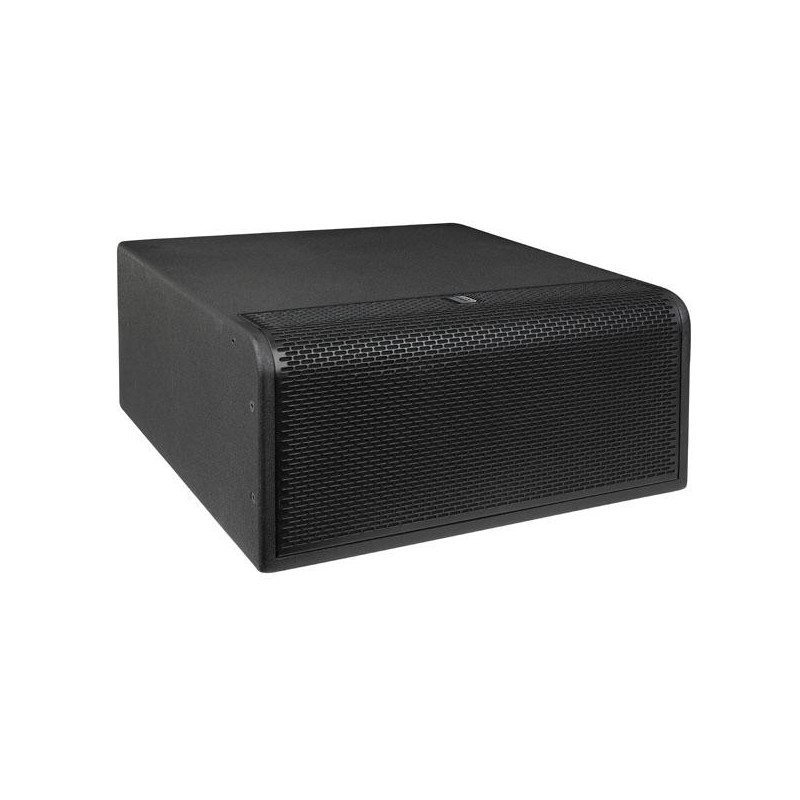

The Xi-28B MKII is a compact lightweight subwoofer designed to combine with the Xi-series top cabinets. Together with the optional Xi-28B bracket it can be installed flat against the wall which makes it very suitable for situations were space is limited. For optimal performance it needs an high- and low pass processed amplification. The two 8” speakers and the sophisticated bass reflex horn housing offer a very powerful precise bass sound reproduction with high sound pressure levels.
"• Double 8"" 4 Ohm compact sub
• Natural high pressure bass reproduction
• Extreme tight mountable
• Recessed speakon chassis"
Speaker system: Dual bass reflex sub
Continuous power: 400 Watt
Program power: 800 Watt
Peak power: 1600 Watt
Impedance: 4 Ohm
Sensitivity W/m (Half Space): 100 dB
Peak SPL at 1 m (Theoretical): 132 dB
LF Driver: 2x 8”
Dispersion (HxV): 360° x 180°
Freq. Response (-3 dB): 45 – 4.000 Hz
Freq. Range (-10 dB): 40 – 4.500 Hz
Recommended High Pass Filter: 45 Hz, BW-24
Recommended Low Pass Filter: 110 Hz, LR-24
Mounting: Floor / Optional bracket
Connectors: Speakon in
Grill material: Steel
Dimensions(W x H x D): 520 x 240 x 540 mm
