Dap Audio - DCP-24 MKII

DCP-24 MKII Digital Cross Over

DCP-24 MKII Digital Cross Over 2-in, 4-out

249.00€%16.47 You save 41.00€
208,00 €

Add to wishlist

In Stock

Europe Warehouse: 69

More info

The DCP-24 MKII is the little brother of the DCP-26 MKII which has exact the same features but has four outputs instead of six. If you have a stereo sub top combination and want to get the maximum power out of your audio system, without the risk of any damage, this is the unit that gets the job done. Fully digital with all the features you need to tune and protect your sound system. The additional latest software is availible at the download section of the product page.

Specifications

DSP:
Sample rate: 48 kHz, 64 bits NXP (Philips) DSP

5-Bands Input EQ:
EQ Selections: Allpass, Bell, High Shelf, Low Shelf, Notch
EQ Frequency Selection: 20 to 20,000 Hz in 1 Hz steps on all EQ's

Delay:
Output delay: Channel independent from 0 to 8 mS

5-Bands Output EQ:
EQ Selections: same as input
Type: Low Shelf 6, Low Shelf 12, High Shelf 6 and High Shelf 12

Crossovers:
Types: Linkwitz Riley, Bessel and Butterworth
Slopes: 6, 12, 18, 24 dB/octave
Crossover frequencies: 20 to 20,000 in 1 Hz octave steps

Limiter:
Threshold points: -20 to +20 dBu in 0.5 dB steps
Attack time: Zero Attack Time Limiter
Release times: 1 = shortest, 100 = endless long, in steps of 1.

Miscellaneous:
Memory Storage: 50 User presets
Mute: All Output channels can be individually muted
Display: 2 x 16 dot matrix characters
Latency: 1.27 mS
USB Interface: Back
Power Supply: 6V DC
Power Consumption: 4 Watt
Power Switch: Back
Measurements: 483 x 155 x 44 mm

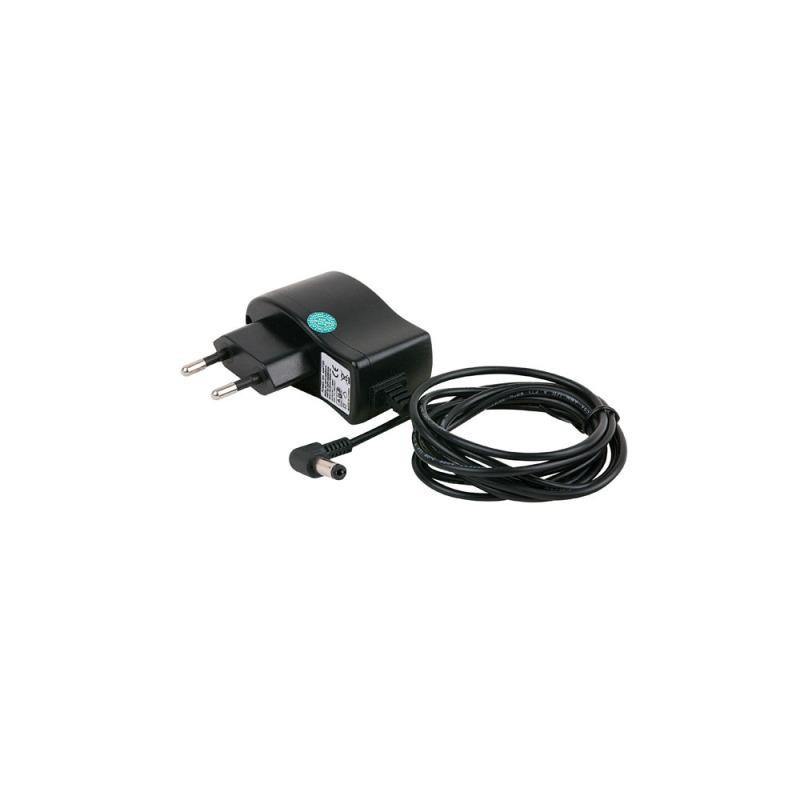

Accessories: Power adapter, USB cable, DSP software
