Specifications

System: Bi-Amp.
Continuous power: Low 200W / High 30W
Total harmonic distortion
Low-input: -5dBu 100Hz, out load 40, THD<O.5%
Hi-input: -8dBu 15kHz, out load 80, THD<0.5%
S/N Ratio: Low > 80dBu / Hi > 65dBu
Line input Level: -5dBu ±1 dBu
Input Impedance: Line 15k? input
Indicators: Power & CLIP
Power supply: 110-120V-60Hz / 220-240V - 50/60Hz

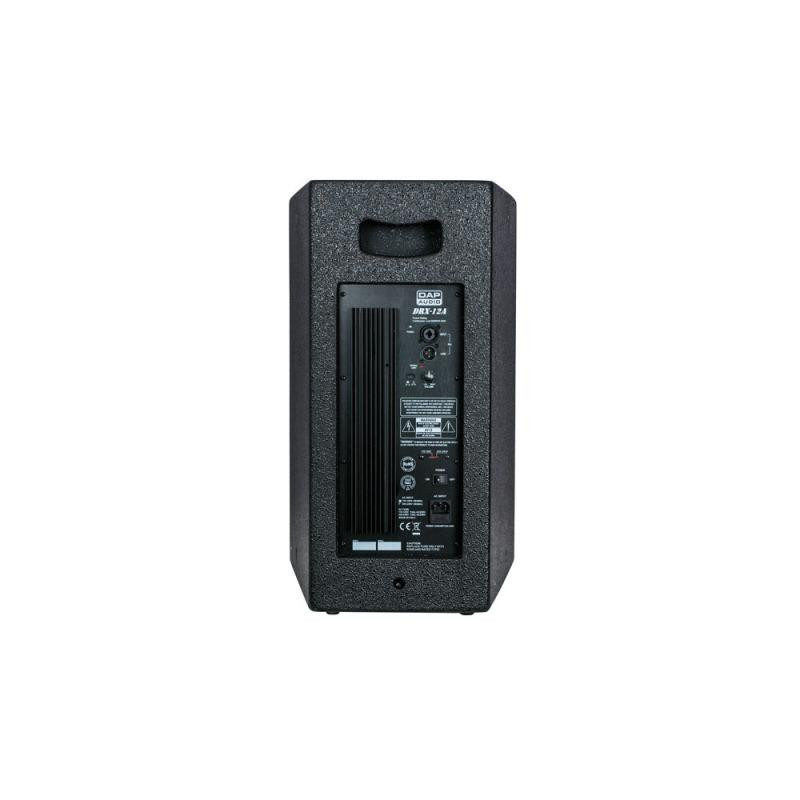

External controls: Volume / Master Switch / AC select /
Ground lift
SPL@1m: 95.6dB / 122.2 dB (Max.)
Frequency Response: 50Hz - 20kHz - 6dB
Woofer: 12" Ø 305mm - 2" Voice Coil
Driver: 1" / 1" Voice Coil
Horn Coverage(H*V): 50° x 50°
Construction: 15mm plywood, glued and reinforced
Paint: Black, scratch resistant
Pole-mount: ABS 35mm pole-mount
Connectors: XLR male & female (link)
Dimensions (HxWxD): 584 x 353 x 360 mm
Weight: 18 kg
