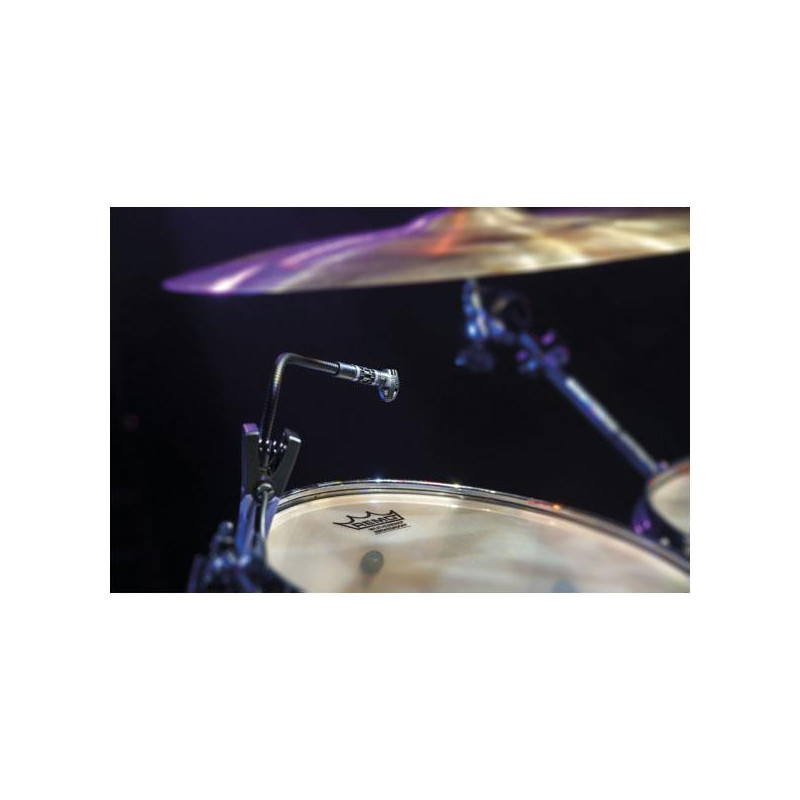

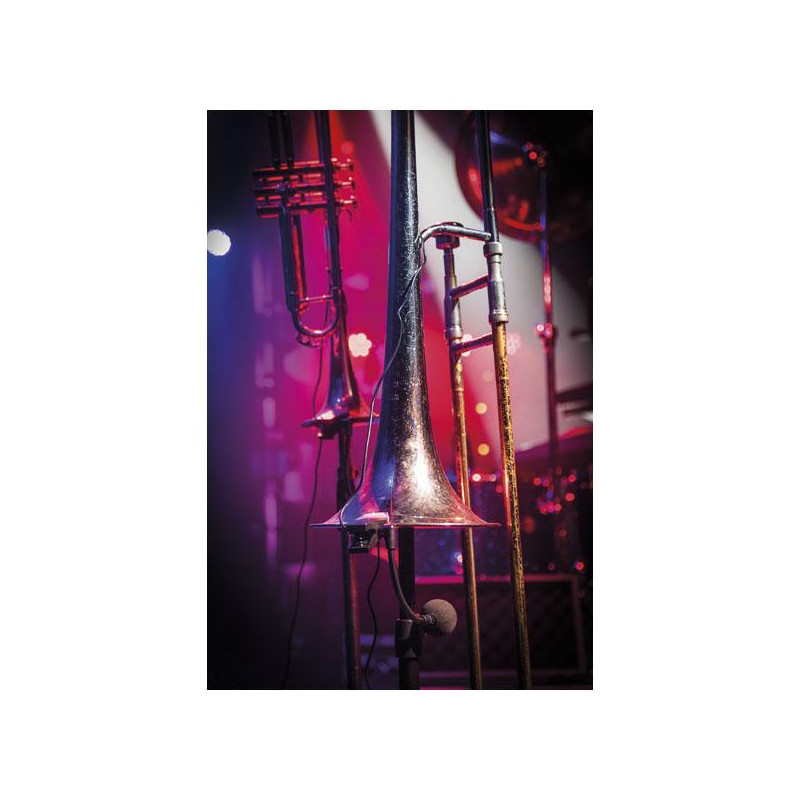

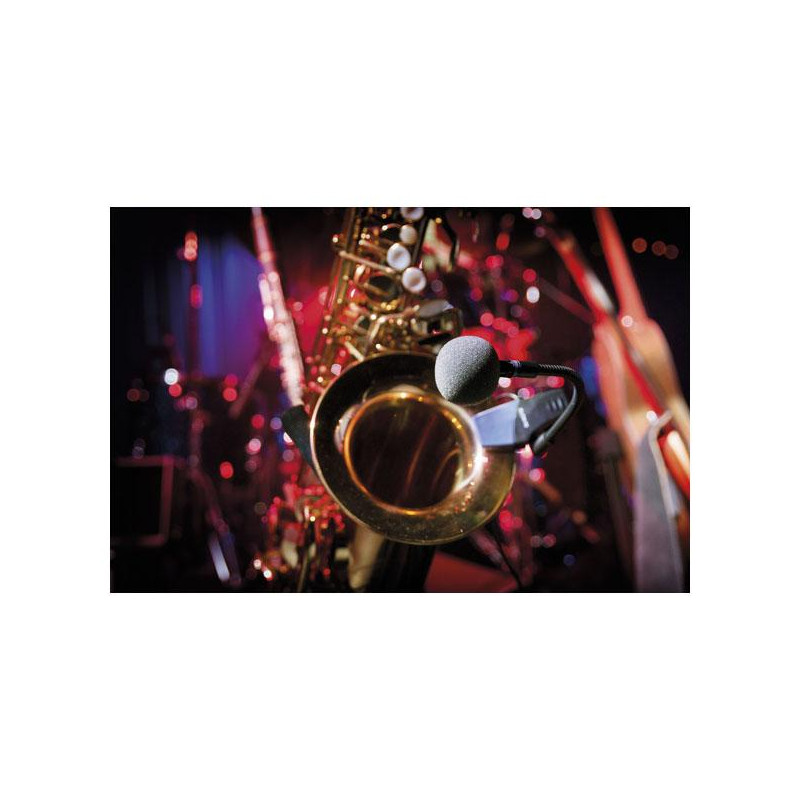

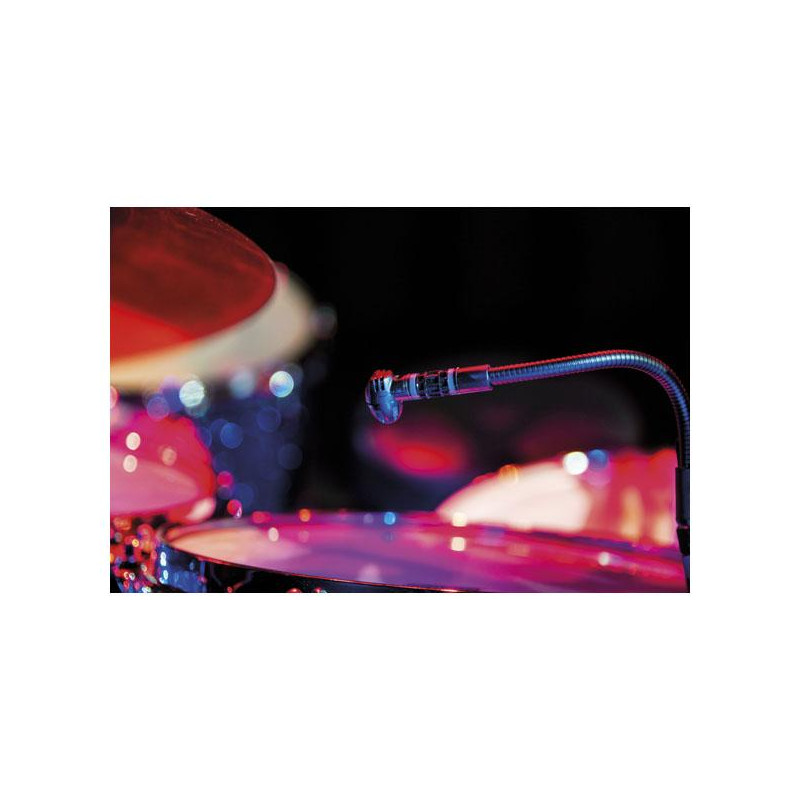

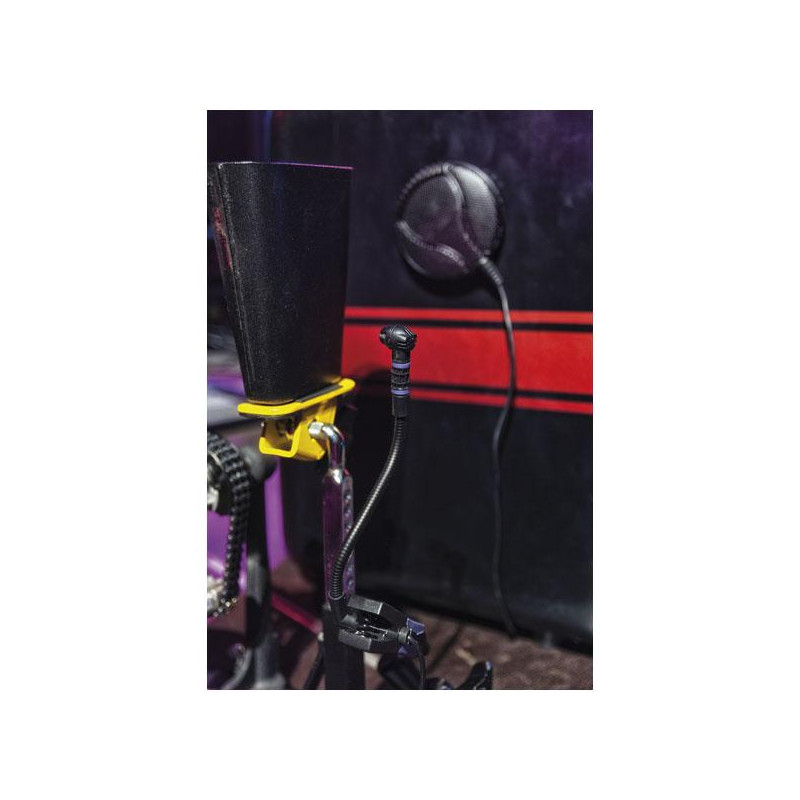

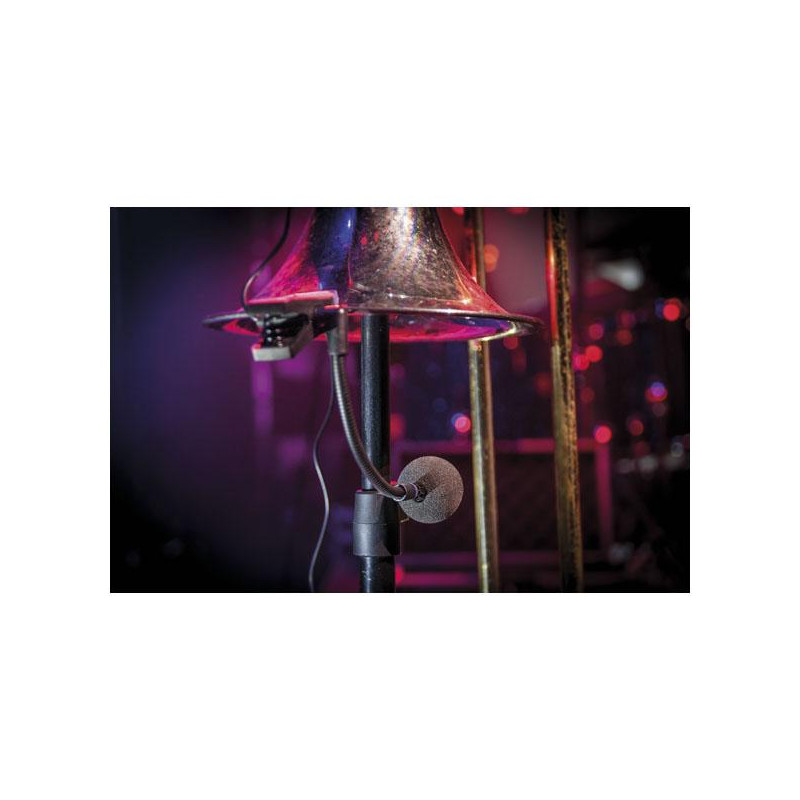

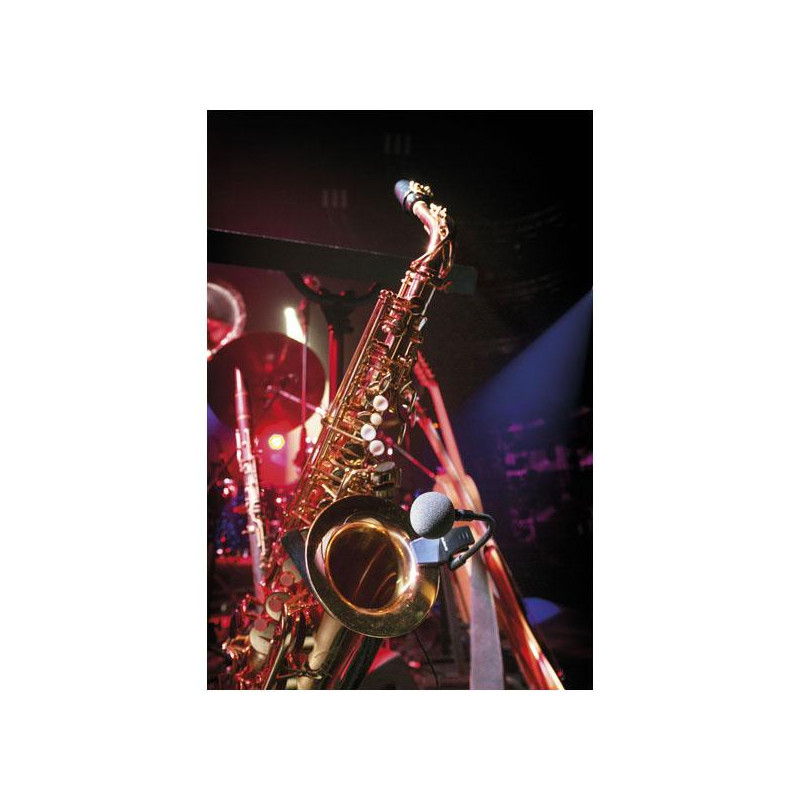

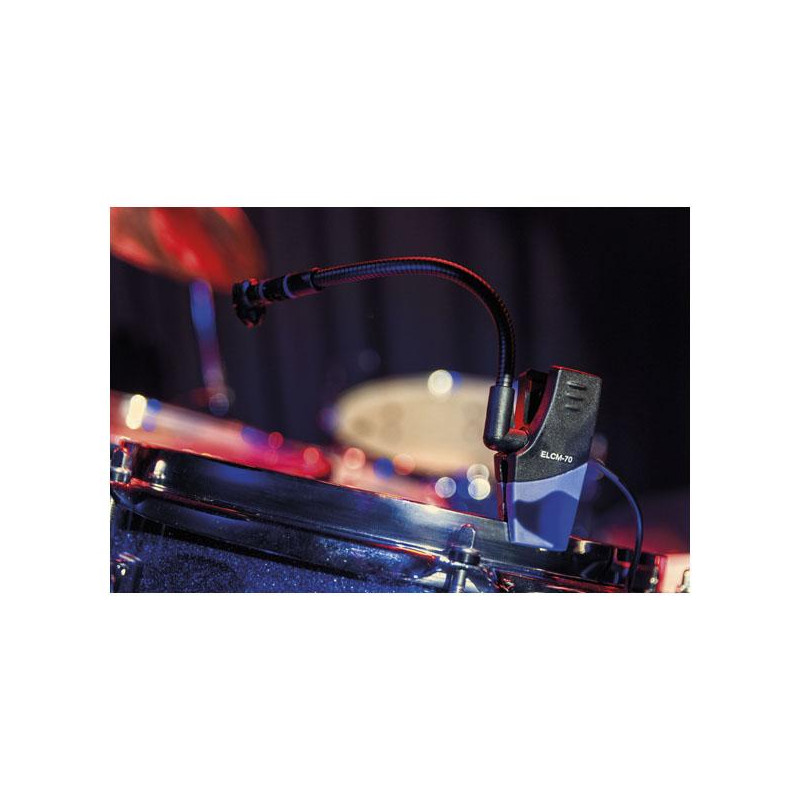

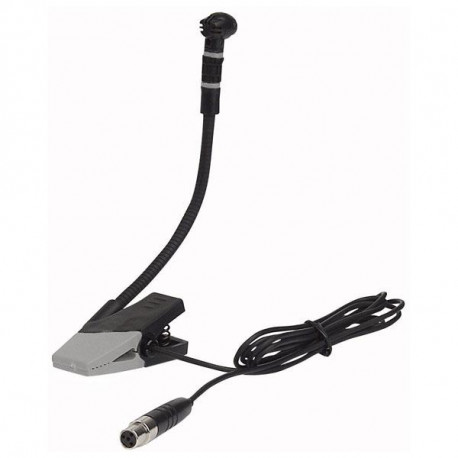

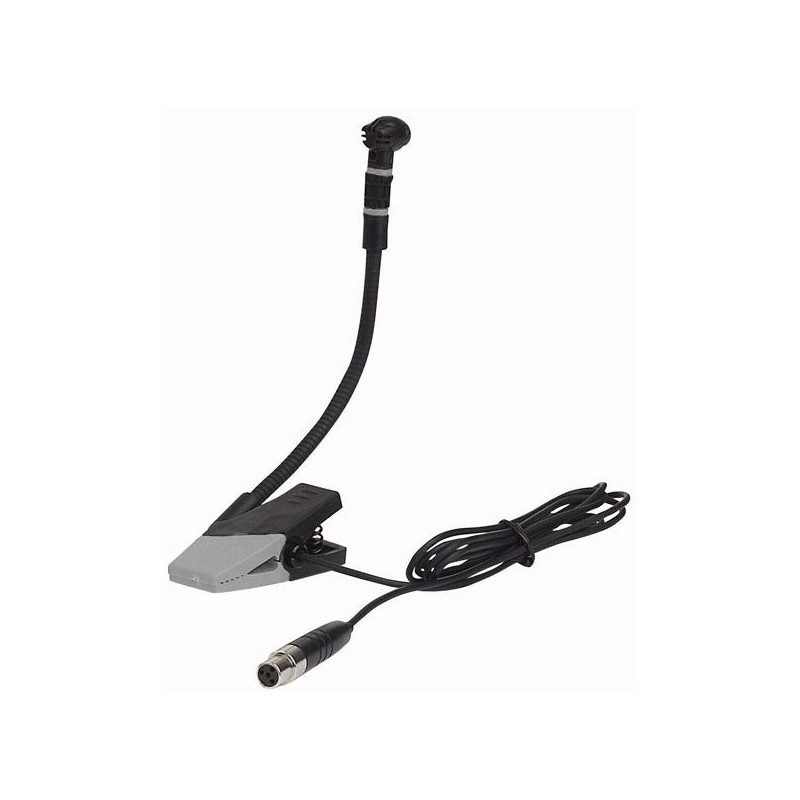

The ECLM-70 Miniature clip on condenser microphone is designed for the miking of percussion, brass and woodwind instruments. The soft clip is special designed to gently hold the bell of a trumpet, saxophone or any other wind instrument. Its cardioid polar pattern design ensures a very low feedback response on your stage. Its flat response with a slight presence peak in the upper frequencies ensures natural and bright reproduction without colouration.
• Extended frequency response and wide dynamic range for pure and natural sound delivery
• Good flexible gooseneck and adjustable axis ensure a precise positioning of the microphone

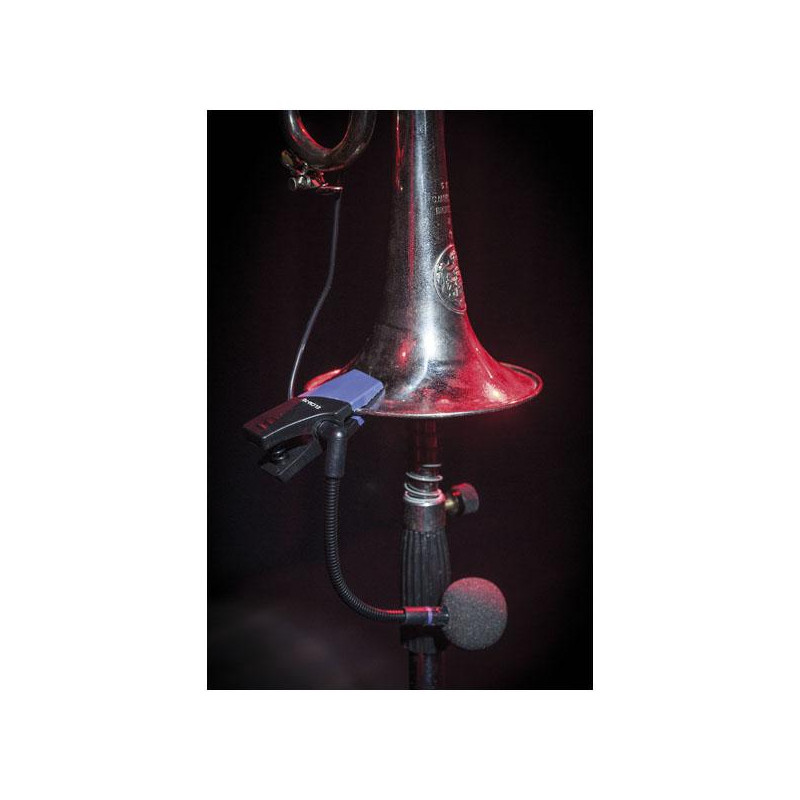

• Clamp with soft grip for secure mic.- mounting without damaging the instrument
• Windscreen to prevent pop noise effectively

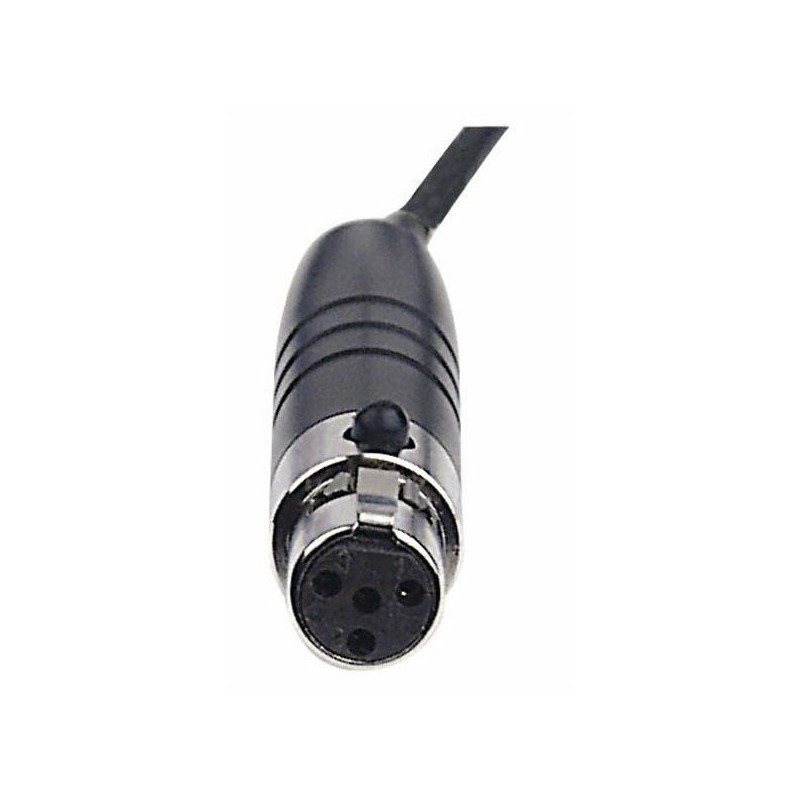

• A mini-XLR-connector for use with the belt-packs from the eclipse range
Type: Back-Electret Condenser
Polar pattern: Cardioid
Freq. Response: 50-18.000 Hz
Sensitivity (1000 Hz): 3,9 mv/Pa*
(*1 Pa = 94 dB SPL)
Max. SPL: 130 dB (1% THD)
Impedance: 220 Ohm ± 30%
Power supply: 5V Phantom from Beltpack
Connector: 150 cm cable with 4p.
Mini-XLR female-type).
Accessories: Windscreen
Mounting clip
1 storage case
Dimensions: mic: Ø 12 mm x L 17 mm
Gooseneck: 125 mm
Net. Weight: 0,071 kg
