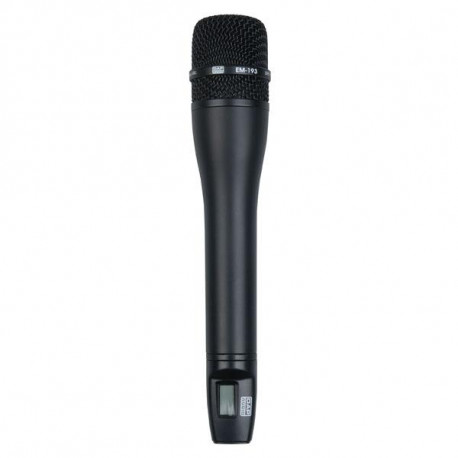

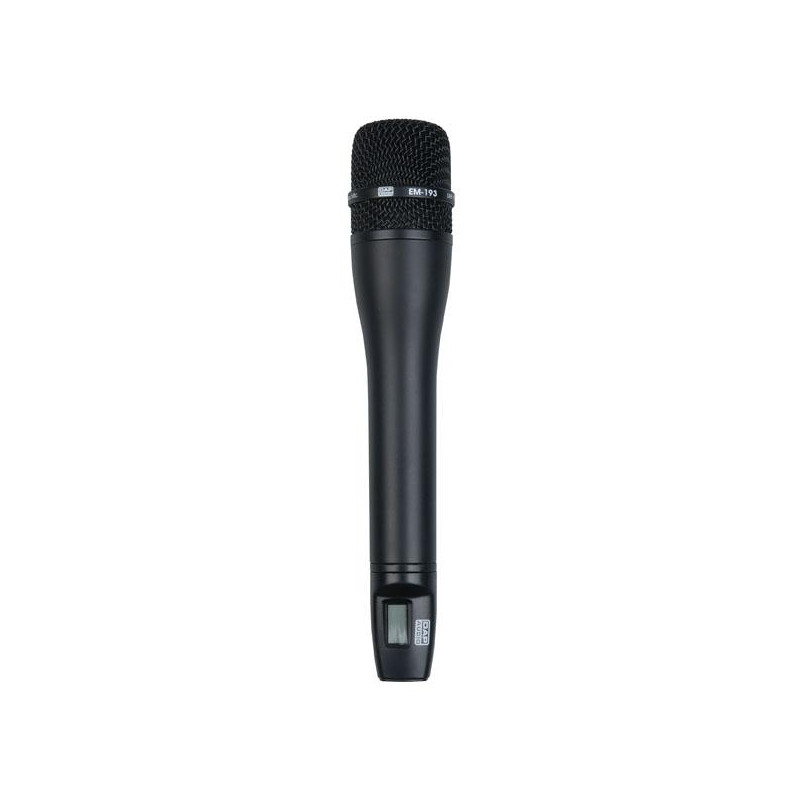

The DAP EM-193 is a hand-held transmitter with cardioid dynamic microphone head which can be used in combination with the DAP receiver ER-1193. The EM-193 is suitable for vocal parts and voice transmission and can handle up to 193 switchable transmission frequencies in the UHF band.
• 193 Selectable frequencies
• Dynamic. moving coil
• Lock-on function
• Powered by AA batteries
• True diversity, minimum dropouts
Type: Dynamic, moving coil.
Polar pattern: Cardioid
Freq. Response: 50-16.000 Hz
Max. SPL: 138 dB (1% THD)
Power supply: 2 x Battery UM3, AA1.5V
(not included)
Accessories: 8 Colour-coded
protection caps
1 stand mount
1 storage case
Mini screw driver
Carrier Frequency Range: 822-846 MHz
RF Output: 10 mW
Stability: ±0.005%
Frequency Deviation: ±48 kHz
LCD Display: Frequency,
battery indicator
Controls: Power On/Off, mode setting,
AF Level Control, Freq.
Up/Down, Lock-on mode
Spurious Rejection: <-60 dBC
Dimensions: mic: Ø 50mm x L 255mm
Net. Weight: 0,34 kg
