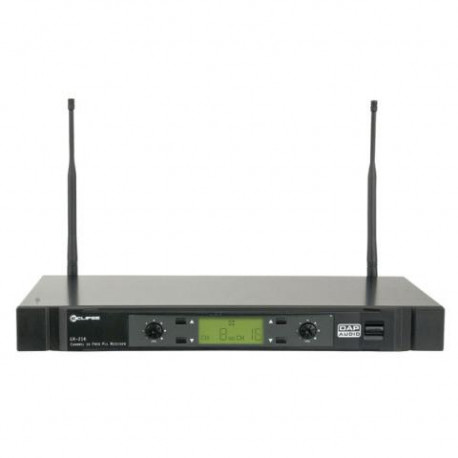

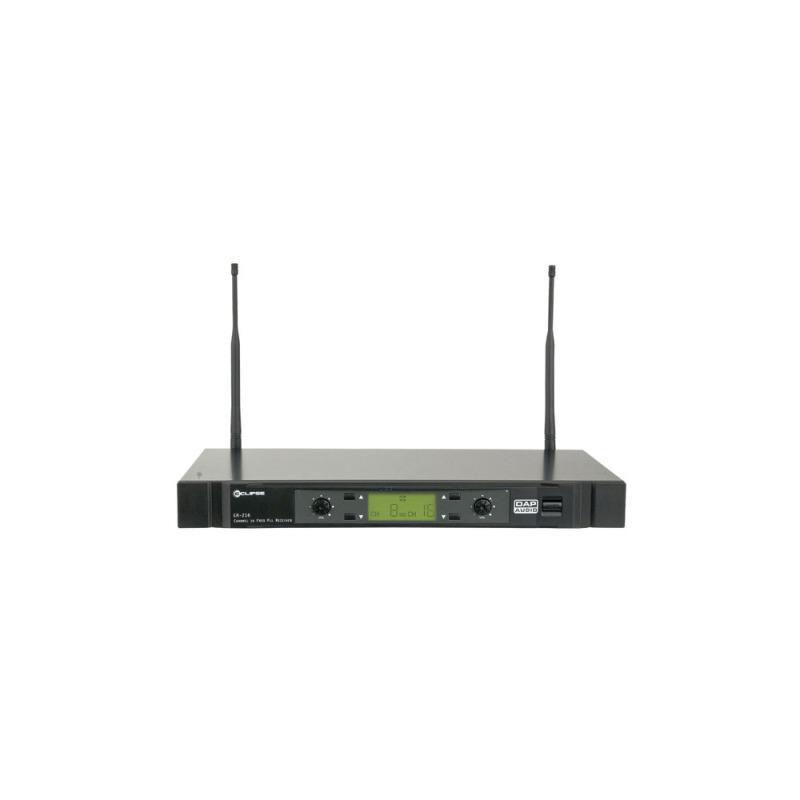

The DAP ER-216 is a dual 1HE UHF receiver with 16 selectable channels. It has noise mute functionality and a pilot tone squelch circuit to eliminate unwanted signal and noise interference. The ER-216 is designed to work in combination with the EM-16 and EB-16.
Specifications
Frequency Preparation: PLL Synthesised Control
Carry Frequency Range: 614-638 MHz
Frequency Stability: ±0,005%
S/N Ratio: > 100 dB
Display: LCD
Display Contents: Channel, antenna A/B, RF/AF
Level meter, Battery indicator
Controls: Power On/Off, Channel
selector, Audio Level
Audio Output Level: -12 dB
AF Output Impedance: 600 Ohm
Squelch: Pilot Tone & Noise Mute
Operation Voltage: 12-18VDC, 500 mA

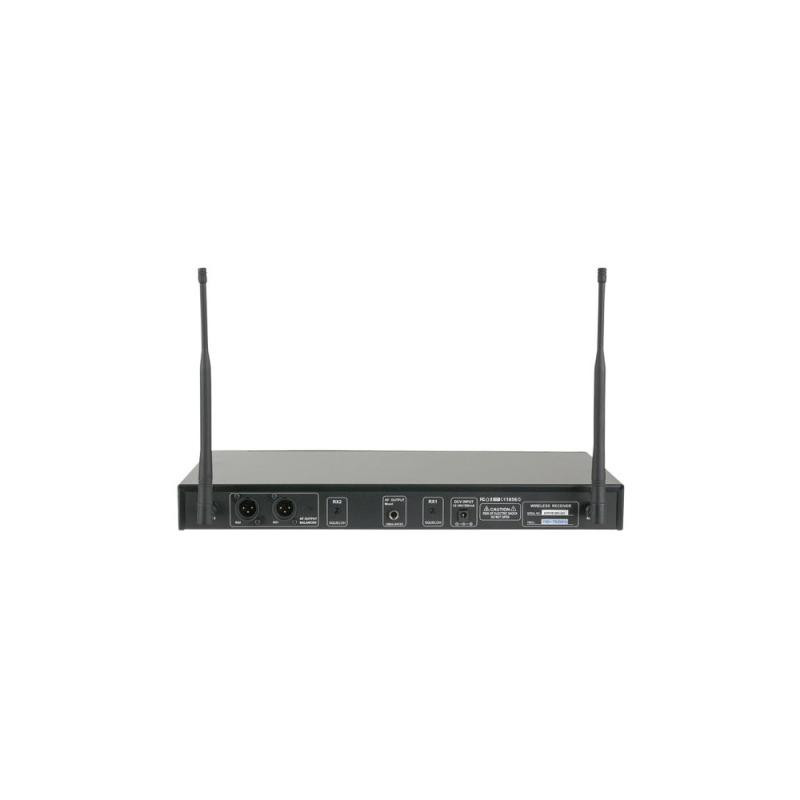

Output Connector: 2 Balanced XRL socket,
1 Unbalanced 6,3 mm socket
Dimensions: 483 x 232 x 45 mm (LxWxH)
