Dap Audio - FL74 XLR...
6 mtr Neutrik
-
Adam Hall - K 4 DMF...
DMX AES/EBU Cable 3-pol XLR male to...
View larger
More info

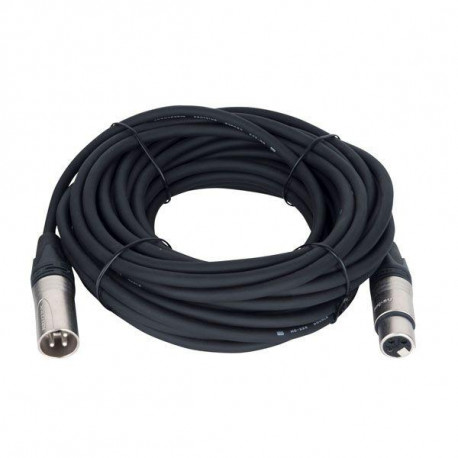

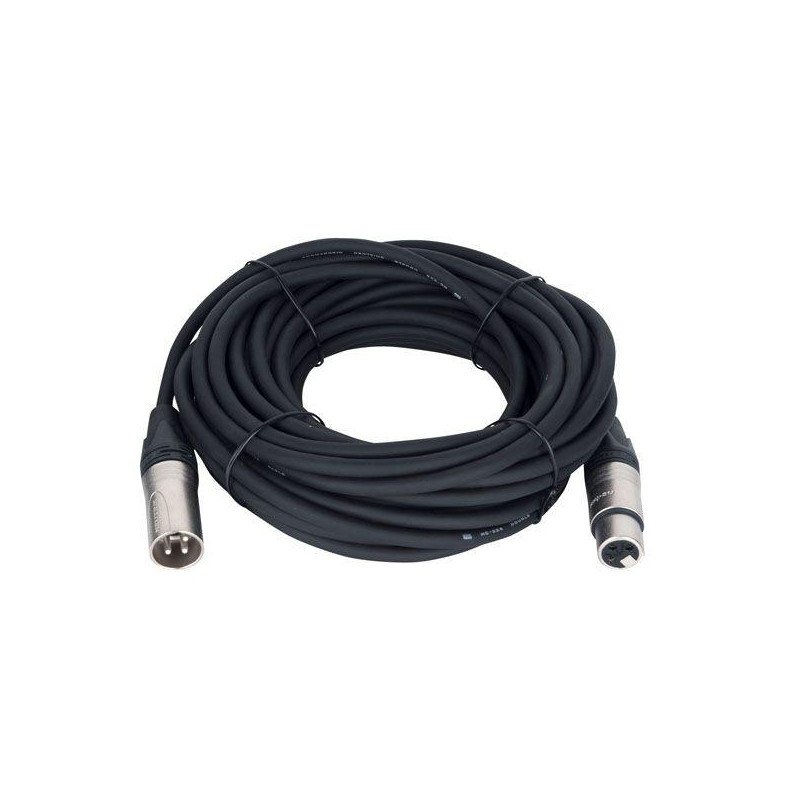

Microphone/line cable constructed out of MC-226 double insulated cable and Neutrik NC3MXX + NC3FXX cable connectors. 3 pole male and female cable connectors with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
| Cable specs | MC-226 |
|---|---|
| Conductor drains Ø mm | OFC 15 x 0,12 |
| Conductor insulation | PE red+white |
| Conductor insulation | 1,5 (Ø in mm) |
| Filler material | - |
| 1st shield | 2 x Conductive plastic |
| 2nd shield | OFC twisted 96 x 0,12 |
| Outer isolation | PVC black, blue, red, yellow, green |
| Outer isolation Ø in mm | 6 |
| Conductor resistance | 90 Ohm/Km |
| Shield resistance | 25 Ohm/Km |
| Capacity Inner conductor | 60 pF/m |
| Cap. Inner conduct. Shield/Inner conduct. | 78 pF/m |
| Working temperature | -20~60 °C (min. / max.) |
| Working Voltage overflash | 30V |
| Nom Impedance | 110 Ohm |
| Connectors specs | |
| Neutrik NC3MXX | |
| Electrical | |
| Capacitance between contacts ≤ 4 pF | |
| Contact resistance ≤ 3 mΩ (inner) | |
| Rated current per contact 16 A | |
| Rated voltage 50 V | |
| Mechanical | |
| Cabel O.D. 3,5 – 8,0 mm | |
| Wiresize max. 2.5 mm² | |
| Wiresize max. 14 AWG | |
| Wiring Solder contacts | |
| Locking device Latch lock | |
| Material | |
| Boot Polyurethan | |
| Contacts Brass | |
| Insert Polyamide | |
| Shell Zinc diecast | |
| Shell plating Nickel | |
| Strain relief Polyacetal | |
| Environmental | |
| Flammability UL 94 HB | |
| Standard compliance IEC 61076-2-103 | |
| Protection class IP 40 | |
| Solderability Complies with IEC 68-2-20 | |
| Temperature range -30 °C to +80 °C | |
| NC3FXX | |
| Electrical | |
| Capacitance between contacts ≤ 4 pF | |
| Contact resistance ≤ 3 mΩ (inner) | |
| Rated current per contact 16 A | |
| Rated voltage 50 V | |
| Mechanical | |
| Cabel O.D. 3,5 – 8,0 mm | |
| Wiresize max. 2.5 mm² | |
| Wiresize max. 14 AWG | |
| Wiring Solder contacts | |
| Locking device Latch lock | |
| Material | |
| Boot Polyurethan | |
| Contacts Brass | |
| Insert Polyamide | |
| Shell Zinc diecast | |
| Shell plating Nickel | |
| Strain relief Polyacetal | |
| Environmental | |
| Flammability UL 94 HB | |
| Standard compliance IEC 61076-2-103 | |
| Protection class IP 40 | |
| Solderability Complies with IEC 68-2-20 | |
| Temperature range -30 °C to +80 °C |
