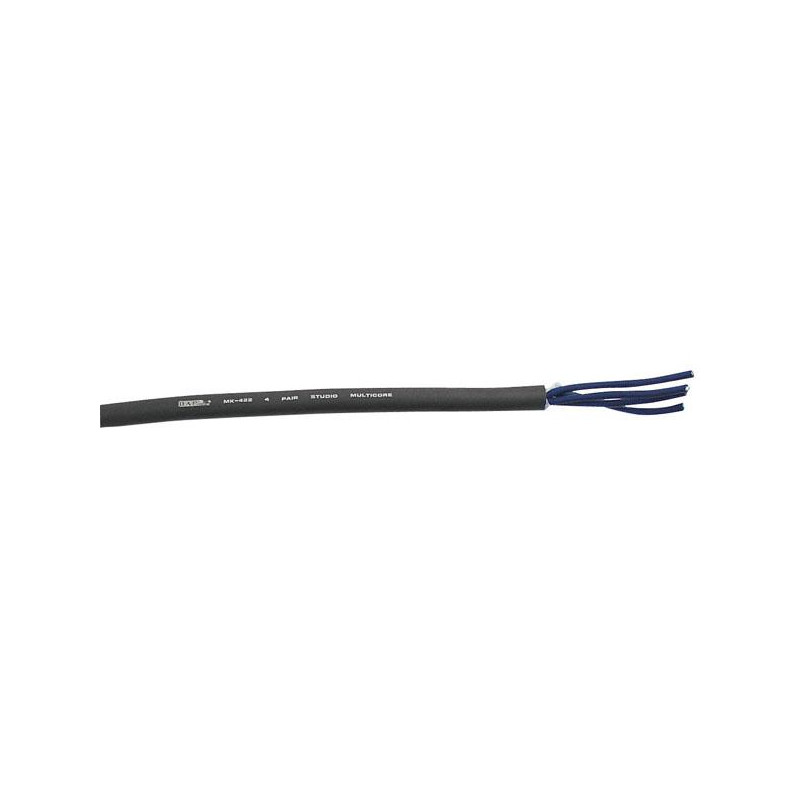

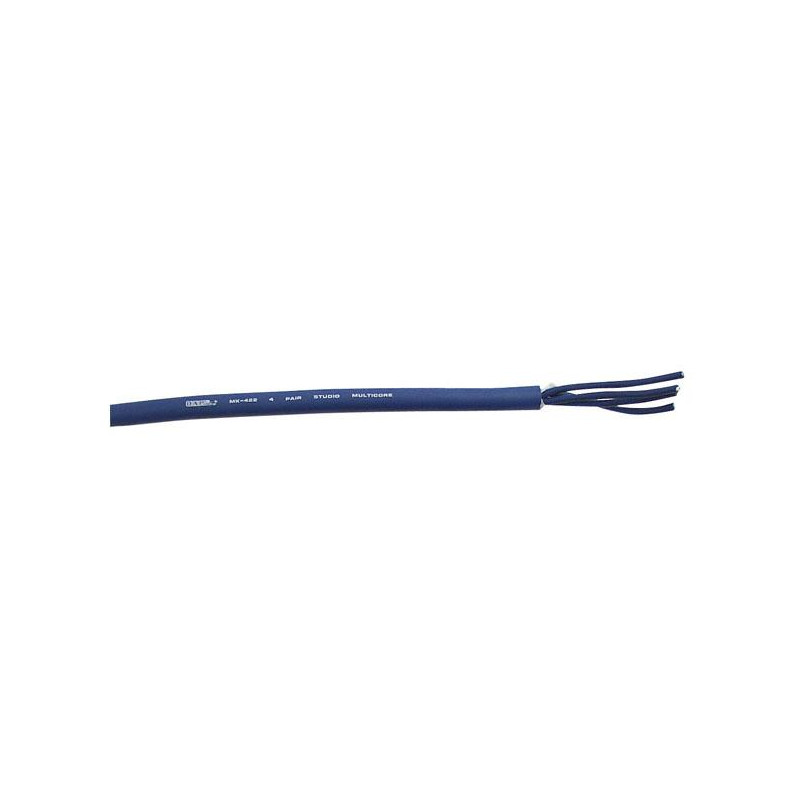

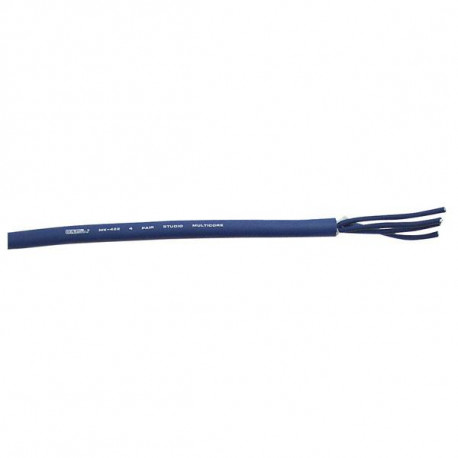

"The DAP audio mulitpairs are extremely flexible and rugged, suitable for very difficult environments, Studio, Stage and above all “on the road"" use. The inner conductors are double colour coded and shielded with alufoil, each pair is XLPE Isolated and numbered.

• Single shielded multicable
• colour coded
• Tough, roadproof quality
• Each pair OFC-copper shielded

1. Masterjacket: Dark blue flexible roadproof PVC
2. Separator: Twistet cotton paper
3. Pairjacket: Numbered dark-blue PVC 3 mmØ
4. Pairshield: Silvercoatet Alufoil
5. Conductor insulation: Polyethelene red and white 1mmØ
6. Inner conductor: Oxigene free copper 99,997 OFC
7. Earth drainwire: Tinned copper

Each pair with alu-foil (OFC Copper), with exception of MK-3222.
Min. orderquantuty: 1m.
Max. on drum: 500m.

"
Price p. m.
Max. 500m on spool
Number of pairs: 4
Conductor insulation Ø in mm: PE, red+white, 1,0
Pair jacket Ø in mm: PVC blue, (numbered), 3,0
Pair shield: Alufoil + tinned drainwire
Master jacket Ø in mm: 10mm PVC, dark blue
Minimal bending radius: ?100
Weight (kg/100 m): 12,6
