Dap Audio - SDI-202

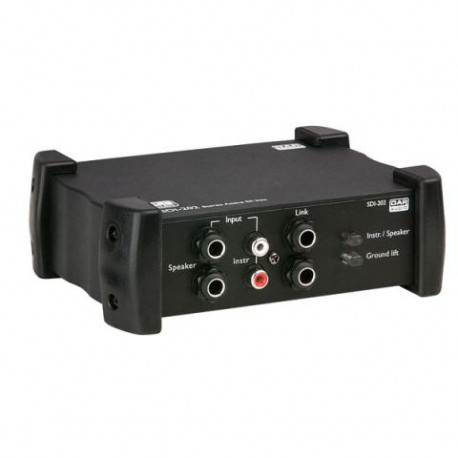

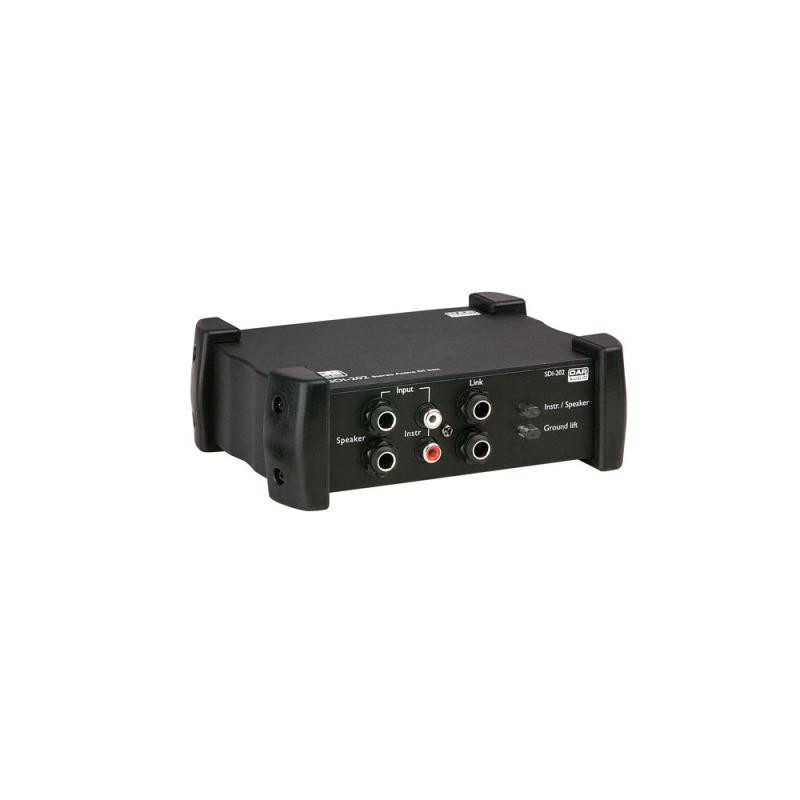

SDI-202 Stereo Active DI Box

SDI-202 Stereo Active DI box

91.50€%13.66 You save 12.50€
79,00 €

Add to wishlist

In Stock

Europe Warehouse: 69

More info

The SDI-202 is a multi-purpose unit and can be powered by an 9V battery or mixer with phantom power. The instrument mode has a high impedance which makes it possible to connect an instrument with high output impedances, like an electric guitar or acoustical guitars with a piezo-ceramic pick-up element. But this mode also allows you to connect electric devices with an unbalanced output like keyboards or Dj mixers without balanced outputs. The RCA input is ideal for these kind of setups. It also has a speaker mode which allows you to connect guitar amplifiers direct with the SDI-202. The SDI-202 balanced outputs will give a clean signal at a low level which makes long runs of cable possible. The SDI-202 will provide an even frequency response on any input signal connected with the benefit of cancellation of interference, hums and buzzes.

The DAP Pro Audio Solutions are a complete line-up of audio tools for the professional musician or audio engineer. It is a series of audio modifying tools like mini-mixers, pre-amps and converters available in active or passive models. All audio solutions are designed to meet the highest stage and audio demands and feature a metal road proof housing with rubber feet and easy accessible controls. The units also have a small footprint which make them ideal to be used and placed in any environment where space is critical.


Specifications

Frequency Response: 10Hz-40KHz
Noise Level: < -105db
Distortion (THD): < 0.005% at 1khz, 0dbu output

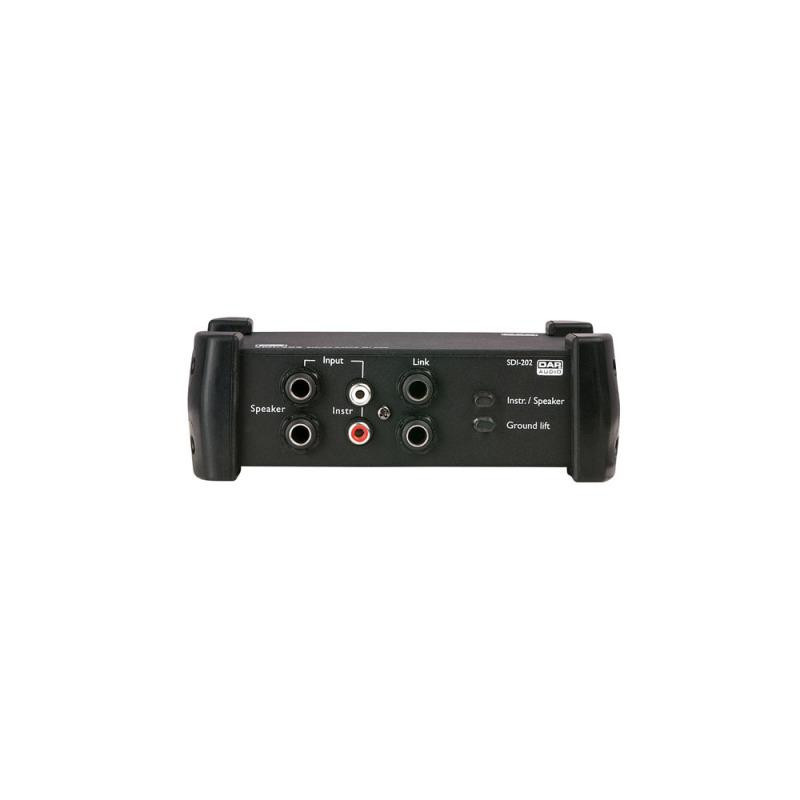

Inputs: 6,3 TRS Jack, RCA
Link out: 6,3 TRS Jack

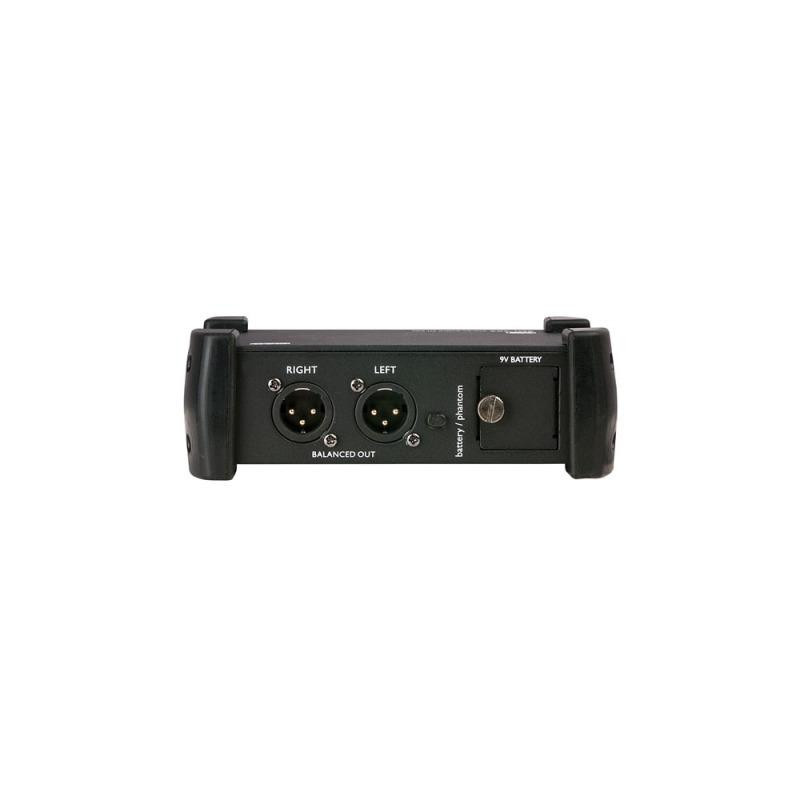

Output: XLR Male balanced
Power supply: 9V Battery or 18 - 48V DC (phantom)
Input Impedance instrument: 1Meg
Input Impedance speaker: 47 kOhm
Max input level instrument: +9dBu / 2.18V
Max input level speaker: +39dBu / 69V
Dimensions: 53 x 158 x 135 mm (HxWxD)
Weight: 0,7 Kg
