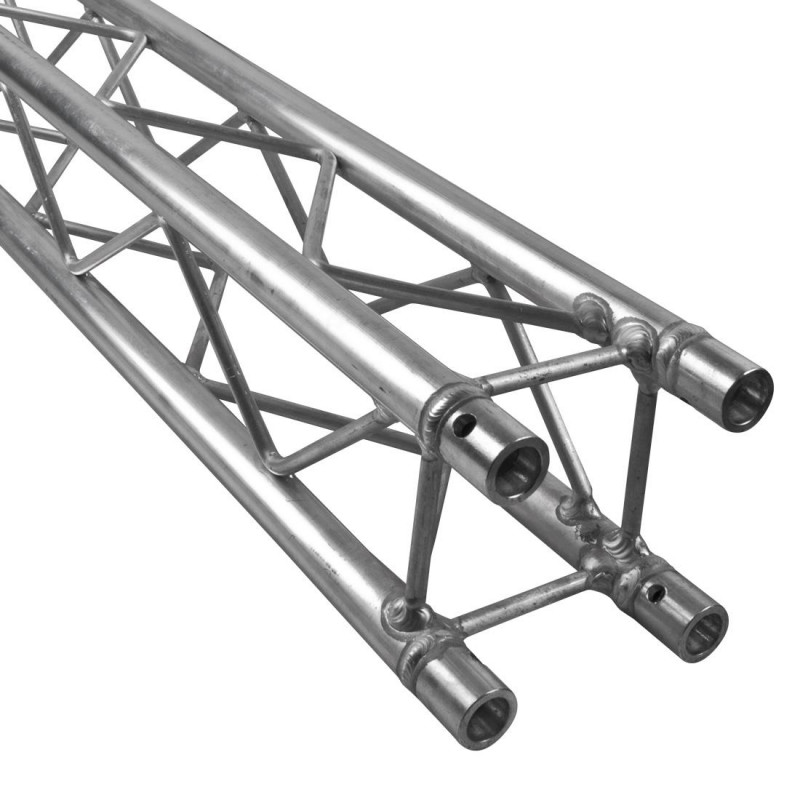

4-Point Truss DuraTruss DT 14-250

The DT14 system of DuraTruss is a decorative truss system. The DT14 is connected through a conical connection (spigot), trusspin and safetyclip. The DT14 is suitable for shops, displays or even at home as a decorative object. Through a boxcorner you realize 90° angles in all directions. There are several baseplates available for stability and protection of your floor.

Positives:
- Decorative
- Easy to pair with box-corner (MJB)
- Easy installation
- Low weight
- Space saving during transport

Dimensions:

Length: 2500mm

Width: 100mm

Height: 100mm

Weight: 4,3kg

Diameter: 20mm

Technical Data:

Tube Diameter: 20mm x 2mm (0.8 x 0.08 inch)

Cross brace diameter: 6mm (0.24 inch)

Material: Alloy EN-AW 6082 T6 (AIMgSi1 T6)

The DT 14-250 will be delivered with 4 spigots, 8 truss pins and 8 safety clips!
