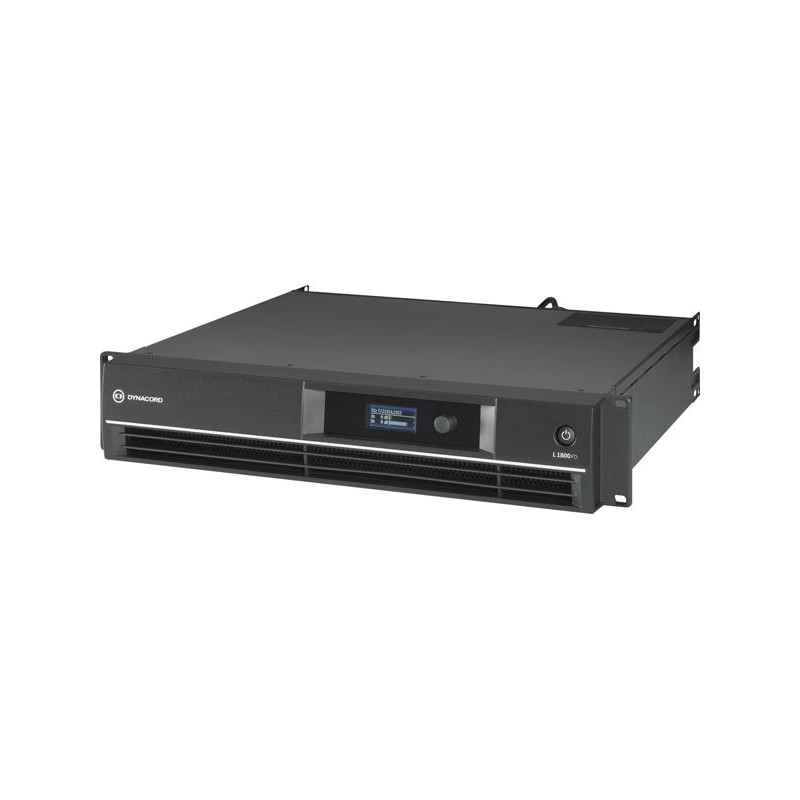

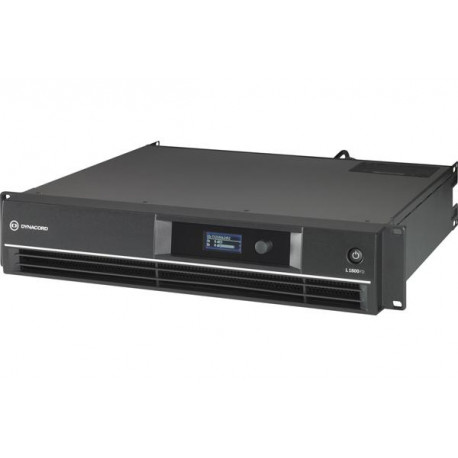

2-CHANNEL POWER STAGE 2-channel power stage with DSP, FIR Filters, Limiter, Delay, GEQ and PEQ per channel. Class AB topology. Stereo output power (THD 1%, 1kHz): 2x 480W at 8, 2x 950W at 4, 2x 1600W a2. Output power in bridge mode (THD 1%, 1kHz): 1x 1700W at 8, 1x 2800W at 4. Frequency response: 10Hz at 21kHz (± 1dB). Gain: 32dB. Input sensitivity: + 21dBu. Maximum output RMS voltage range: 65.1V. Consumption at 4 a of the maximum output power: 700W. Led screen. Gain and indicators (LEDs) for output level, limiter, protection and power on the front. Protection circuits for: overheating, overload, short circuit, EMF return, peak current, input current, HF and DC at the output and soft start. Signal input / output via XLR3. Charging output with Speakon connector Dimensions (W x H x D), mm: 483 (19 ') x 88 (2U) x 462.4. Weight: 15.2 Kg.
