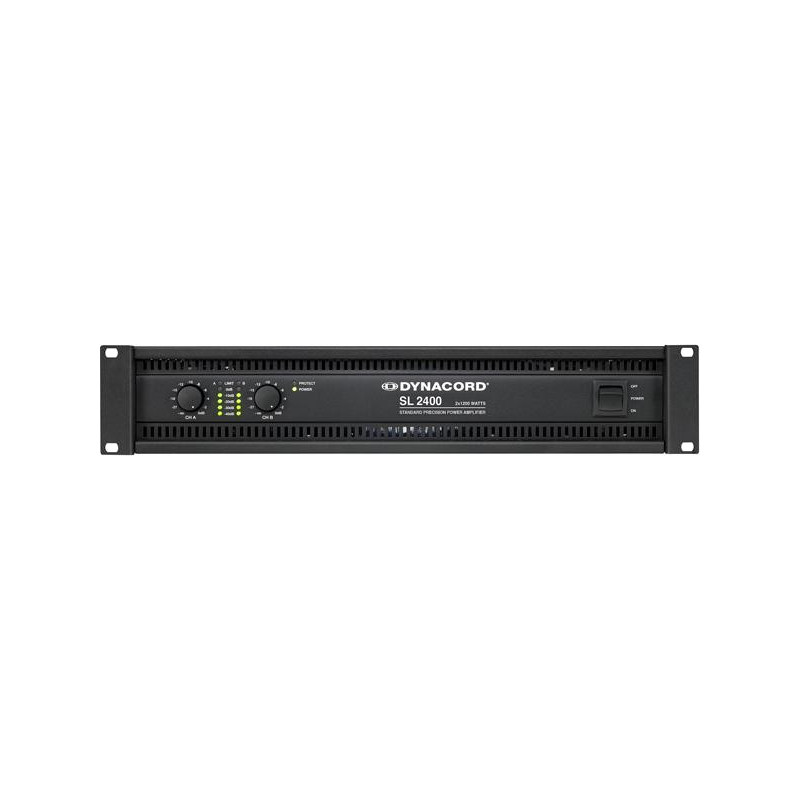

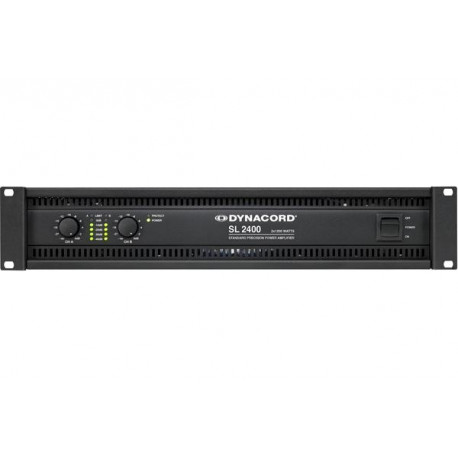

2-CHANNEL POWER STAGE 2-channel power stage. Class H topology. Stereo mode output power (THD 1%, 1kHz): 2x 750W at 8, 2x 1,200W at 4, 2x 1,800W at 2. Output power in bridge mode (THD 1%, 1kHz): 1x 2,400W at 8, 1x 3,600W at 4. Frequency response: 10Hz to 40kHz (± 1dB). Gain: 32dB. Input sensitivity: + 6.6dBu. Maximum output RMS voltage range: 90.6V. Consumption at 4 a of the maximum output power: 850W. It incorporates gain control and indicators (LEDs) for output level, limiter, protection and power on the front. Protection circuits for: overheating, overload, short circuit, EMF return, peak current, input current, HF and DC at the output and soft start. Signal input / output via XLR3. Charging output with Speakon connector. Dimensions (W x H x D), mm: 483 (19 ') x 88.1 (2U) x 421.5. Weight: 17.7 Kg.
