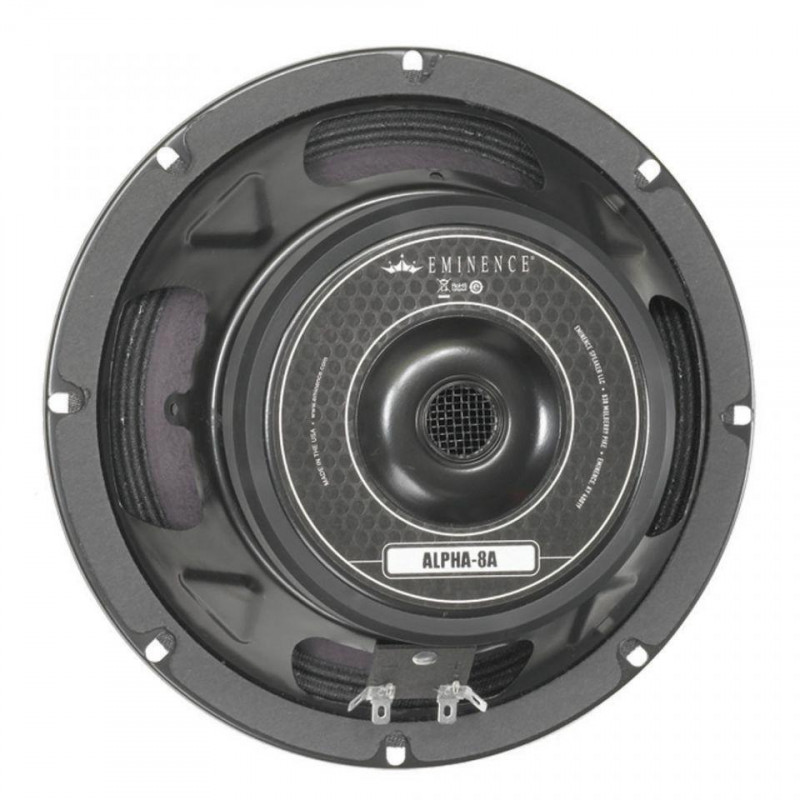

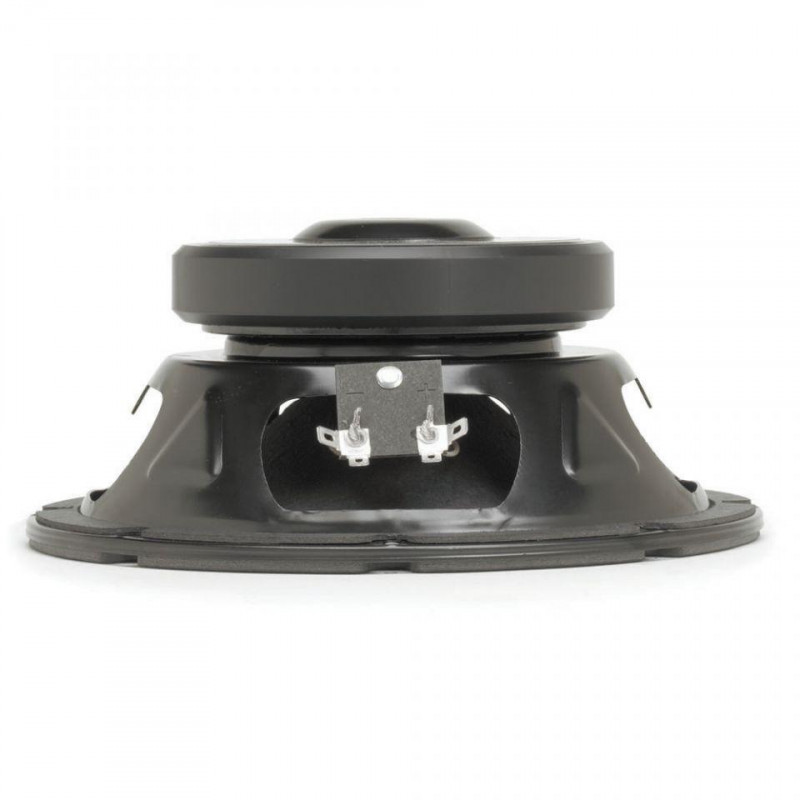

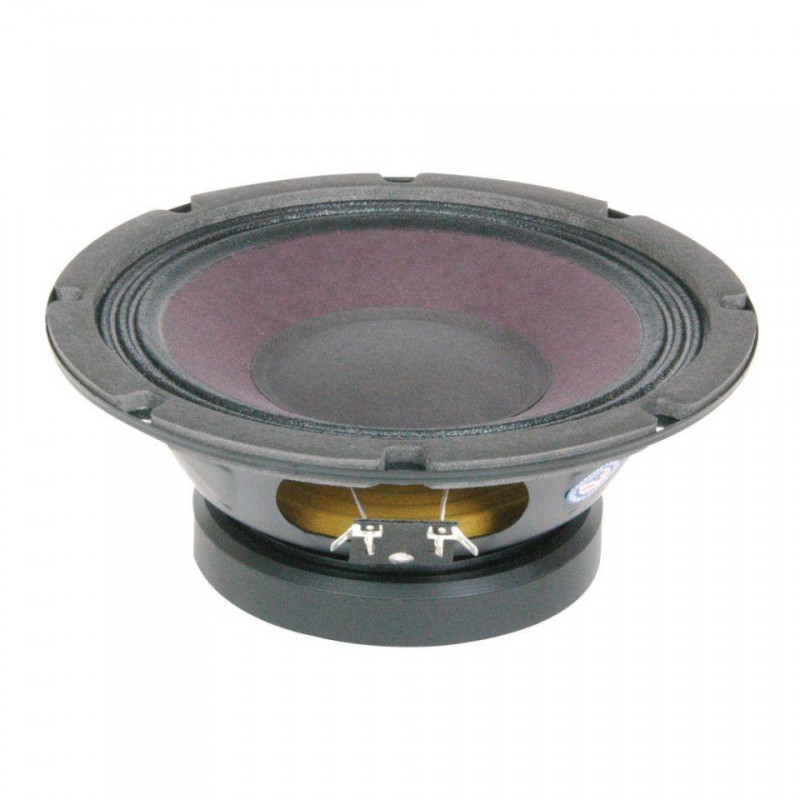

Eminence - ALPHA 8A
Eminence Alpha 8 A 8" Speaker 125 W 8...
-
Neutrik - ACRM-1
A-SERIES M CODING RING
More info
Recommended for professional audio mid-range applications in a sealed cabinet, or as a mid-bass in a vented satellite enclosure.
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
8 "
Nominal Diameter
203.2 mm
Voice Coil
1.5 "
Voice Coil
38.1 mm
Overall diameter
209.2 mm
Pitch Circle Diameter
196.9 mm
Section Diameter
181 mm
Diameter of fixing holes
5.5 mm
Depth
83 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
125 W
maximum rated load
250 W
Sensitivity (1 W / 1 m)
94 dB
Frequency response
58 - 5000 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
6.35 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
73 Hz
Re (DC resistance)
5.3 Ohm(s)
Qms (mechanical quality)
4.6
Le (inductance of the voice coil)
0.44 mH
Qes (electrical quality)
0.68
Qts (overall quality)
0.59
Vas (equivalent volume)
17.7
Mms (moving mass)
17 g
BL (power factor)
7.8 T/m
Xmax (maximum displacement)
3.2 mm
Cms (elasticity of the suspension)
0.28 mm/N
Sd (membrane area)
210 cm²
Weight
2,31 kg
