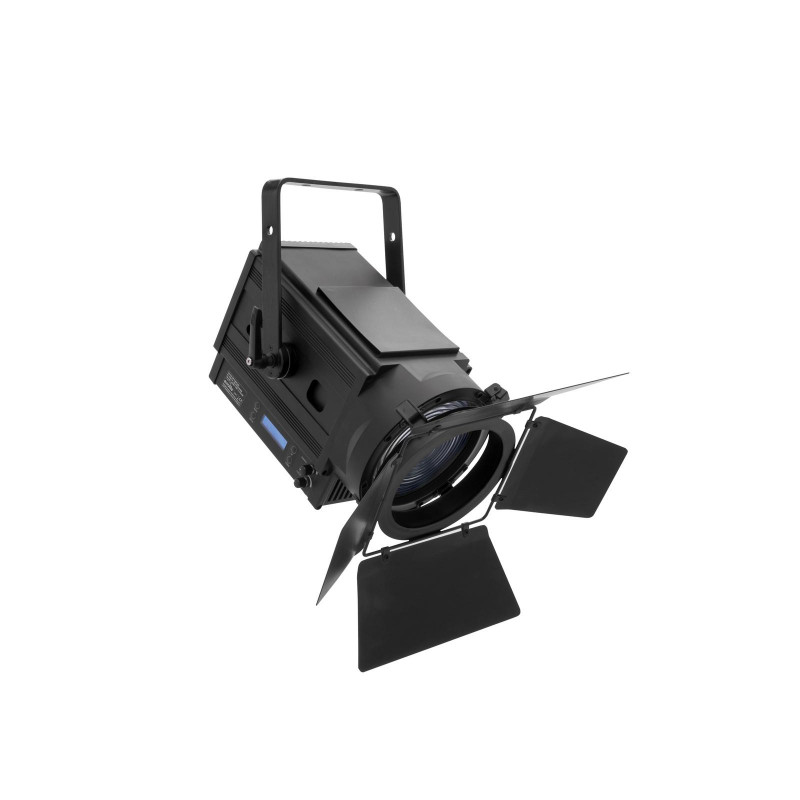

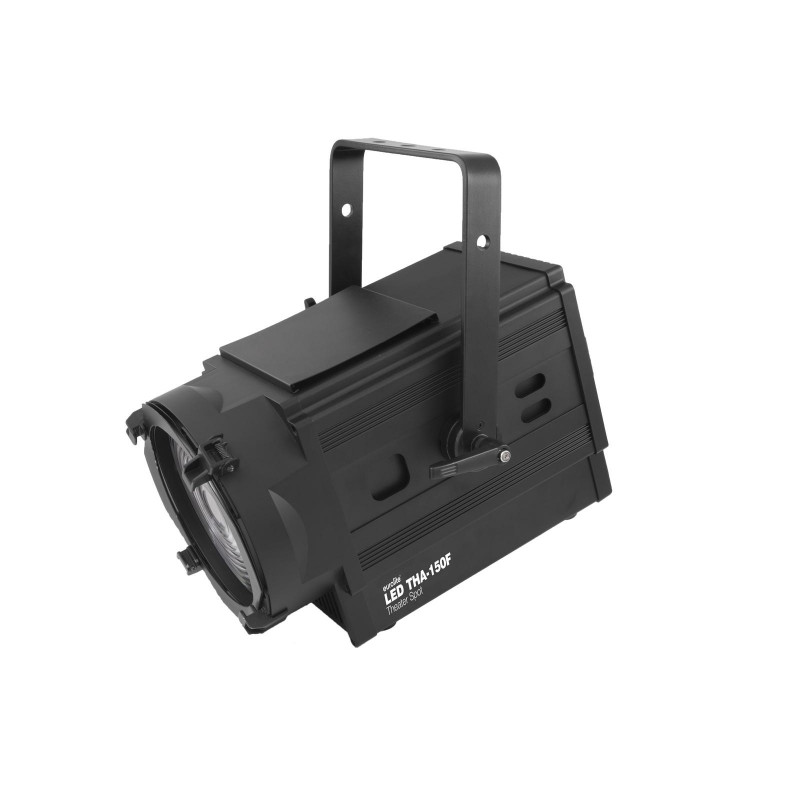

Fresnel spot, dim to warm, 170 W warm white/amber LED, CRI > 90, quiet, DMX
- Functions: dimmer with 8 or 16 bit resolution, strobe effect with variable speed, random strobe effect, motorized zoom
- Various dimmer curves adjustable via control panel
- LED technology that simulates the color temperature curve of a halogen lamp when dimming
- Zoom adjustable via DMX or manually on the device
- Stepless brightness regulation via rotary control direct on the device
- Equipped with a warm white/amber COB LED (2in1)
- Stepless WW+A color mixture
- Color rendering index (CRI) >90

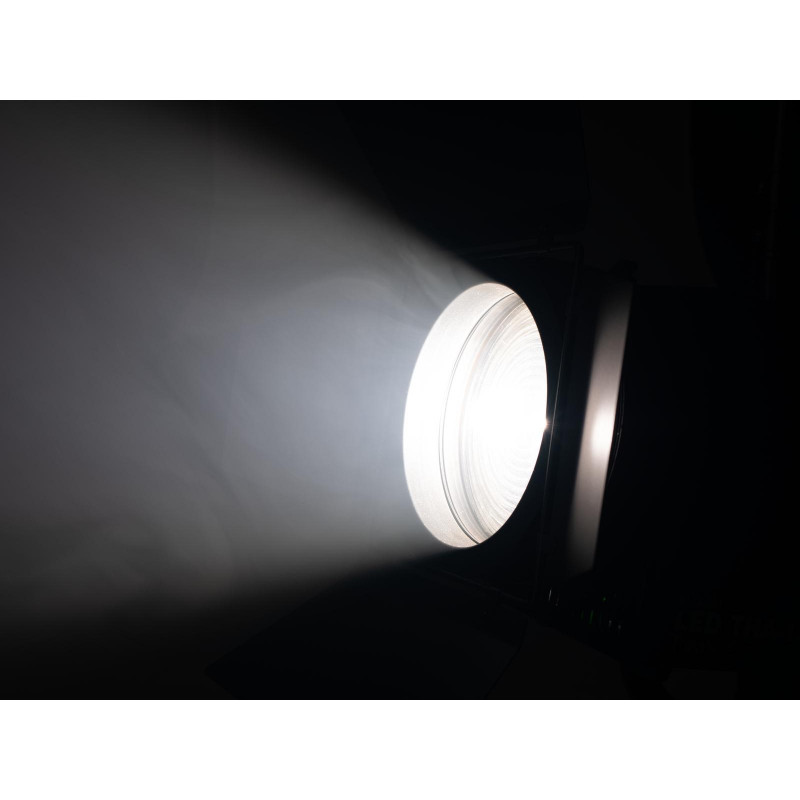

- Light output via Fresnel lens
- Metal housing
- Mounting bracket for installation on a stand or a crossbeam
- Locking possibility at the bracket
- Temperature-protected handle
- Additional rubber feet when the spot shall be positioned on the floor

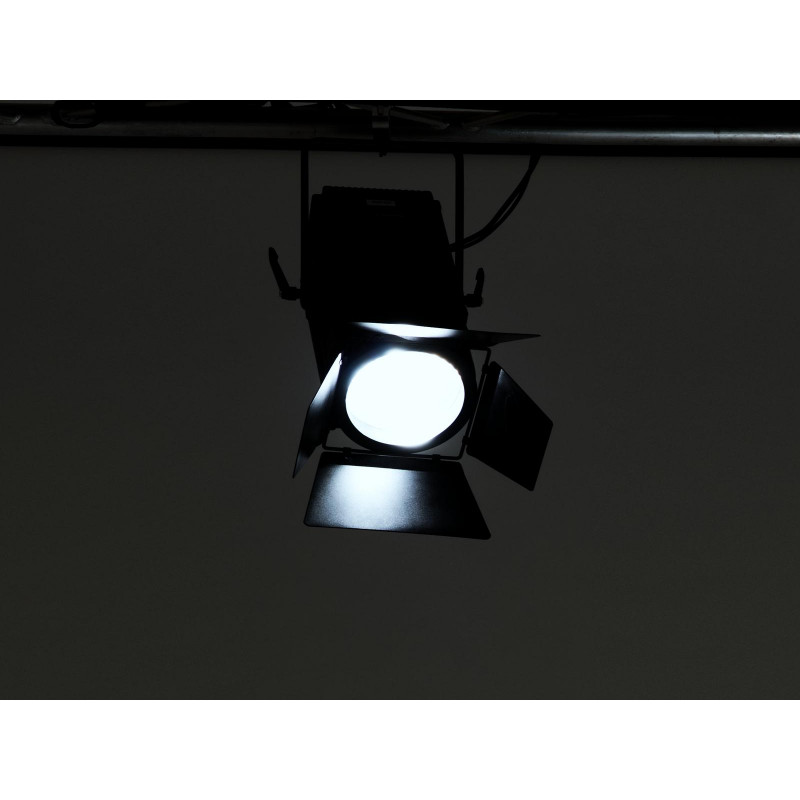

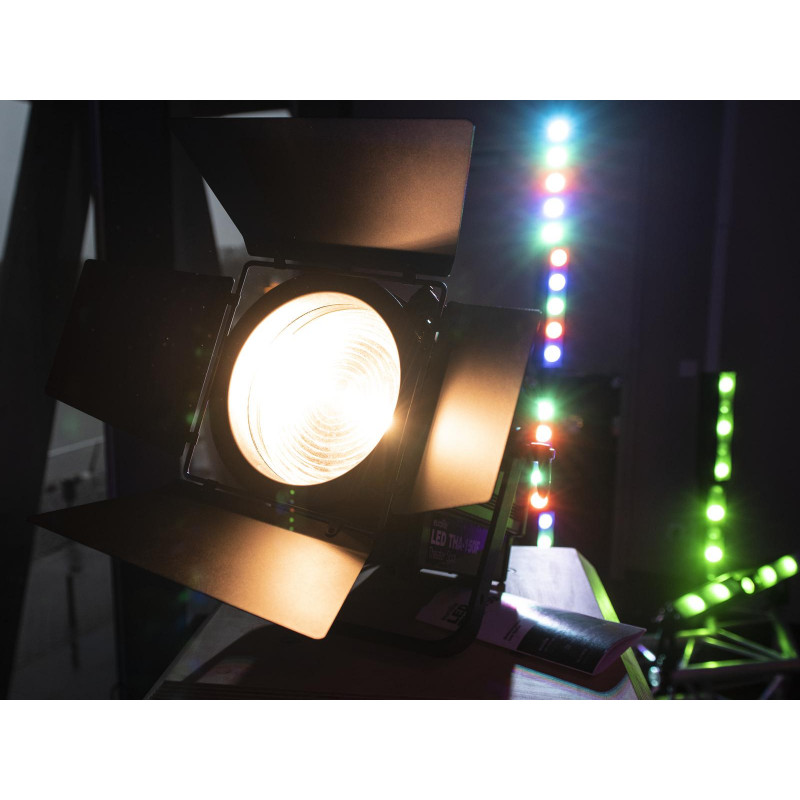

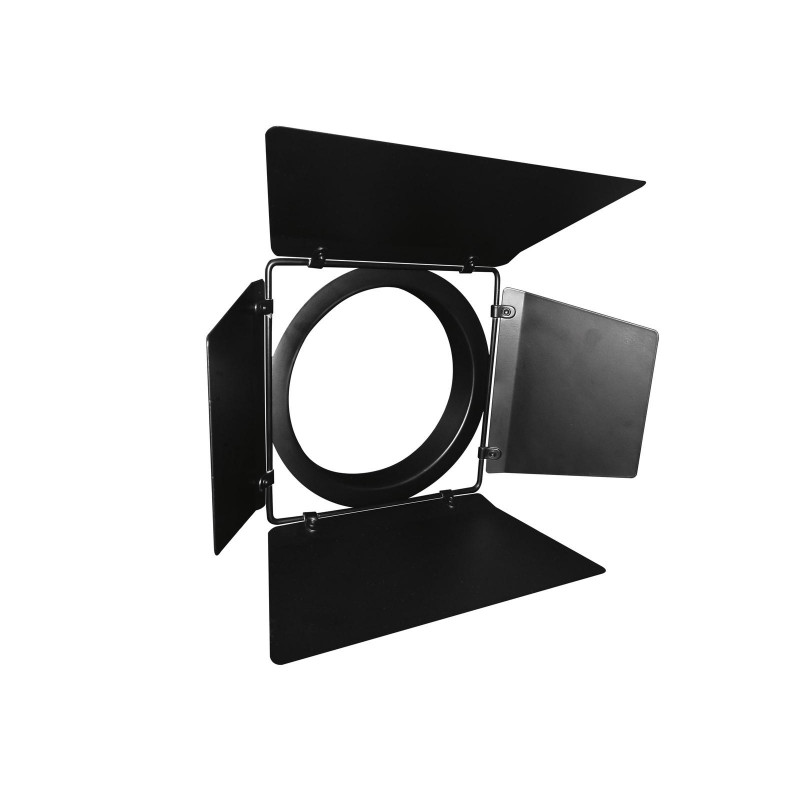

- Rotatable barn doors and color filter frame included in the delivery
- 2, 6 or 7 DMX channels selectable
- DMX-controlled operation or stand-alone operation
- Supports RDM (Remote Device Management)
- Fan-cooled

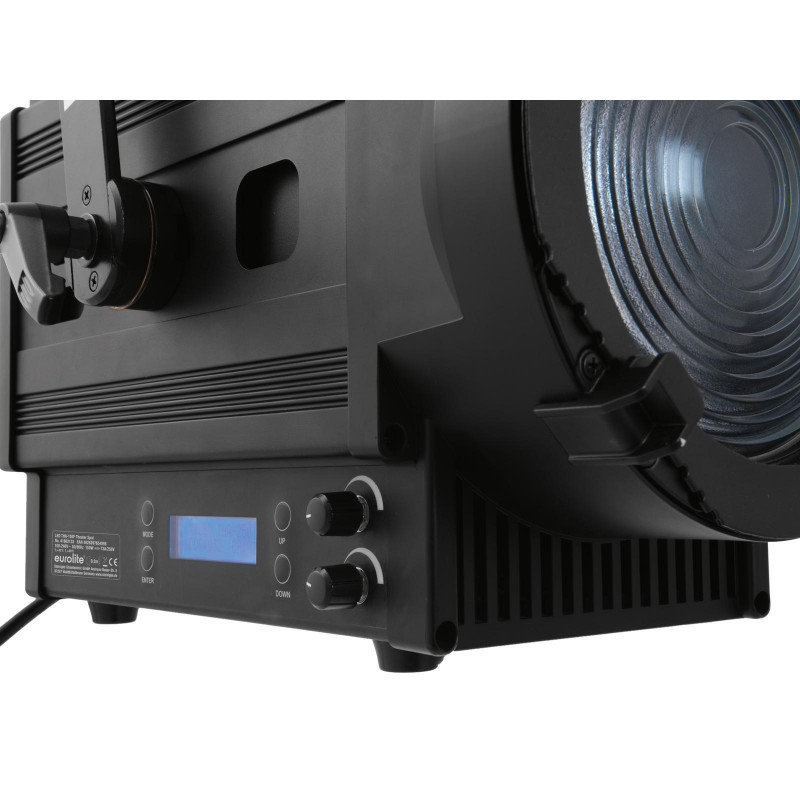

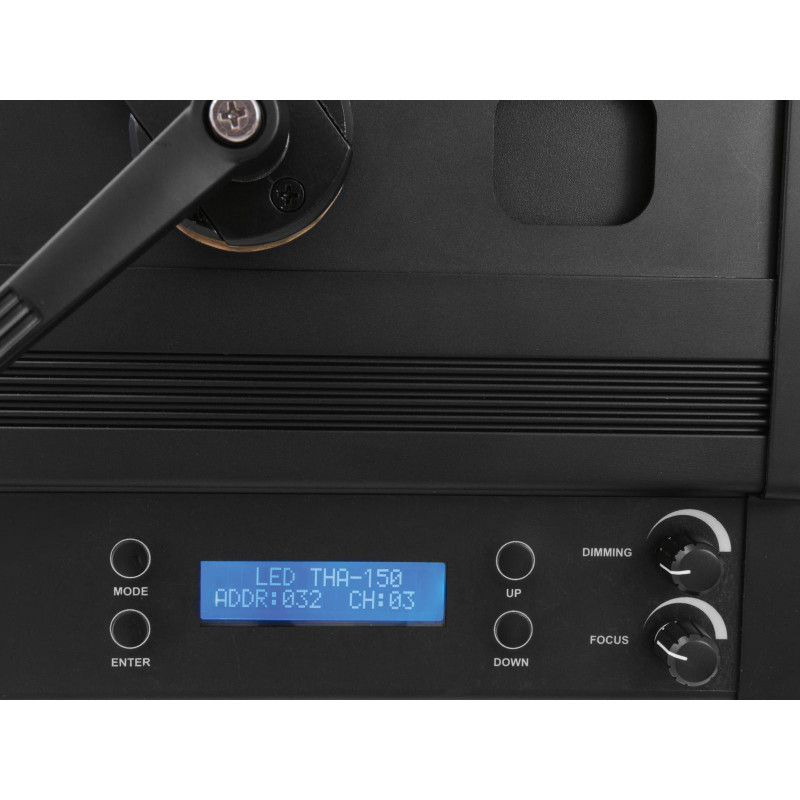

- Comfortable addressing and setting via control panel with LCD and four operating buttons

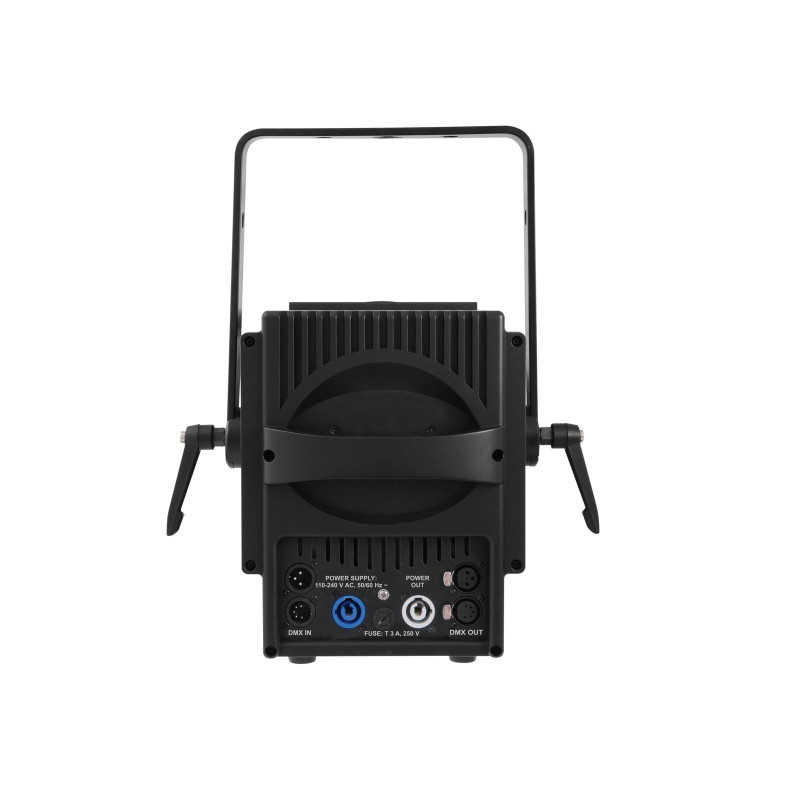

- Neutrik powerCON terminals for power linking up to 8 units
- LED: 1 x COB (chip-on-board) 170 W Dim to warm (homogenous color mix)
- Control: DMX
- Projection: flicker-free
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 150 W |
| IP classification: | IP20 |
| Power connection: | Mains input PowerCON (blue), mounting version Power supply cord with safety plug |
| Power output: | PowerCON (gray) |
| LED: | 1 x COB (chip-on-board) 170 W Dim to warm (homogenous color mix) |
| Equipment: | Zoom motor-driven |
| DMX channels: | 2; 6; 7 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| 1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| 1 x 5-pin XLR (F) mounting version |
| Cooling: | temperature-controlled fan |
| Control: | DMX |
| Color rendering index (CRI) more than: | 90 Ra |
| Beam angle (1/2 peak): | 8 - 39° |
| Housing color: | Black |
| Length: | 45.7 cm |
| Width: | 33.6 cm |
| Height: | 39.8 cm |
| Weight: | 9.40 kg |
| Legal specifications |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
