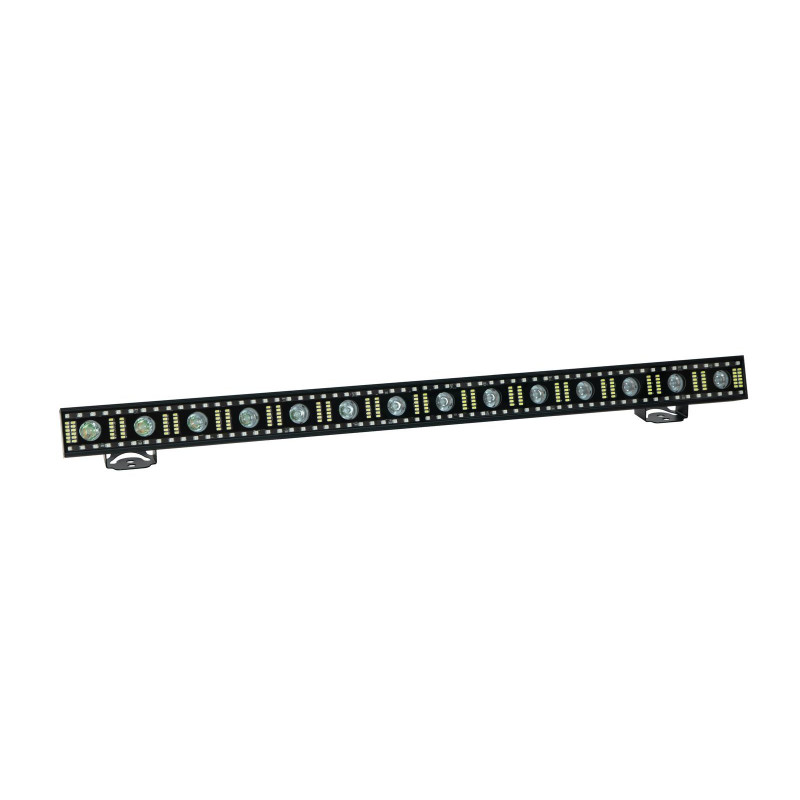

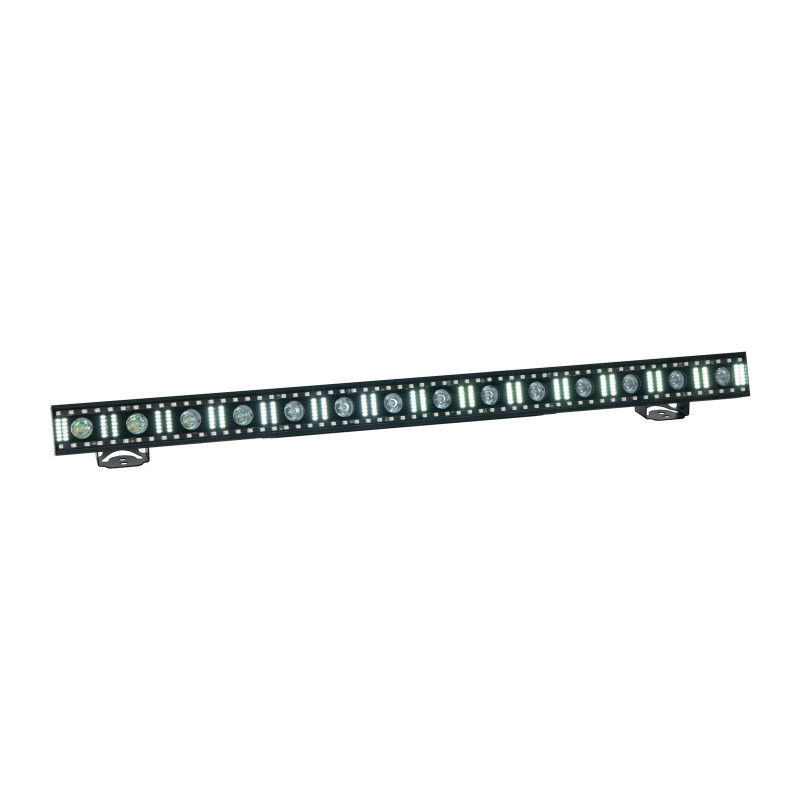

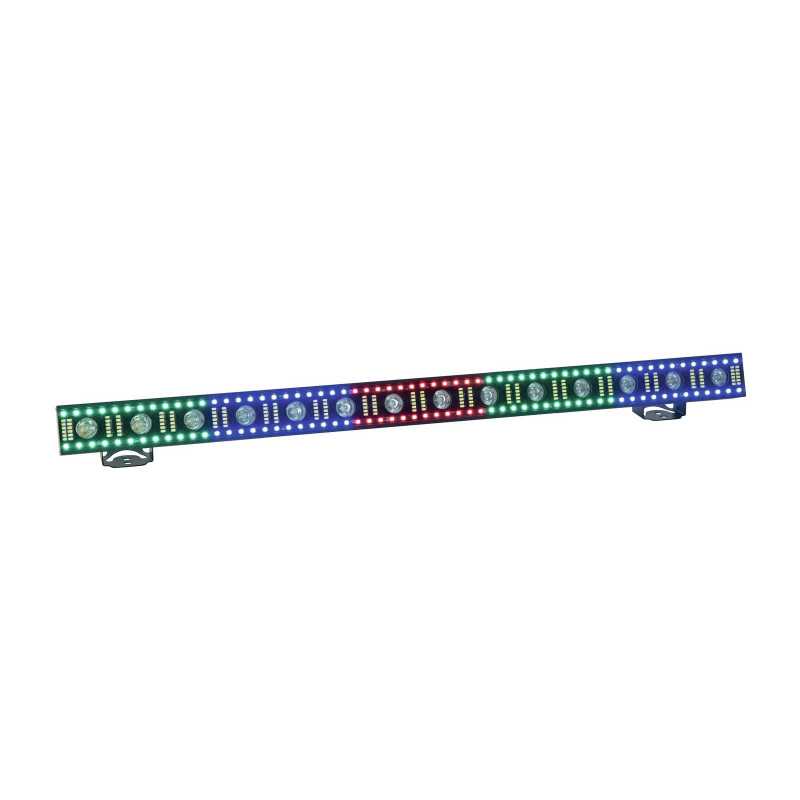

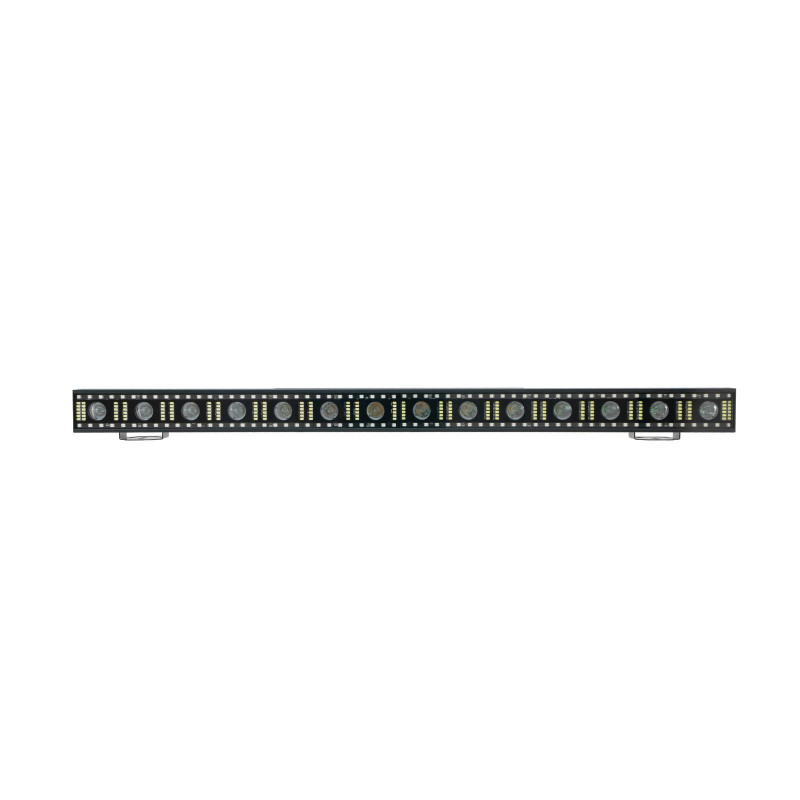

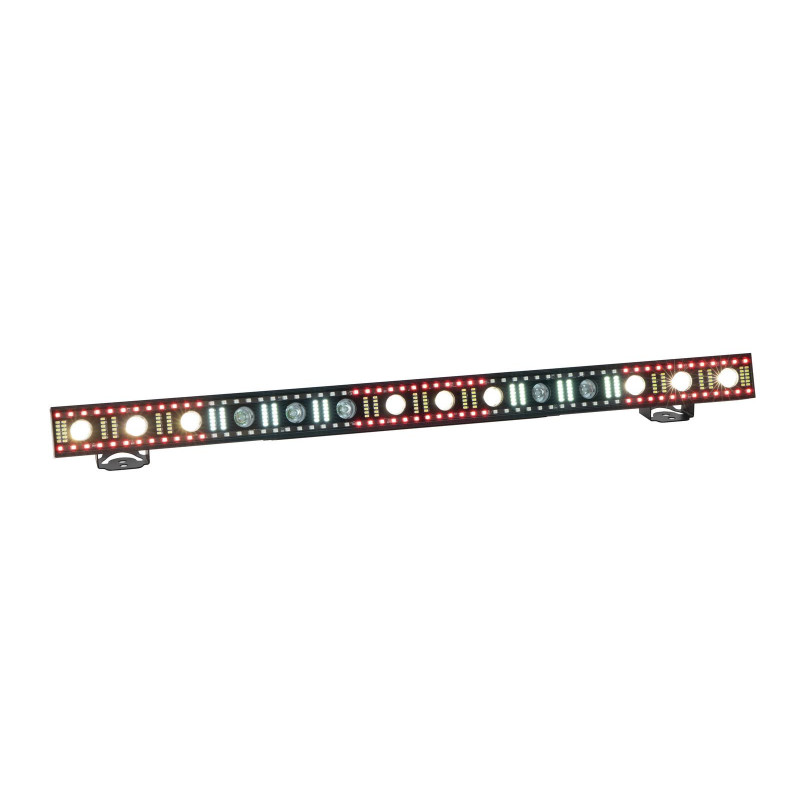

3in1-LED-Sunbar with warm white beam effects, stroboscope and ambient lightThe EUROLITE STP-14 Sunbar is equipped with three effects in one device: Beam effect, stroboscope and ambient light. It is therefore very suitable for your stage equipment, for decorative lighting, for example in shops or for use in discotheques. You can also use the LED bar in theatres or at galas: Due to pure convection cooling via cooling fins, this effect does not require a fan and is therefore particularly quiet in operation. The flicker-free STP-14 Sunbar is equipped with 14 warm-white 3-watt LEDs with a beam angle of 6.5° for narrow beams. 120 bright RGB LEDs behind the transparent cover provide appealing mood lighting and color animations, while 180 cold white LEDs provide fast, dynamic strobe effects. These lighting effects are particularly effective when you use fog.RGB color mixing is infinitely variable. The effects available are chases, dimmers and strobe effects with variable speed and via the random generator.All three LED types are divided into different segments which can be controlled individually via DMX. In addition, you can control the Sunbar STP-14 by music control via the integrated microphone with adjustable microphone sensitivity and in master/slave mode. Addressing and settings are made via the integrated control unit with four-digit LED display.The power supply of up to eight devices is possible via a P-Con mains connection.

3in1 LED sunbar with warm white beams effects, stroboscope and ambient light

• 3 striking effects in one device: beam effect, stroboscope and ambient light
• 14 warm white 3 W LEDs with 6.5° beam angle for clearly defined beams

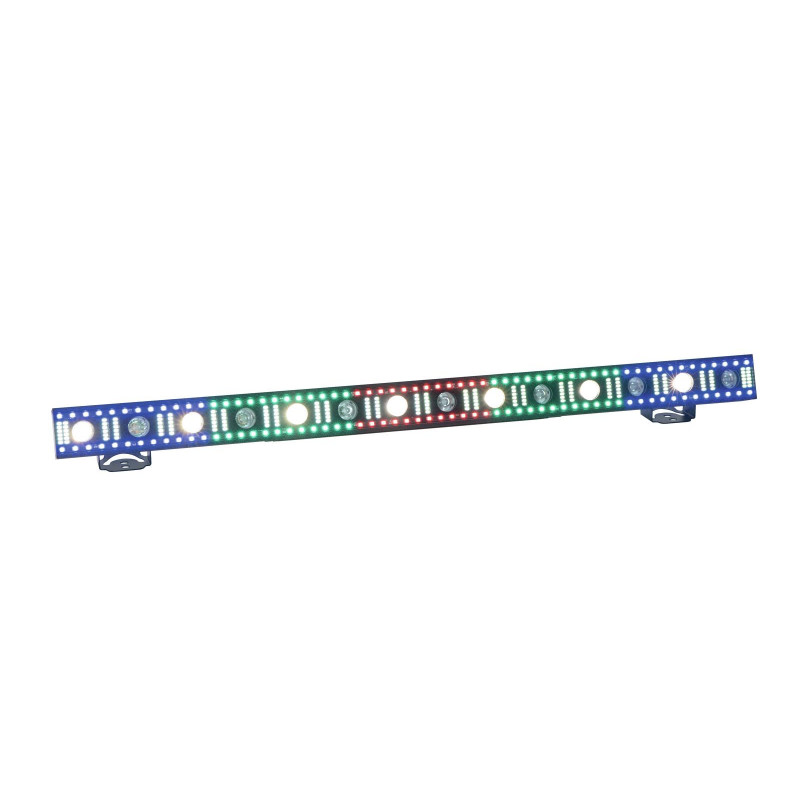

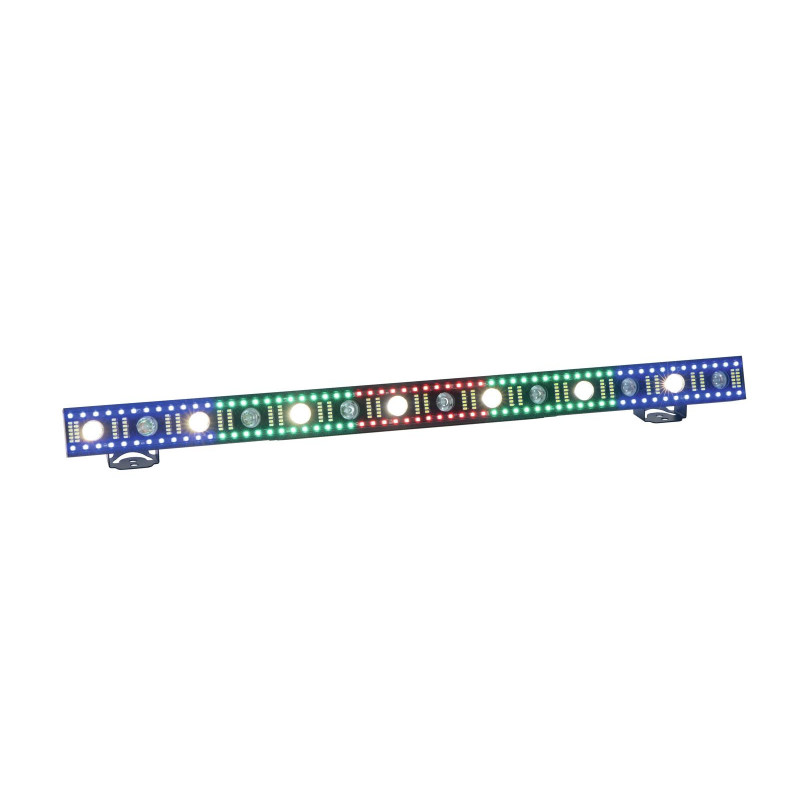

• 120 bright RGB LEDs for mood lighting and color animations

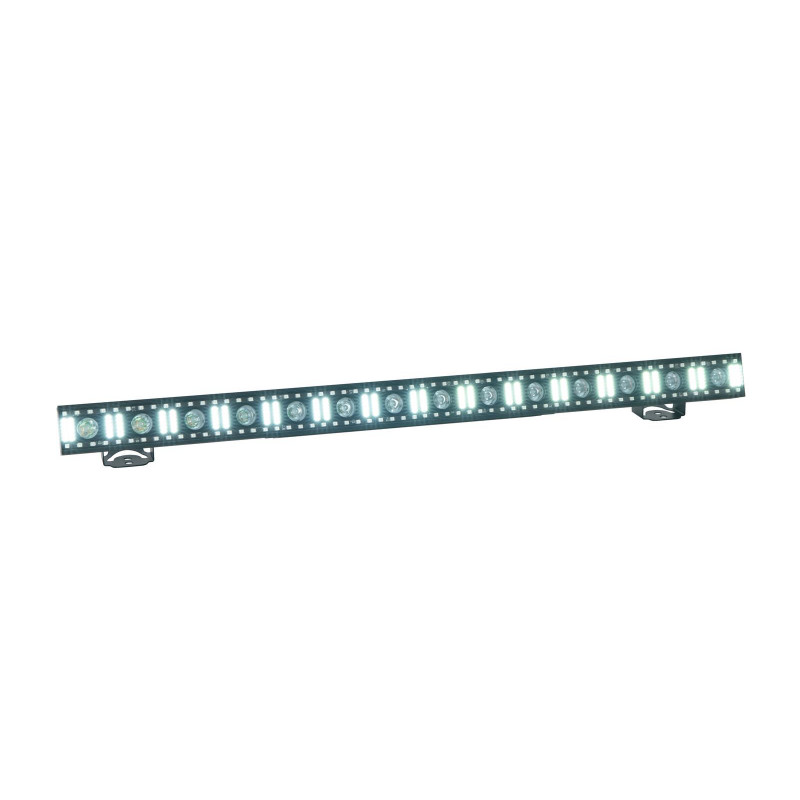

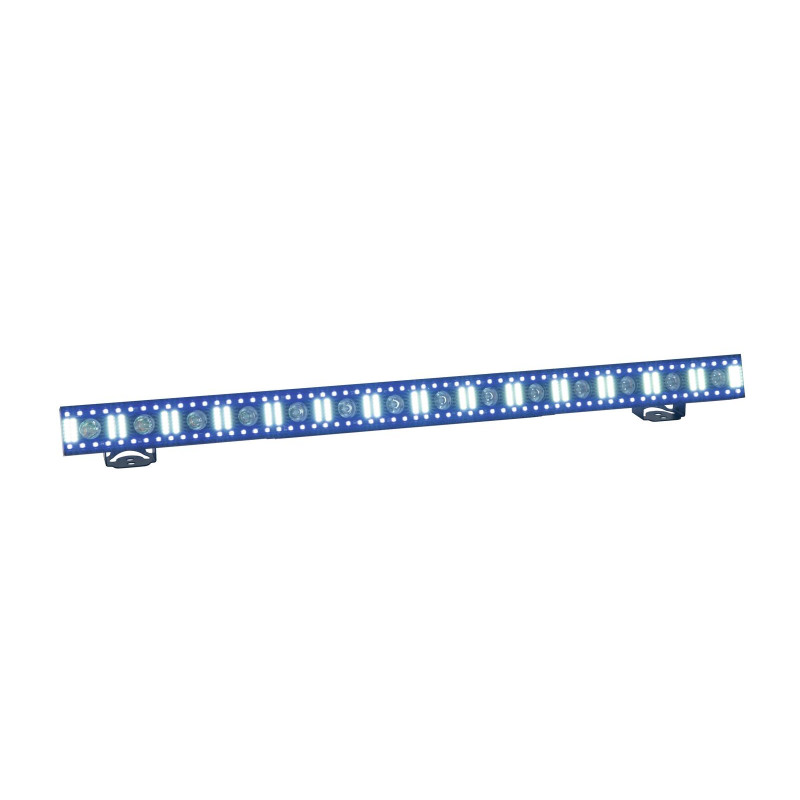

• 180 cold white LEDs for fast, dynamic strobe effects
• When fog is used, the effects become especially attractive

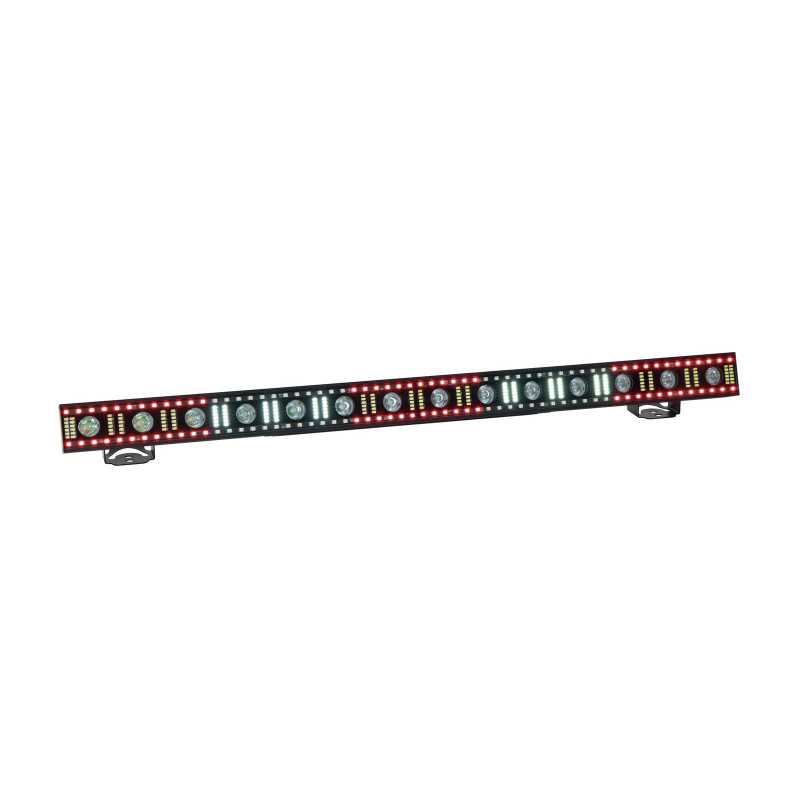

• All 3 LED types are distributed in different segments which can be controlled individually via DMX
• Auto, music, master/slave and DMX mode
• Built-in auto and music show programs
• Direct color selection for 10 preset colors
• Stepless RGB color blend, chasers, dimmer and strobe effect with variable speed and random

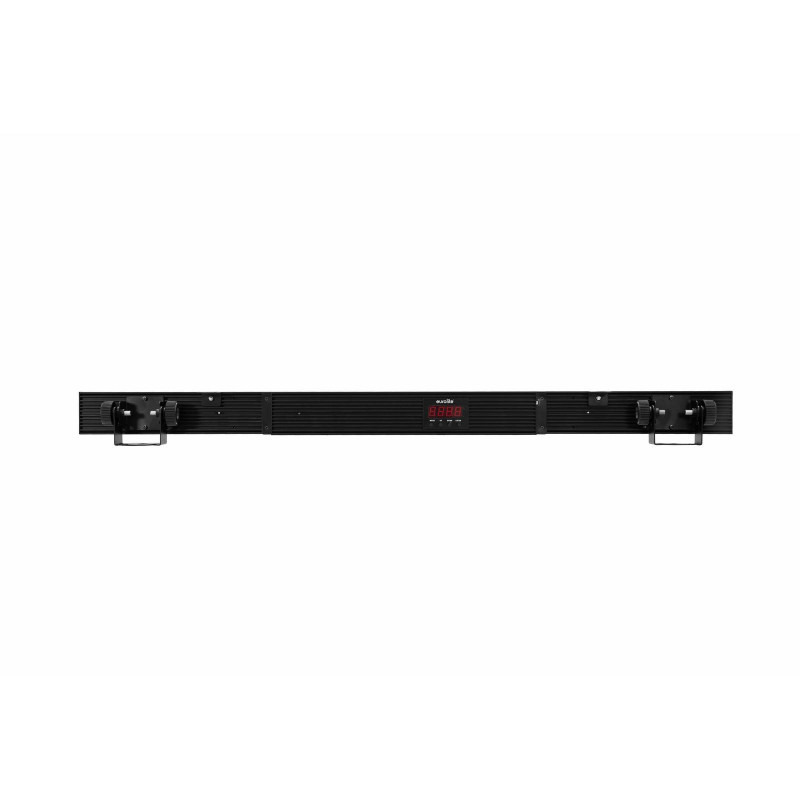

• Addressing and setting via control panel with 4-digit LED display
• Sound-control via built-in microphone with adjustable microphone sensitivity
• 2, 6, 34 or 37 DMX channels selectable

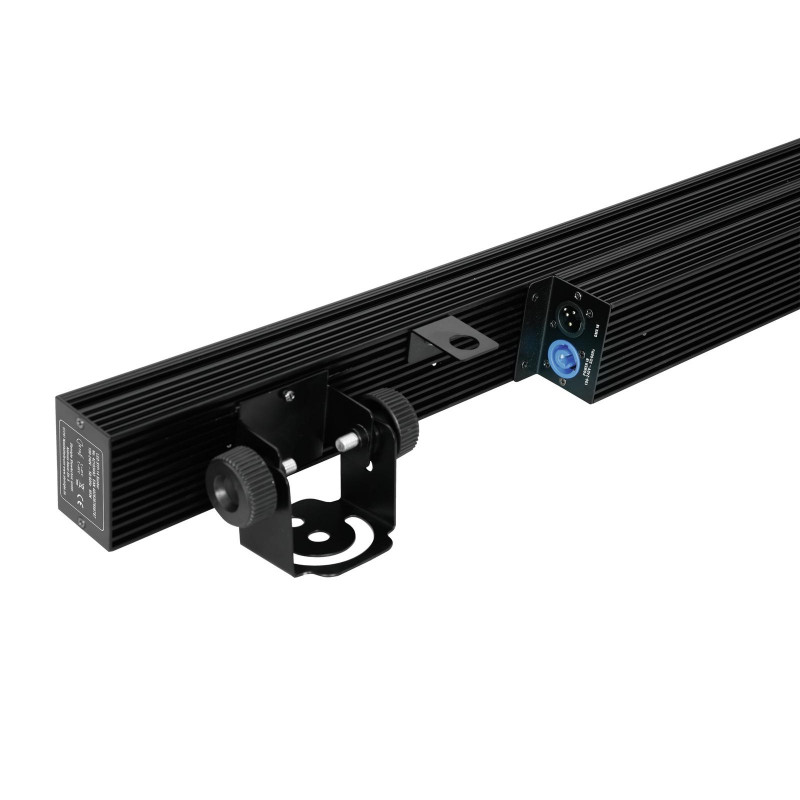

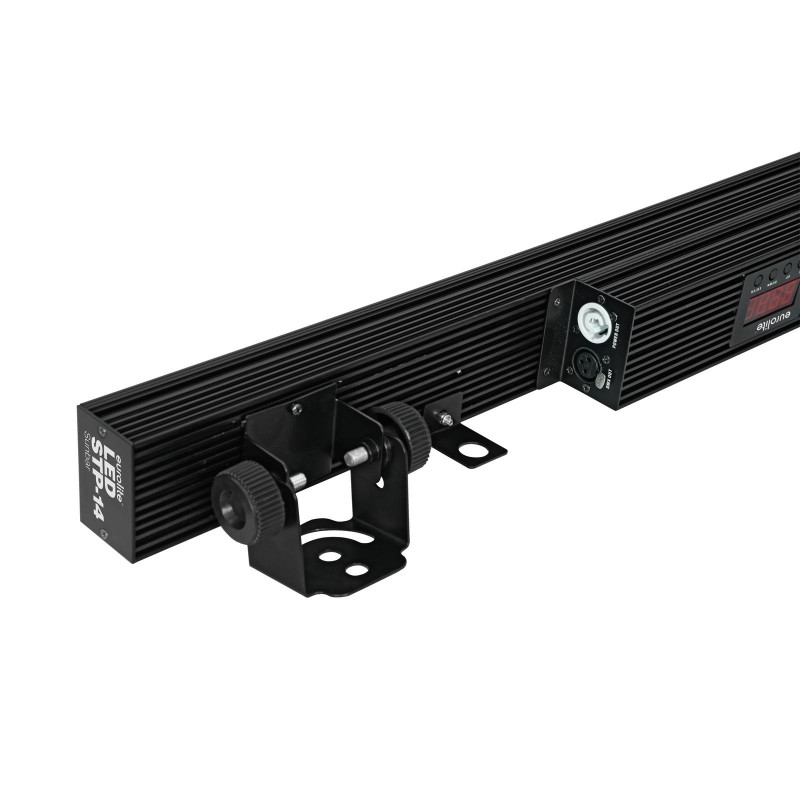

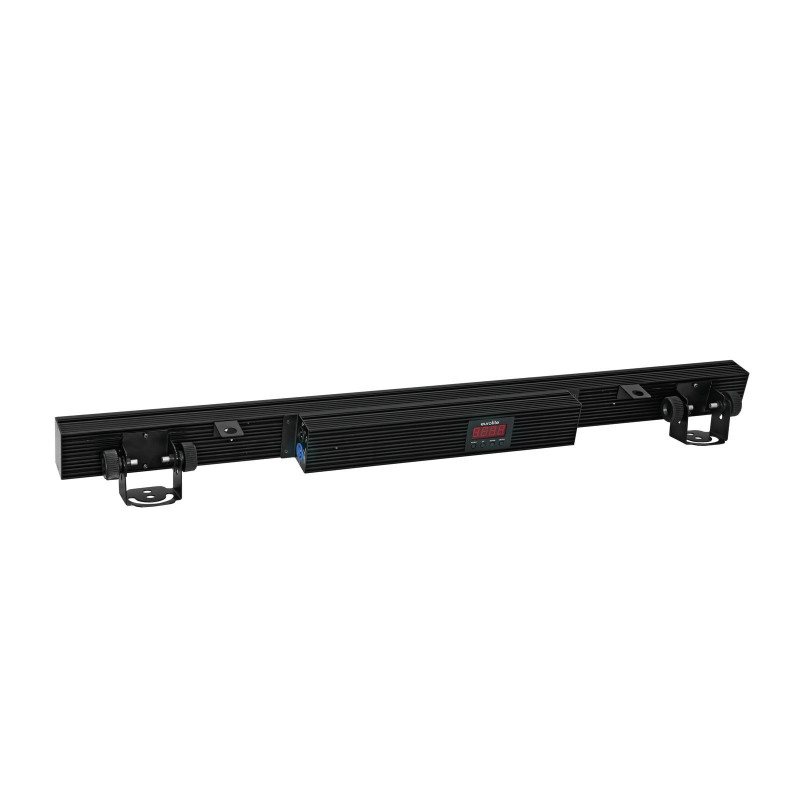

• 2 swivel mounting brackets
• Especially low-noise operation due to convection cooling
• P-Con terminals for power linking up to 8 units
• LED: 180 x SMD CW
• LED: 120 x SMD 5050 3in1 TCL RGB (homogenous color mix)
• LED: 14 x high-power 3 W WW
• Control: Sound to light via Microphone; DMX
• Projection: flicker-free

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	95 W
IP classification:	IP20
Power connection:	Mains input P-Con (blue), mounting version Power supply cord with safety plug
LED:	180 x SMD CW
	120 x SMD 5050 3in1 TCL RGB (homogenous color mix)
	14 x high-power 3 W WW
DMX channels:	2; 6; 34; 37
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	passivcooling by convection
Control:	Sound to light via Microphone
	DMX
Beam angle (1/2 peak):	6.5° Spot
Housing color:	Black
Length:	100 cm
Height:	8.5 cm
Depth:	9 cm
Weight:	3.92 kg
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
