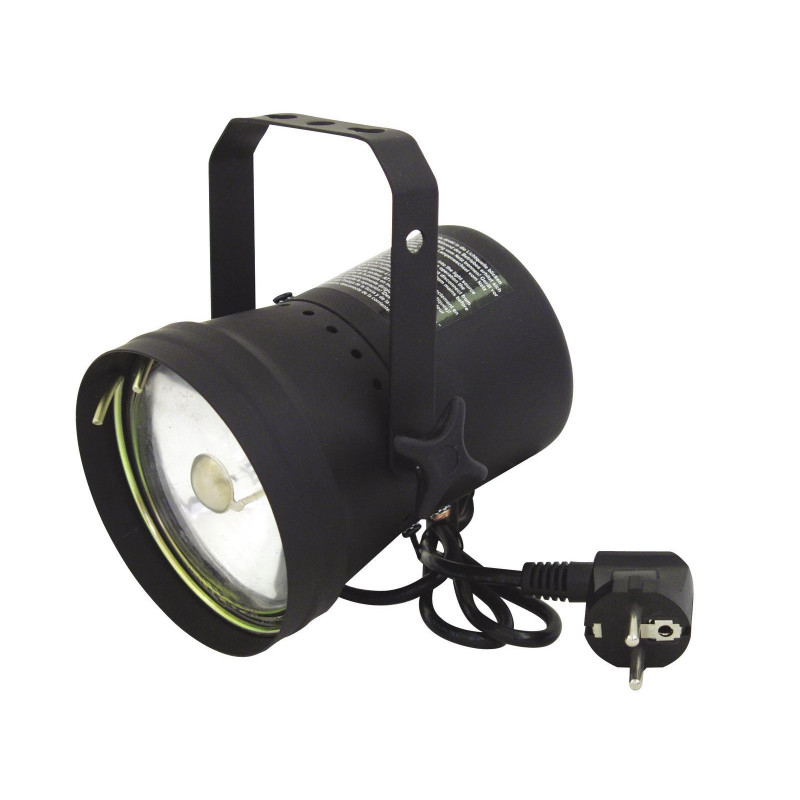

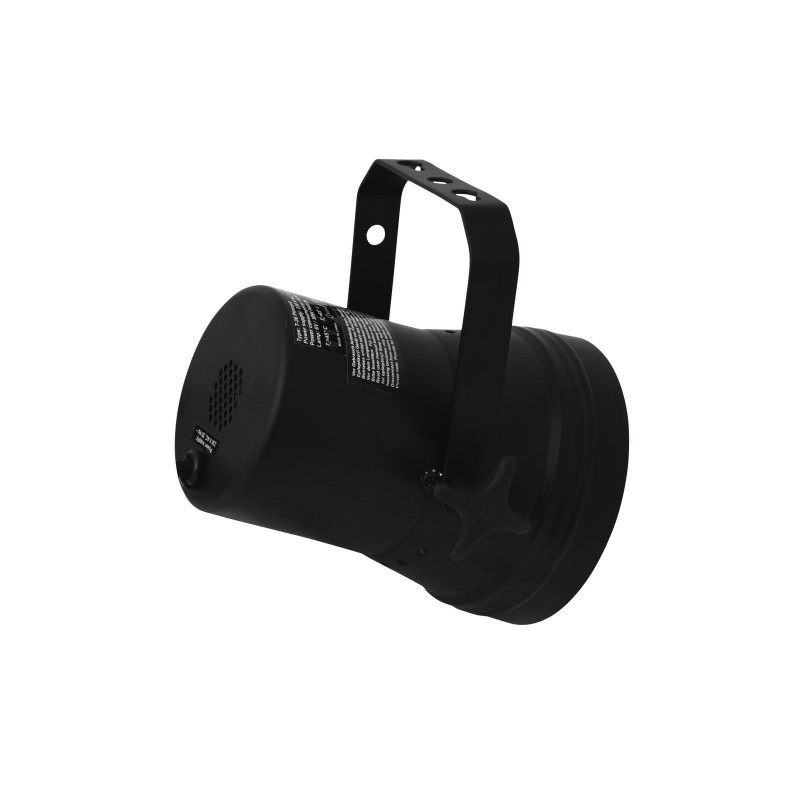

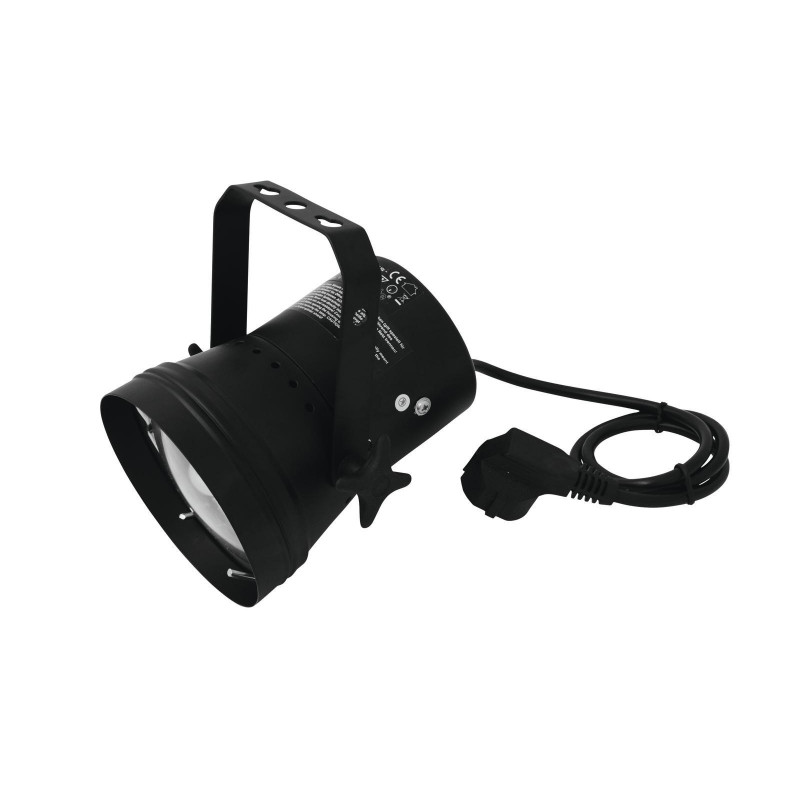

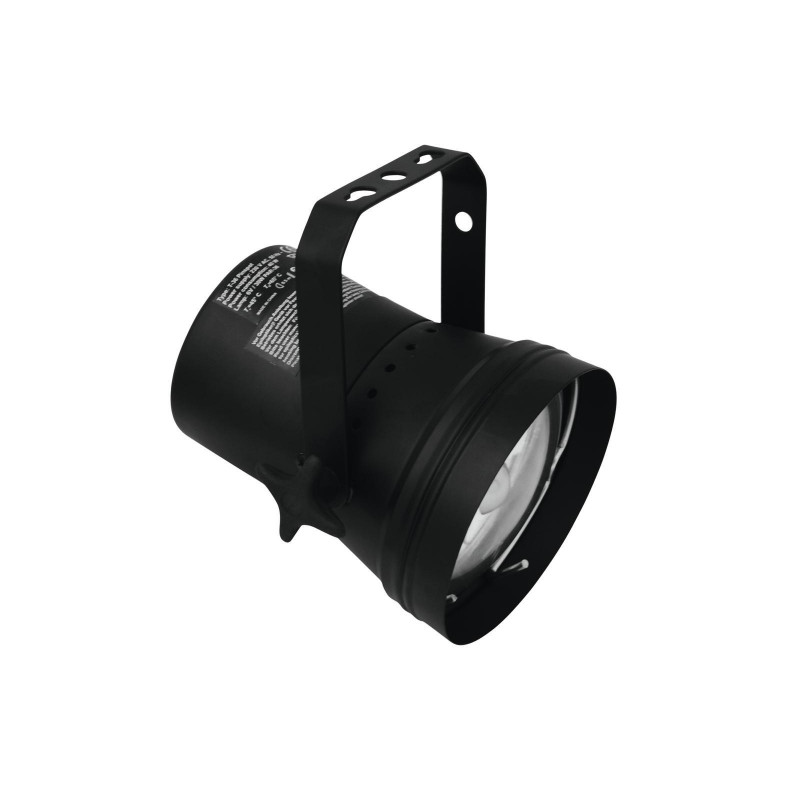

Suitable Pinspot for PAR-36 6V/30 W lampThe Pinspot T-36 is very well suited for illuminating mirror balls, for entrance or counter areas or simply as basic lighting.Its narrow beam angle makes the projection show a 30-centimetre light circle from a distance of four metres. The use of alternative light sources makes several beam angles possible. Color caps or color foils can easily be placed in front of the T-36.The body of the pinspot is available in black and optionally in silver and can be easily locked in place using the retaining clip.

Pinspot for 6 V/30 W PAR-36 lamp

• Narrow beam angle, at a distance of 4 m there is a projected circle of light with a diameter of 30 cm
• Color caps or color foils can be attached in front of the lens
• For illuminating e.g. mirror balls, entrance or counter areas or as basic illumination
• Low power consumption
• Diverse beam angles are possible when using alternative illuminants
• Locking possibility at the mounting bracket
• Housing available in silver or black
• Ready for connection via 70 cm long power cord with safety-plug
• Delivered in 4-color carton
• Control: plug and play

Power supply:	230 V AC, 50 Hz
Power consumption:	30 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Fixed Power supply cord with safety plug
Length of the cable:	0.9 m
Base:	Cable
Color temperature:	3000K
Dimmable:	Dimmable
Control:	plug and play
Color rendering index (CRI) more than:	95 Ra
Beam angle:	6°
Beam angle (1/2 peak):	6°
Housing color:	Black
Width:	11.2 cm
Height:	17 cm
Depth:	16 cm
Diameter:	11.2 cm
Weight:	1.23 kg
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
