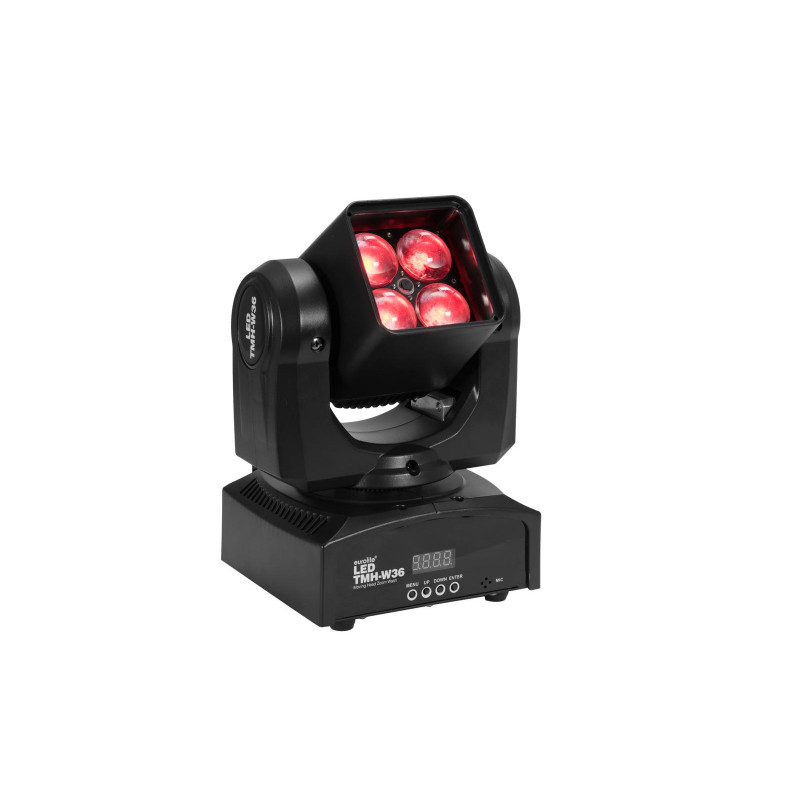

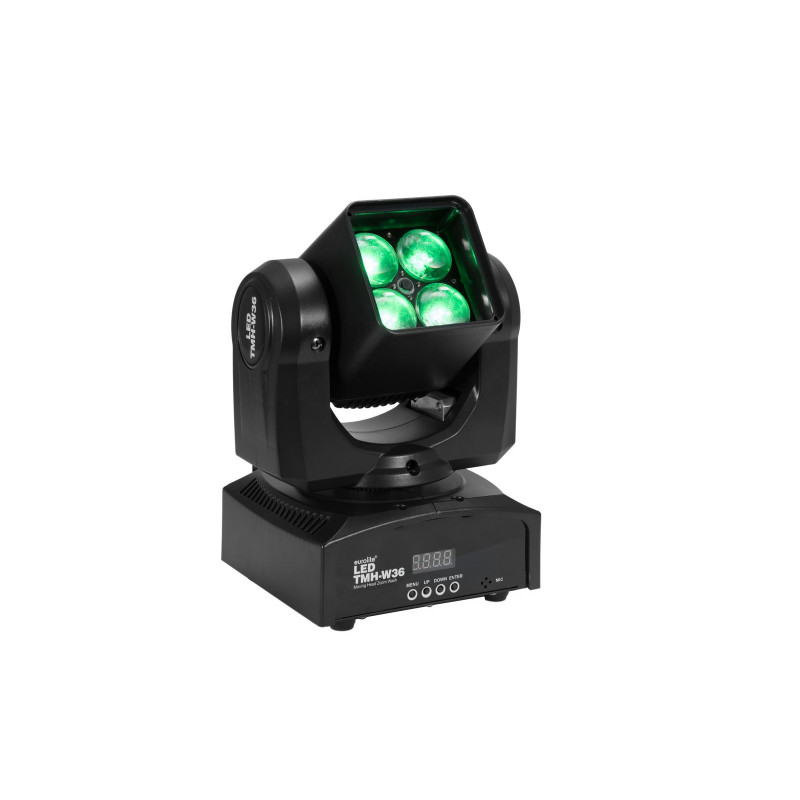

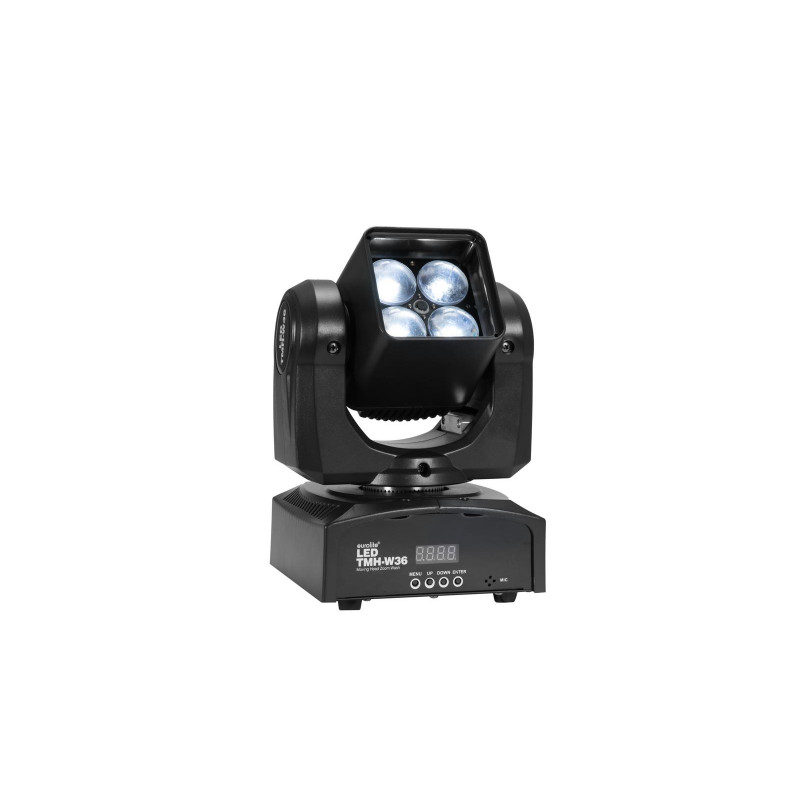

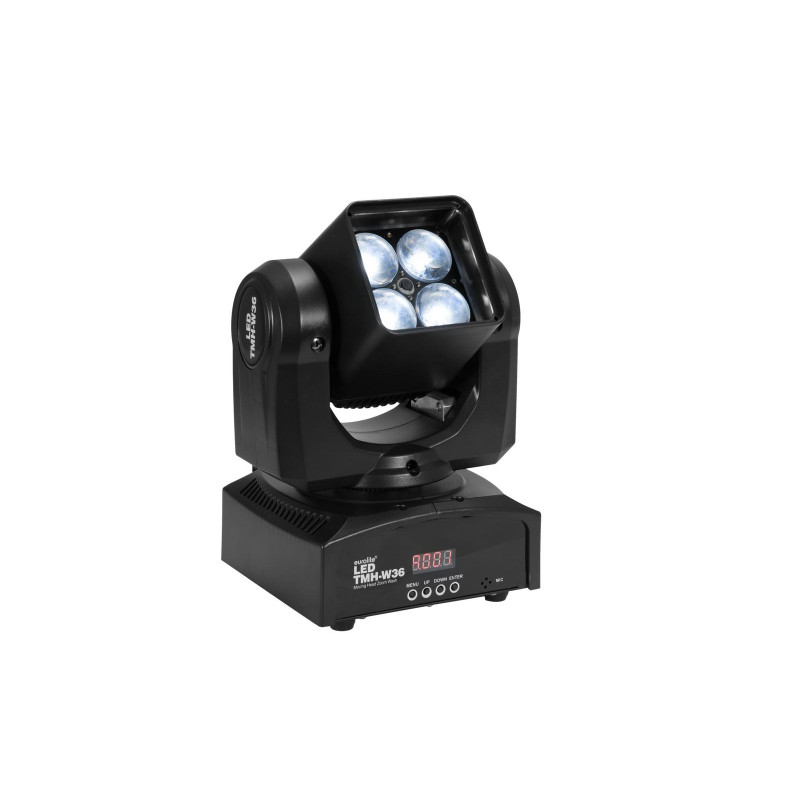

Eurolite - LED TMH-W36 Moving Head Zoom Wash
LED TMH-W36 Moving Head Zoom
LED TMH-W36 Moving Head Zoom Wash
More info
Washlight with 4 intense 9 W LEDs (4in1) and motorized zoom

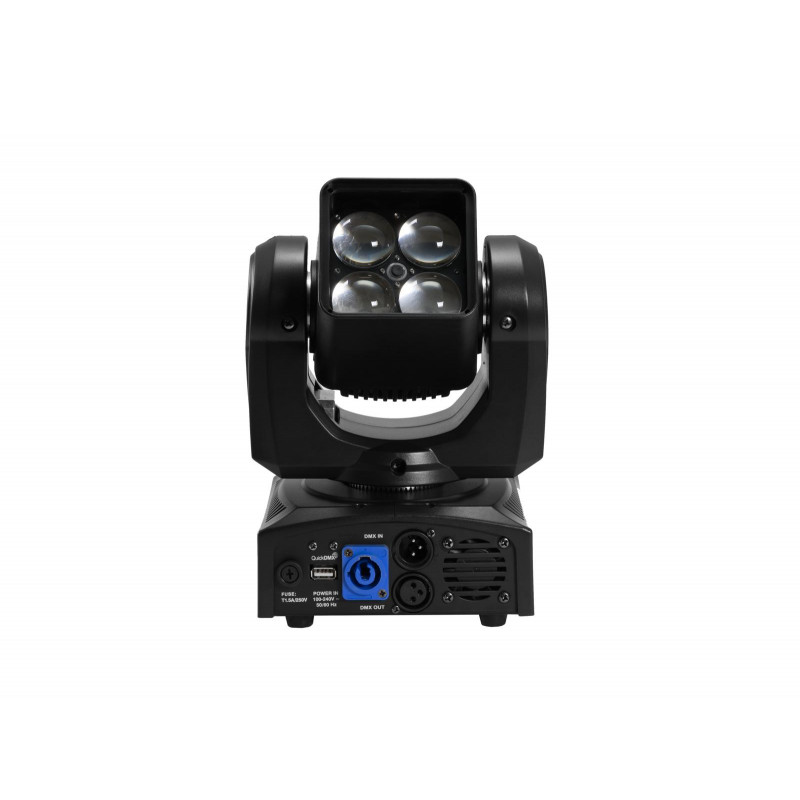

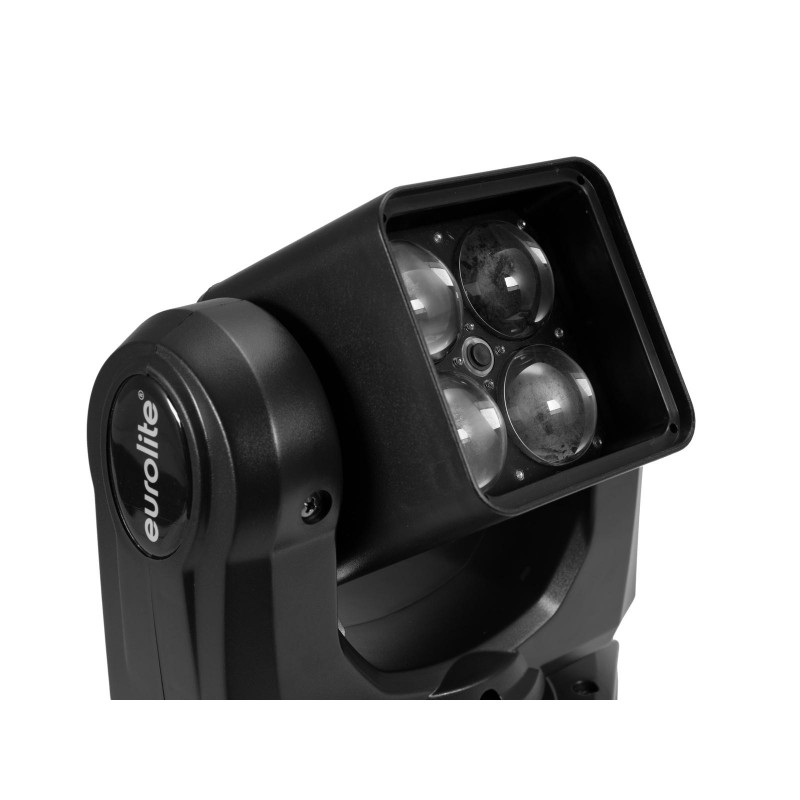

- 4 high-power 9 W RGBW LEDs (4in1)
- Positioning within 540° PAN and 220° TILT
- Stepless RGBW color mixture
- Built-in auto and music show programs
- Motion macros
- Strobe effect with variable speed
- Strobe effect by random generator
- Dimmer
- Motorized zoom with 6-25° beam angle
- Supports QuickDMX - the wireless DMX-system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- Sound-control via built-in microphone with adjustable microphone sensitivity
- Exact positioning via 16 bit PAN/TILT movement resolution
- Fan-cooled
- Auto, music, master/slave and DMX mode

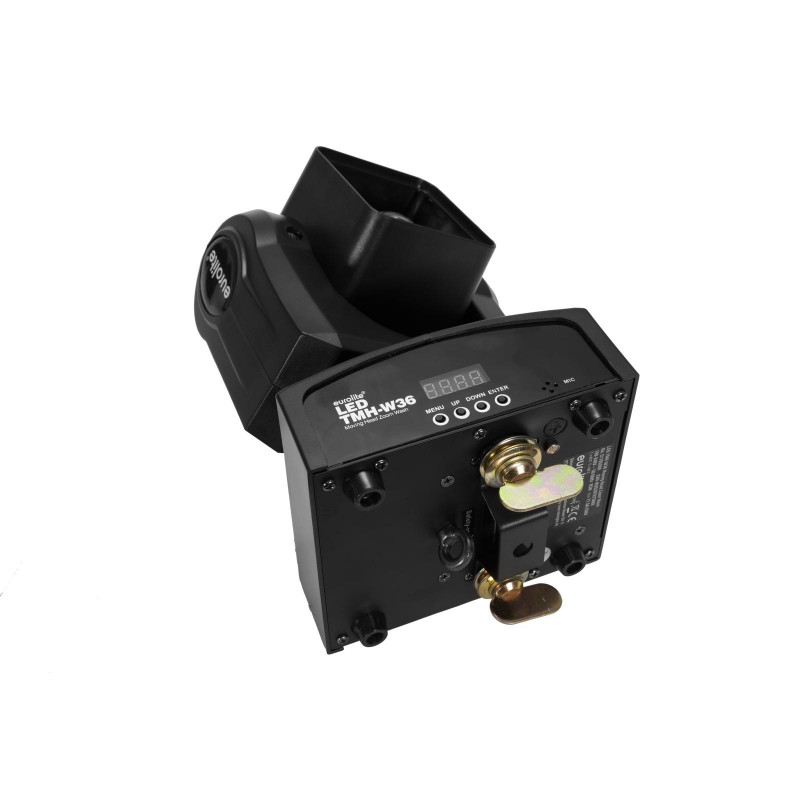

- Control board with 4-digit LED display for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
- Switch-mode power supply for operation between 100 and 240 volts
- Additional rubber feet when the spot shall be positioned on the floor
- LED: 4 x high-power 9 W 4in1 QCL RGBW (homogenous color mix)
- Control: Stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone
- Projection: flicker-free
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 65 W |
| IP classification: | IP20 |

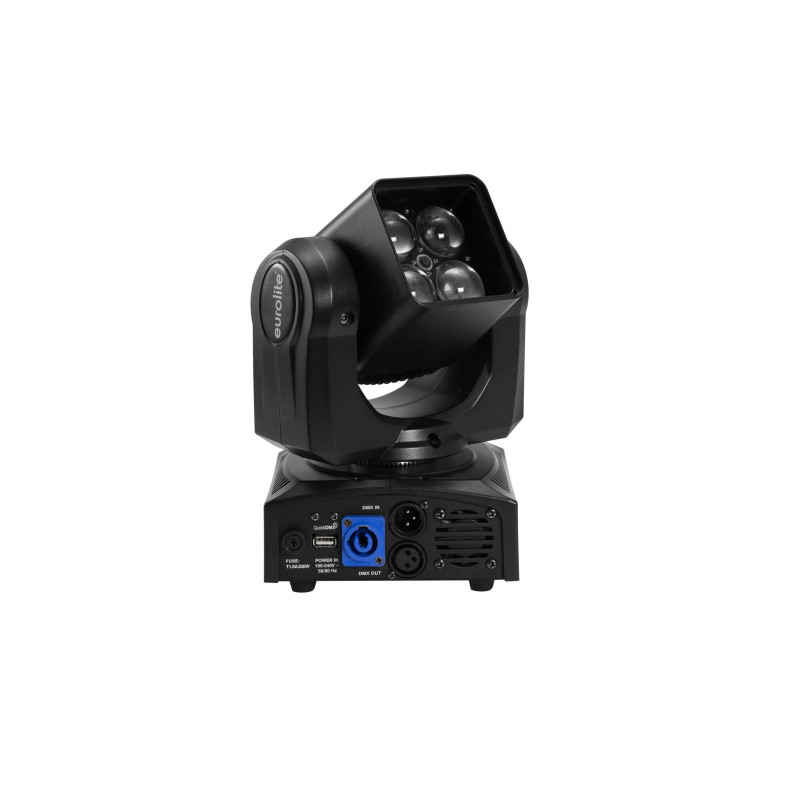

| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Fuse: | 5 x 20 mm, T 1.5 A Fuse replaceable |
| LED: | 4 x high-power 9 W 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: | Exact positioning (16 bit resolution) 220° |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° |
| Equipment: | Zoom motor-driven |
| DMX channels: | 15 |

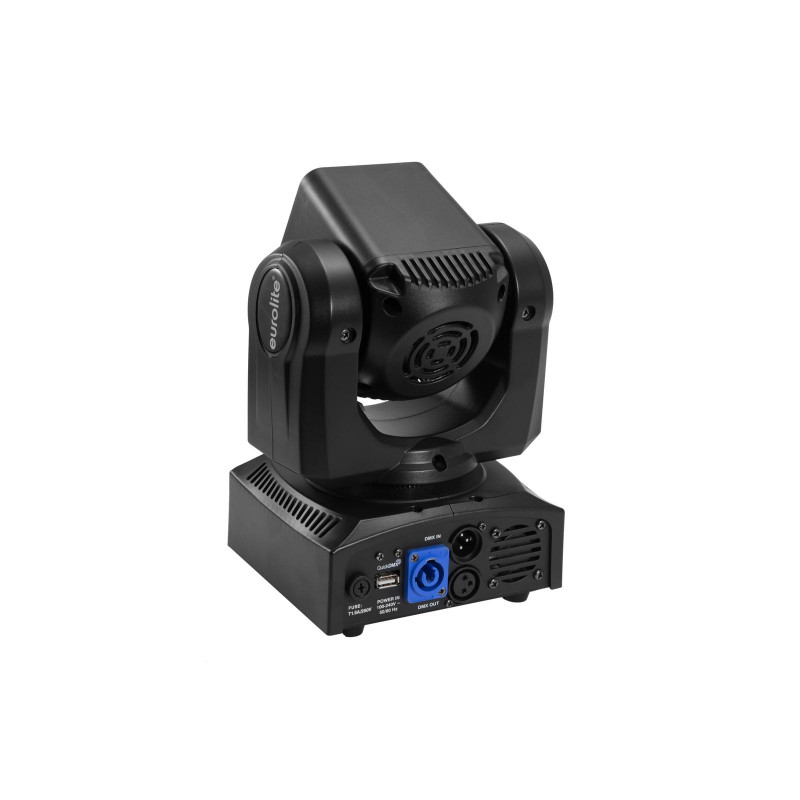

| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone |
| DMX | |
| QuickDMX via USB (optional) | |
| Master/slave function | |
| Sound to light via Microphone | |
| Beam angle: | 6 - 40° |
| Beam angle (1/2 peak): | 6 - 25° |
| Beam angle (1/10 peak): | 10 - 40° |
| Illuminance in Lux (lx): | Narrow R red 1m: 6781 lx, 3m: 747 lx, 6m: 192 lx |
| Narrow G green 1m: 12971 lx, 3m: 1381 lx, 6m: 348 lx | |
| Narrow B blue 1m: 2238 lx, 3m: 290 lx, 6m: 73 lx | |
| Narrow CW 1m: 16580 lx, 3m: 1864 lx, 6m: 456 lx | |
| Narrow all 1m: 36301 lx, 3m: 4064 lx, 6m: 1011 lx | |
| Wide R red 1m: 746 lx, 3m: 85 lx, 6m: 24 lx | |
| Wide G green 1m: 1343 lx, 3m: 164 lx, 6m: 44 lx | |
| Wide B blue 1m: 291 lx, 3m: 35 lx, 6m: 10 lx | |
| Wide CW 1m: 1852 lx, 3m: 214 lx, 6m: 58 lx | |
| Wide all 1m: 4023 lx, 3m: 471 lx, 6m: 127 lx | |
| Housing color: | Black |
| Width: | 15.5 cm |
| Height: | 25.5 cm |
| Depth: | 14.5 cm |
| Weight: | 2.95 kg |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
