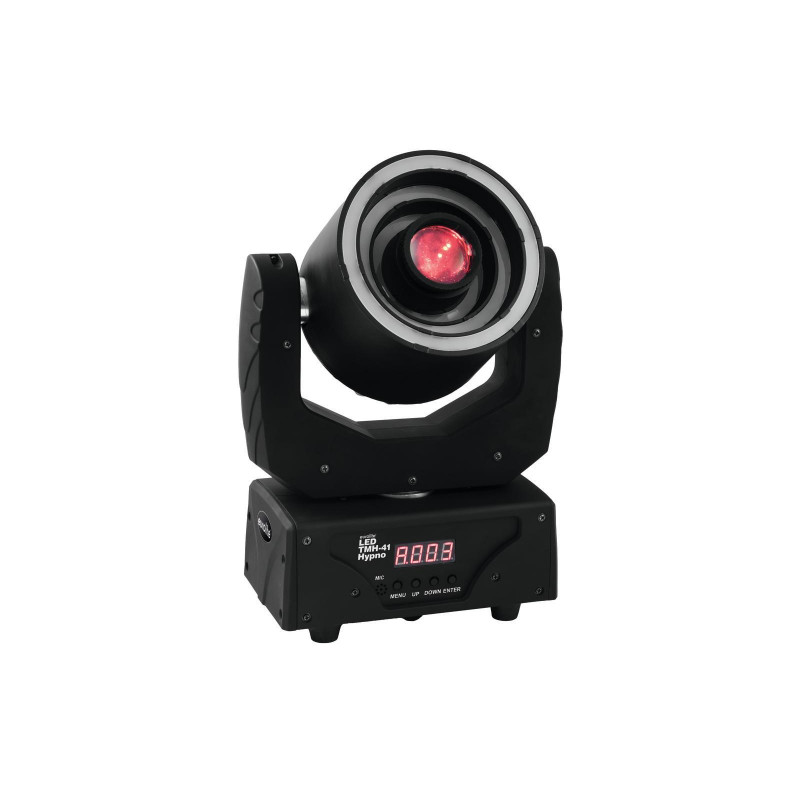

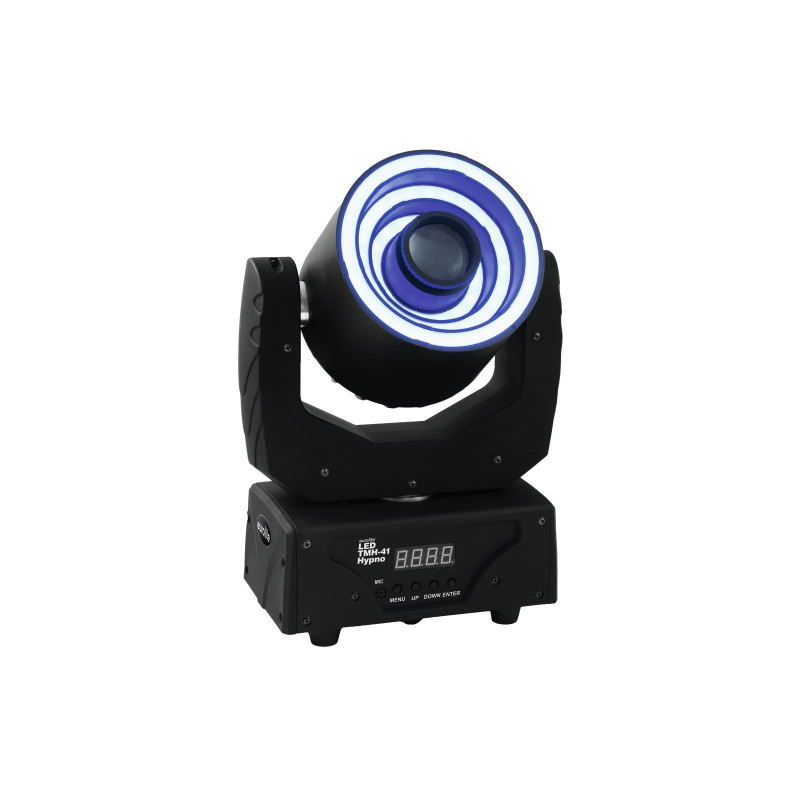

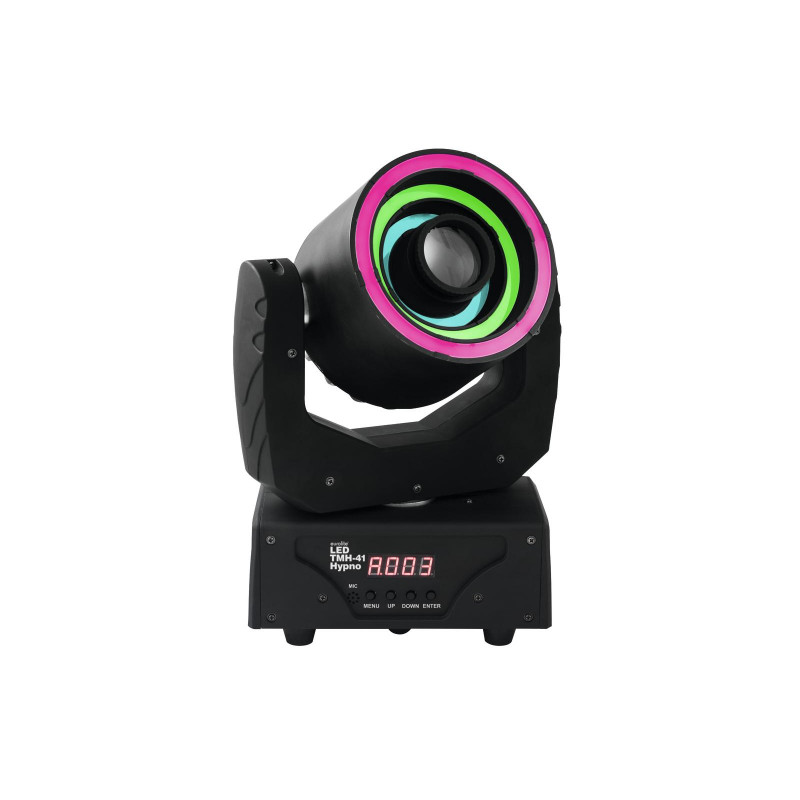

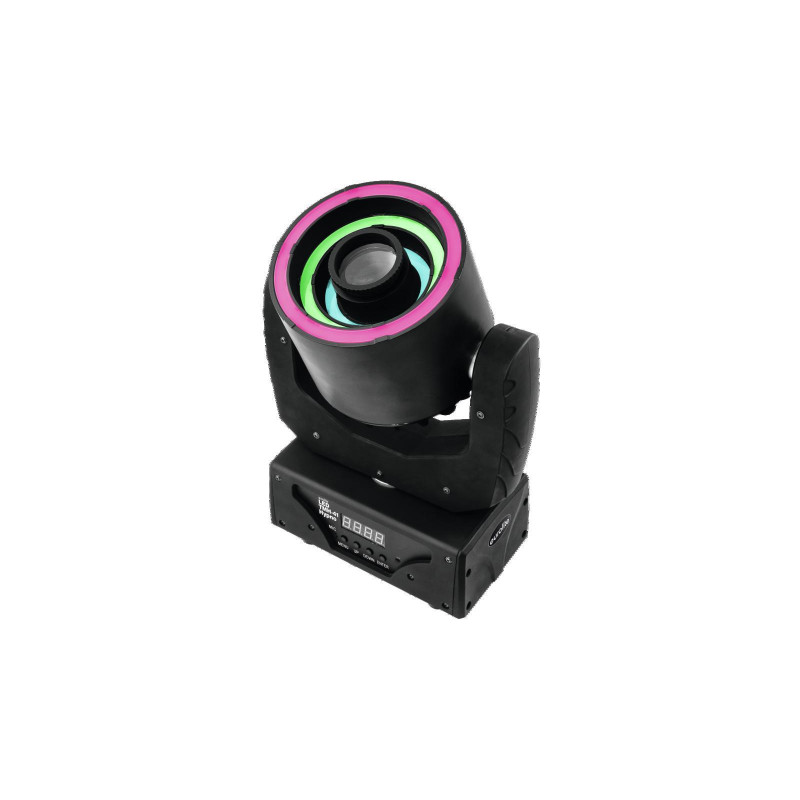

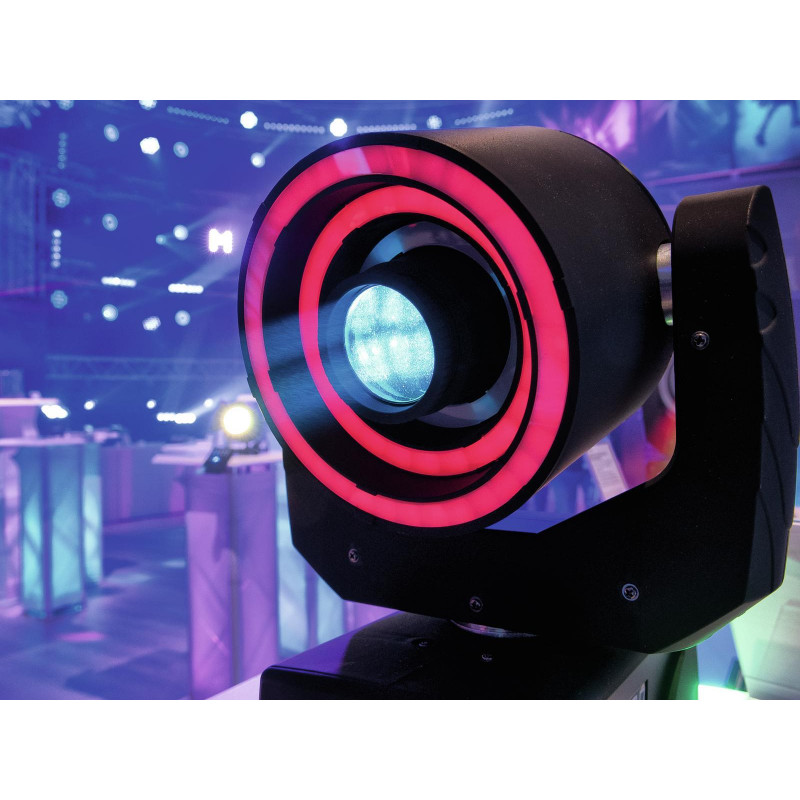

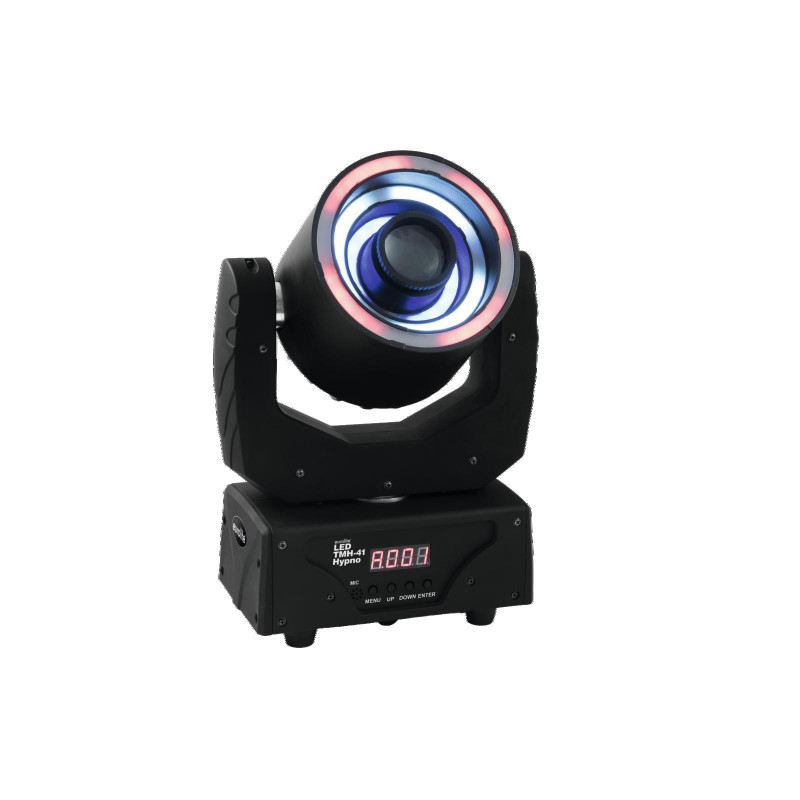

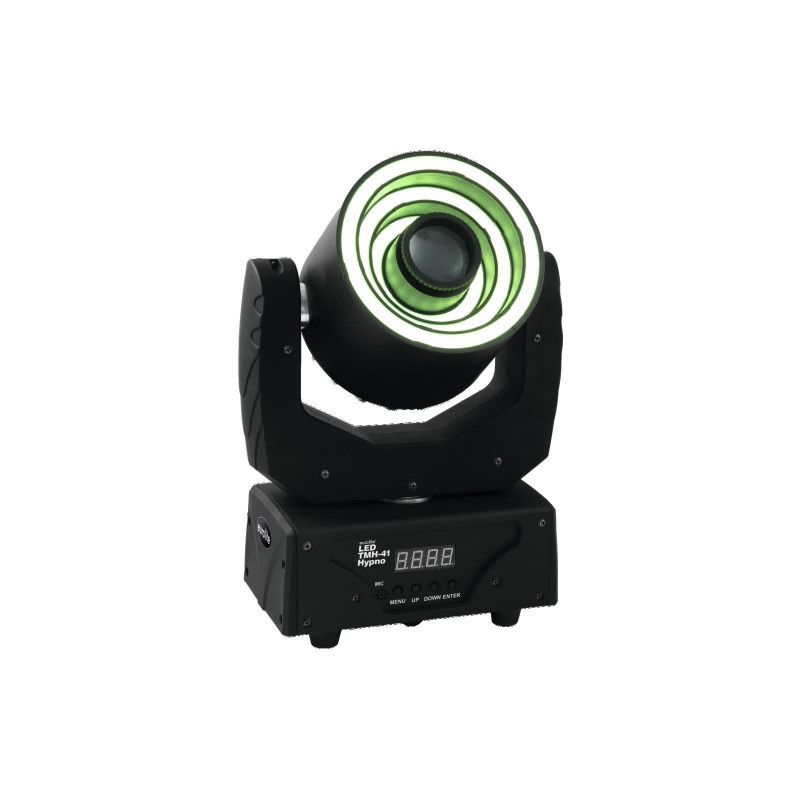

Eurolite - LED TMH-41 Hypno Moving Head Spot

LED TMH-41 Hypno Moving Head

LED TMH-41 Hypno Moving Head Spot

In Stock

Europe Warehouse: 70

More info

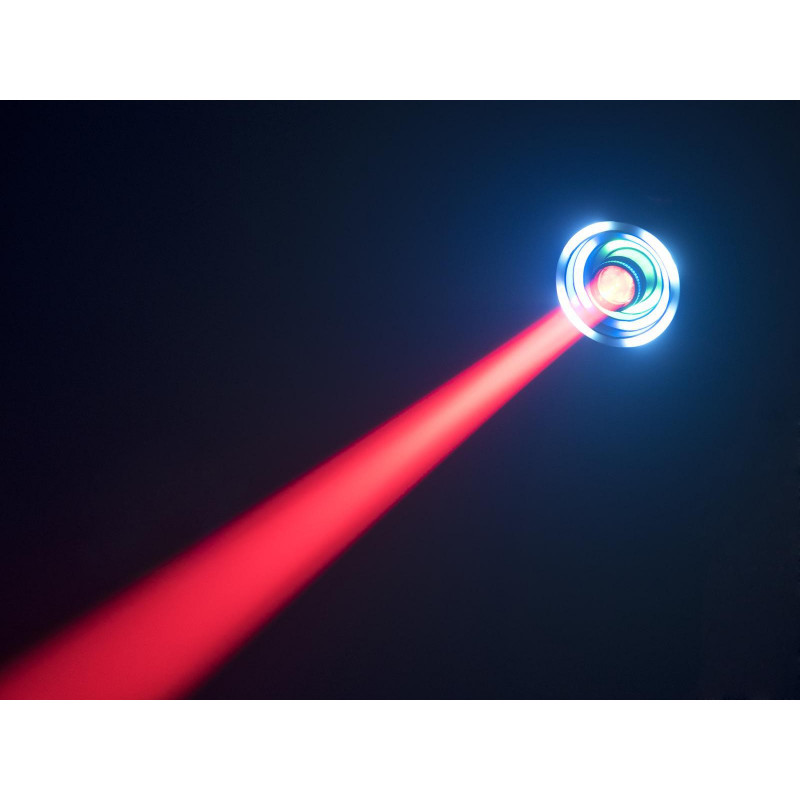

Narrow angled spotlight with 3 hypno rings, 30 W LED, gobo and color wheel

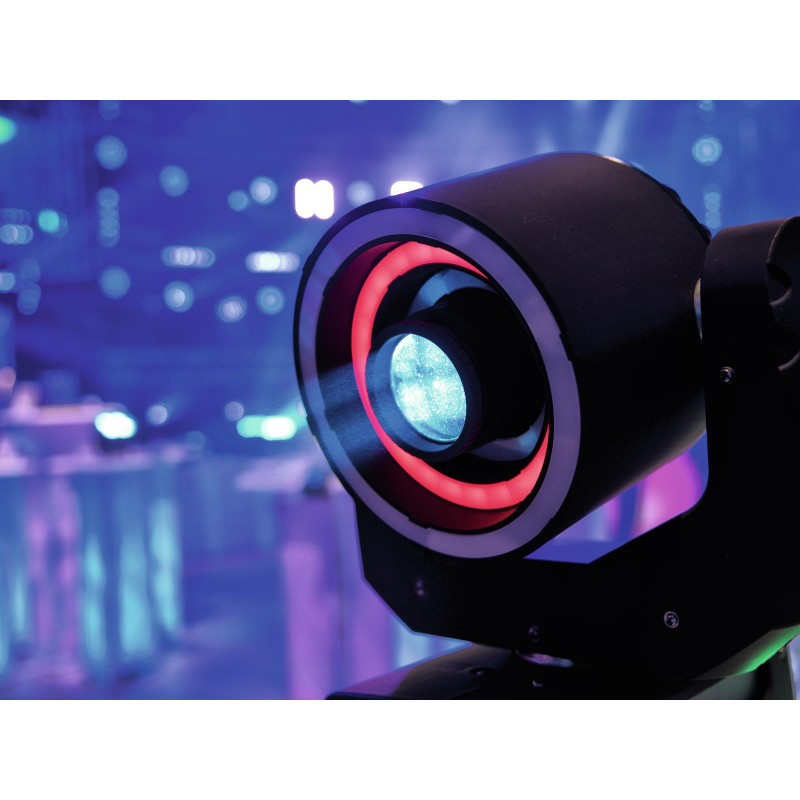

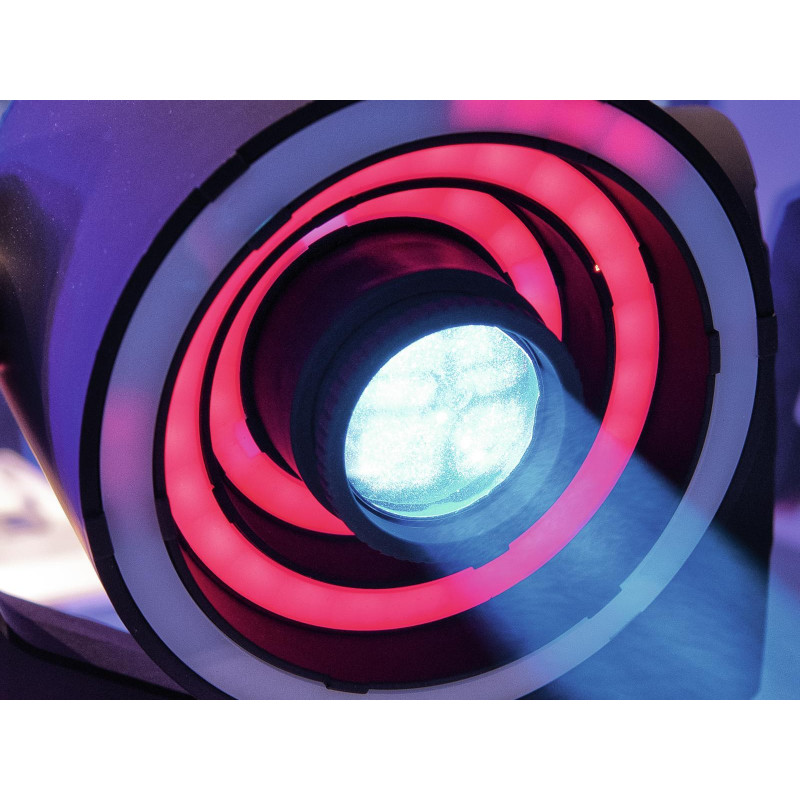

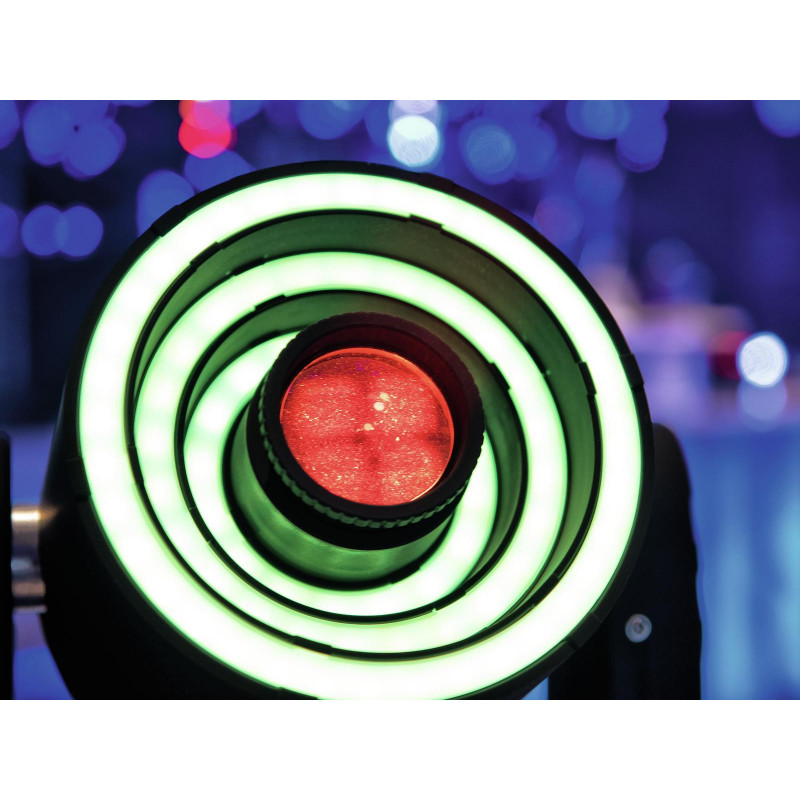

  • Spot effect with a powerful white 30 W COB LED and 3 hypno rings with altogether 76 RGB SMD LEDs
  • Compact lightweight
  • 12 or 23 DMX channels selectable
  • Color wheel with 9 different dichroic color filters plus white
  • Gobo wheel with 9 static gobos plus open
  • With gobo shake function
  • Masterdimmer
  • Strobe effect with 1-25 flashes per second and with adjustable speed
  • Random strobe effect
  • Internal programs
  • Manual focus
  • LED hypno rings with stepless RGB color mixture - each color and each ring can be controlled individually, color presets and color changes
  • Automatic position correction
  • Positioning within 630° PAN and 210° TILT
  • PAN-angle switchable between 630° and 540°
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Sound-controlled via built-in microphone, sensitivity adjustable
  • Addressing via control panel with 4-digit LED display
  • Switch-mode power supply for operation between 100 and 240 volts
  • Ready for connection with power cord and safety plug
  • LED: 76 x SMD 3in1 TCL RGB (homogenous color mix)
  • LED: 1 x COB (chip-on-board) 30 W Color wheel
  • Color wheel 9 dichroitic colors and open
  • Control: Stand-alone; Sound to light via Microphone; DMX
  • Projection: flicker-free
  • Effect: Gobo effect; Single Beam


Power supply:100-240 V AC, 50/60 Hz
Power consumption:70 W
IP classification:IP20
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
LED:76 x SMD 3in1 TCL RGB (homogenous color mix)
1 x COB (chip-on-board) 30 W Color wheel
Max. TILT movement:Exact positioning (16 bit resolution) 210° Auto position correction (feedback)
Max. PAN movement:Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback)
Flash rate:0 - 25 Hz
Equipment:Gobo wheel with static gobos
Color generation:Color wheel 9 dichroitic colors and open
Gobos:Gobo wheel with static gobos, 9 gobos and open
DMX channels:12; 23

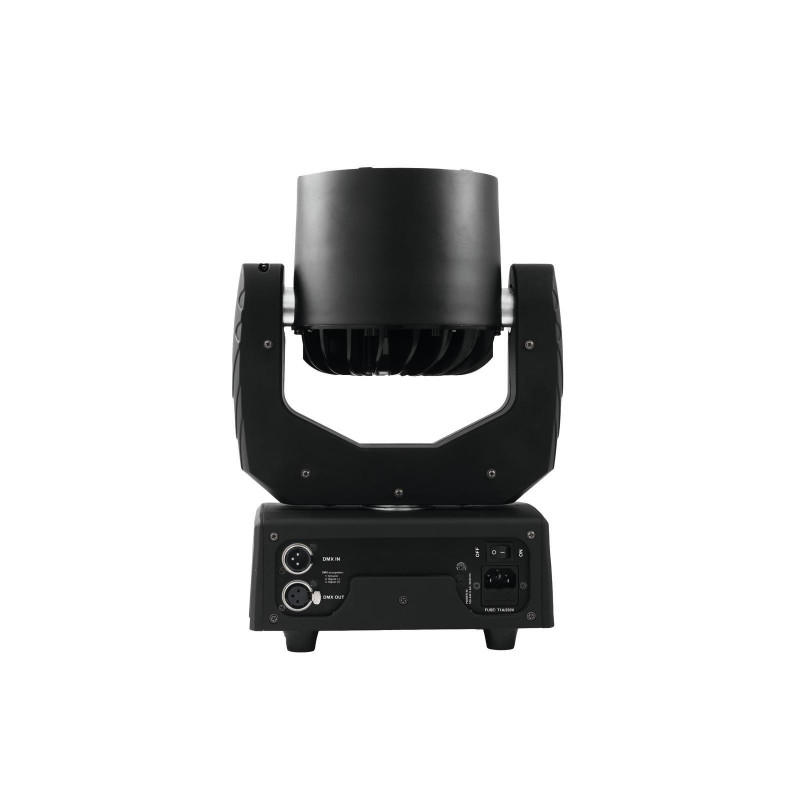

DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:Stand-alone
Sound to light via Microphone
DMX
Beam angle:4.7°
Beam angle (1/2 peak):4.7°
Housing color:Black
Width:24.5 cm
Height:35 cm
Depth:16.5 cm
Weight:5.35 kg
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
