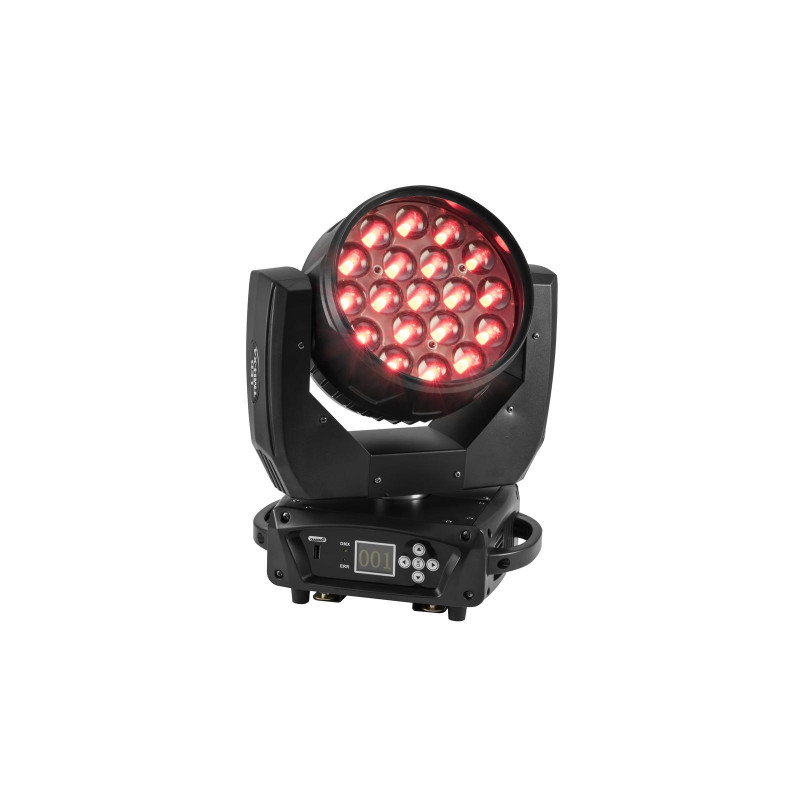

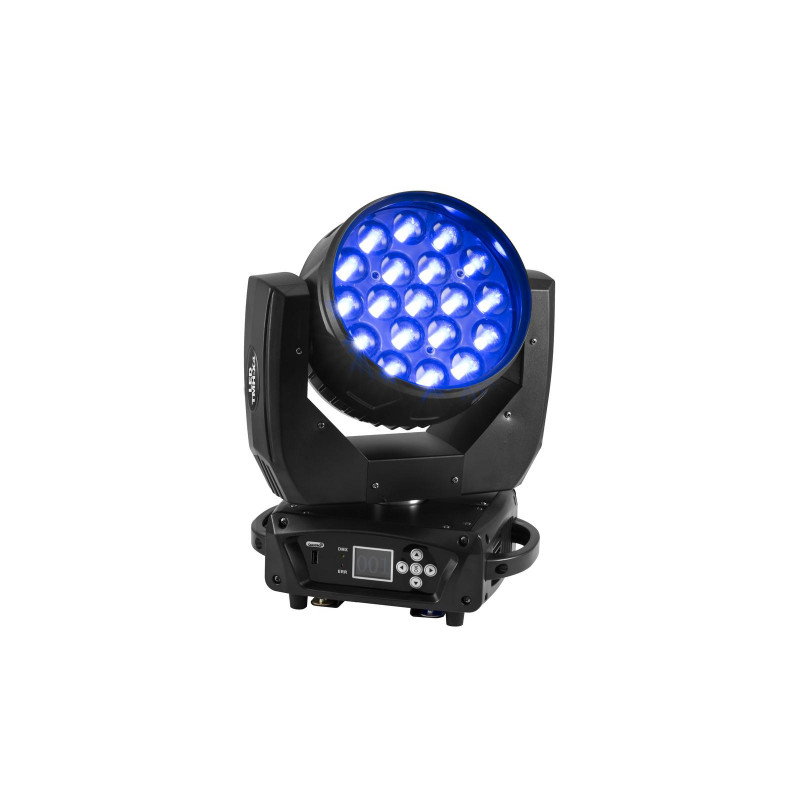

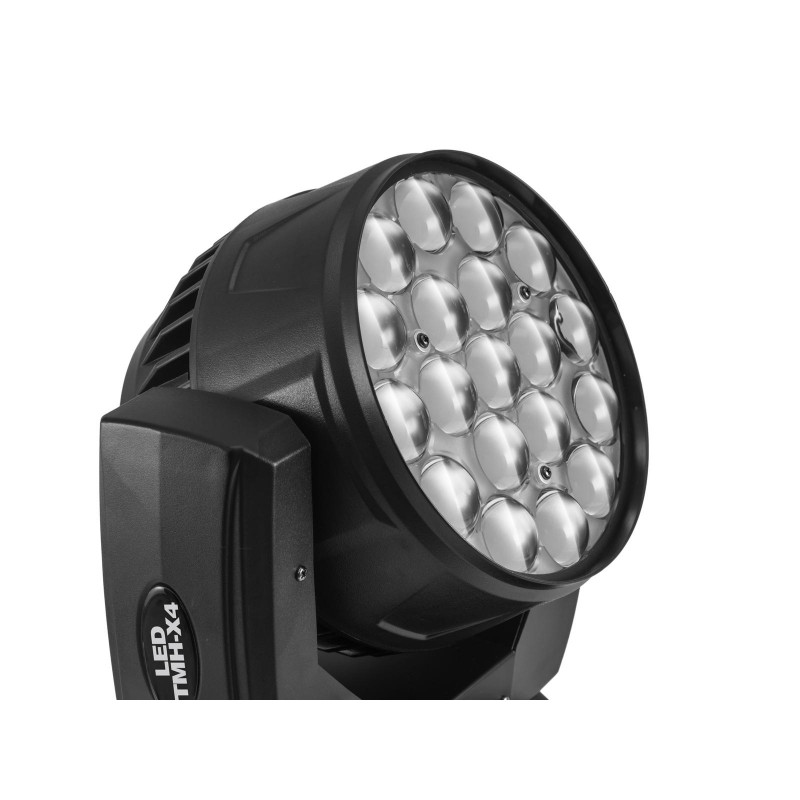

Eurolite - LED TMH-X4 Moving Head Wash Zoom
LED TMH-X4 Moving Head Wash Zoom
LED TMH-X4 Moving Head Wash Zoom
More info
Washlight with 19 intense 15 W LEDs (4in1) and motorized zoom
- 19 high-power 15 W RGBW LEDs (4in1)
- 16 or 24 DMX channels selectable
- Three different LED segments, which can be controlled individually via DMX
- Positioning within 540° PAN and 270° TILT

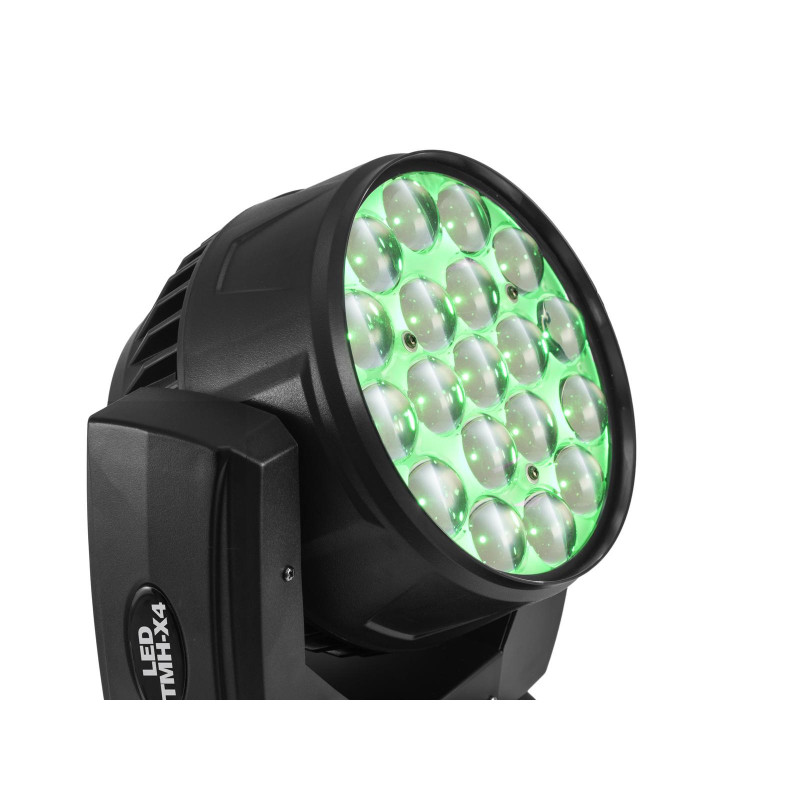

- Stepless RGBW color mixture, preset colors, color change and color fade
- Built-in auto and music show programs
- Strobe effect with variable speed
- Strobe effect by random generator
- Dimmer

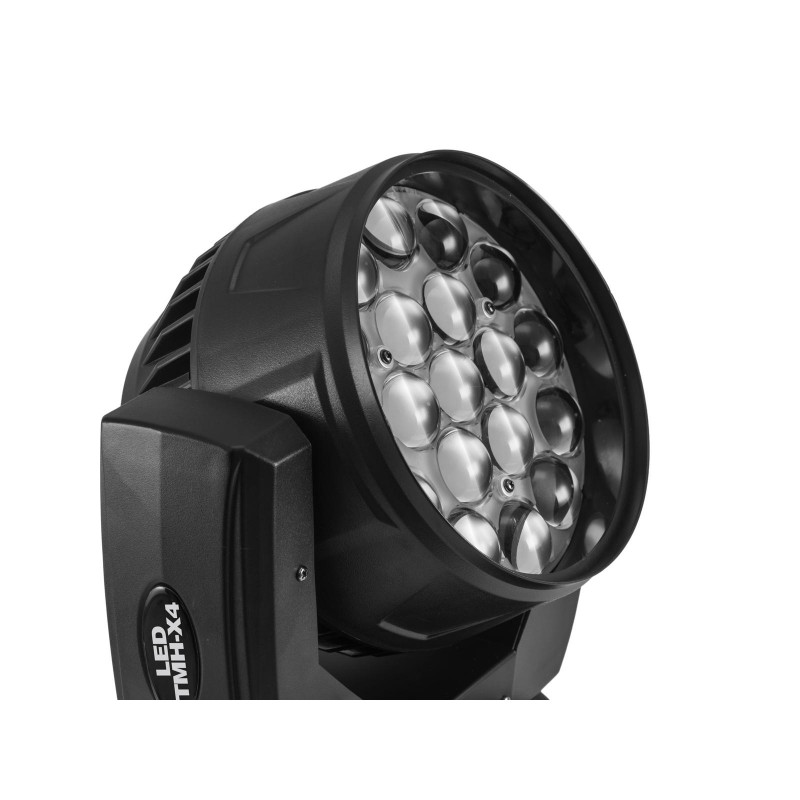

- Motorized zoom with 1-25° beam angle
- Supports QuickDMX - the wireless DMX-system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- Sound-control via built-in microphone with adjustable microphone sensitivity
- Automatic position correction
- Exact positioning via 16 bit PAN/TILT movement resolution
- Fan-cooled
- Auto, music, master/slave and DMX mode
- Control board with color LCD for adjusting the DMX-starting address, PAN/TILT Reverse, Reset
- P-Con terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts

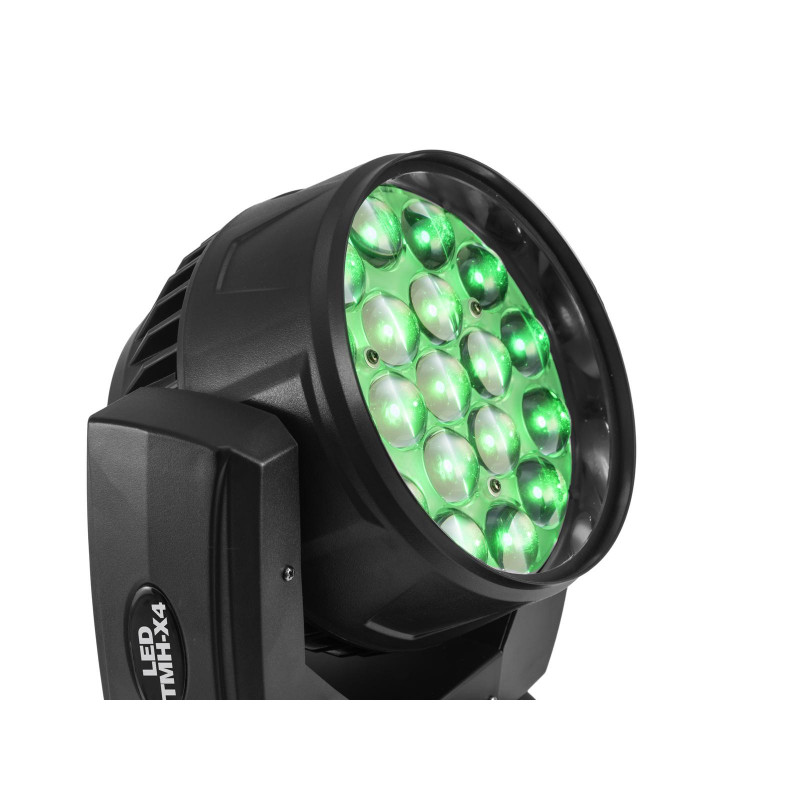

- LED: 19 x COB (chip-on-board) 15 W 4in1 QCL RGBW (homogenous color mix)
- Control: Stand-alone; QuickDMX via USB (optional); DMX
- Projection: flicker-free
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 225 W |
| IP classification: | IP20 |

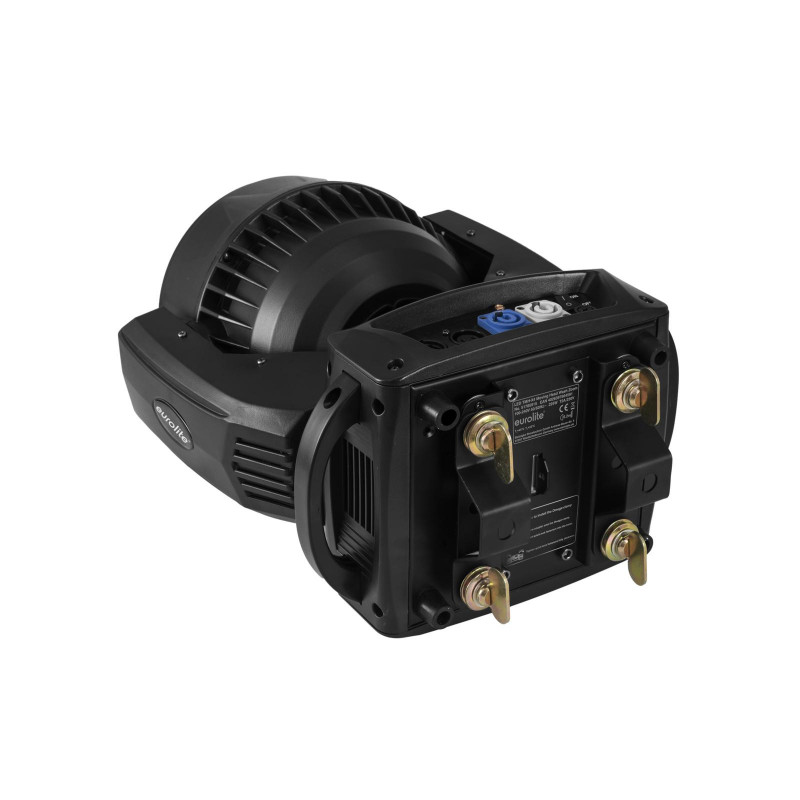

| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 2 A Fuse replaceable |
| LED: | 19 x COB (chip-on-board) 15 W 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: | Exact positioning (16 bit resolution) 270° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 630° Auto position correction (feedback) |
| Equipment: | Zoom motor-driven |
| DMX channels: | 16; 24 |

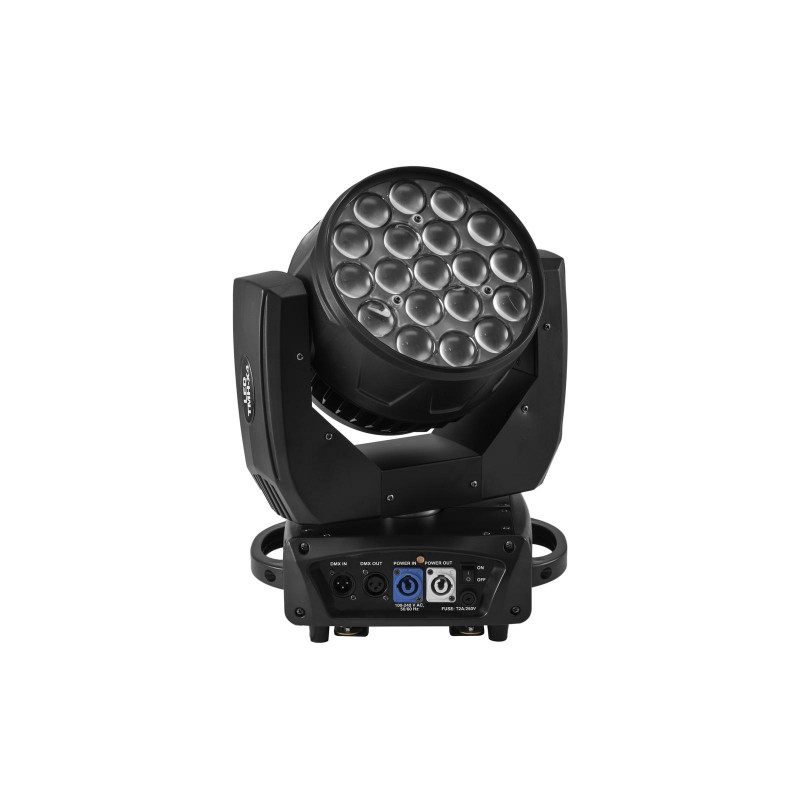

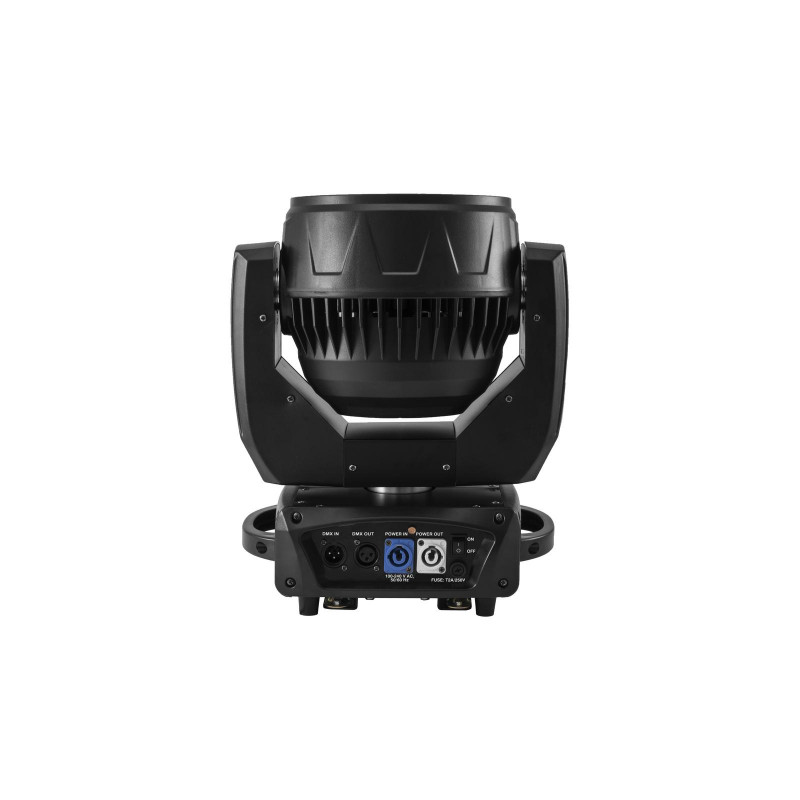

| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | temperature-controlled fan Head |
| Cooling fan Base | |
| Control: | Stand-alone |
| QuickDMX via USB (optional) | |
| DMX | |
| Beam angle: | 1 - 40° |
| Beam angle (1/2 peak): | 1 - 25° |
| Beam angle (1/10 peak): | 8 - 40° |
| Illuminance in Lux (lx): | Narrow R red 3m: 2779 lx, 6m: 763 lx |
| Narrow G green 3m: 7893 lx, 6m: 1841 lx | |
| Narrow B blue 3m: 1468 lx, 6m: 390 lx | |
| Narrow CW 3m: 9558 lx, 6m: 2468 lx | |
| Narrow all 3m: 19553 lx, 6m: 5001 lx | |
| Wide R red 3m: 272 lx, 6m: 73 lx | |
| Wide G green 3m: 583 lx, 6m: 160 lx | |
| Wide B blue 3m: 117 lx, 6m: 34 lx | |
| Wide CW 3m: 740 lx, 6m: 211 lx | |
| Wide all 3m: 1568 lx, 6m: 439 lx | |
| Housing color: | Black |
| Width: | 30.5 cm |
| Height: | 40.0 cm |
| Depth: | 20.0 cm |
| Weight: | 8.20 kg |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
