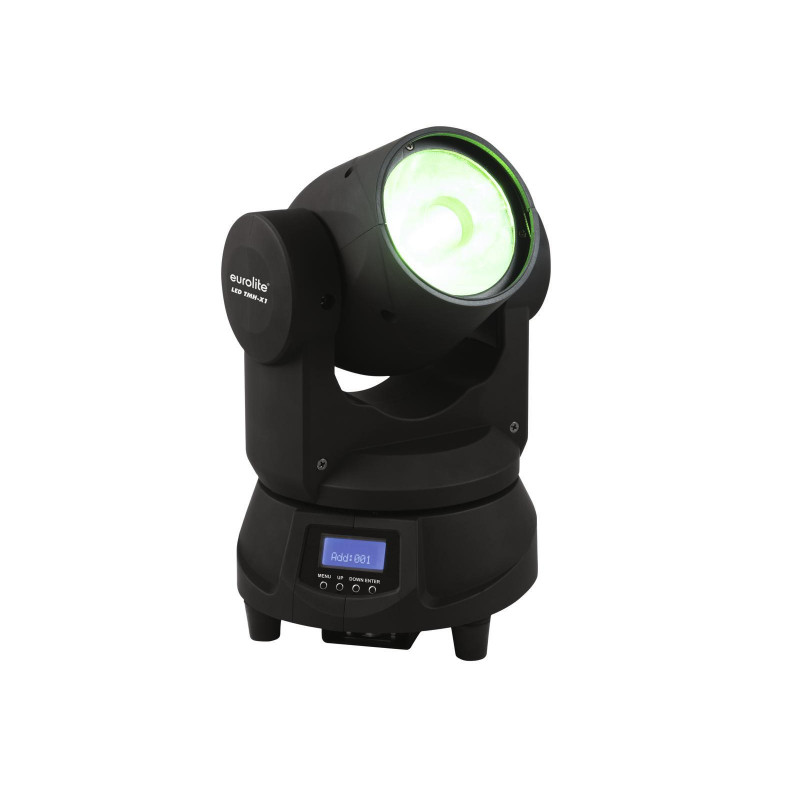

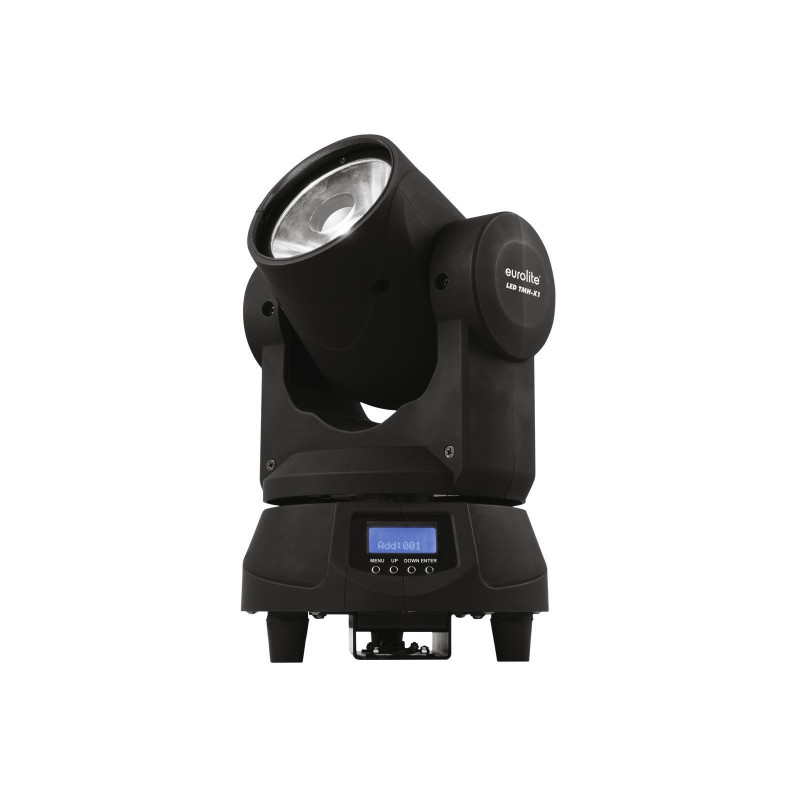

Eurolite - LED TMH-X1 Moving Head Beam

LED TMH-X1 Moving Head Beam

LED TMH-X1 Moving Head Beam

In Stock

Europe Warehouse: 70

More info

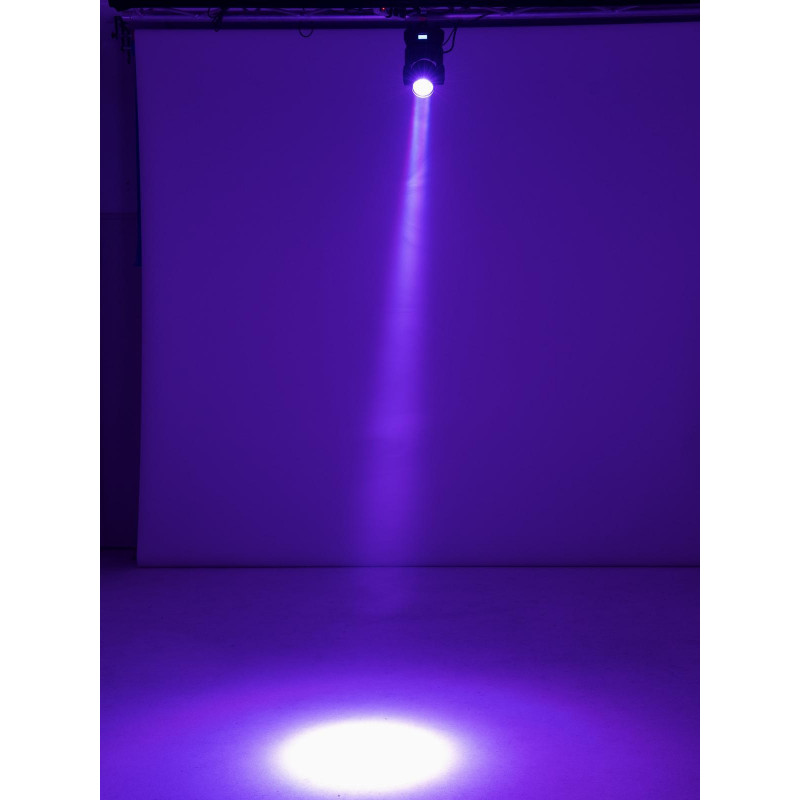

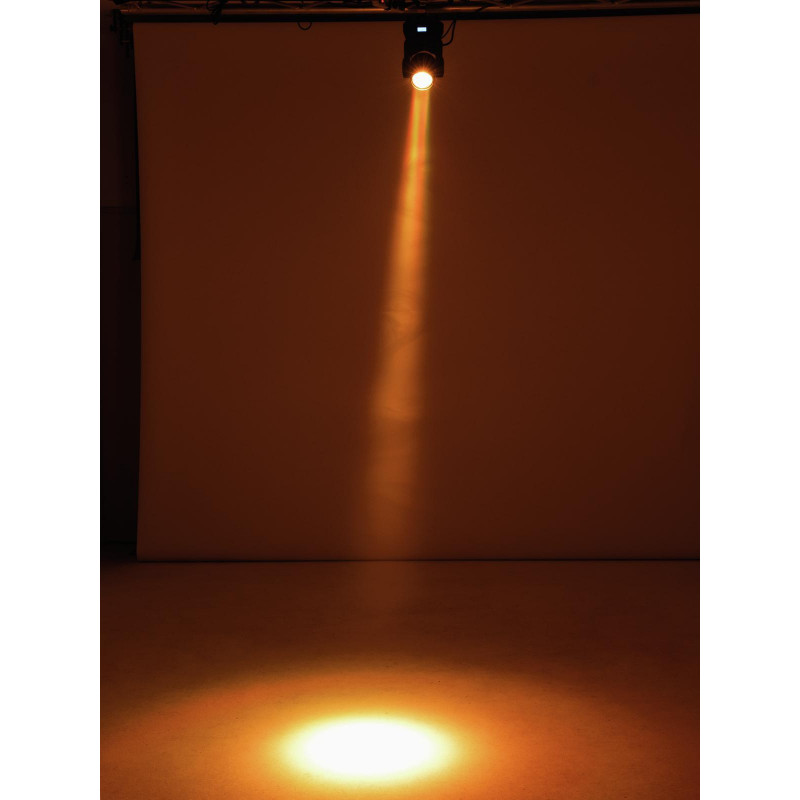

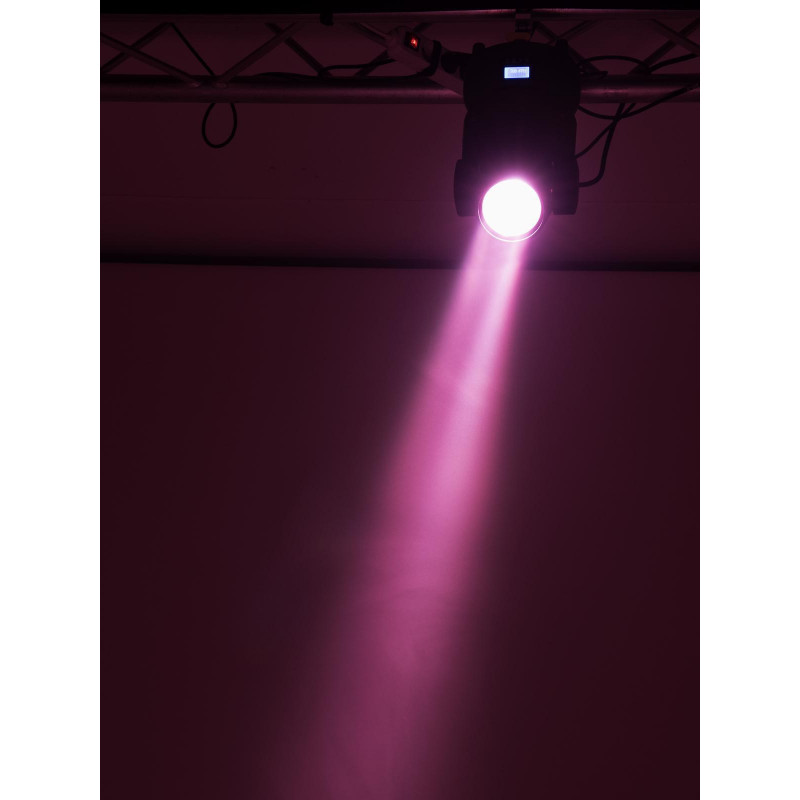

60 W beam, compact, narrow angle, beautiful RGBW colors

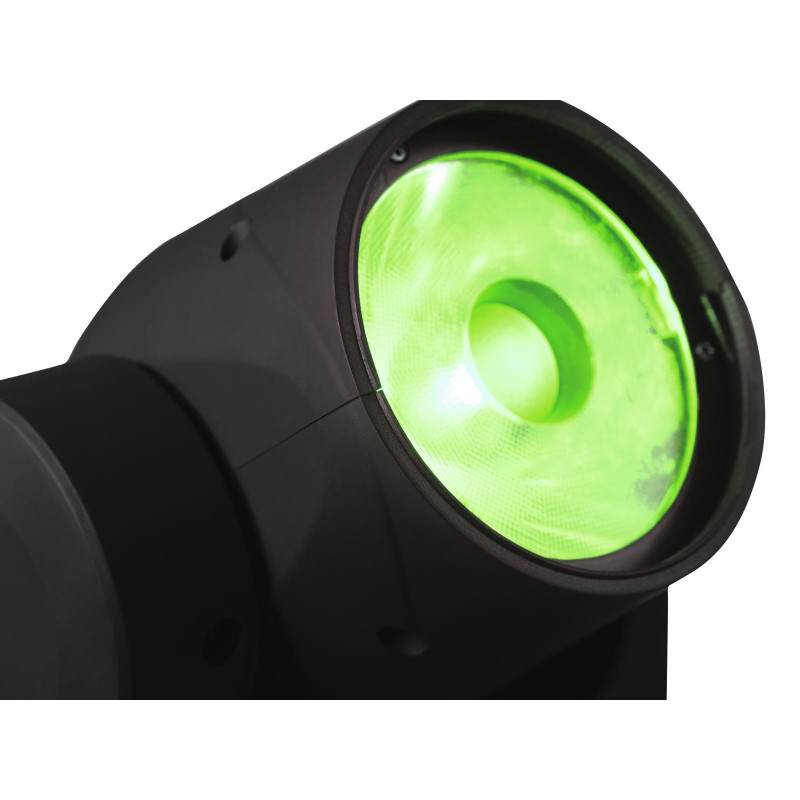

  • Equipped with a 60 W COB LED with RGBW colors from Osram
  • Compact lightweight
  • Narrow beam angle
  • Positioning within 540° PAN and 220° TILT
  • Stepless RGBW color mixture
  • Masterdimmer
  • Internal programs
  • Sound-controlled via built-in microphone
  • Color presets
  • Strobe effect with adjustable speed
  • Automatic position correction
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • DMX-controlled operation or stand-alone operation with Master/Slave function

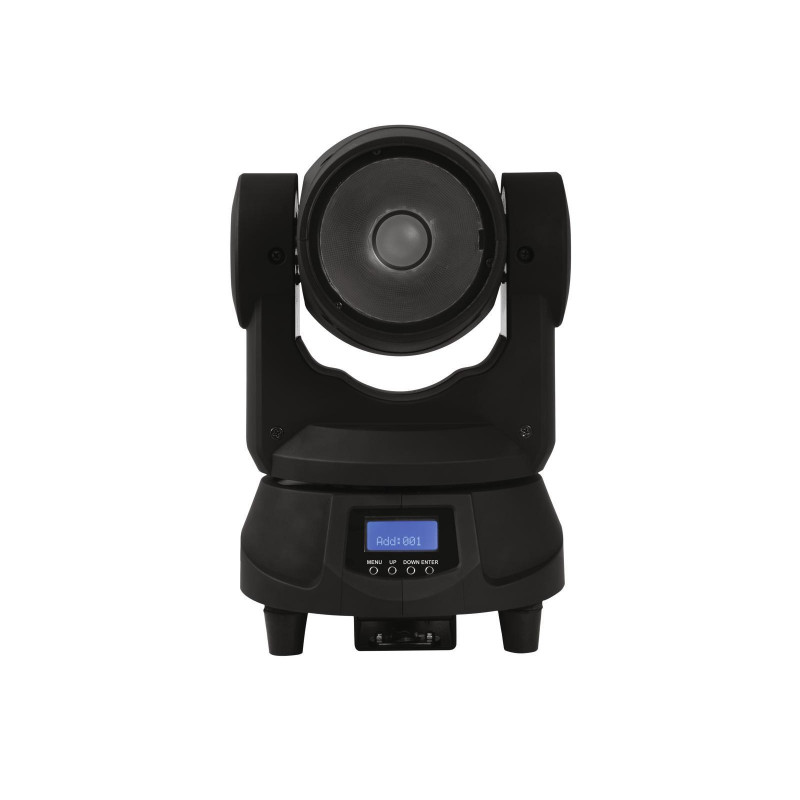

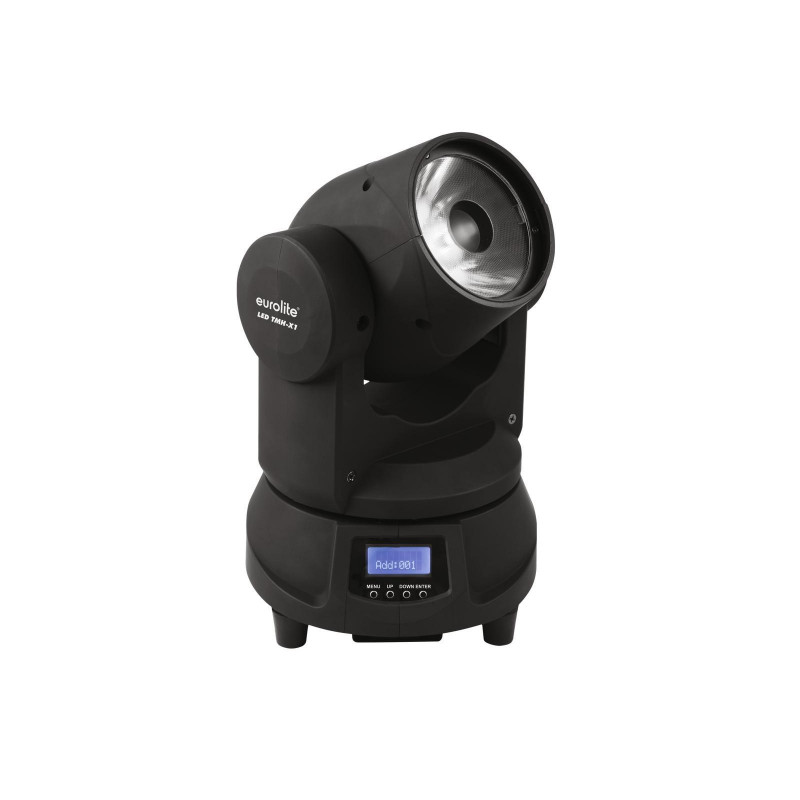

  • Control board with LC display for adjusting the DMX-starting address, PAN/TILT Reverse, Reset
  • P-Con terminals for power linking up to 8 units
  • Switch-mode power supply for operation between 100 and 240 volts
  • LED: 1 x COB (chip-on-board) 60 W 4in1 QCL RGBW
  • Control: DMX; Sound to light via Microphone; Stand-alone
  • Projection: flicker-free

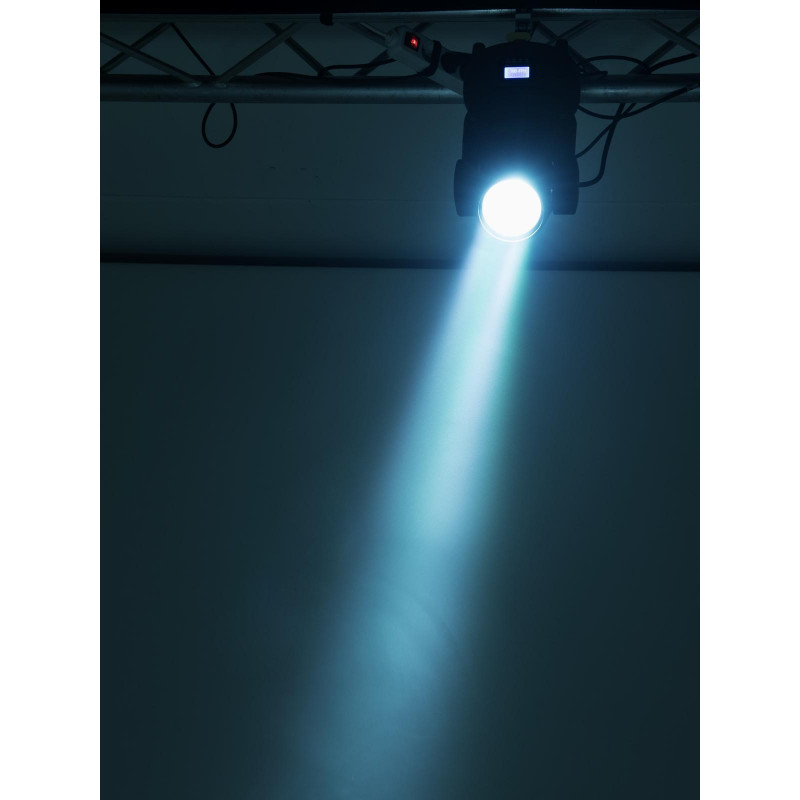

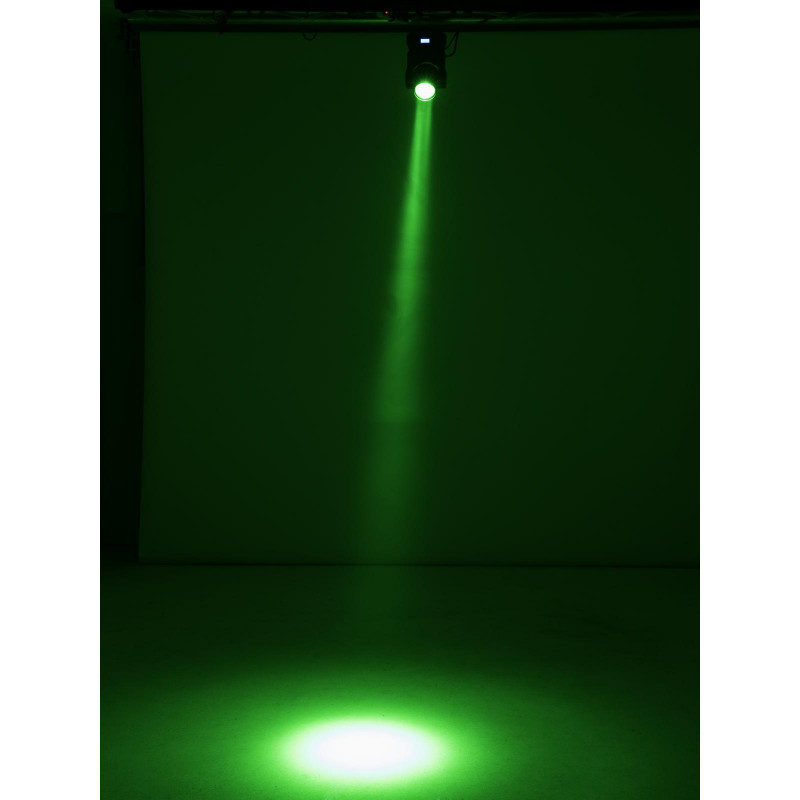

  • Effect: Single Beam


Power supply:100-240 V AC, 50/60 Hz
Power consumption:90 W
IP classification:IP20

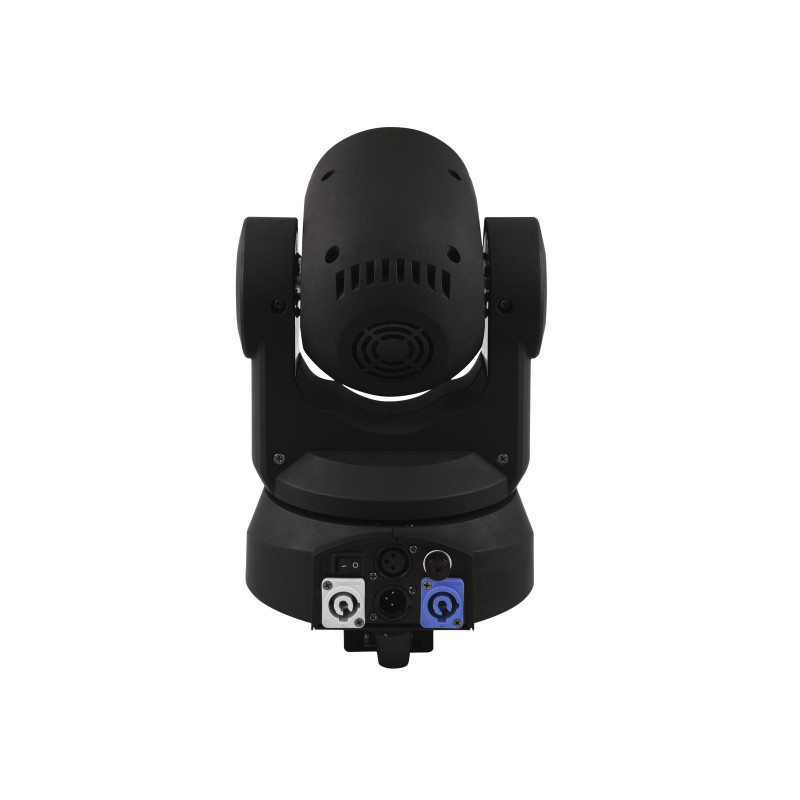

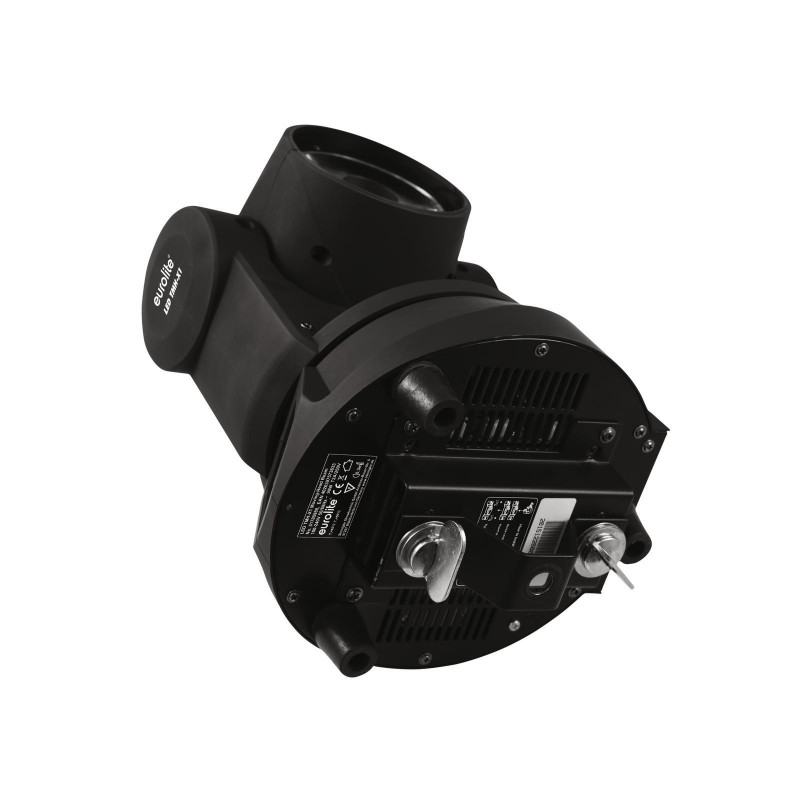

Power connection:Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Power output:1 x P-Con (gray), mounting version
LED:1 x COB (chip-on-board) 60 W 4in1 QCL RGBW
Max. TILT movement:Exact positioning (16 bit resolution) 220° Auto position correction (feedback)
Max. PAN movement:Exact positioning (16 bit resolution) 540° Auto position correction (feedback)
Flash rate:0 - 10 Hz
DMX channels:14
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:DMX
Sound to light via Microphone
Stand-alone
Beam angle:
Beam angle (1/2 peak):
Beam angle (1/10 peak):
Illuminance in Lux (lx):R red 3m: 3251 lx, 6m: 712 lx
G green 3m: 4684 lx, 6m: 1125 lx
B blue 3m: 819 lx, 6m: 220 lx
CW 3m: 7909 lx, 6m: 1899 lx
all 3m: 15489 lx, 6m: 3655 lx
Housing color:Black
Use of brands:Osram bulb included
Width:20.7 cm
Height:31.3 cm
Depth:19.6 cm
Weight:4.47 kg
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
