Eurolite - Zoom4Bar QCL Bar

Zoom4Bar QCL Bar

Zoom4Bar QCL Bar

In Stock

Europe Warehouse: 70

More info

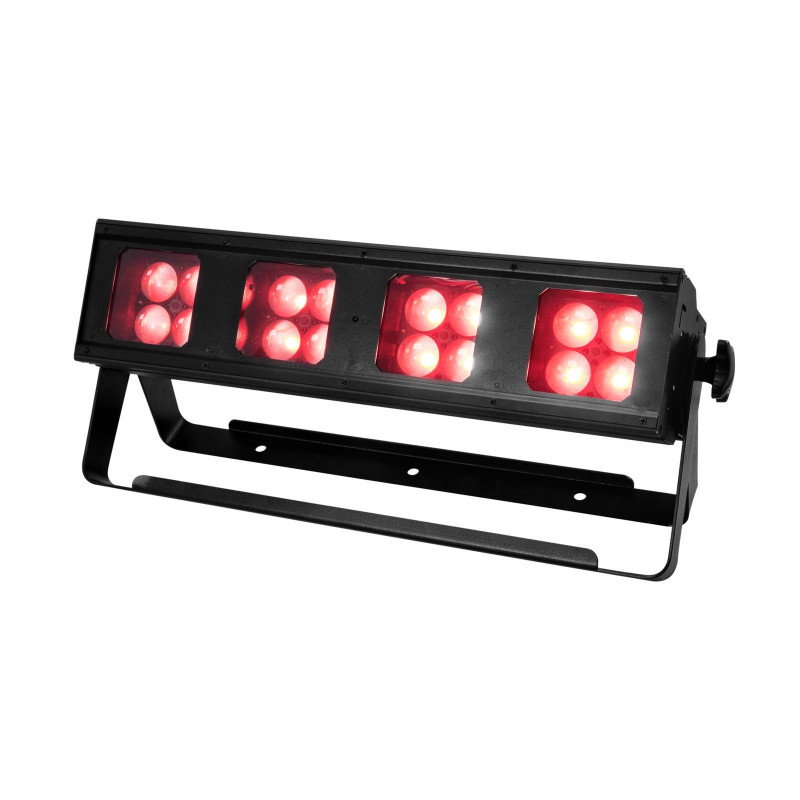

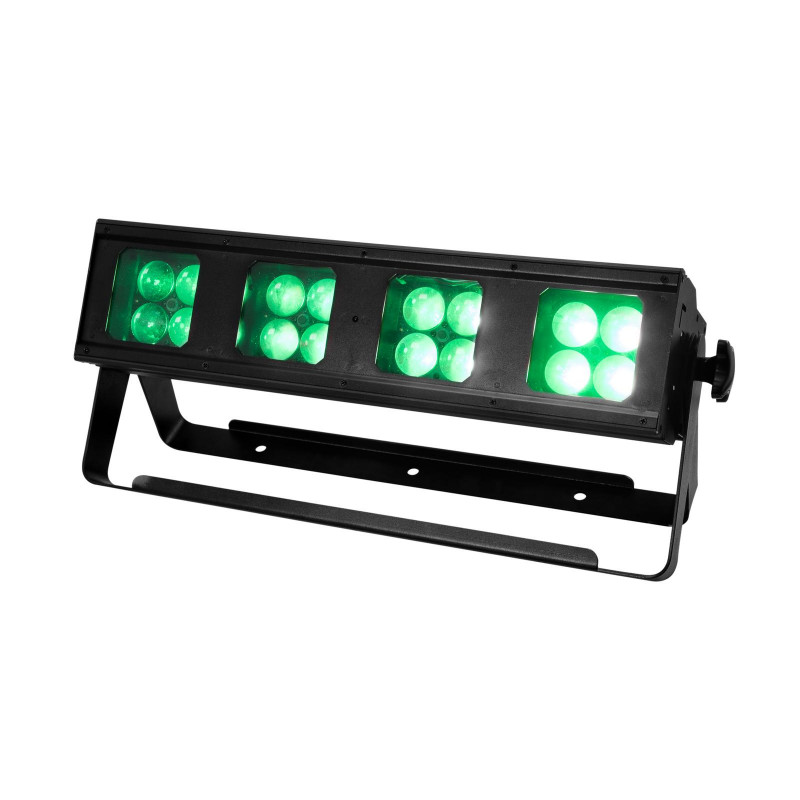

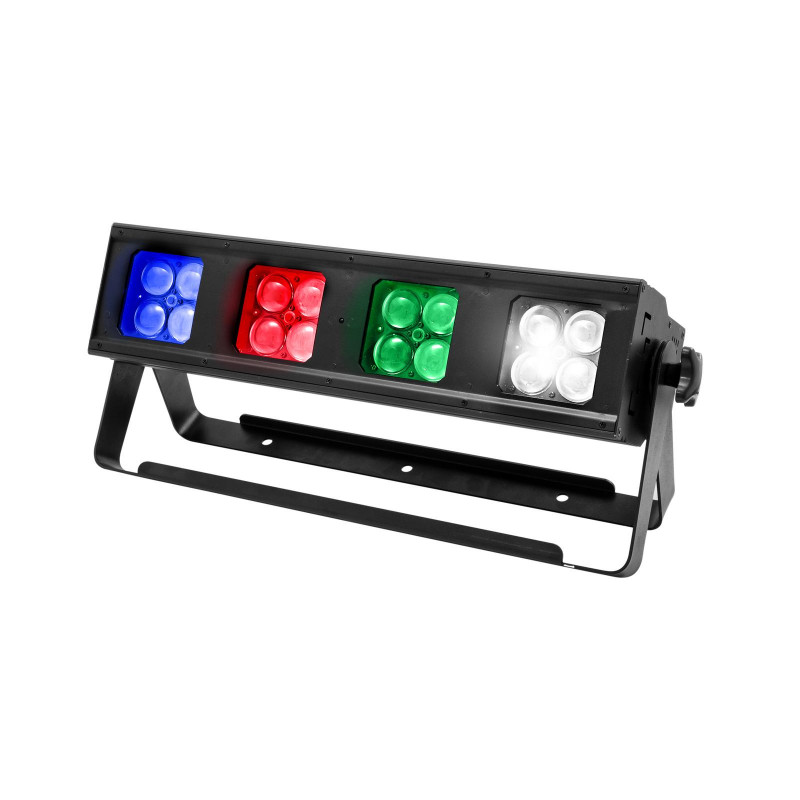

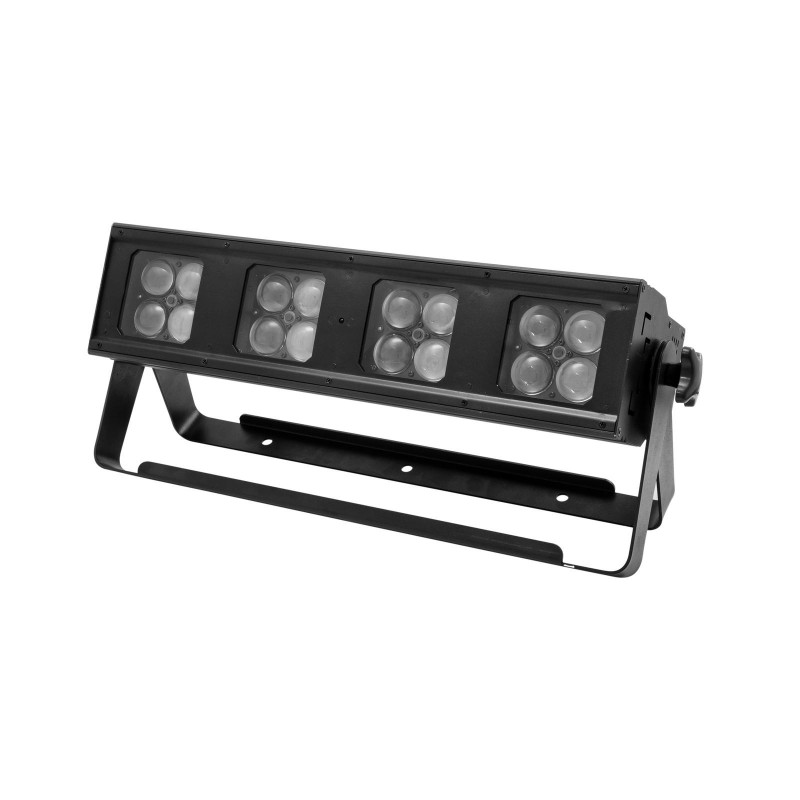

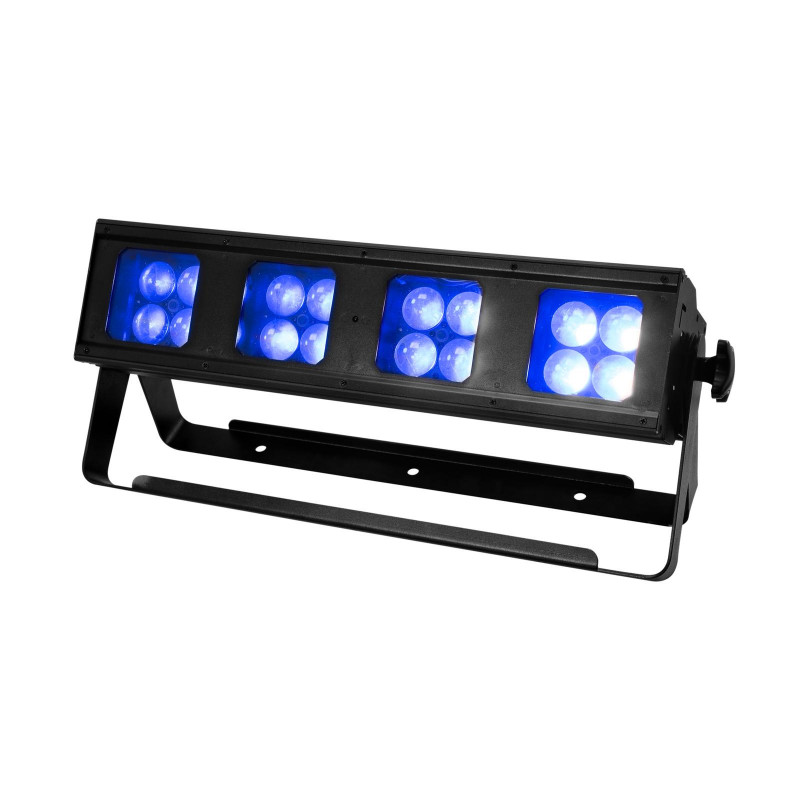

LED zoom effect bar with RGBW color mixing, incl. IR remote control

  • 16 high-power 10 W RGBW LEDs (4in1)
  • 4 segments for dynamic running lights
  • Subdivided into 4 pixels which can be controlled individually by DMX
  • Auto, music, master/slave and DMX mode
  • Built-in auto and music show programs
  • Direct color selection for 17 preset colors
  • Stepless RGBW color blend, color change, color fade, zoom, strobe and dimmer effect
  • Motorized zoom with 5°-75° beam angle
  • Addressing and setting via control panel with 4-digit LED display
  • Convenient wireless control via included IR remote control EUROLITE IR-7
  • Sound-control via built-in microphone with adjustable microphone sensitivity
  • Supports QuickDMX - the wireless DMX system from Eurolite
  • Built-in phantom-powered socket for QuickDMX receivers (accessories)
  • 5, 7, 9, 20 or 26 DMX channels selectable for various applications
  • Swivel mounting bracket
  • Additional bracket for floor use
  • P-Con terminals for power linking up to 8 units
  • Switch-mode power supply for operation between 100 and 240 volts

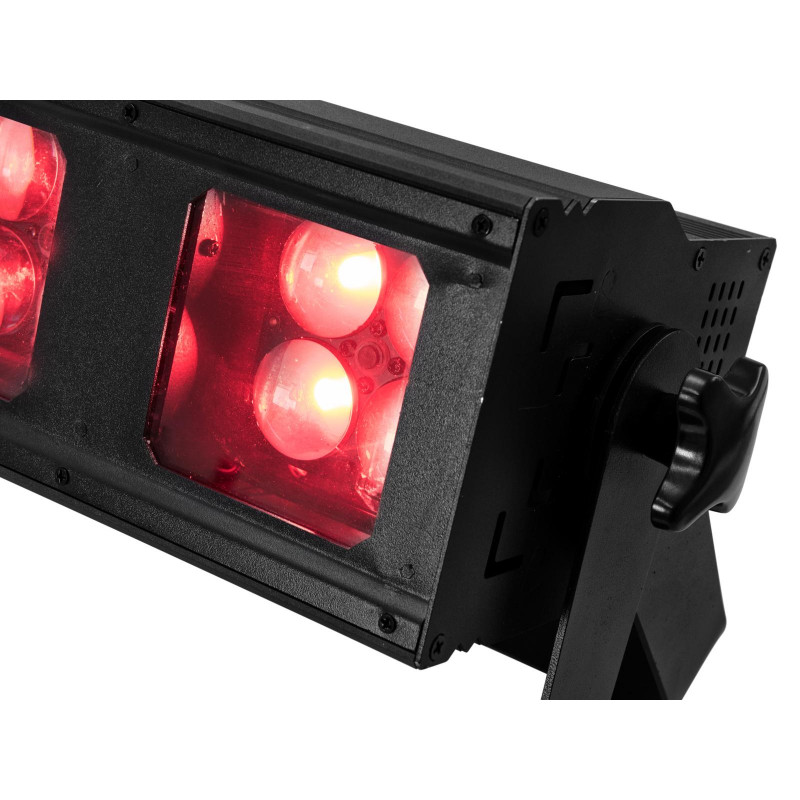

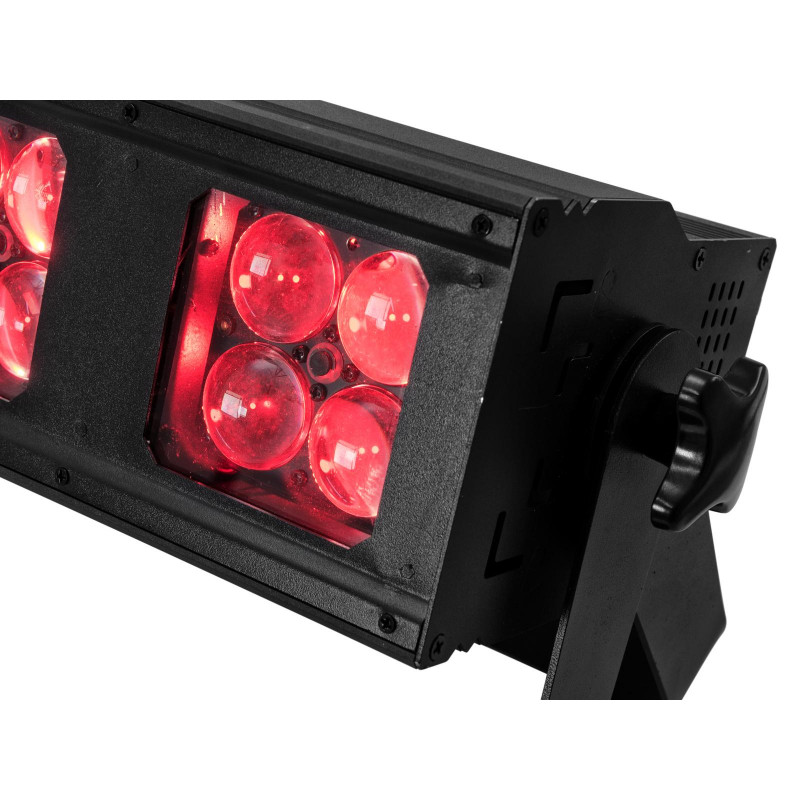

  • LED: 16 x COB (chip-on-board) 10 W 4in1 QCL RGBW (homogenous color mix)
  • Control: QuickDMX via 5-pin XLR (M) mounting version (optional); IR remote control; Stand-alone; Sound to light via Microphone; DMX
  • Projection: flicker-free
  • Effect: Strobe effect


Power supply:100-240 V AC, 50/60 Hz
Power consumption:140 W
IP classification:IP20

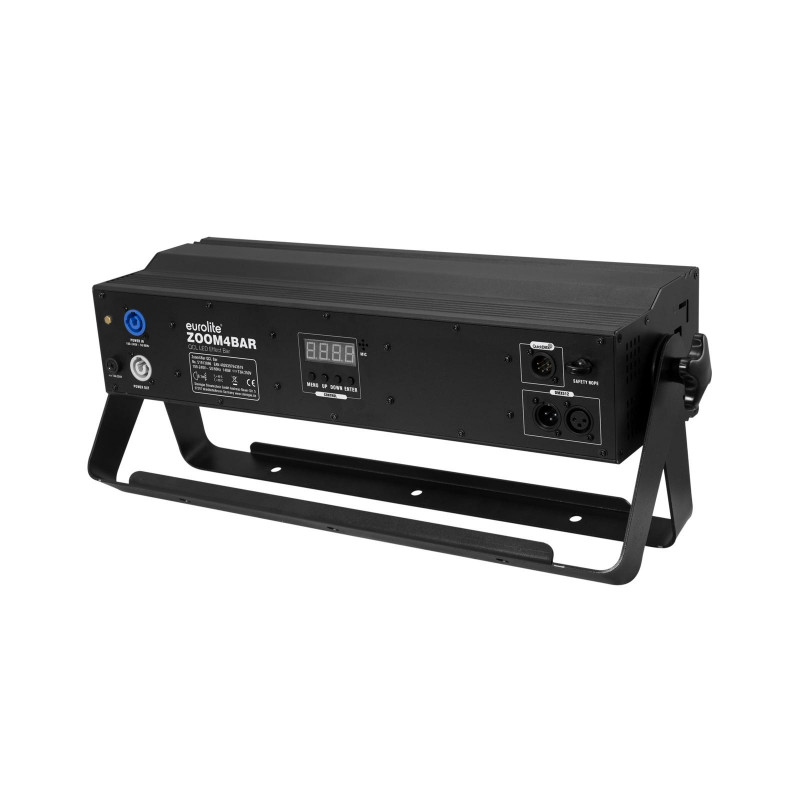

Power connection:Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Power output:1 x P-Con (gray), mounting version
LED:16 x COB (chip-on-board) 10 W 4in1 QCL RGBW (homogenous color mix)
Flash rate:0 - 20 Hz
Equipment:Zoom motor-driven
DMX channels:5; 7; 9; 20; 26
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:QuickDMX via 5-pin XLR (M) mounting version (optional)
IR remote control
Stand-alone
Sound to light via Microphone
DMX
Beam angle (1/2 peak):5 - 75°
Housing color:Black
Width:57.5 cm
Height:23 cm
Depth:19.5 cm
Weight:8.95 kg
Remote control
Battery:1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
